KMC KM722 Technic Wheel

The Technic has a notched lip and a mesh face that cleans up well after a trail day. It comes in 17, 18 and 20 inch sizes across 5-lug, 6-lug and 8-lug patterns for trucks, Jeeps and SUVs.

What you get

• Construction: cast aluminum (KMC Adventure line).
• Load rating: 2500 to 3700 lbs per wheel, depending on size.
• Weight: 27.2 to 39.2 lbs each, depending on size.
• Center bore: varies by bolt pattern, 66.06 to 125.10 mm.

Sizes and fitment

• Sizes: 17x8.5, 18x9, 20x9.
• Bolt patterns: 5x127, 5x150, 6x114.3, 6x120, 6x135, 6x139.7, 8x165.1, 8x170, 8x180.
• Offsets: 0mm, +18mm.

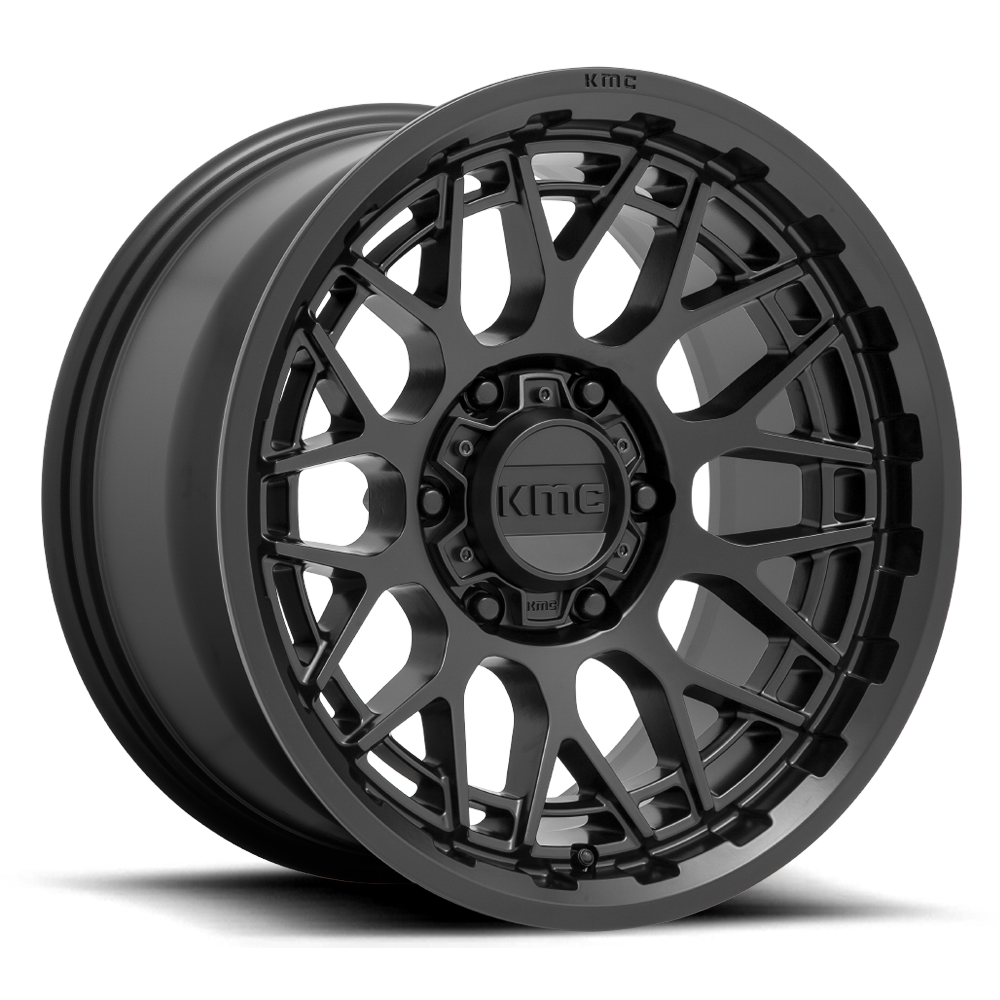

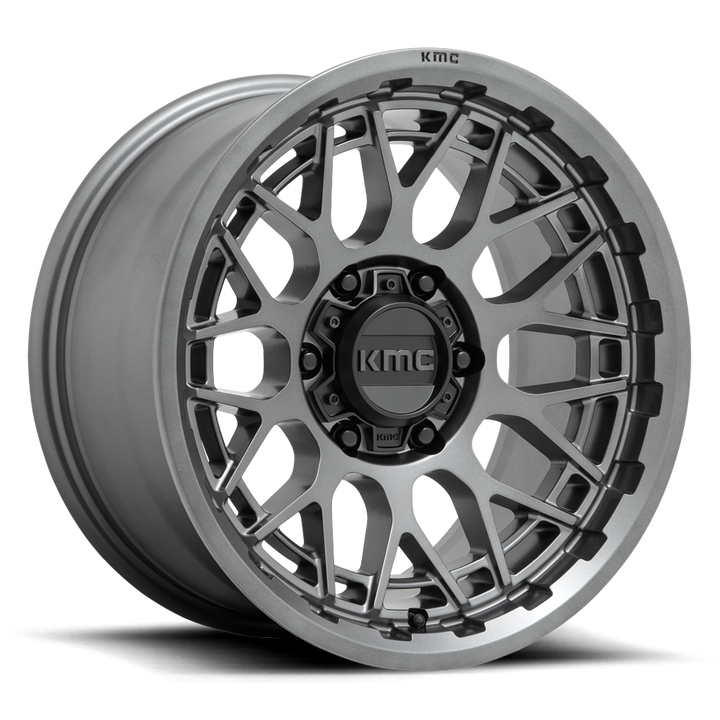

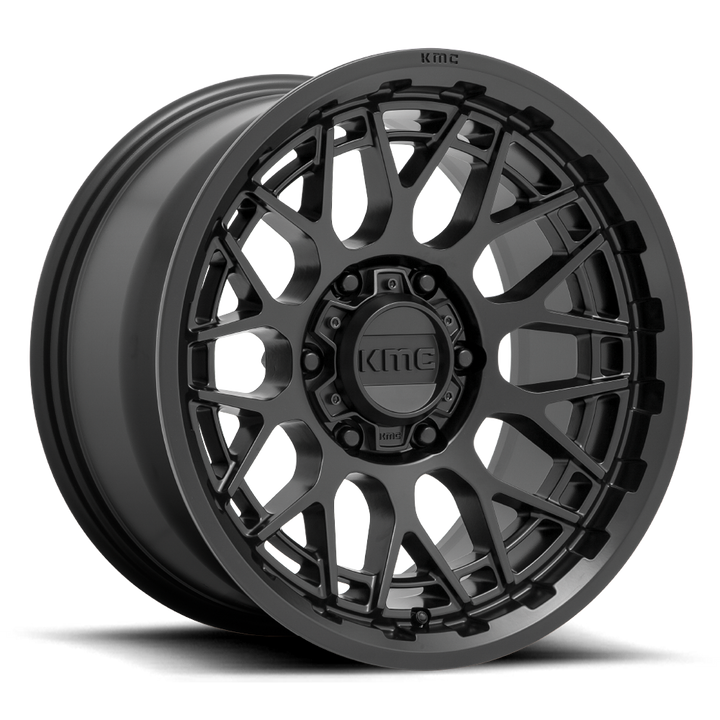

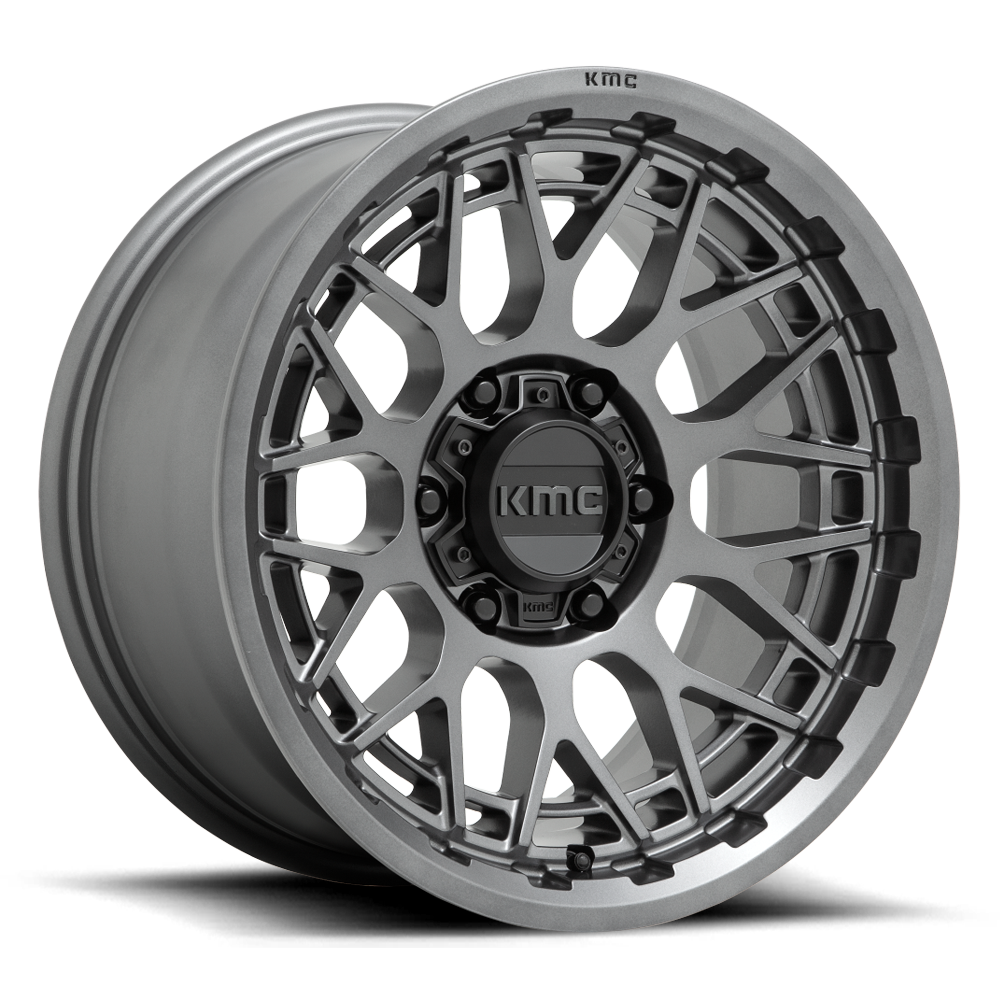

• Finishes: Anthracite, Satin Black.

Pick your wheel

• Finish: pick the color. The photo changes with the finish.
• Size and Bolt Pattern: diameter x width, then the bolt pattern. Match the bolt pattern to your hubs exactly.
• Offset: more negative pushes the wheel out toward the fender, more positive tucks it in. Each offset is a different part number.

Each wheel is sold individually. Not sure which bolt pattern or offset fits your rig? Send us your year, make and model and we will point you to the right part number.
