2020-2025 Jeep Gladiator JT J-Krawl 3-3.5 Inch Lift Kit with FOX 3.0 Factory Race Series Shocks Flex End Control Arms JKS Manufacturing
JSPEC171FRS
2020-2025 Jeep Gladiator JT J-Krawl 3-3.5 Inch Lift Kit with FOX 3.0 Factory Race Series Shocks Flex End Control Arms – JKS Manufacturing part number JSPEC171FRS.
This JKS J-Krawl suspension lift kit is built for the 2020-2025 Jeep Gladiator JT. This part number includes 3-3.5 inches of lift and FOX 3.0 Factory Race Series shocks and flex end control arms. Covered by the JKS Lifetime Warranty for the original retail purchaser.
Designed for maximum articulation, improved strength, and adjustability, these complete J-Krawl systems are available for next-level performance. Components include your choice of J-Flex or J-Link upper and lower control arms, Jspec dual-rate coil springs at each corner designed to level out the stance, and a variety of FOX shock options tailored to your needs. Also included is an adjustable front track bar, quicker disconnect front sway bar end links, rear sway bar links, and bump stop extensions. J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine-tuning suspension geometry. J-Krawl delivers. Dial-in front caster, rear pinion, and overall vehicle wheelbase. The JKS Engineering team spent a lot of time dialing in the FOX shock valving and spring rates to suit J-Krawl's combination of parts as well as oversized wheels and tires. You'll be impressed with the stability and compression/rebound response. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.
Features & Benefits
- Included shocks: FOX 3.0 Factory Race Series (front and rear)
- Control arm bushing option: Flex End
- Front/rear dual-rate coil springs are designed to great ride quality across any terrain while lifting/leveling stance.
- Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front adjustable track bar to correct axle positioning under the vehicle.
- Front sway bar quicker disconnects and rear sway bar links for increased off-road articulation.
- Front/rear bump stop extensions to properly limit suspension up travel.
- Front/rear J-Flex or J-Link upper control arms to add strength and adjustability.
- Front/rear J-Flex or J-Link lower control arms to add strength and adjustability.
- Creates leveled stance
Recommended Tires & Wheels
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
(Trimming may be required)
Important Notes
- Diesel models may achieve up to 1" less lift height
- Kit does not work with the Mojave model
- Lifted 2026 models with 37" all-terrain or mud-terrain tires may experience contact with the intrusion tray at full suspension droop near passenger steering lock. After kit installation, cycle the suspension to verify tire and steering clearances to the tray.

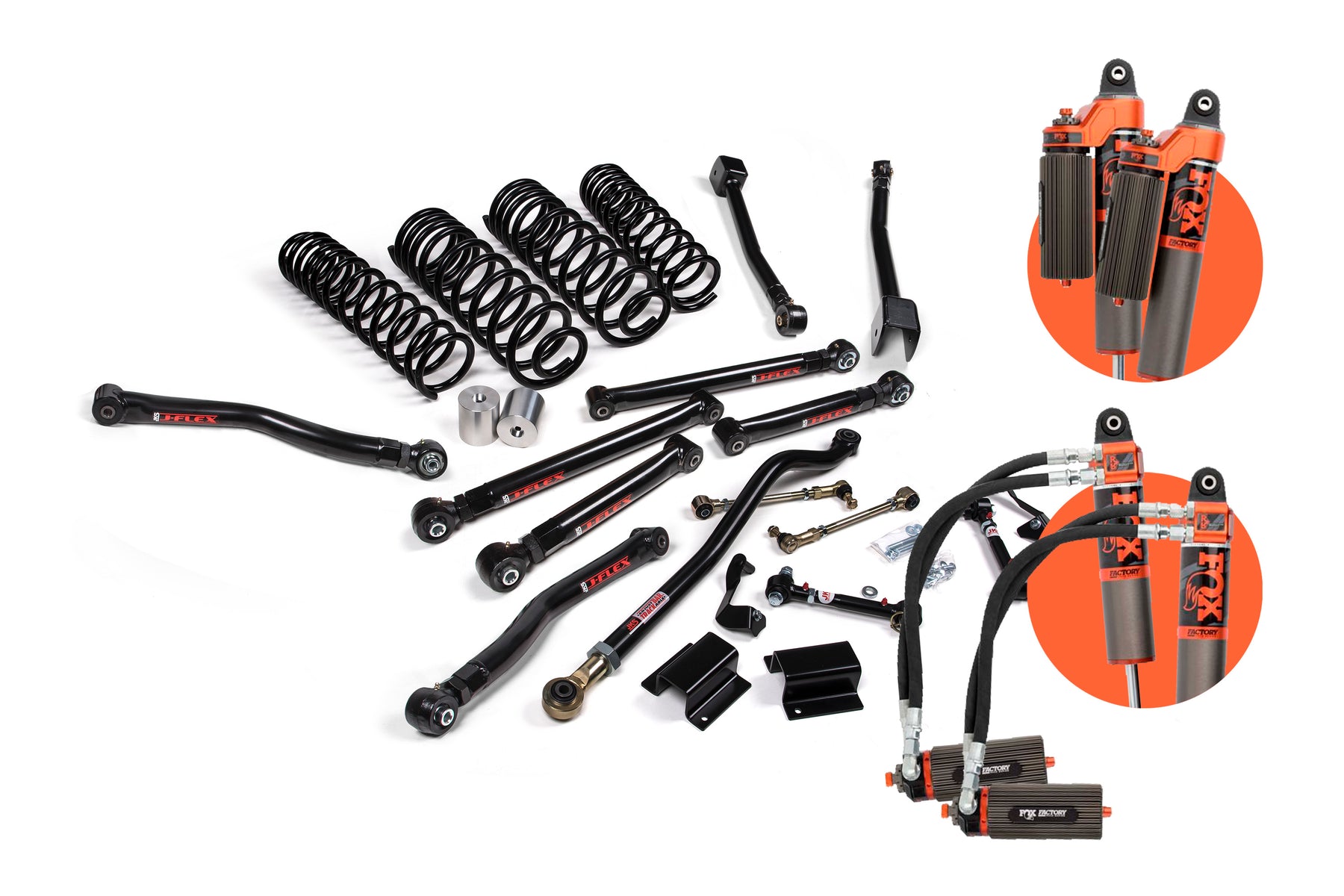

What's included in the kit
- 1 x FOX88326077 – Kit: 2018-2024 Jeep JL, Front, Internal Bypass, 3.0 Series, R/R, 3.5-4.5 inch Lift, DSC, Requires Front Driveshaft
- 1 x FOX88326081 – Kit: 2020-2024 Jeep Gladiator, Rear, Internal Bypass, 3.0 Series, R/R, 2-3 Inch Lift, DSC
- 1 x JKS1616 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Adjustable Front UCA
- 1 x JKS1625 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Front Lower J-Flex Control Arm Kit
- 1 x JKS1662 – 2020-2024 Jeep Gladiator (JT) Rear Adjustable Lower Control Arm Kit
- 1 x JKS1667 – 2020-2024 Jeep Gladiator (JT) Rear Adjustable Upper Control Arm Kit
- 1 x JSPEC1257 – 2020-2023 Jeep Gladiator (JT) Rear 1.5 inch Coil Spring Box Kit
- 1 x JSPEC1304 – 2020-2023 Jeep Gladiator (JT) J-Krawl Main Box Kit
- 1 x JSPEC1352 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) 3.5 inch Front Coil Spring Kit - HD
Specifications
- JKS part number: JSPEC171FRS
- Lift height: 3-3.5 Inch
- Fits: 2020-2025 Jeep Gladiator JT
- Shocks: FOX 3.0 Factory Race Series
- Control arm bushings: Flex End
- Sold as: Kit
- Estimated installation time: 6 hrs
- Installation difficulty: Difficult
- Warranty: JKS Lifetime Warranty (original retail purchaser)
- Country of origin: USA
