2018-2027 Jeep Wrangler JL J-Venture 3 Inch Lift Kit 2 Door with FOX 2.5 IFP Performance Series Shocks Heavy Duty Rate Coils JKS Manufacturing
JSPEC133PS
2018-2027 Jeep Wrangler JL J-Venture 3 Inch Lift Kit 2 Door with FOX 2.5 IFP Performance Series Shocks Heavy Duty Rate Coils – JKS Manufacturing part number JSPEC133PS.
This JKS J-Venture suspension lift kit is built for the 2018-2027 Jeep Wrangler JL 2 Door. This part number includes 3 inches of lift and FOX 2.5 IFP Performance Series shocks, with heavy duty-rate coil springs. Covered by the JKS Lifetime Warranty for the original retail purchaser.
Increase ground clearance and tire clearance on your 2 Door JL Wrangler with a 3" J-Venture suspension system. You get the perfect balance of on and off road capability plus low maintenance. J-Venture lift kits include dual rate front and rear coil springs, specifically-valved gas shocks, a front adjustable track bar, rear track bar bracket, front sway bar Quicker Disconnects, bump stop extensions, and front caster lock plates to dial in geometry. The engineers at JKS custom tune shocks and matching springs to significantly improve ride quality and handling on road, as well as performance off-road. An adjustable track bar helps center the front axle while the Quicker Disconnects improve articulation off-road. Get out and explore with J-Venture.
JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.
Features & Benefits
- Included shocks: FOX 2.5 IFP Performance Series (front and rear)
- Front/Rear Dual Rate Coil Springs (HD rate) designed to great ride quality across any terrain.
- Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front Caster Cam Locks to correct front end caster once lifted.
Recommended Tires & Wheels
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
(Trimming may be required)
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Rear aftermarket driveshaft recommended for 2 Door models
- Shock extension brackets can be used on Rubicon models with stock FOX 2.5 shocks, however this will limit suspension down travel slightly.

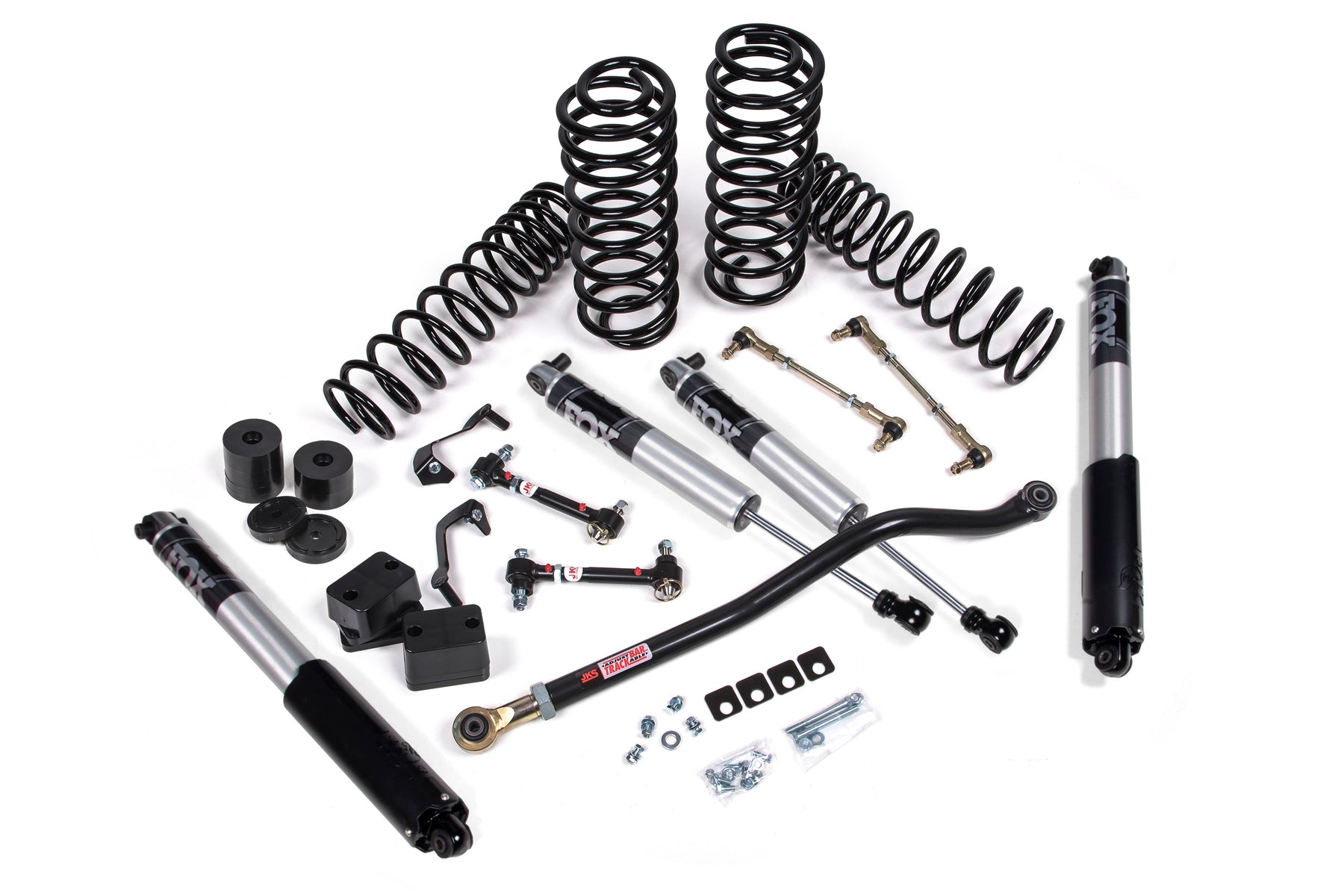

What's included in the kit
- 1 x FOX88624155 – Kit: 2018-2024 Jeep Wrangler JL, Front and Rear, 2-3.5 inch Lift, 2.5, IFP
- 1 x JSPEC1202 – 2018-2024 Jeep Wrangler JL 2.5 inch Box Kit
- 1 x JSPEC1252 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - HD
- 1 x JSPEC1258 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - HD
Specifications
- JKS part number: JSPEC133PS
- Lift height: 3 Inch
- Fits: 2018-2027 Jeep Wrangler JL
- Doors: 2 Door
- Shocks: FOX 2.5 IFP Performance Series
- Coil springs: Heavy Duty Rate
- Sold as: Kit
- Estimated installation time: 6 hrs
- Installation difficulty: Moderately Easy
- Warranty: JKS Lifetime Warranty (original retail purchaser)
- Country of origin: USA
