2018-2027 Jeep Wrangler JL J-Venture 2.5 Inch Lift Kit 4 Door with FOX 2.5 Performance Elite Series Shocks Standard Rate Coils JKS Manufacturing
JSPEC117PES
2018-2027 Jeep Wrangler JL J-Venture 2.5 Inch Lift Kit 4 Door with FOX 2.5 Performance Elite Series Shocks Standard Rate Coils – JKS Manufacturing part number JSPEC117PES.
This JKS J-Venture suspension lift kit is built for the 2018-2027 Jeep Wrangler JL 4 Door. This part number includes 2.5 inches of lift and FOX 2.5 Performance Elite Series shocks, with standard-rate coil springs. Covered by the JKS Lifetime Warranty for the original retail purchaser.
Increase your Jeep Wrangler JL 4-Door's ground clearance, tire clearance and performance with a J-Venture 2.5" suspension system. This complete, bolt-on system includes matched JSPEC dual-rate coil springs, custom-valved FOX monotube gas shocks, front adjustable track bar, rear track bar bracket, front sway bar Quicker disconnects, bump stop extensions, and caster plate alignment correction. On the street, J-Venture provides exceptional ride quality and handling. When the road ends, disconnect your sway bar end links for improved articulation. That makes J-Venture the perfect entry-level performance suspension system. J-Venture is designed for equal parts on-road handling and off-road use with low maintenance in mind. Get out and explore with J-Venture.
JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.
Features & Benefits
- Included shocks: FOX 2.5 Performance Elite Series (front and rear)
- Front and rear dual rate coils springs (standard rate)
- JKS MFG front adjustable trackbar
- JKS MFG front sway bar quicker disconnects
- Front caster cam locks
- Front/Rear bump stop extensions
- Rear extended sway bar links
- Rear track bar bracket
Recommended Tires & Wheels
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
(Trimming may be required)
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Will not fit 4xe models
- Will not fit Rubicon 392 models

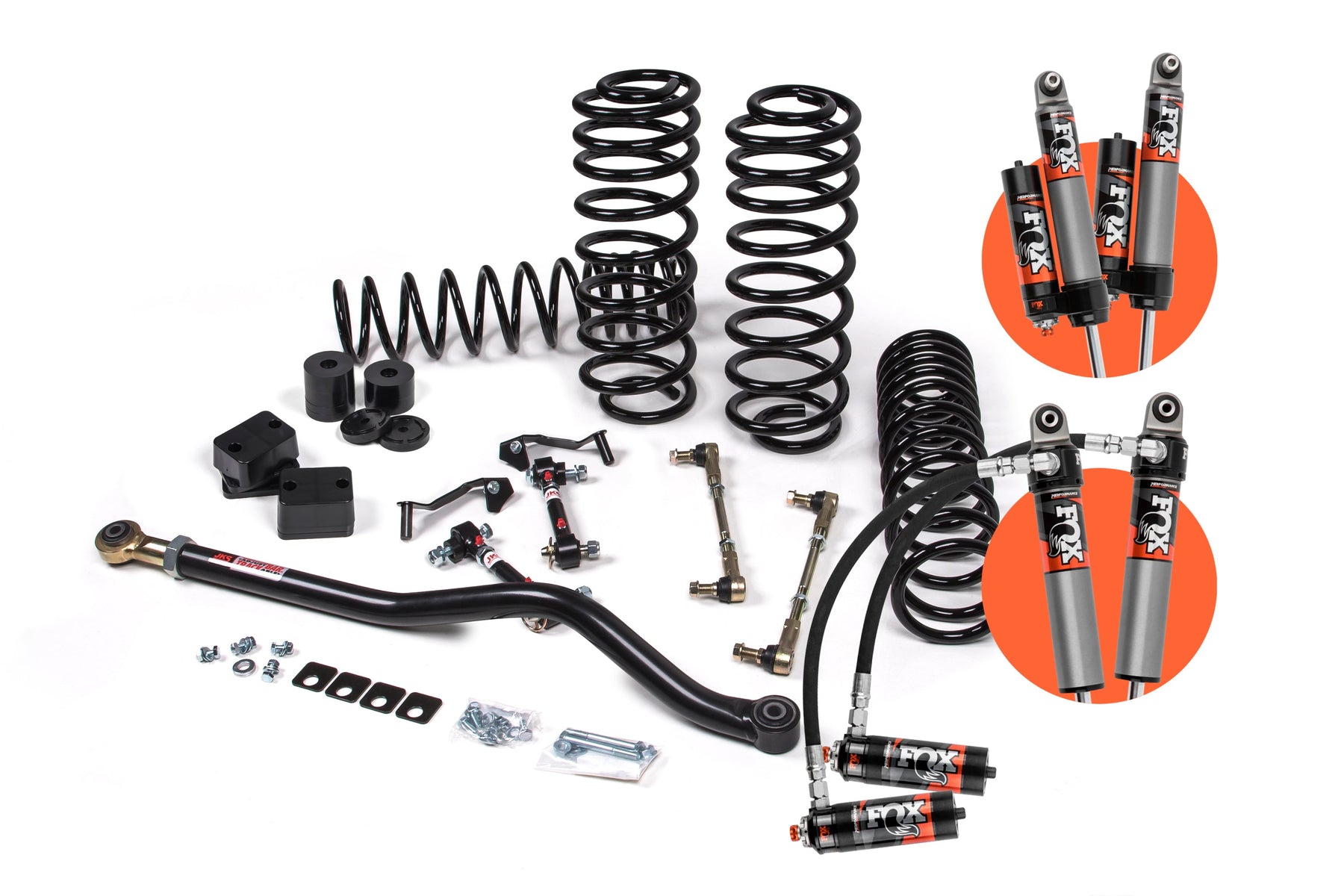

What's included in the kit
- 1 x FOX88326050 – Kit: 2018-2024 Jeep JL, Front, 2.5 Truck PES, R/R, 2-3 inch Lift, DSC
- 1 x FOX88326054 – Kit: 2018-2024 Jeep JL, Rear, 2.5 Truck PES, P/B, 2-3 inch Lift, DSC
- 1 x JSPEC1202 – 2018-2024 Jeep Wrangler JL 2.5 inch Box Kit
- 1 x JSPEC1251 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - STD
- 1 x JSPEC1259 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - STD
Specifications
- JKS part number: JSPEC117PES
- Lift height: 2.5 Inch
- Fits: 2018-2027 Jeep Wrangler JL
- Doors: 4 Door
- Shocks: FOX 2.5 Performance Elite Series
- Coil springs: Standard Rate
- Sold as: Kit
- Estimated installation time: 6 hrs
- Installation difficulty: Moderately Easy
- Warranty: JKS Lifetime Warranty (original retail purchaser)
- Country of origin: USA
