2018-2027 Jeep Wrangler JL J-Krawl 3 Inch Lift Kit 2 Door with FOX 2.5 Performance Elite Series Shocks Standard Rate Coils Flex End Control Arms JKS Manufacturing
JSPEC147PES
2018-2027 Jeep Wrangler JL J-Krawl 3 Inch Lift Kit 2 Door with FOX 2.5 Performance Elite Series Shocks Standard Rate Coils Flex End Control Arms – JKS Manufacturing part number JSPEC147PES.
This JKS J-Krawl suspension lift kit is built for the 2018-2027 Jeep Wrangler JL 2 Door. This part number includes 3 inches of lift and FOX 2.5 Performance Elite Series shocks, with standard-rate coil springs and flex end control arms. Covered by the JKS Lifetime Warranty for the original retail purchaser.
From hardcore rock crawling to high-speed desert, the J-Krawl System brings a level of performance and adjustability that makes it the go to package for many Jeep enthusiasts. These systems build on the base systems and add components for a full overhaul of the factory suspension to maximum articulation, strength and allow for adjustability. Components include J-Flex or J-Link upper and lower control arms, Jspec dual rate coil springs, an adjustable front track bar, a rear track bar bracket, quicker disconnect front sway bar end links, and bump stop extensions. Choose from a variety of FOX shock options tailored to your needs. Each setup ensures superior ride quality, letting you conquer rugged trails while maintaining daily driving comfort. J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine tuning suspension geometry. J-Krawl delivers. Dial in front caster, rear pinion and overall vehicle wheelbase. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.
JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.
Forged flex end and jam nut. Flex end design allows for 30 degrees of misalignment (15 in either direction) for impressive articulation and are greaseable to ensure long bushing life. Completely rebuildable and serviceable on the trail with JKS Flex Joint tools.
Features & Benefits
- Included shocks: FOX 2.5 Performance Elite Series (front and rear)
- Control arm bushing option: Flex End
- Front/Rear Dual Rate Coil Springs (standard rate) designed to great ride quality across any terrain.
- Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front/Rear J-Flex Upper Control Arms to add strength and adjustability.
- Front/Rear J-Flex Lower Control Arms to add strength and adjustability.
Recommended Tires & Wheels
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
(Trimming may be required)
Important Notes
- Diesel models may achieve up to 1" less lift height
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Front aftermarket driveshaft strongly recommended due to additional travel capability
- Will not fit 4xe models
- Will not fit Rubicon 392 models

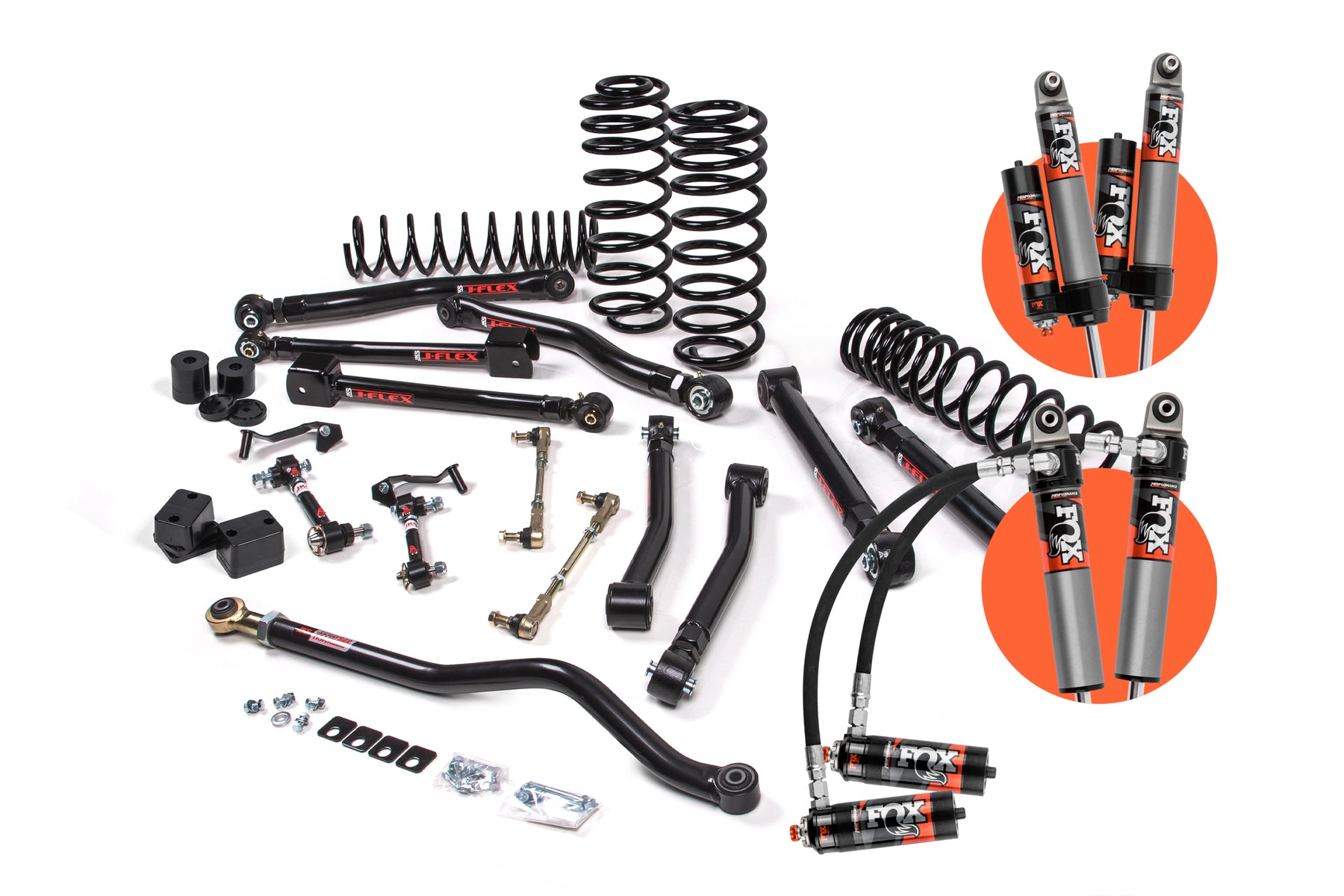

What's included in the kit
- 1 x FOX88326051 – Kit: 2018-2024 Jeep JL, Front, 2.5 Truck PES, R/R, 3.5-4 inch Lift, DSC
- 1 x FOX88326055 – Kit: 2018-2024 Jeep JL, Rear, 2.5 Truck PES, P/B, 3.5-4 inch Lift, DSC
- 1 x JKS1616 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Adjustable Front UCA
- 1 x JKS1625 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Front Lower J-Flex Control Arm Kit
- 1 x JKS1661 – 2018-2024 Jeep Wrangler JL Rear Adjustable LCA
- 1 x JKS1666 – 2018-2024 Jeep Wrangler JL/2007-2024 Jeep Wrangler JK Rear Adjustable UCA
- 1 x JSPEC1251 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - STD
- 1 x JSPEC1259 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - STD
- 1 x JSPEC1312 – 2018-2024 Jeep Wrangler (JL) J-Krawl Main Box Kit
Specifications
- JKS part number: JSPEC147PES
- Lift height: 3 Inch
- Fits: 2018-2027 Jeep Wrangler JL
- Doors: 2 Door
- Shocks: FOX 2.5 Performance Elite Series
- Coil springs: Standard Rate
- Control arm bushings: Flex End
- Sold as: Kit
- Estimated installation time: 6-8 hrs
- Installation difficulty: Moderate
- Warranty: JKS Lifetime Warranty (original retail purchaser)
- Country of origin: USA
Resources
