2018-2027 Jeep Wrangler JL J-Krawl 3.5 Inch Lift Kit 4 Door with FOX 3.0 Factory Race Series Shocks Standard Rate Coils Flex End Control Arms JKS Manufacturing
JSPEC127FRS
2018-2027 Jeep Wrangler JL J-Krawl 3.5 Inch Lift Kit 4 Door with FOX 3.0 Factory Race Series Shocks Standard Rate Coils Flex End Control Arms – JKS Manufacturing part number JSPEC127FRS.
This JKS J-Krawl suspension lift kit is built for the 2018-2027 Jeep Wrangler JL 4 Door. This part number includes 3.5 inches of lift and FOX 3.0 Factory Race Series shocks, with standard-rate coil springs and flex end control arms. Covered by the JKS Lifetime Warranty for the original retail purchaser.
JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.
Forged flex end and jam nut. Flex end design allows for 30 degrees of misalignment (15 in either direction) for impressive articulation and are greaseable to ensure long bushing life. Completely rebuildable and serviceable on the trail with JKS Flex Joint tools.
Features & Benefits
- Included shocks: FOX 3.0 Factory Race Series (front and rear)
- Control arm bushing option: Flex End
- F/R Dual Rate Coil Springs (standard rate) designed to great ride quality across any terrain.
- Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- F/R Bump Stop Extensions to properly limit suspension up travel.
- F/R J-Flex or J-Link Upper Control Arms to add strength and adjustability.
- F/R J-Flex or J-Link Lower Control Arms to add strength and adjustability.
Recommended Tires & Wheels
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
(Trimming may be required)
Important Notes
- Diesel models may achieve up to 1" less lift height
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Front aftermarket driveshaft strongly recommended due to additional travel capability
- Will not fit 4xe models
- Will not fit Rubicon 392 models

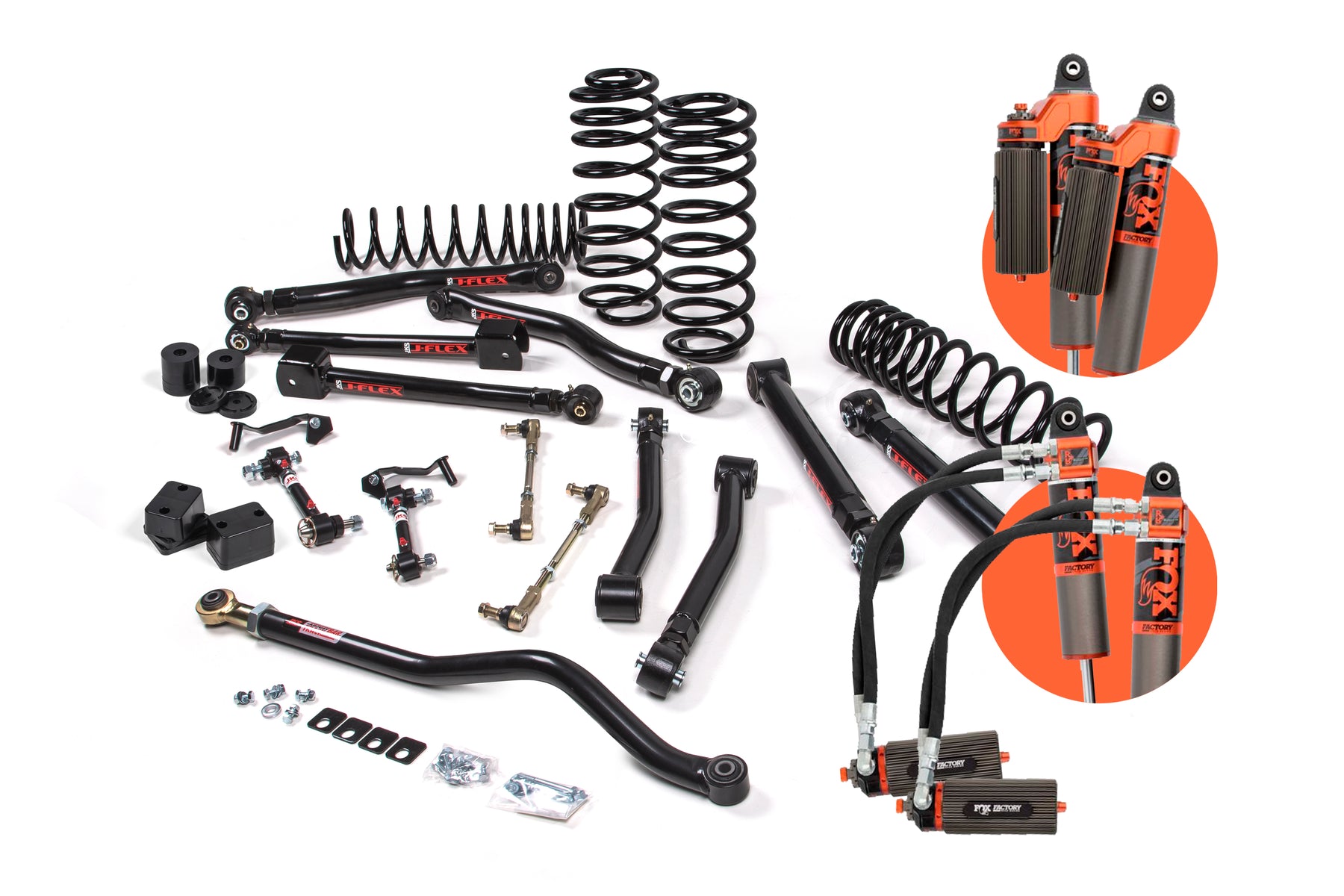

What's included in the kit
- 1 x FOX88326057 – Kit: 2018-2024 Jeep JL, Front, Internal Bypass, 3.0 Series, R/R, 8.8 inch, 2-3 inch Lift, DSC
- 1 x FOX88326058 – Kit: 2018-2024 Jeep JL, Rear, Internal Bypass, 3.0 Series, P/B, 9.8 inch, 2-3 inch Lift, DSC
- 1 x JKS1616 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Adjustable Front UCA
- 1 x JKS1625 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Front Lower J-Flex Control Arm Kit
- 1 x JKS1661 – 2018-2024 Jeep Wrangler JL Rear Adjustable LCA
- 1 x JKS1666 – 2018-2024 Jeep Wrangler JL/2007-2024 Jeep Wrangler JK Rear Adjustable UCA
- 1 x JSPEC1312 – 2018-2024 Jeep Wrangler (JL) J-Krawl Main Box Kit
- 1 x JSPEC1351 – 2018-2024 Jeep Wrangler (JL) 3.5 inch Front Coil Spring Kit - STD
- 1 x JSPEC1359 – 2018-2024 Jeep Wrangler (JL) 3.5 inch Rear Coil Spring Kit - STD
Specifications
- JKS part number: JSPEC127FRS
- Lift height: 3.5 Inch
- Fits: 2018-2027 Jeep Wrangler JL
- Doors: 4 Door
- Shocks: FOX 3.0 Factory Race Series
- Coil springs: Standard Rate
- Control arm bushings: Flex End
- Sold as: Kit
- Estimated installation time: 6-8 hrs
- Installation difficulty: Moderately Easy
- Warranty: JKS Lifetime Warranty (original retail purchaser)
- Country of origin: USA
