2020-2025 Jeep Wrangler JL Diesel/392 J-Krawl 3.5 Inch Lift Kit 4 Door with FOX 2.0 Adventure Series Shocks Flex End Control Arms JKS Manufacturing
JSPEC161KFA
2020-2025 Jeep Wrangler JL Diesel/392 J-Krawl 3.5 Inch Lift Kit 4 Door with FOX 2.0 Adventure Series Shocks Flex End Control Arms – JKS Manufacturing part number JSPEC161KFA.
This JKS J-Krawl suspension lift kit is built for the 2020-2025 Jeep Wrangler JL Diesel and 392 models 4 Door. This part number includes 3.5 inches of lift and FOX 2.0 Adventure Series shocks and flex end control arms. Covered by the JKS Lifetime Warranty for the original retail purchaser.
The hardcore rock crawling suspension choice for your 4-Door Diesel Jeep Wrangler JL is a J-Krawl 3.5" lift kit. The complete system is designed for maximum articulation, strength and adjustability. Components include J-Flex or J-Link Upper and Lower Control Arms, JSPEC dual rate coil springs, custom-valved FOX shock options tailored to your needs, an adjustable front track bar, a rear track bar bracket, Quicker Disconnect front sway bar end links, and bump stop extensions. J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine tuning suspension geometry. J-Krawl delivers. Dial in front caster, rear pinion and overall vehicle wheelbase. The JKS Engineering team spent a lot of time dialing in the FOX shock valving and spring rates to suit J-Krawl's combination of parts as well as oversized wheels and tires. You'll be impressed with the stability and compression/rebound response. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.
Features & Benefits
- Included shocks: FOX 2.0 Adventure Series (front and rear)
- Control arm bushing option: Flex End
- Front/Rear Dual Rate Coil Springs designed to great ride quality across any terrain.
- Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
- HD springs offer additional load capacity for vehicles equipped with winch bumper, fullsize spare, roof rack, etc.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased off-road articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front/Rear J-Flex or J-Link Upper Control Arms to add strength and adjustability.
- Front/Rear J-Flex or J-Link Lower Control Arms to add strength and adjustability.
Recommended Tires & Wheels
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
(Trimming may be required)
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Front aftermarket driveshaft strongly recommended due to additional travel capability

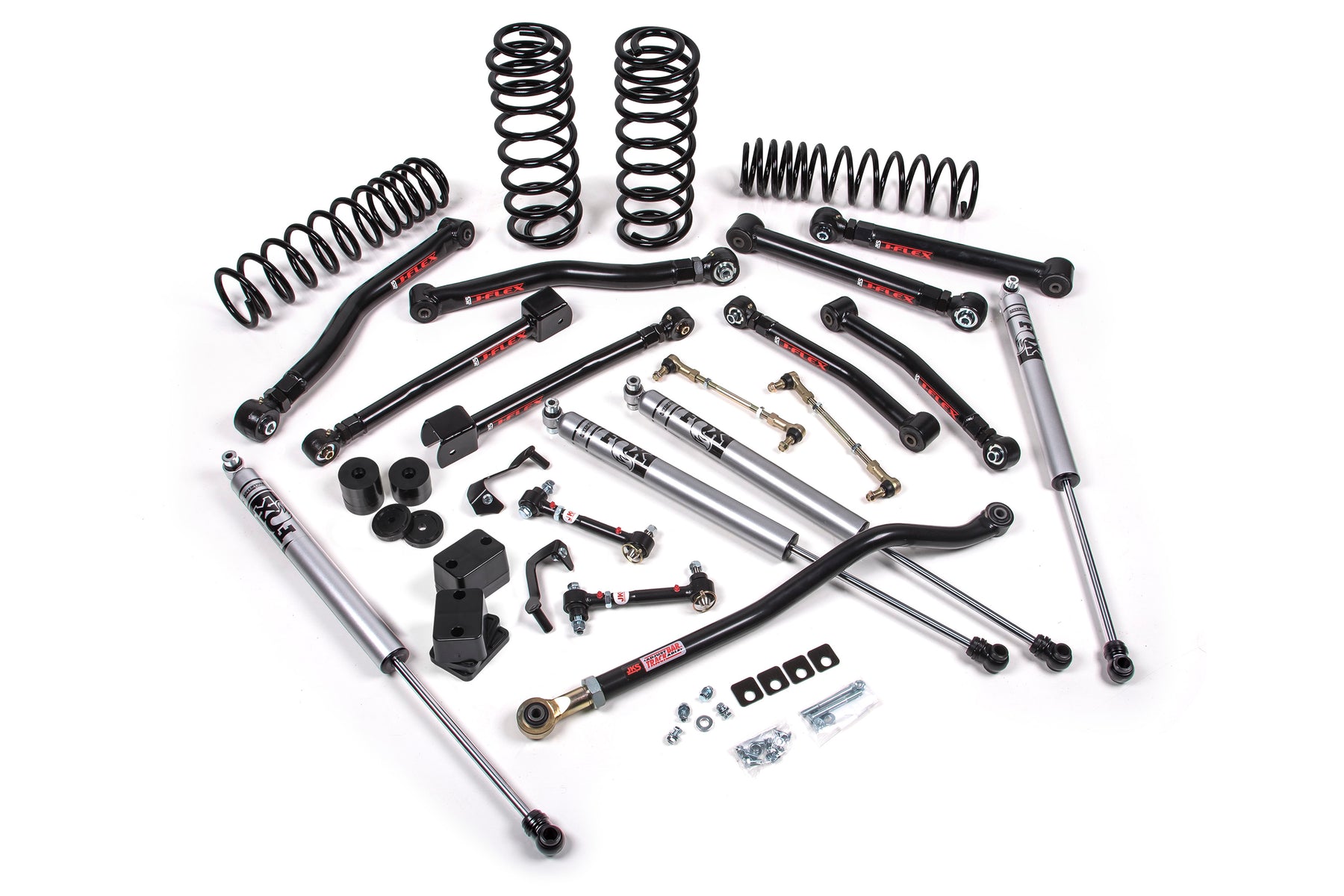

What's included in the kit
- 2 x FOX98450323 – 2018-2024 FOX Adv Shock 26.86 x 16.76 x 2 EB1/EB1
- 2 x FOX98450328 – 2018-2024 FOX Adv Shock 31.06 x 18.96 x 2 EB1/EB1
- 1 x JKS1616 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Adjustable Front UCA
- 1 x JKS1625 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Front Lower J-Flex Control Arm Kit
- 1 x JKS1661 – 2018-2024 Jeep Wrangler JL Rear Adjustable LCA
- 1 x JKS1666 – 2018-2024 Jeep Wrangler JL/2007-2024 Jeep Wrangler JK Rear Adjustable UCA
- 1 x JSPEC1312 – 2018-2024 Jeep Wrangler (JL) J-Krawl Main Box Kit
- 1 x JSPEC1352 – 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) 3.5 inch Front Coil Spring Kit - HD
- 1 x JSPEC1359 – 2018-2024 Jeep Wrangler (JL) 3.5 inch Rear Coil Spring Kit - STD
Specifications
- JKS part number: JSPEC161KFA
- Lift height: 3.5 Inch
- Fits: 2020-2025 Jeep Wrangler JL Diesel and 392
- Doors: 4 Door
- Shocks: FOX 2.0 Adventure Series
- Control arm bushings: Flex End
- Sold as: Kit
- Estimated installation time: 7-9 hrs
- Installation difficulty: Difficult
- Warranty: JKS Lifetime Warranty (original retail purchaser)
- Country of origin: USA
