2020-2025 Jeep Wrangler JL Diesel/392 J-Kontrol 2.5 Inch Lift Kit 4 Door with FOX 2.0 Adventure Series Shocks JKS Manufacturing

2020-2025 Jeep Wrangler JL Diesel/392 J-Kontrol 2.5 Inch Lift Kit 4 Door with FOX 2.0 Adventure Series Shocks – JKS Manufacturing part number JSPEC166KFA.

This JKS J-Kontrol suspension lift kit is built for the 2020-2025 Jeep Wrangler JL Diesel and 392 models 4 Door. This part number includes 2.5 inches of lift and FOX 2.0 Adventure Series shocks. Covered by the JKS Lifetime Warranty for the original retail purchaser.

Improve the ground clearance and off road capability of your Diesel 4 Door Jeep Wrangler JL with the JKS J-Kontrol 2.5" lift kit. The J-Kontrol lift retains your OE control arms, but steps up the rest of your suspension. J-Kontrol kits feature Diesel specific dual rate coil springs, adjustable front track bars, a choice of specially-valved FOX shock options tailored to your needs, sway bar Quicker Disconnects, and front control arm correction brackets as well as all other hardware to complete the 2.5" lift. The J-Kontrol 2.5" lift suspension kit is the perfect daily driver, weekend wheeler system. J-Kontrol system's front control arm correction brackets further enhance the on-road handling by flattening out the control arm to more closely mimic factory angles while correcting caster. With a matched combination of parts, J-Kontrol systems offer very solid performance without compromising daily-driver comfort. If you spend a good amount of time on the trails, take control with J-Kontrol.

Features & Benefits

• Included shocks: FOX 2.0 Adventure Series (front and rear)
• Front/Rear Dual Rate Coil Springs designed for the Diesel to provide great ride quality across any terrain.
• Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
• Front/Rear Bump Stop Extensions to properly limit suspension up travel.
• Front Control Arm Correction Brackets to flatten upper/lower control arm angles to correct caster and improve handling.

Recommended Tires & Wheels

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace
• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

(Trimming may be required)

Important Notes

• 392 models may achieve up to 1.5" less lift depending on factory equipped package

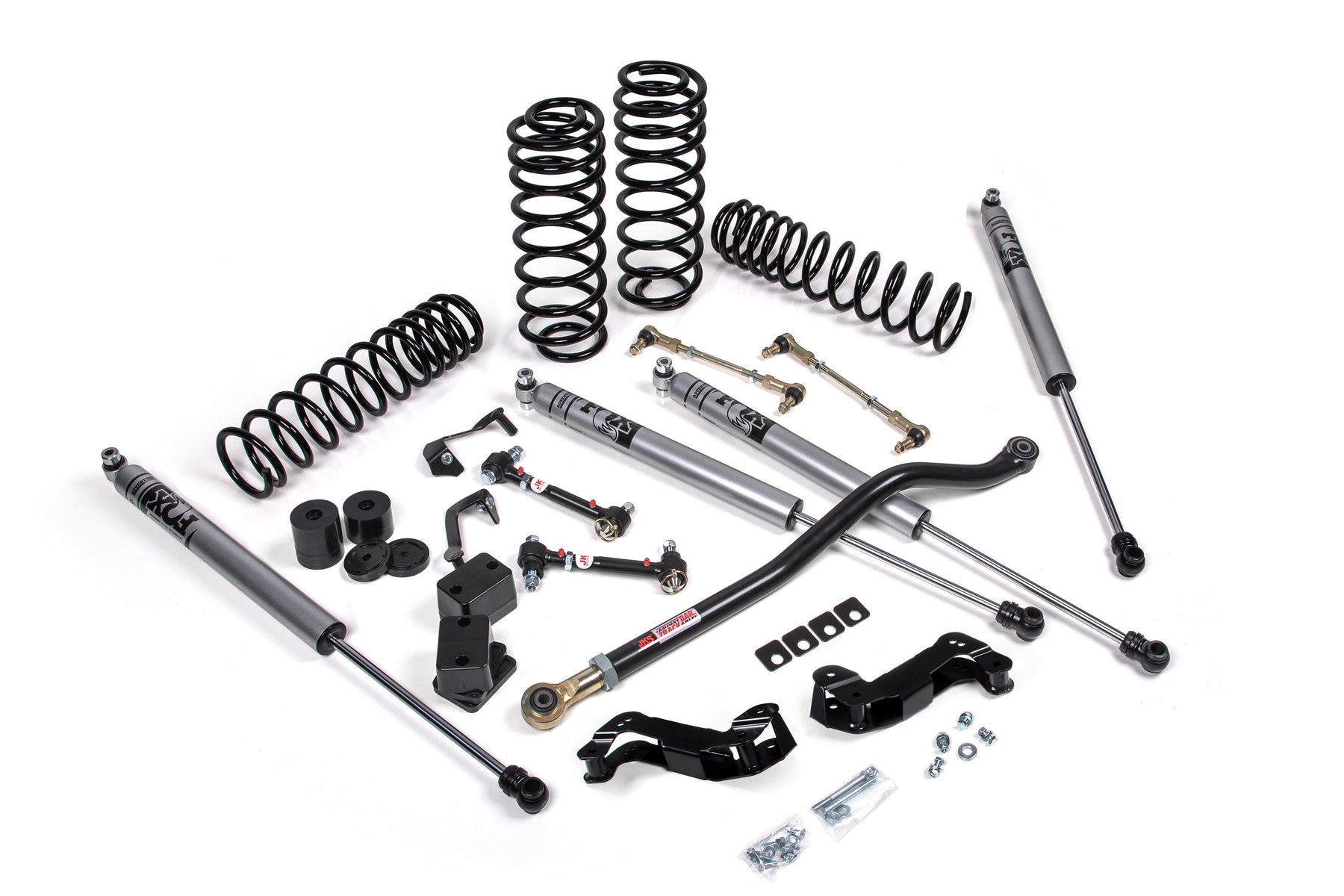

What's included in the kit

• 2 x FOX98450323 – 2018-2024 FOX Adv Shock 26.86 x 16.76 x 2 EB1/EB1
• 2 x FOX98450327 – 2018-2024 FOX Adv Shock 30.06 x 18.46 x 2 EB1/EB1
• 1 x JKS6201 – 2018-2024 Jeep Wrangler JL Control Arm Correction Brackets
• 1 x JSPEC1252 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - HD
• 1 x JSPEC1259 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - STD
• 1 x JSPEC1310 – 2018-2024 Jeep Wrangler (JL) J-Kontrol Main Box Kit

Specifications

• JKS part number: JSPEC166KFA
• Lift height: 2.5 Inch
• Fits: 2020-2025 Jeep Wrangler JL Diesel and 392
• Doors: 4 Door
• Shocks: FOX 2.0 Adventure Series
• Sold as: Kit
• Estimated installation time: 7 hrs
• Installation difficulty: Moderately Easy
• Warranty: JKS Lifetime Warranty (original retail purchaser)
• Country of origin: USA

Resources

• Installation guide (PDF)
