2018-2027 Jeep Wrangler JL J-Konnect 3 Inch Lift Kit 2 Door with FOX 2.0 Adventure Series Shocks Standard Rate Coils JKS Manufacturing

2018-2027 Jeep Wrangler JL J-Konnect 3 Inch Lift Kit 2 Door with FOX 2.0 Adventure Series Shocks Standard Rate Coils – JKS Manufacturing part number JSPEC145KFA.

This JKS J-Konnect suspension lift kit is built for the 2018-2027 Jeep Wrangler JL 2 Door. This part number includes 3 inches of lift and FOX 2.0 Adventure Series shocks, with standard-rate coil springs. Covered by the JKS Lifetime Warranty for the original retail purchaser.

JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.

Features & Benefits

• Included shocks: FOX 2.0 Adventure Series (front and rear)
• Front/Rear Dual Rate Coil Springs (standard rate) designed to great ride quality across any terrain.
• Front/Rear FOX Shocks, specifically valved for this suspension system for improved performance on and off-road.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
• Front/Rear Bump Stop Extensions to properly limit suspension up travel.
• Front/Rear J-Link Lower Control Arms to add strength and correct caster.

Recommended Tires & Wheels

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace
• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

(Trimming may be required)

Important Notes

• Factory wheels cannot be reinstalled without wheel spacers
• HD front springs recommended for applications with aftermarket winch/bumper combo
• HD rear springs recommended for applications with rear mounted full size spare tire
• Rear aftermarket driveshaft recommended for 2 Door models
• Shock extension brackets can be used on Rubicon models with stock FOX 2.5 shocks, however this will limit suspension down travel slightly.

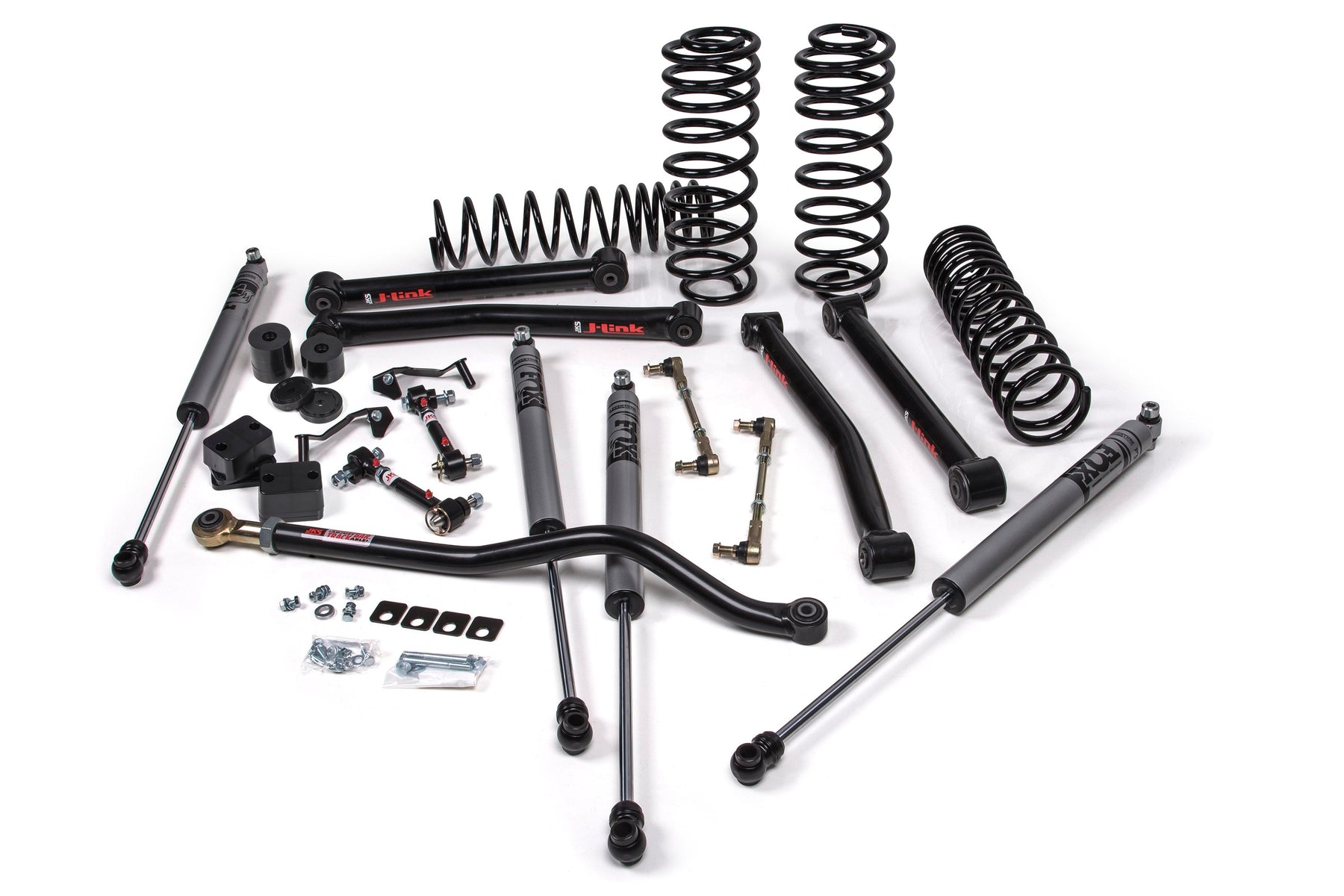

What's included in the kit

• 2 x FOX98450323 – 2018-2024 FOX Adv Shock 26.86 x 16.76 x 2 EB1/EB1
• 2 x FOX98450327 – 2018-2024 FOX Adv Shock 30.06 x 18.46 x 2 EB1/EB1
• 1 x JKS1621 – 2018-2024 Jeep Wrangler JL Fixed Front LCA - J-Link
• 1 x JKS1671 – 2018-2024 Jeep Wrangler JL Fixed Rear LCA - J-Link
• 1 x JSPEC1251 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - STD
• 1 x JSPEC1259 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - STD
• 1 x JSPEC1311 – 2018-2024 Jeep Wrangler (JL) J-Konnect Main Box Kit

Specifications

• JKS part number: JSPEC145KFA
• Lift height: 3 Inch
• Fits: 2018-2027 Jeep Wrangler JL
• Doors: 2 Door
• Shocks: FOX 2.0 Adventure Series
• Coil springs: Standard Rate
• Sold as: Kit
• Estimated installation time: 7 hrs
• Installation difficulty: Moderately Easy
• Warranty: JKS Lifetime Warranty (original retail purchaser)
• Country of origin: USA

Resources

• Installation guide (PDF)
