2018-2027 Jeep Wrangler JL J-Konnect 3.5 Inch Lift Kit 4 Door with FOX 2.5 Performance Elite Series Shocks Standard Rate Coils JKS Manufacturing
JSPEC123PES
2018-2027 Jeep Wrangler JL J-Konnect 3.5 Inch Lift Kit 4 Door with FOX 2.5 Performance Elite Series Shocks Standard Rate Coils – JKS Manufacturing part number JSPEC123PES.
This JKS J-Konnect suspension lift kit is built for the 2018-2027 Jeep Wrangler JL 4 Door. This part number includes 3.5 inches of lift and FOX 2.5 Performance Elite Series shocks, with standard-rate coil springs. Covered by the JKS Lifetime Warranty for the original retail purchaser.
JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.
Features & Benefits
- Included shocks: FOX 2.5 Performance Elite Series (front and rear)
- Front/Rear Dual Rate Coil Springs (standard rate) designed to great ride quality across any terrain.
- HD springs offer additional load capacity for vehicles equipped with winch bumper, fullsize spare, roof rack, etc.
- Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front/Rear J-Link Lower Control Arms to add strength and correct caster.
Recommended Tires & Wheels
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
(Trimming may be required)
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Will not fit 4xe models
- Will not fit Rubicon 392 models

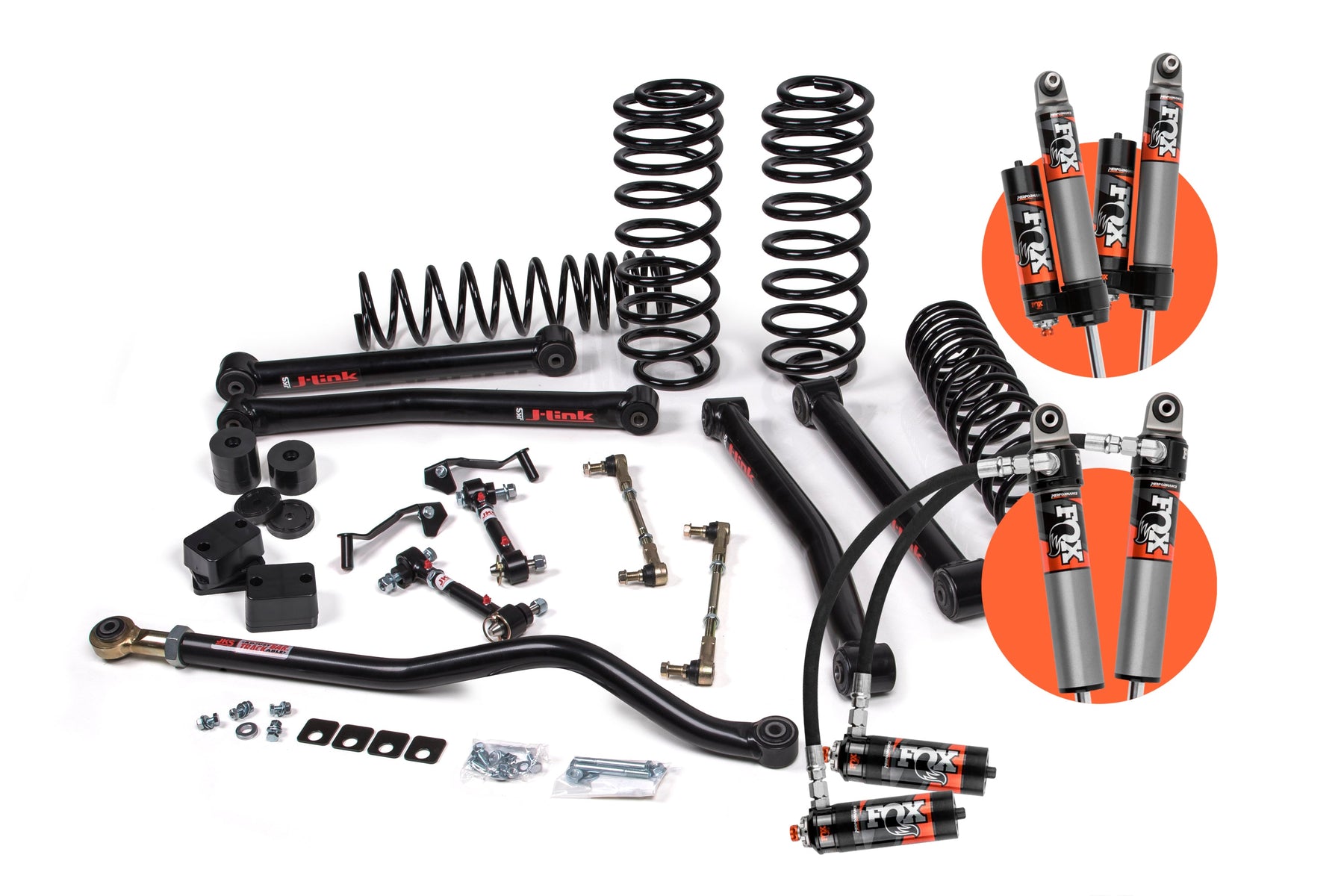

What's included in the kit
- 1 x FOX88326050 – Kit: 2018-2024 Jeep JL, Front, 2.5 Truck PES, R/R, 2-3 inch Lift, DSC
- 1 x FOX88326054 – Kit: 2018-2024 Jeep JL, Rear, 2.5 Truck PES, P/B, 2-3 inch Lift, DSC
- 1 x JKS1621 – 2018-2024 Jeep Wrangler JL Fixed Front LCA - J-Link
- 1 x JKS1671 – 2018-2024 Jeep Wrangler JL Fixed Rear LCA - J-Link
- 1 x JSPEC1311 – 2018-2024 Jeep Wrangler (JL) J-Konnect Main Box Kit
- 1 x JSPEC1351 – 2018-2024 Jeep Wrangler (JL) 3.5 inch Front Coil Spring Kit - STD
- 1 x JSPEC1359 – 2018-2024 Jeep Wrangler (JL) 3.5 inch Rear Coil Spring Kit - STD
Specifications
- JKS part number: JSPEC123PES
- Lift height: 3.5 Inch
- Fits: 2018-2027 Jeep Wrangler JL
- Doors: 4 Door
- Shocks: FOX 2.5 Performance Elite Series
- Coil springs: Standard Rate
- Sold as: Kit
- Estimated installation time: 7 hrs
- Installation difficulty: Moderately Easy
- Warranty: JKS Lifetime Warranty (original retail purchaser)
- Country of origin: USA
