2018-2027 Jeep Wrangler JL J-Konnect 2.5 Inch Lift Kit 4 Door with Shock Extension Brackets (OE Shocks) Standard Rate Coils JKS Manufacturing
JSPEC121KNS
2018-2027 Jeep Wrangler JL J-Konnect 2.5 Inch Lift Kit 4 Door with Shock Extension Brackets (OE Shocks) Standard Rate Coils – JKS Manufacturing part number JSPEC121KNS.
This JKS J-Konnect suspension lift kit is built for the 2018-2027 Jeep Wrangler JL 4 Door. This part number includes 2.5 inches of lift and shock extension brackets so the factory shocks can stay in place (it does not include new shocks), with standard-rate coil springs. Covered by the JKS Lifetime Warranty for the original retail purchaser.
For serious off-road use, step up to a JKS J-Konnect 2.5" suspension system for your Wrangler JL 4-Door. J-Konnect can tackle aggressive terrain including rocks and ruts without giving up street manners or breaking the bank. J-Konnect system takes suspension component strength and suspension geometry a step further by adding front and rear fixed-length J-Link lower control arms along with a drag link flip kit and track bar braces. In addition to being significantly stronger than factory control arms, J-LINK lower control arms add front caster and rear wheelbase. Built from 2" x .250-wall DOM tubing, J-LINK control arms provide street-friendly NVH isolation with large factory style rubber bushings at both ends. The drag link flip kit flattens the steering angle to mimic factory angles, while the track bar adds strength and protection. Combined with the matched dual-rate coil springs, and your choice of a selection of custom-valved FOX shocks, an adjustable track bar, Quicker Disconnect sway bar end links, and more. J-Konnect is ready for aggressive trail performance. Get connected with J-Konnect.
JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.
Features & Benefits
- Shock extension brackets let you keep the factory shocks; this kit does not include new shocks
- Front/Rear Dual Rate Coil Springs (standard rate) designed to great ride quality across any terrain.
- HD springs offer additional load capacity for vehicles equipped with winch bumper, fullsize spare, roof rack, etc.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front/Rear J-Link Lower Control Arms to add strength and correct caster.
Recommended Tires & Wheels
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
(Trimming may be required)
Important Notes
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Will not fit 4xe models
- Will not fit Rubicon 392 models

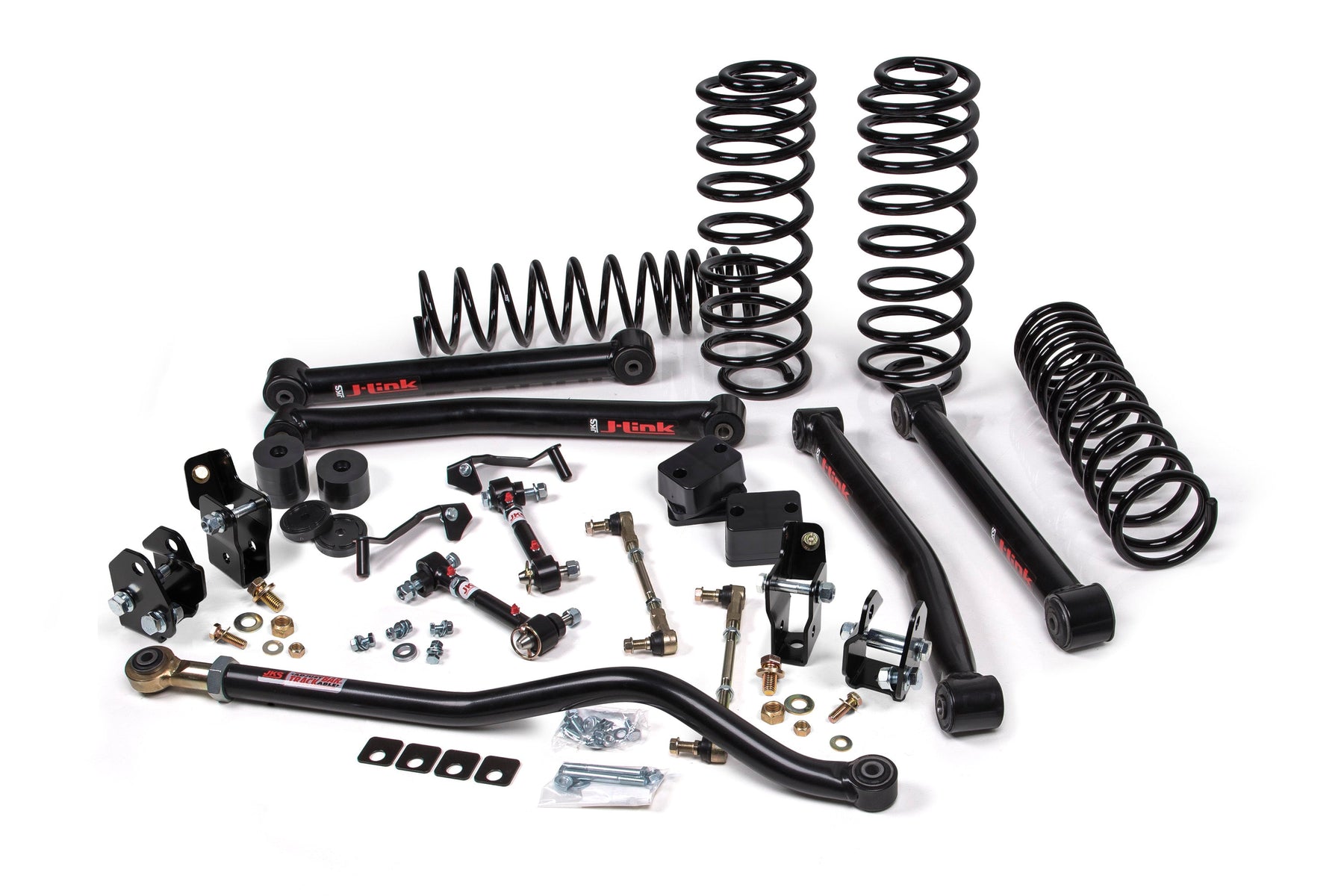

What's included in the kit
- 1 x JKS1621 – 2018-2024 Jeep Wrangler JL Fixed Front LCA - J-Link
- 1 x JKS1671 – 2018-2024 Jeep Wrangler JL Fixed Rear LCA - J-Link
- 1 x JKS9612 – 2018-2024 Jeep Wrangler JL Shock Extension Brackets
- 1 x JSPEC1251 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - STD
- 1 x JSPEC1259 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - STD
- 1 x JSPEC1311 – 2018-2024 Jeep Wrangler (JL) J-Konnect Main Box Kit
Specifications
- JKS part number: JSPEC121KNS
- Lift height: 2.5 Inch
- Fits: 2018-2027 Jeep Wrangler JL
- Doors: 4 Door
- Shocks: None included (shock extension brackets; factory shocks retained)
- Coil springs: Standard Rate
- Sold as: Kit
- Estimated installation time: 7 hrs
- Installation difficulty: Moderately Easy
- Warranty: JKS Lifetime Warranty (original retail purchaser)
- Country of origin: USA
