2020-2025 Jeep Wrangler JL Diesel/392 J-Konnect 2.5 Inch Lift Kit 4 Door with FOX 2.0 Adventure Series Shocks JKS Manufacturing

2020-2025 Jeep Wrangler JL Diesel/392 J-Konnect 2.5 Inch Lift Kit 4 Door with FOX 2.0 Adventure Series Shocks – JKS Manufacturing part number JSPEC163KFA.

This JKS J-Konnect suspension lift kit is built for the 2020-2025 Jeep Wrangler JL Diesel and 392 models 4 Door. This part number includes 2.5 inches of lift and FOX 2.0 Adventure Series shocks. Covered by the JKS Lifetime Warranty for the original retail purchaser.

Lift up your Diesel Jeep Wrangler JL 4 Door with a J-Konnect 2.5" Lift kit to fit larger tires and increase off road capabilities. The J-Konnect kit includes dual rate coil springs, tuned gas shocks, adjustable track bars front and rear, J-Link lower control arms, and sway bar Quicker Disconnects. While the entry level J-Venture systems is designed for equal parts on-road handling and off-road capability, J-Konnect takes strength and performance a step further by adding front and rear fixed length J-Link lower control arms. These lower control arms not only add front caster and rear wheelbase, they are a serious upgrade to the strength over the factory control arms. Built from 2" x .250-wall DOM tubing while offering better NVH isolation with large factory style rubber bushings at both ends. The end result is aggressive off-road performance and strength while maintaining excellent on-road manners. Get connected with J-Konnect.

Features & Benefits

• Included shocks: FOX 2.0 Adventure Series (front and rear)
• Front/Rear Dual Rate Coil Springs designed to great ride quality across any terrain.
• Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
• Front/Rear Bump Stop Extensions to properly limit suspension up travel.
• Front/Rear J-Link Lower Control Arms to add strength and correct caster.

Recommended Tires & Wheels

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace
• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

(Trimming may be required)

Important Notes

• 392 models may achieve up to 1.5" less lift depending on factory equipped package

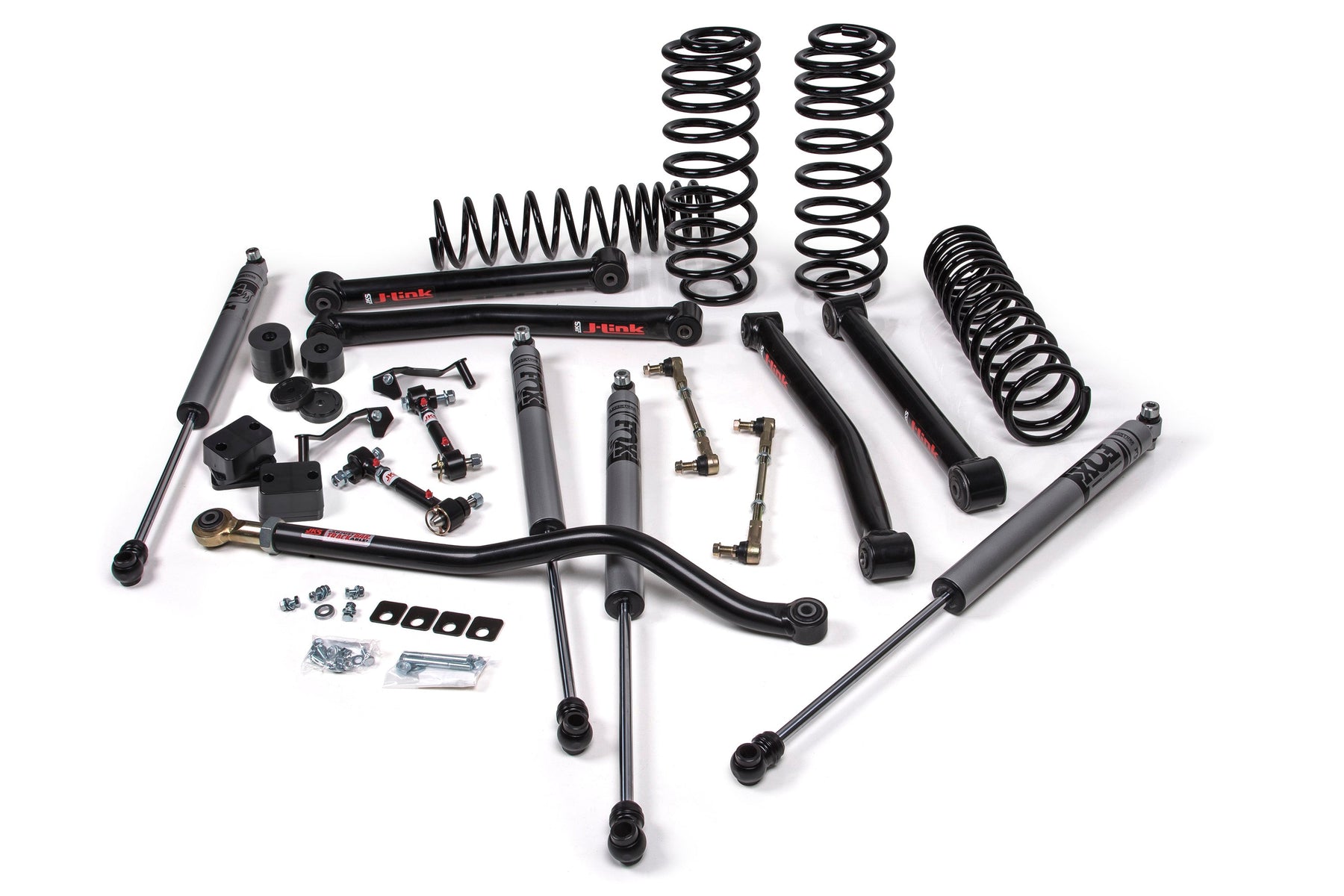

What's included in the kit

• 2 x FOX98450323 – 2018-2024 FOX Adv Shock 26.86 x 16.76 x 2 EB1/EB1
• 2 x FOX98450327 – 2018-2024 FOX Adv Shock 30.06 x 18.46 x 2 EB1/EB1
• 1 x JKS1621 – 2018-2024 Jeep Wrangler JL Fixed Front LCA - J-Link
• 1 x JKS1671 – 2018-2024 Jeep Wrangler JL Fixed Rear LCA - J-Link
• 1 x JSPEC1252 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - HD
• 1 x JSPEC1259 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - STD
• 1 x JSPEC1311 – 2018-2024 Jeep Wrangler (JL) J-Konnect Main Box Kit

Specifications

• JKS part number: JSPEC163KFA
• Lift height: 2.5 Inch
• Fits: 2020-2025 Jeep Wrangler JL Diesel and 392
• Doors: 4 Door
• Shocks: FOX 2.0 Adventure Series
• Sold as: Kit
• Estimated installation time: 7 hrs
• Installation difficulty: Moderately Easy
• Warranty: JKS Lifetime Warranty (original retail purchaser)
• Country of origin: USA

Resources

• Installation guide (PDF)
