2018-2027 Jeep Wrangler JL J-Krawl 3 Inch Lift Kit 2 Door with FOX 2.5 IFP Performance Series Shocks Heavy Duty Rate Coils Rubber Bushing Control Arms JKS Manufacturing
JSPEC190PS
2018-2027 Jeep Wrangler JL J-Krawl 3 Inch Lift Kit 2 Door with FOX 2.5 IFP Performance Series Shocks Heavy Duty Rate Coils Rubber Bushing Control Arms – JKS Manufacturing part number JSPEC190PS.
This JKS J-Krawl suspension lift kit is built for the 2018-2027 Jeep Wrangler JL 2 Door. This part number includes 3 inches of lift and FOX 2.5 IFP Performance Series shocks, with heavy duty-rate coil springs and rubber bushing control arms. Covered by the JKS Lifetime Warranty for the original retail purchaser.
From hardcore rock crawling to high-speed desert, the J-Krawl System brings a level of performance and adjustability that makes it the go to package for many Jeep enthusiasts. These systems build on the base systems and add components for a full overhaul of the factory suspension to maximum articulation, strength and allow for adjustability. Components include J-Flex or J-Link upper and lower control arms, Jspec dual rate coil springs, an adjustable front track bar, a rear track bar bracket, quicker disconnect front sway bar end links, and bump stop extensions. Choose from a variety of FOX shock options tailored to your needs. Each setup ensures superior ride quality, letting you conquer rugged trails while maintaining daily driving comfort. J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine tuning suspension geometry. J-Krawl delivers. Dial in front caster, rear pinion and overall vehicle wheelbase. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.
JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.
Engineered specifically to reduce NVH characteristics (noise, vibration, harshness), these factory style maintenance-free rubber bushings come pre-installed at both ends and will ensure a quiet, controlled ride with hassle-free operation in any environment.
Features & Benefits
- Included shocks: FOX 2.5 IFP Performance Series (front and rear)
- Control arm bushing option: Rubber Bushing
- Front/Rear Dual Rate Coil Springs (HD rate) designed to great ride quality across any terrain.
- Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
- Front/Rear Bump Stop Extensions to properly limit suspension up travel.
- Front/Rear J-Flex Upper Control Arms to add strength and adjustability.
- Front/Rear J-Flex Lower Control Arms to add strength and adjustability.
Recommended Tires & Wheels
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 17 x 9 and 5 in. Backspace
- 35 x 12.5 with 18 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
(Trimming may be required)
Important Notes
- Diesel models may achieve up to 1" less lift height
- Factory wheels cannot be reinstalled without wheel spacers
- HD front springs recommended for applications with aftermarket winch/bumper combo
- HD rear springs recommended for applications with rear mounted full size spare tire
- Front aftermarket driveshaft strongly recommended due to additional travel capability
- Will not fit 4xe models
- Will not fit Rubicon 392 models

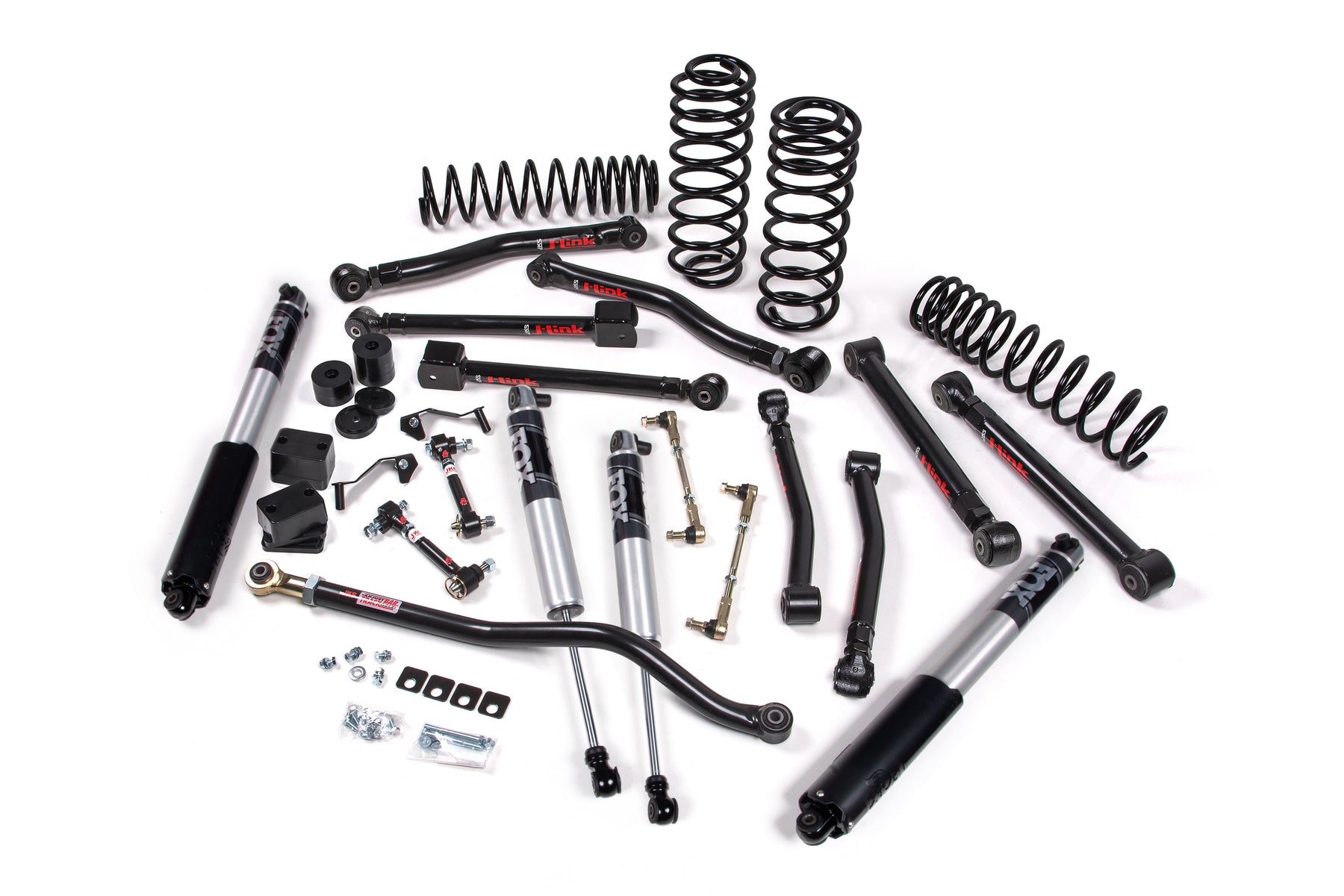

What's included in the kit
- 1 x FOX88624155 – Kit: 2018-2024 Jeep Wrangler JL, Front and Rear, 2-3.5 inch Lift, 2.5, IFP
- 1 x JKS1632 – 2018-2024 Jeep Wrangler JL Front Adjustable Lower Control Arm Kit
- 1 x JKS1634 – 2018-2024 Jeep Wrangler JL / 2020-2024 Jeep Gladiator JT Adjustable Front Upper Control Arm - Rubber
- 1 x JKS1636 – 2007-2018 Jeep Wrangler JK, 2018-2024 Jeep Wrangler JL Rear Adjustable Lower Control Arm - Rubber
- 1 x JKS1639 – 2007-2018 Jeep Wrangler JK 2018-2024 Jeep Wrangler JL Rear Adjustable Upper Control Arm - Rubber
- 1 x JSPEC1252 – 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spring Kit - HD
- 1 x JSPEC1258 – 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spring Kit - HD
- 1 x JSPEC1312 – 2018-2024 Jeep Wrangler (JL) J-Krawl Main Box Kit
Specifications
- JKS part number: JSPEC190PS
- Lift height: 3 Inch
- Fits: 2018-2027 Jeep Wrangler JL
- Doors: 2 Door
- Shocks: FOX 2.5 IFP Performance Series
- Coil springs: Heavy Duty Rate
- Control arm bushings: Rubber Bushing
- Sold as: Kit
- Estimated installation time: 6-8 hrs
- Installation difficulty: Moderate
- Warranty: JKS Lifetime Warranty (original retail purchaser)
- Country of origin: USA
Resources
California Proposition 65 warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
