2007-2018 Jeep Wrangler JK J-Lander 3.5 Inch Lift Kit 4 Door with FOX 2.0 Performance Series Shocks JKS Manufacturing

2007-2018 Jeep Wrangler JK J-Lander 3.5 Inch Lift Kit 4 Door with FOX 2.0 Performance Series Shocks – JKS Manufacturing part number JSPEC154KFP.

This JKS J-Lander suspension lift kit is built for the 2007-2018 Jeep Wrangler JK 4 Door. This part number includes 3.5 inches of lift and FOX 2.0 Performance Series shocks. Covered by the JKS Lifetime Warranty for the original retail purchaser.

Features & Benefits

• Included shocks: FOX 2.0 Performance Series (front and rear)
• Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.
• Rear ACOS Adjustable Coil Spacers to allow you ride height to be dialed in based on vehicle setup.
• Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
• Front+Rear J-Link Lower Control Arms for improved strength and caster correction.
• Front+Rear Bump Stop Extensions to properly limit suspension up travel.

Recommended Tires & Wheels

• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

(Trimming may be required)

Important Notes

• 2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions
• Rubicon sway bar link hardware included in kit.

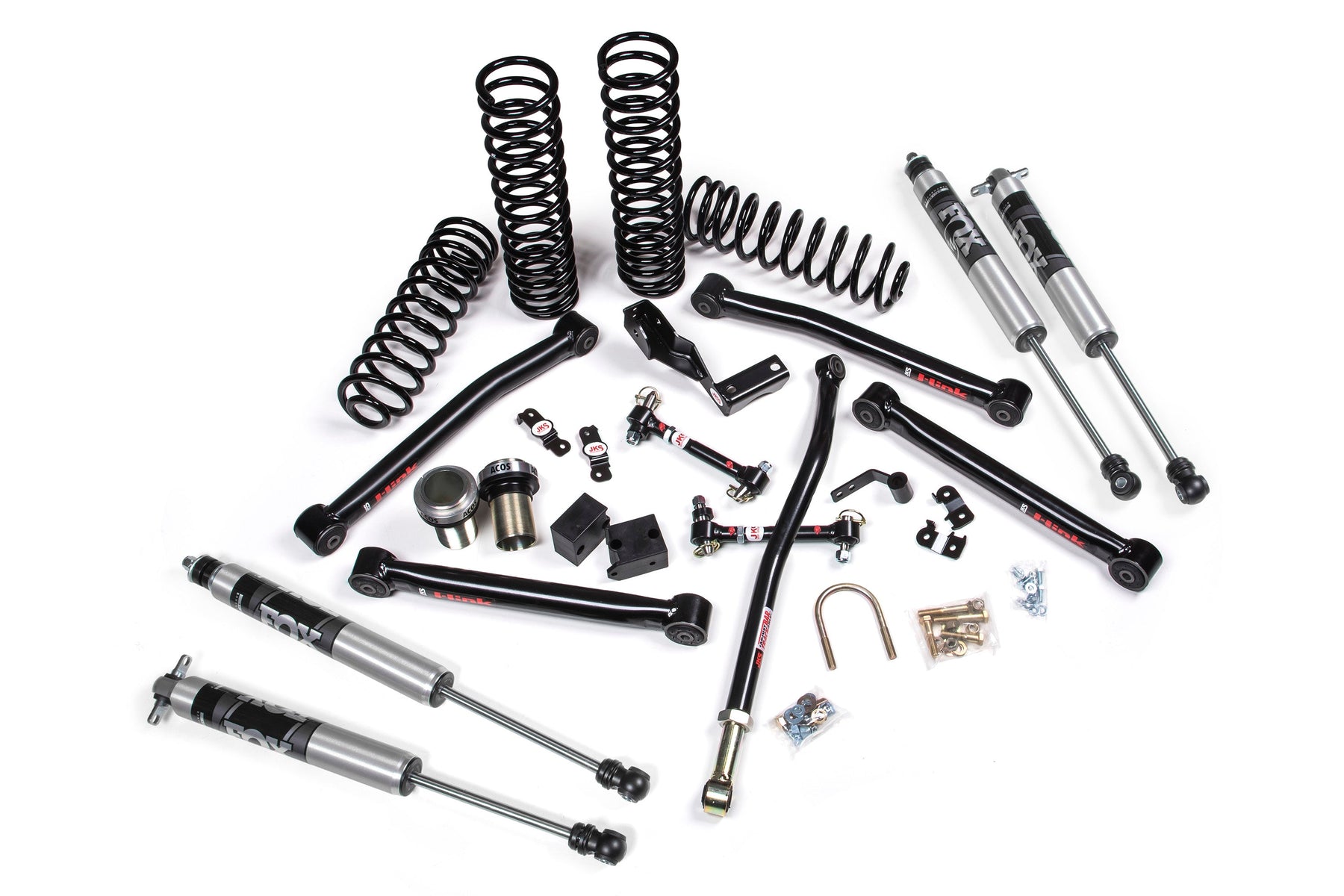

What's included in the kit

• 2 x FOX98024887 – 07-ON Jeep JK Front, PS, 2.0, IFP, 9.6 inch, 1.5-3.5 inch Lift
• 2 x FOX98024888 – 07-ON Jeep JK Rear, PS, 2.0, IFP, 9.1 inch, 1.5-3.5 inch Lift
• 1 x JKS1620 – JK Fixed Frt LCA
• 1 x JKS1670 – JK Fixed Rear LCA
• 1 x JKS2570 – 07-18 JK Rear Adj Coilover Spacers
• 1 x JSPEC2252 – 2007-2018 Jeep Wrangler JK 4 Door J-Lander Main Box Kit
• 1 x JSPEC2300 – 07-18 Jeep Wrangler JK 4Dr 3.5 inch J-Lander Coil Spring Kit

Specifications

• JKS part number: JSPEC154KFP
• Lift height: 3.5 Inch
• Fits: 2007-2018 Jeep Wrangler JK
• Doors: 4 Door
• Shocks: FOX 2.0 Performance Series
• Sold as: Kit
• Estimated installation time: 6-8 hrs
• Installation difficulty: Moderate
• Warranty: JKS Lifetime Warranty (original retail purchaser)
• Country of origin: USA

Resources

• Installation guide (PDF)
