2007-2018 Jeep Wrangler JK J-Kontrol 3.5 Inch Lift Kit 4 Door with FOX 2.5 Performance Elite Series Shocks JKS Manufacturing
JSPEC108PES
2007-2018 Jeep Wrangler JK J-Kontrol 3.5 Inch Lift Kit 4 Door with FOX 2.5 Performance Elite Series Shocks – JKS Manufacturing part number JSPEC108PES.
This JKS J-Kontrol suspension lift kit is built for the 2007-2018 Jeep Wrangler JK 4 Door. This part number includes 3.5 inches of lift and FOX 2.5 Performance Elite Series shocks. Covered by the JKS Lifetime Warranty for the original retail purchaser.
Features & Benefits
- Included shocks: FOX 2.5 Performance Elite Series (front and rear)
- Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.
- Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
- Front Control Arm Relocation Brackets to improve suspension geometry for improved handling.
- HD Drag Link Flip Kit w/ Track Bar Bracket to improve steering angles for better handling.
- Front+Rear Bump Stop Extensions to properly limit suspension up travel.
Recommended Tires & Wheels
- 35 x 12.5 with 16 x 8 and 4.5 in. Backspace
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
(Trimming may be required)
Important Notes
- 2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
- Rubicon sway bar link hardware included in kit.
- Requires 17" or larger wheels with 4.5" BS (or smaller) for steering clearance.

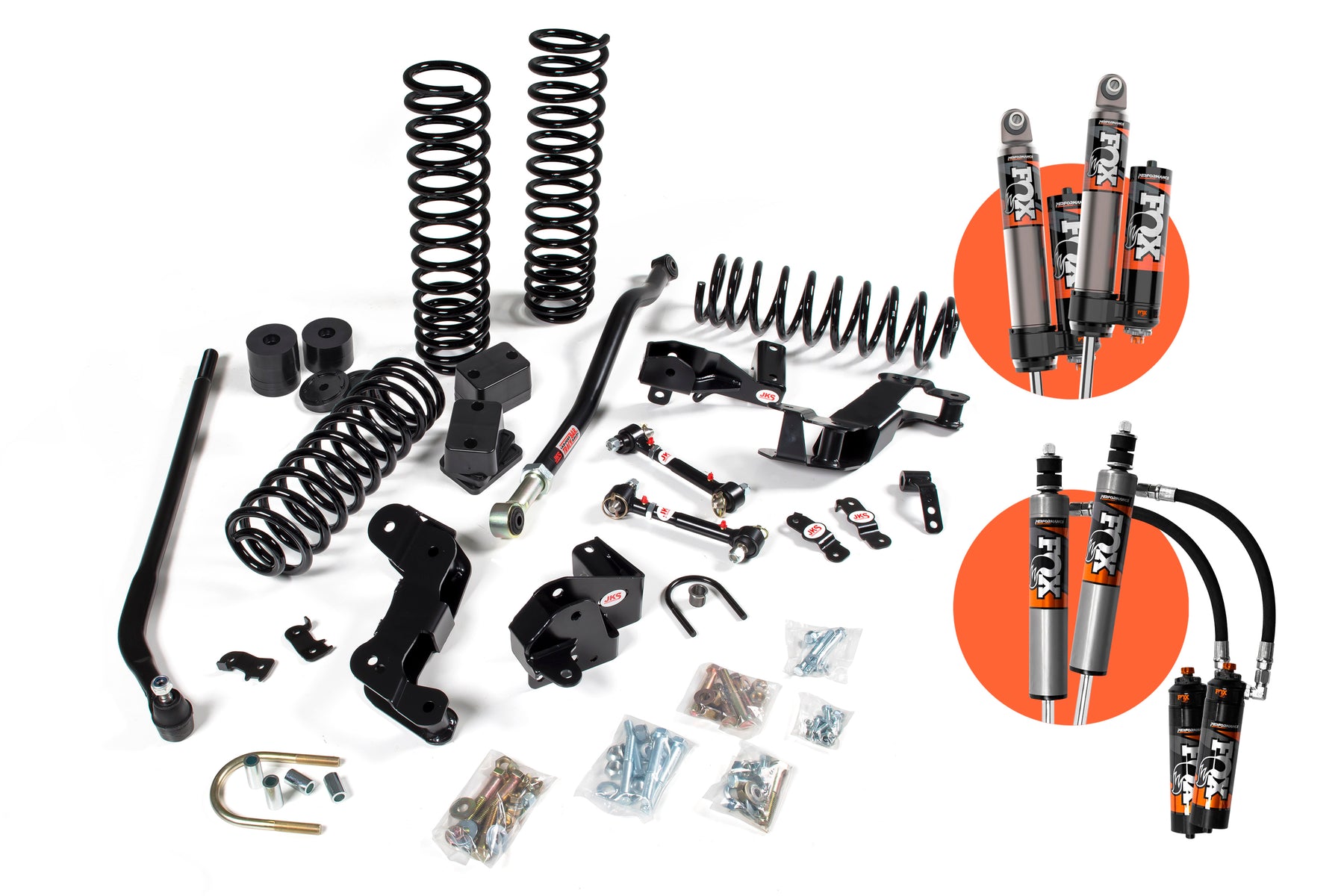

What's included in the kit
- 1 x FOX88326091 – Kit: 07-18 Jeep JK Front, 2.5 Truck PES, R/R, 2.5-4 Inch Lift, DSC
- 1 x FOX88326092 – Kit: 07-18 Jeep JK Rear, 2.5 Truck PES, P/B, 2.5-4 Inch Lift, DSC
- 1 x JSPEC2350 – 07-18 JK 4Dr 3.5 inch Coil Box Kit
- 1 x JSPEC2353 – 07-18 Jeep JK J Kontrol Box Kit
- 1 x JSPEC2450 – JK Advanced Geometry Upgrade Kit
Specifications
- JKS part number: JSPEC108PES
- Lift height: 3.5 Inch
- Fits: 2007-2018 Jeep Wrangler JK
- Doors: 4 Door
- Shocks: FOX 2.5 Performance Elite Series
- Sold as: Kit
- Estimated installation time: 6 hrs
- Installation difficulty: Moderate
- Warranty: JKS Lifetime Warranty (original retail purchaser)
- Country of origin: USA
