2007-2018 Jeep Wrangler JK J-Venture 3.5 Inch Lift Kit 2 Door with FOX 2.5 Performance Elite Series Shocks JKS Manufacturing

2007-2018 Jeep Wrangler JK J-Venture 3.5 Inch Lift Kit 2 Door with FOX 2.5 Performance Elite Series Shocks – JKS Manufacturing part number JSPEC101PES.

This JKS J-Venture suspension lift kit is built for the 2007-2018 Jeep Wrangler JK 2 Door. This part number includes 3.5 inches of lift and FOX 2.5 Performance Elite Series shocks. Covered by the JKS Lifetime Warranty for the original retail purchaser.

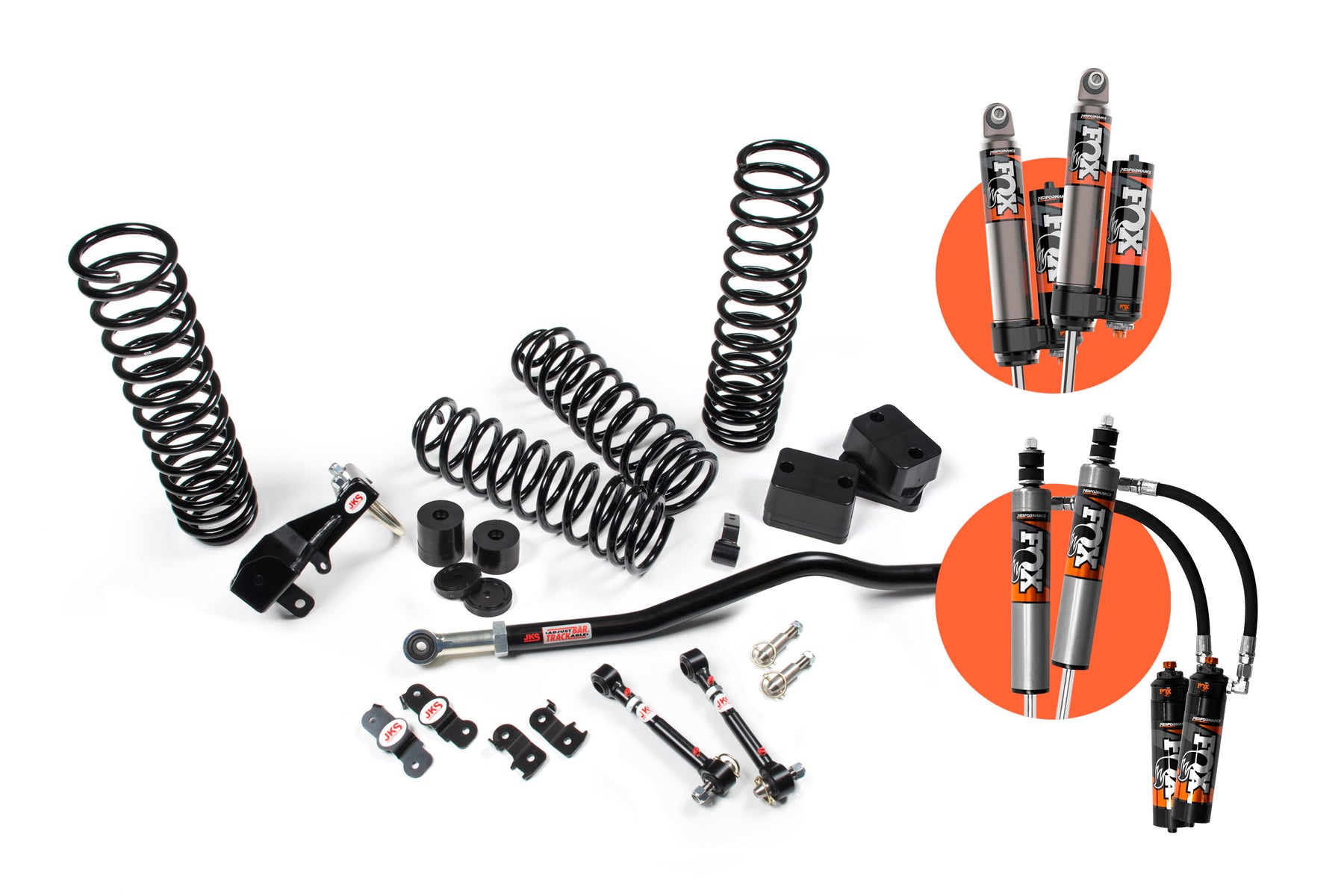

Increase your Jeep Wrangler JK 2 Door's ground clearance, tire clearance and performance with a J-Venture 3.5" suspension system. This complete bolt-on kit includes matched JSPEC dual-rate coil springs, custom-valved monotube gas shocks, a front adjustable track bar, rear track bar bracket, front sway bar Quicker Disconnects, bump stop extensions, and caster plate alignment correction. On the street, J-Venture provides improved ride quality. When the road ends, disconnect your sway bar end links for improved articulation. That makes J-Venture the perfect entry-level performance suspension system. The J-Venture suspension system is geared towards equal parts on-road comfort and off-road capability. J-Venture has been engineered for low maintenance. Get out and explore with J-Venture.

Features & Benefits

• Included shocks: FOX 2.5 Performance Elite Series (front and rear)
• Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.
• Front+Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
• Front+Rear Bump Stop Extensions to properly limit suspension up travel.
• Front Caster Cam Locks to correct front end caster once lifted.

Recommended Tires & Wheels

• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

(Trimming may be required)

Important Notes

• 2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
• Rubicon sway bar link hardware included in kit.

What's included in the kit

• 1 x FOX88326091 – Kit: 07-18 Jeep JK Front, 2.5 Truck PES, R/R, 2.5-4 Inch Lift, DSC
• 1 x FOX88326092 – Kit: 07-18 Jeep JK Rear, 2.5 Truck PES, P/B, 2.5-4 Inch Lift, DSC
• 1 x JSPEC2351 – 07-18 JK 2Dr 3.5 inch Coil Box Kit
• 1 x JSPEC2352 – 07-18 JK 2.5/3.5 inch Box Kit

Specifications

• JKS part number: JSPEC101PES
• Lift height: 3.5 Inch
• Fits: 2007-2018 Jeep Wrangler JK
• Doors: 2 Door
• Shocks: FOX 2.5 Performance Elite Series
• Sold as: Kit
• Estimated installation time: 6 hrs
• Installation difficulty: Moderately Easy
• Warranty: JKS Lifetime Warranty (original retail purchaser)
• Country of origin: USA

Resources

• Installation guide (PDF)
