2007-2018 Jeep Wrangler JK J-Kontrol 3.5 Inch Lift Kit 2 Door with FOX 2.0 Remote Reservoir Shocks JKS Manufacturing

2007-2018 Jeep Wrangler JK J-Kontrol 3.5 Inch Lift Kit 2 Door with FOX 2.0 Remote Reservoir Shocks – JKS Manufacturing part number JSPEC109KFR.

This JKS J-Kontrol suspension lift kit is built for the 2007-2018 Jeep Wrangler JK 2 Door. This part number includes 3.5 inches of lift and FOX 2.0 Remote Reservoir shocks. Covered by the JKS Lifetime Warranty for the original retail purchaser.

Features & Benefits

• Included shocks: FOX 2.0 Remote Reservoir (front and rear)
• Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.
• Front/Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
• Front Control Arm Relocation Brackets to improve suspension geometry for improved handling.
• HD Drag Link Flip Kit w/ Track Bar Bracket to improve steering angles for better handling.
• Front+Rear Bump Stop Extensions to properly limit suspension up travel.

Recommended Tires & Wheels

• 35 x 12.5 with 16 x 8 and 4.5 in. Backspace
• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

(Trimming may be required)

Important Notes

• 2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
• Rubicon sway bar link hardware included in kit.

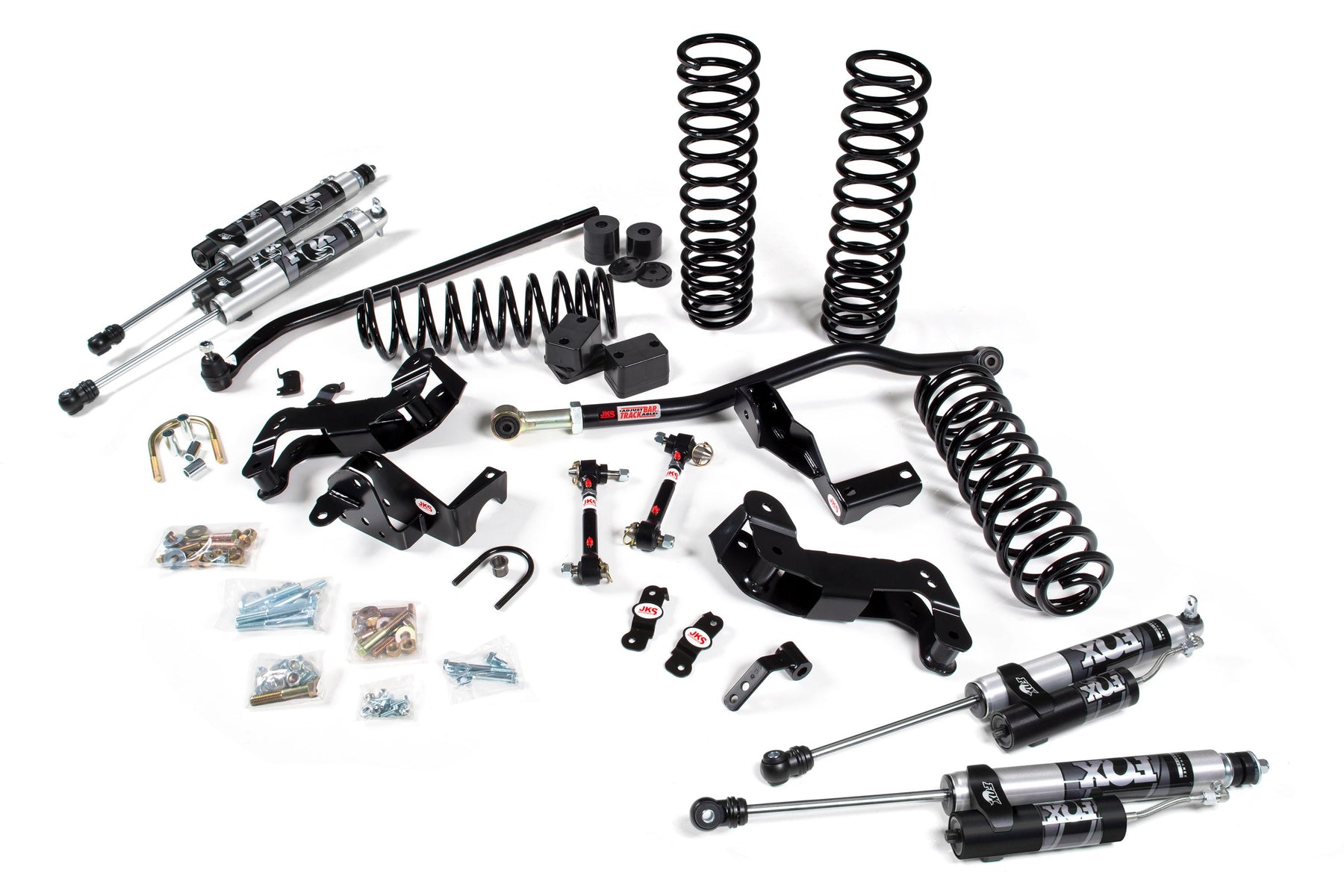

What's included in the kit

• 2 x FOX98524036 – 07-ON Jeep JK Rear, PS, 2.0, R/R, 10.1 inch, 2.5-4 inch Lift
• 2 x FOX98524039 – 07-ON Jeep JK Front, PS, 2.0, R/R, 10.1 inch, 2.5-4 inch Lift
• 1 x JSPEC2351 – 07-18 JK 2Dr 3.5 inch Coil Box Kit
• 1 x JSPEC2353 – 07-18 Jeep JK J Kontrol Box Kit
• 1 x JSPEC2450 – JK Advanced Geometry Upgrade Kit

Specifications

• JKS part number: JSPEC109KFR
• Lift height: 3.5 Inch
• Fits: 2007-2018 Jeep Wrangler JK
• Doors: 2 Door
• Shocks: FOX 2.0 Remote Reservoir
• Sold as: Kit
• Estimated installation time: 6 hrs
• Installation difficulty: Moderate
• Warranty: JKS Lifetime Warranty (original retail purchaser)
• Country of origin: USA

Resources

• Installation guide (PDF)
