White Box GM LS Swap Oil Pan

GM's popular LS engines are finding their way into a wide variety of vehicles today. These power-plants are very durable, make great power, have been proven to be very reliable, and most importantly plentiful in the marketplace. Unfortunately, the factory pans don't always fit or they hang too low for many of today's engine swap vehicles. White Box to the rescue! This LS swap Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) style fitment for durability and proper sealing.

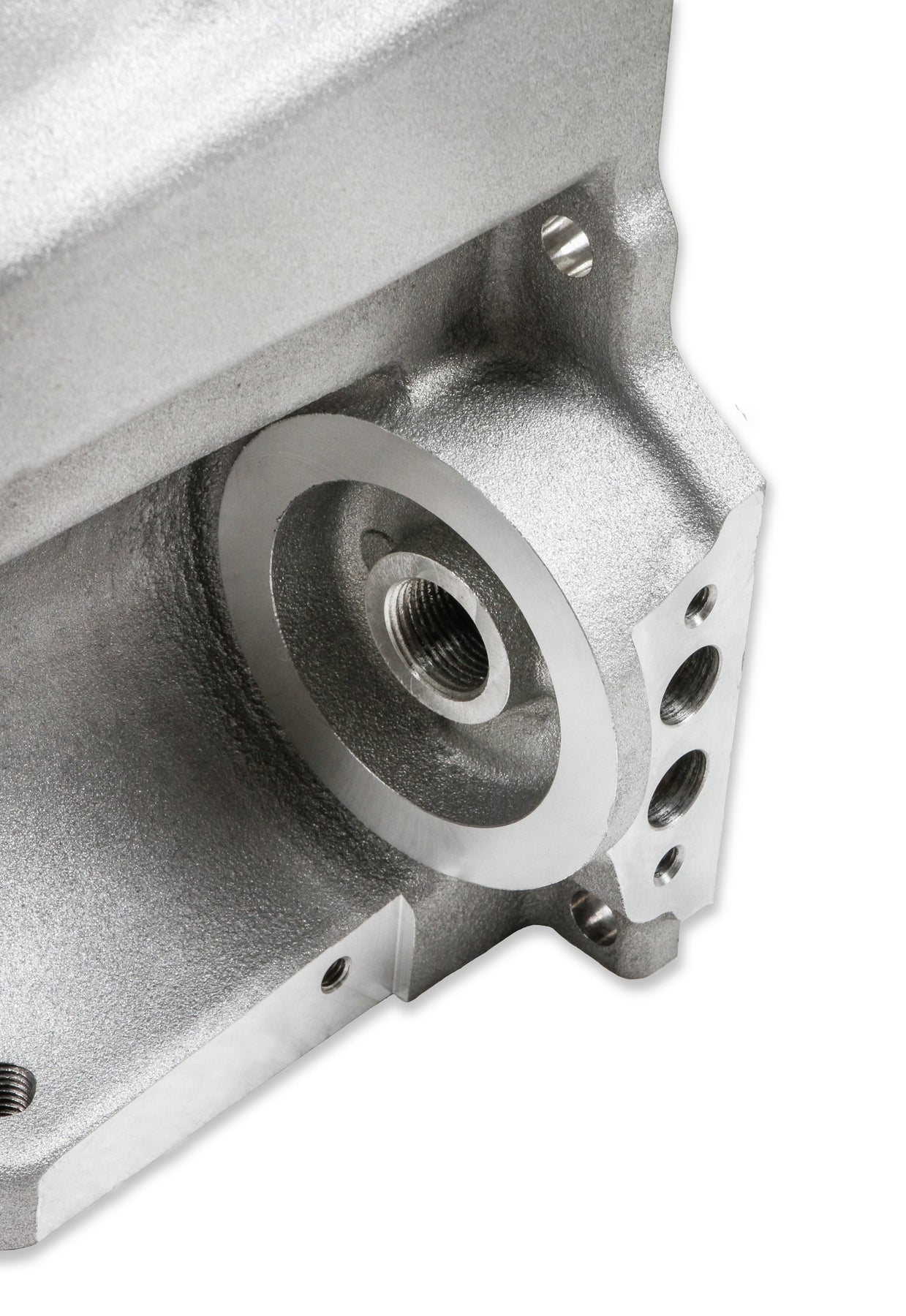

• Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
• High-quality cast aluminum appearance with clean exterior styling.
• Provides maximum clearance to chassis

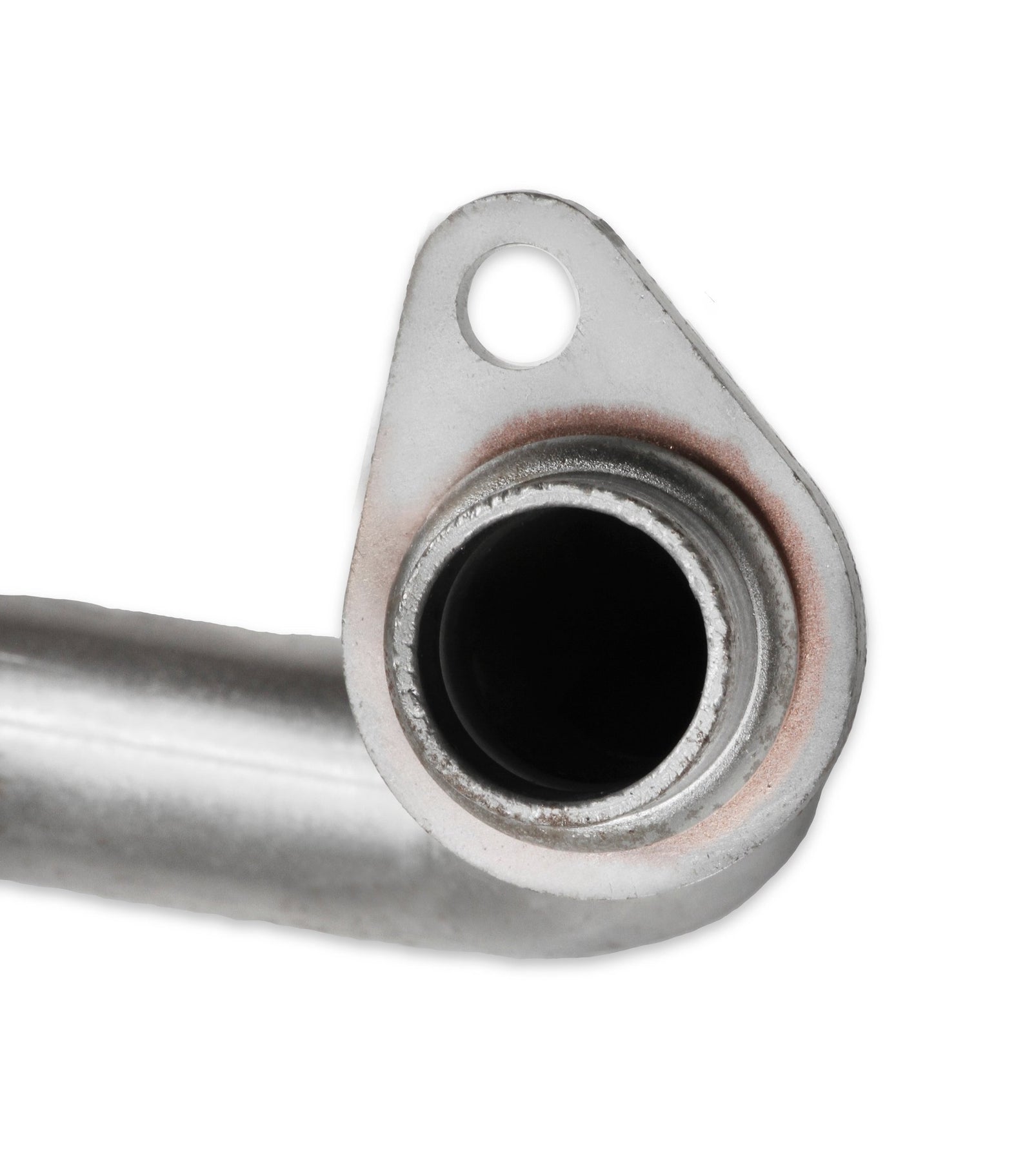

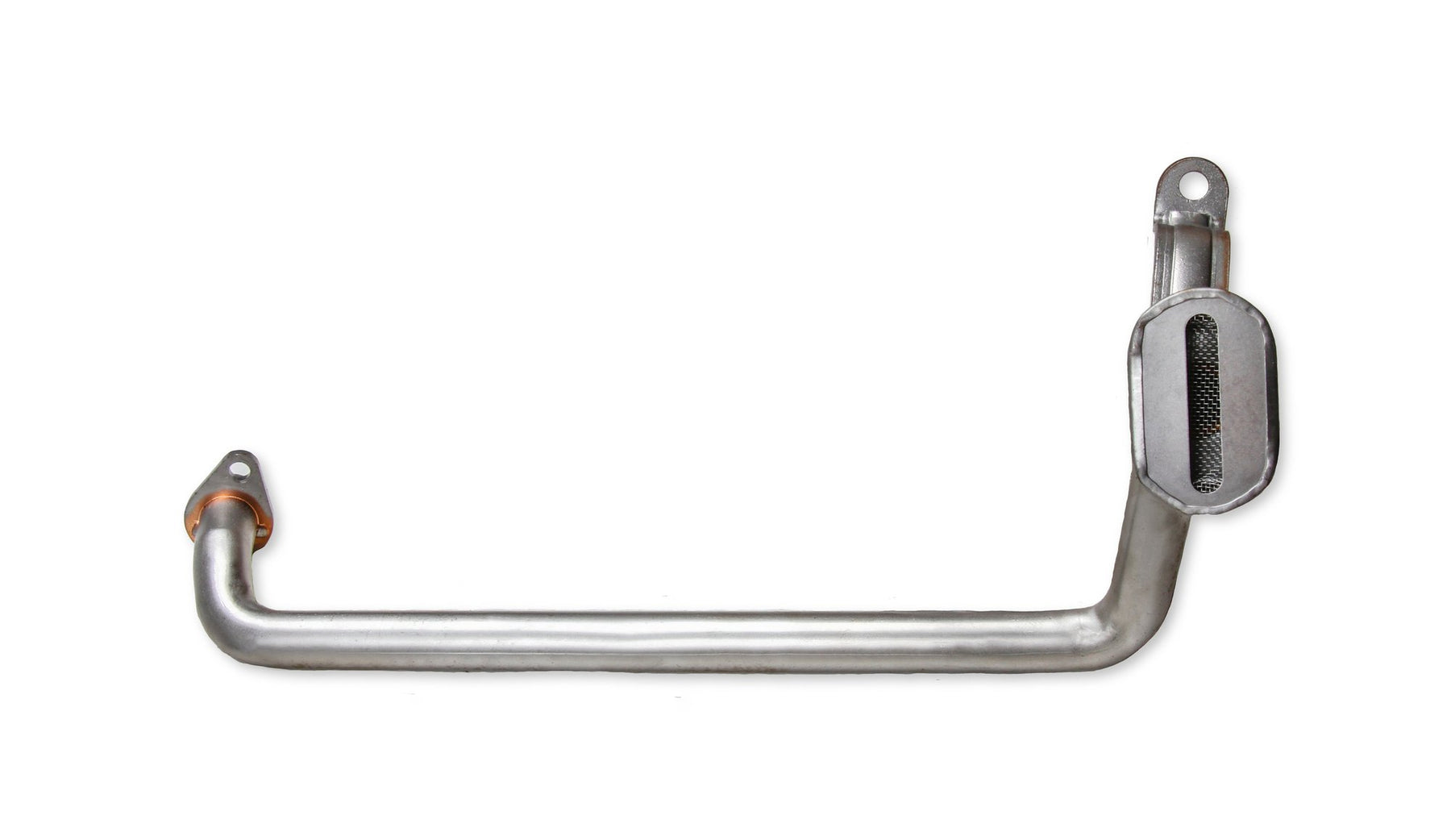

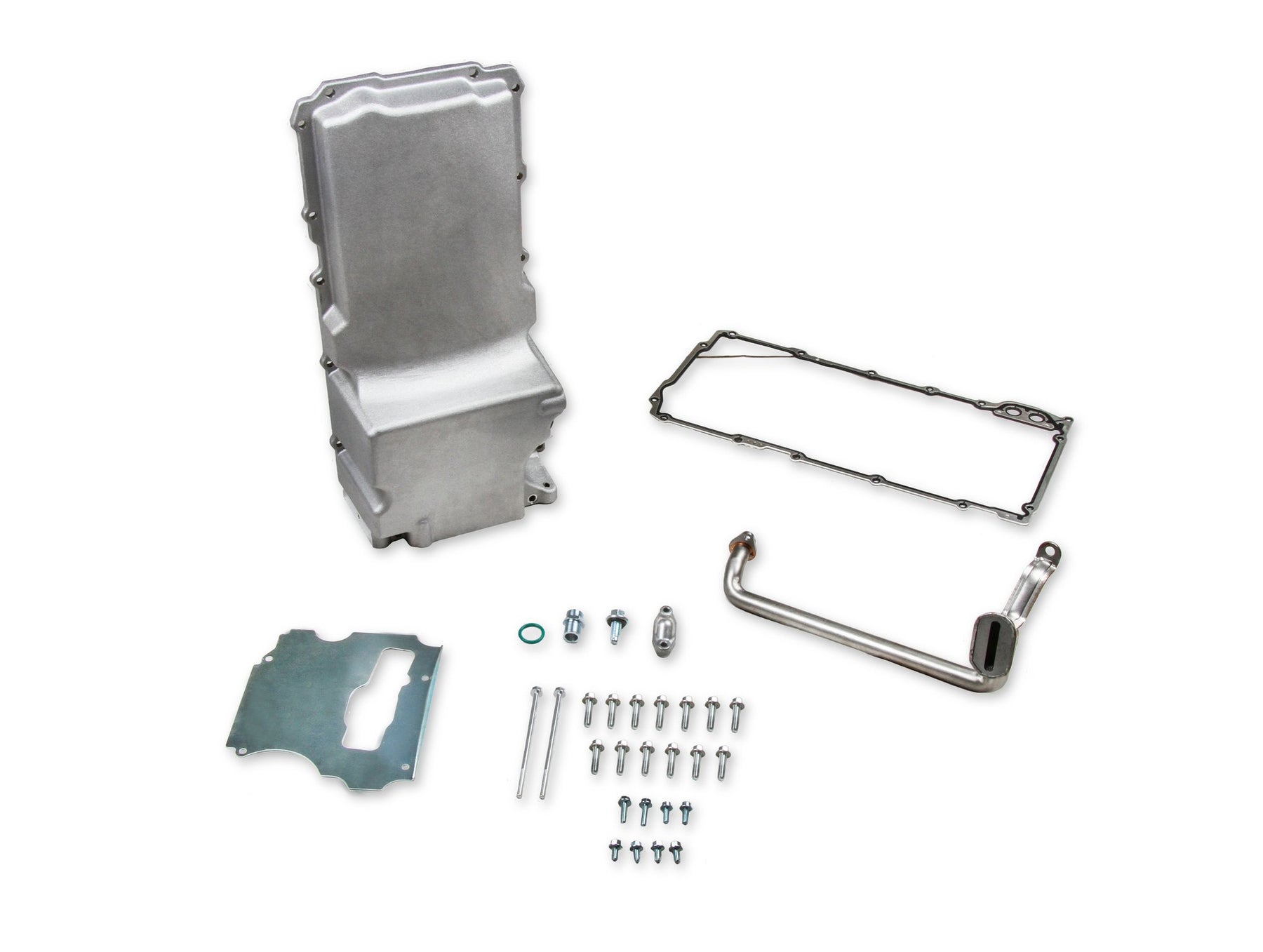

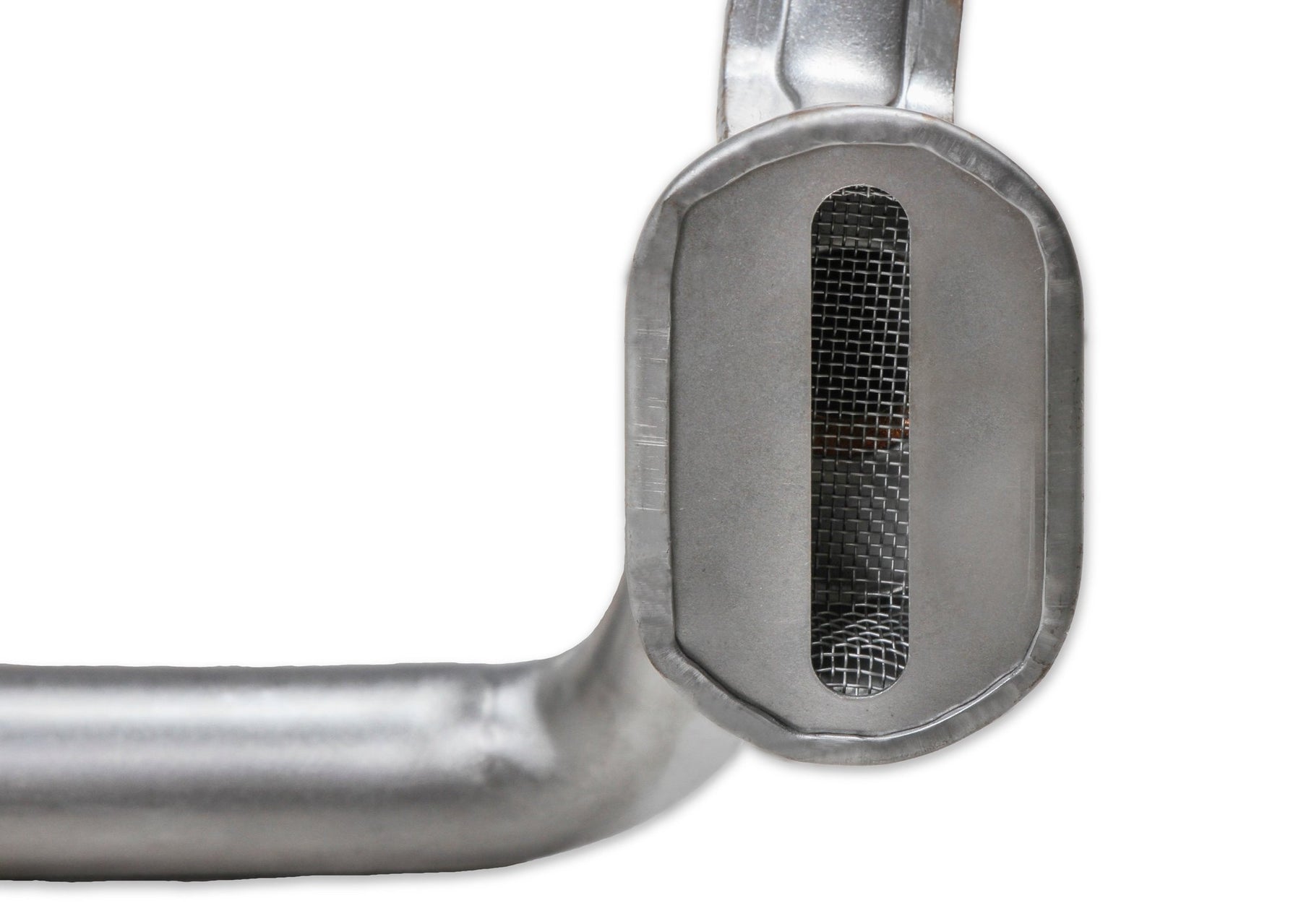

• Complete kit including sump baffle, pick-up tube, sump plug, oil filter stud & oil passage cover.
• Fits GM rear wheel drive applications that were originally equipped with a Small Block or Big Block Chevy engine and traditional rear sump oil pan*
• Maximum crankshaft stroke = 4.25"
• Total Oil Pan sump Capacity = 5.50 quarts
• Total Oil Pan Capacity (with OEM size filter) = 6.00 quarts

Specifications

• Application: GM LS Engines
• Baffled: Yes
• Brand: White Box
• Capacity: 5.5 QT
• Category: Oil Pans
• Choose Your Part: Oil Pan Kit
• Color: Silver
• Emission Code: 3
• Engine: GM Gen III/IV (LS)
• Finish: Natural Cast
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Material: Aluminum
• Maximum Stroke: 4.25"
• Oil Pan Capacity: 5.5 Quarts
• Oil Pan Type: Cast
• Oil System Capacity (w/ filter): 5.7 QT
• Part Type: Engine Oil Pan
• Pickup Included: Yes
• Product Type: Oil Pan Kit
• Sub Category: Cylinder Block Components
• Sump Location: Rear
• Sump Type: Wet
• Turbo Oil Drainback: No
• Warranty: Manufacturer's Limited 90 Day Warranty
• Windage Tray Included: No
• Part Number: WB11008
