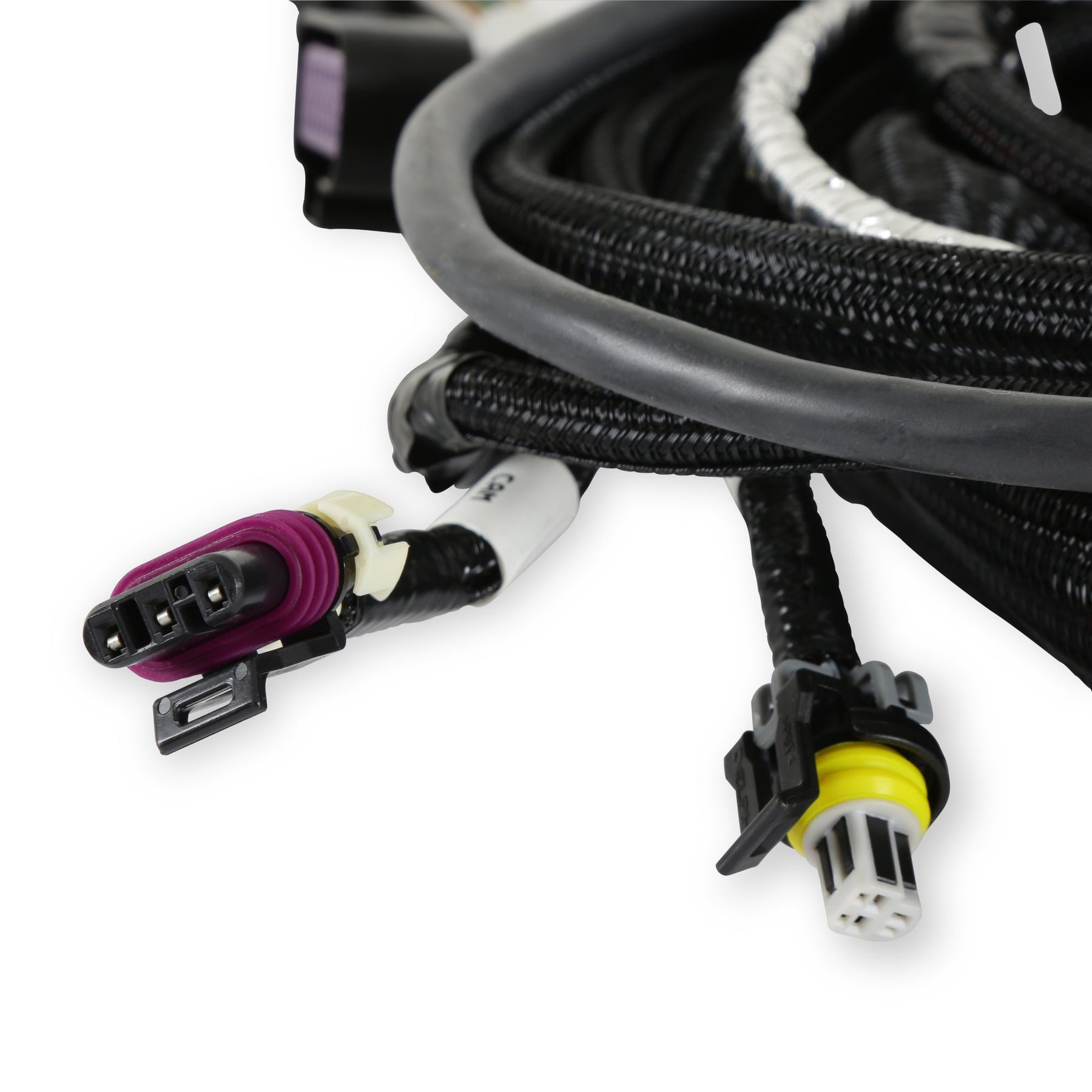

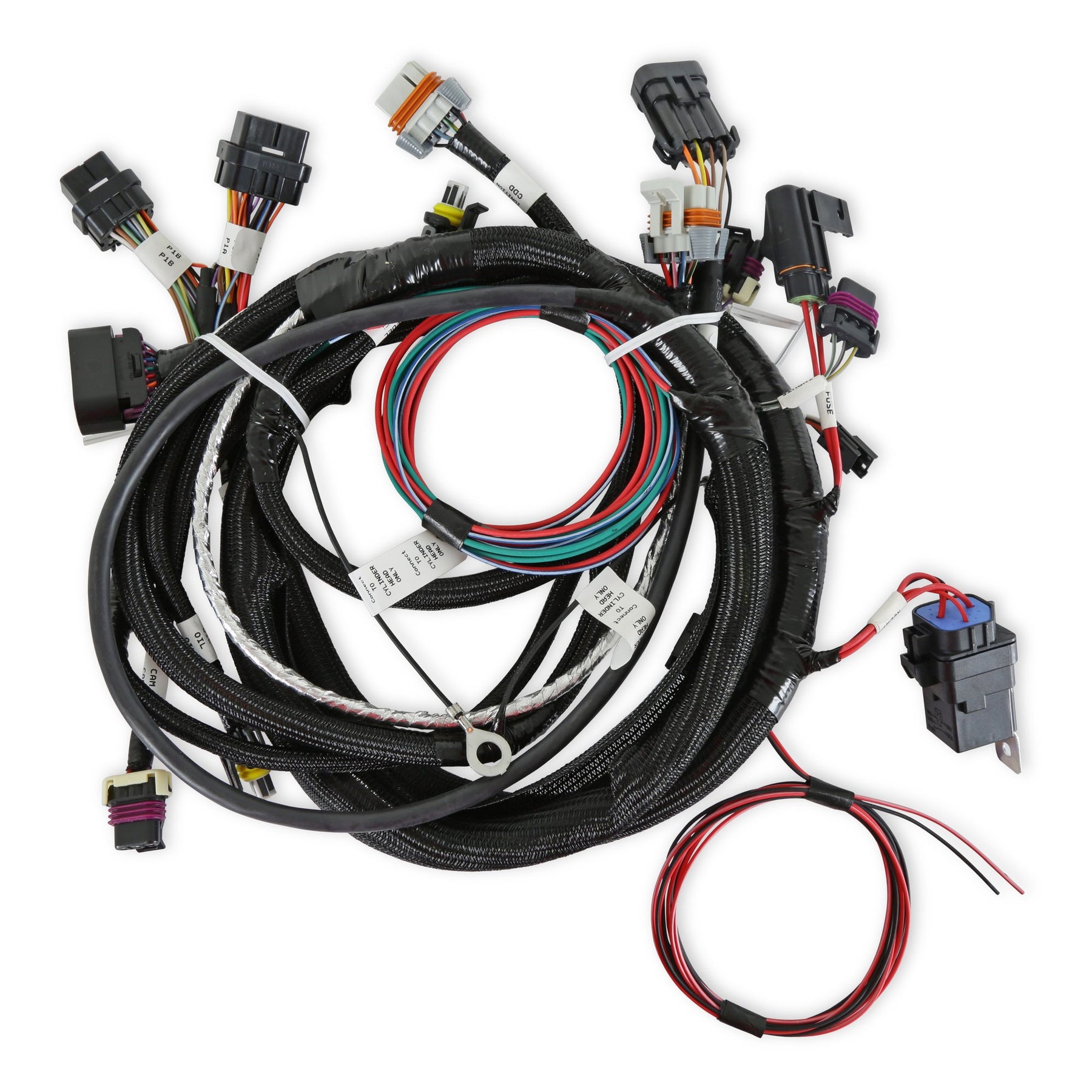

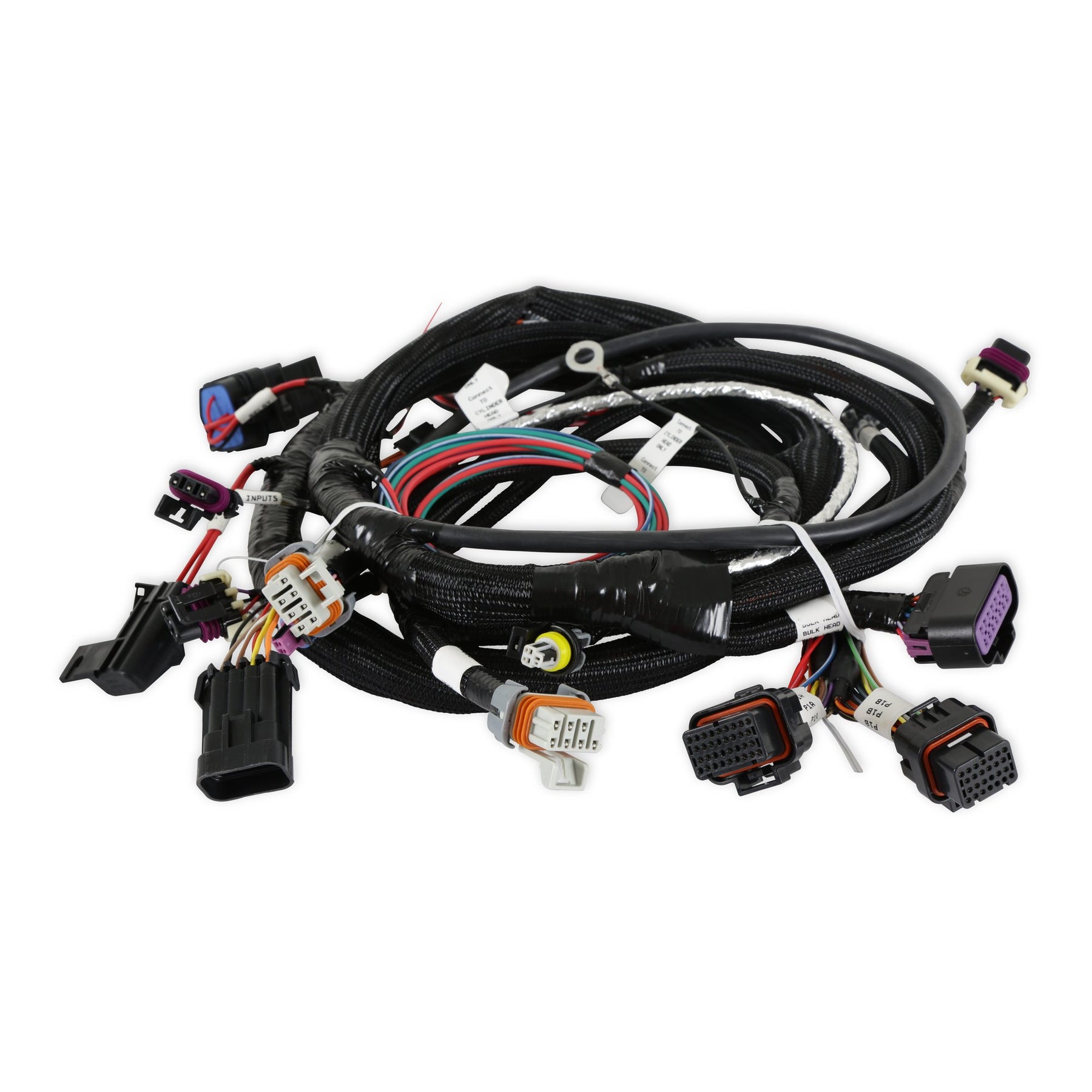

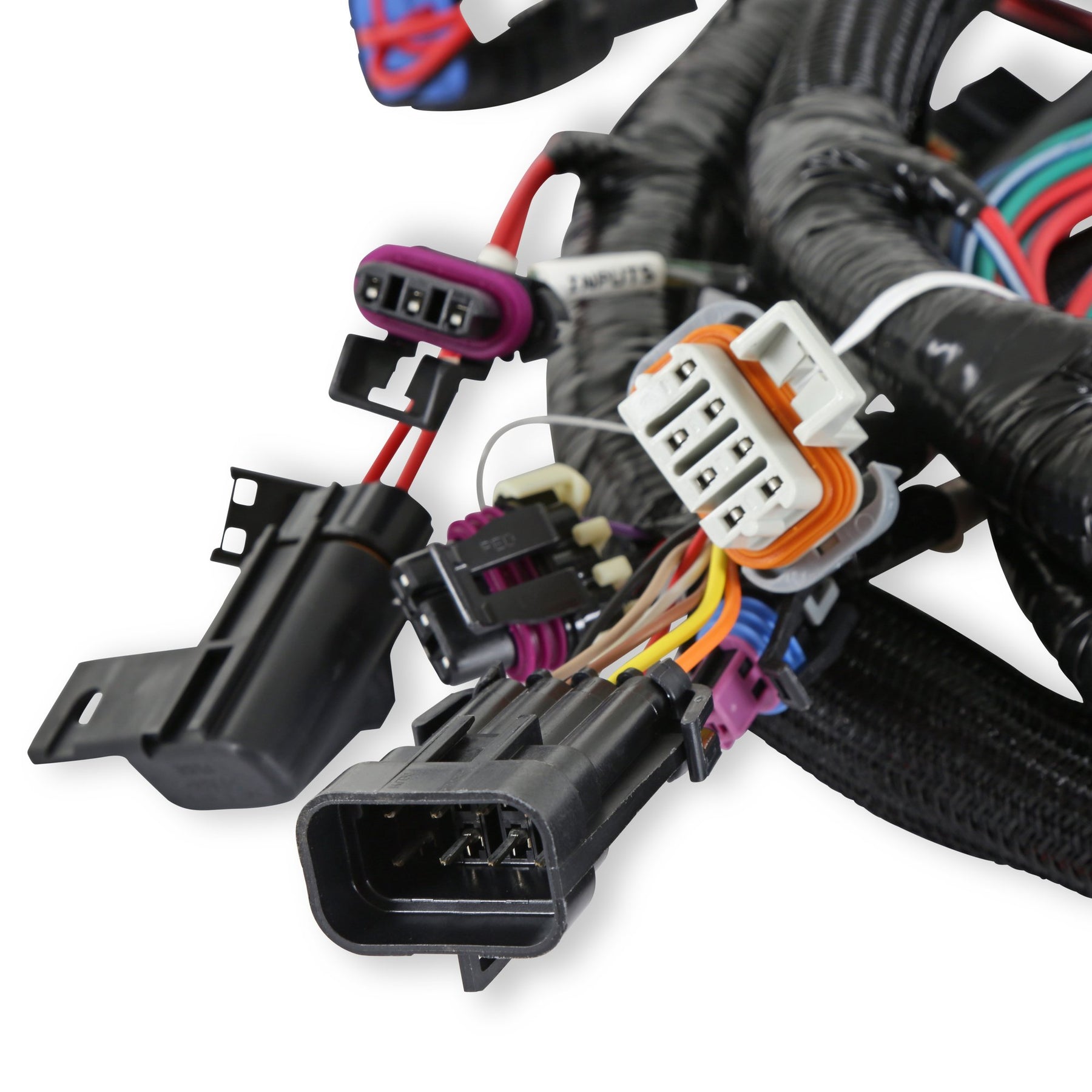

Main Engine Harness for 24x LS w/ TBI

This harness is used with Dominator, HP, Terminator X, and Terminator X Max when using a Terminator or Terminator Stealth throttle body injection unit in a Gen 3 24x LS engine. It has crank and cam sensor plugs for Gen 3 24x LS engines as well as Even/Odd LS coil harness plugs and a bulkhead connector for Holley P/N's 534-225 and 534-227 and similiar throttle body injection units.

• Used with 24x/1x Gen 3 LS
• Dominator, HP, Terminator X, and Terminator X Max when using a Terminator or Terminator Stealth throttle body injection unit
• Crank and cam sensor plugs for Gen 3 24x LS engines
• Even/Odd LS coil harness plugs
• Bulkhead connector for Holley P/N's 534-225 and 534-227 and similiar throttle body injection units

Specifications

• Brand: Holley EFI
• Category: Air and Fuel Delivery
• Emission Code: 4
• Part Type: Fuel Injection Harness
• Product Type: Terminator LS Main Engine Harness
• Sub Category: Wire, Cable and Related Components
• Part Number: 558-111
