Holley Standalone Digital Dash Kit

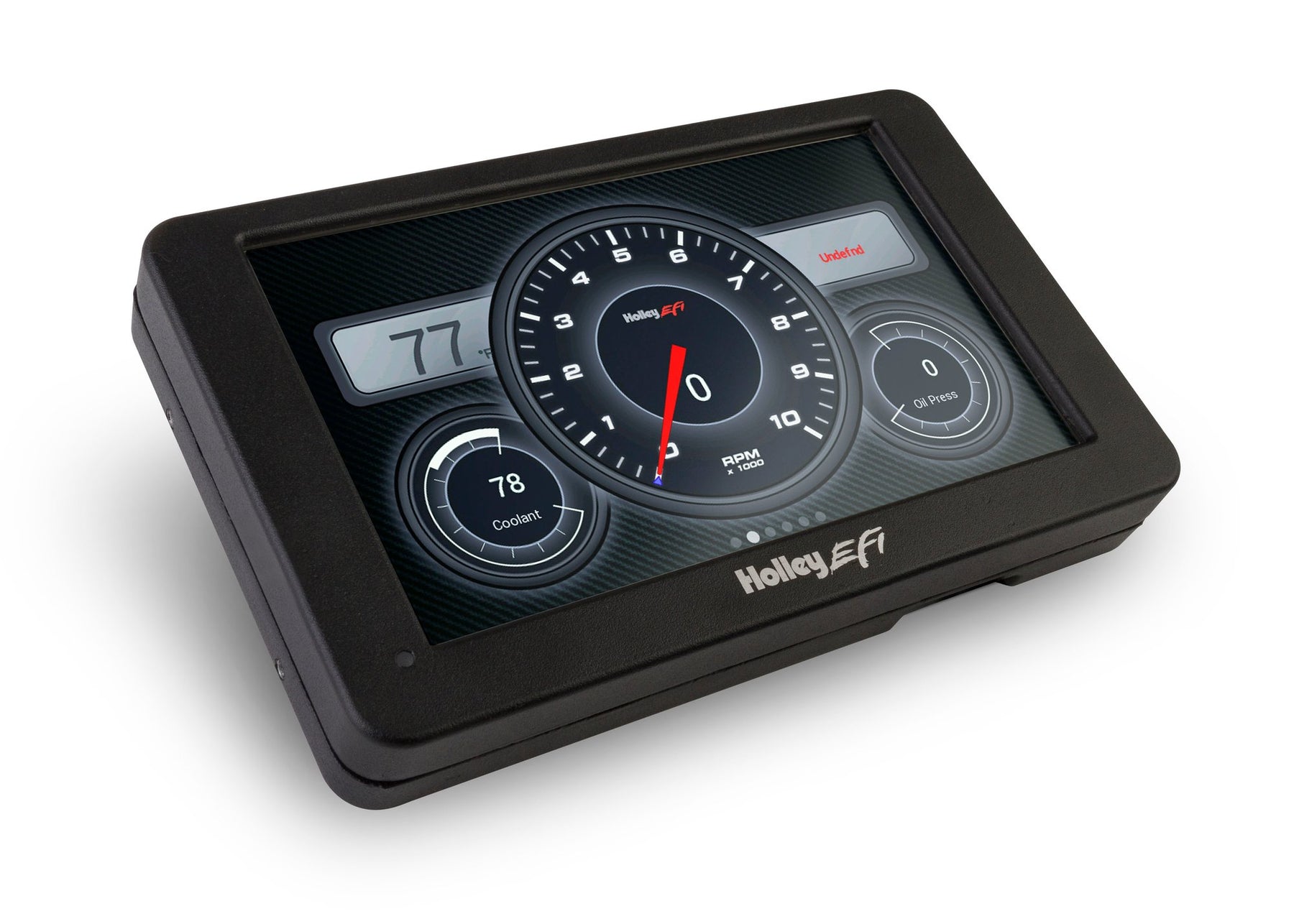

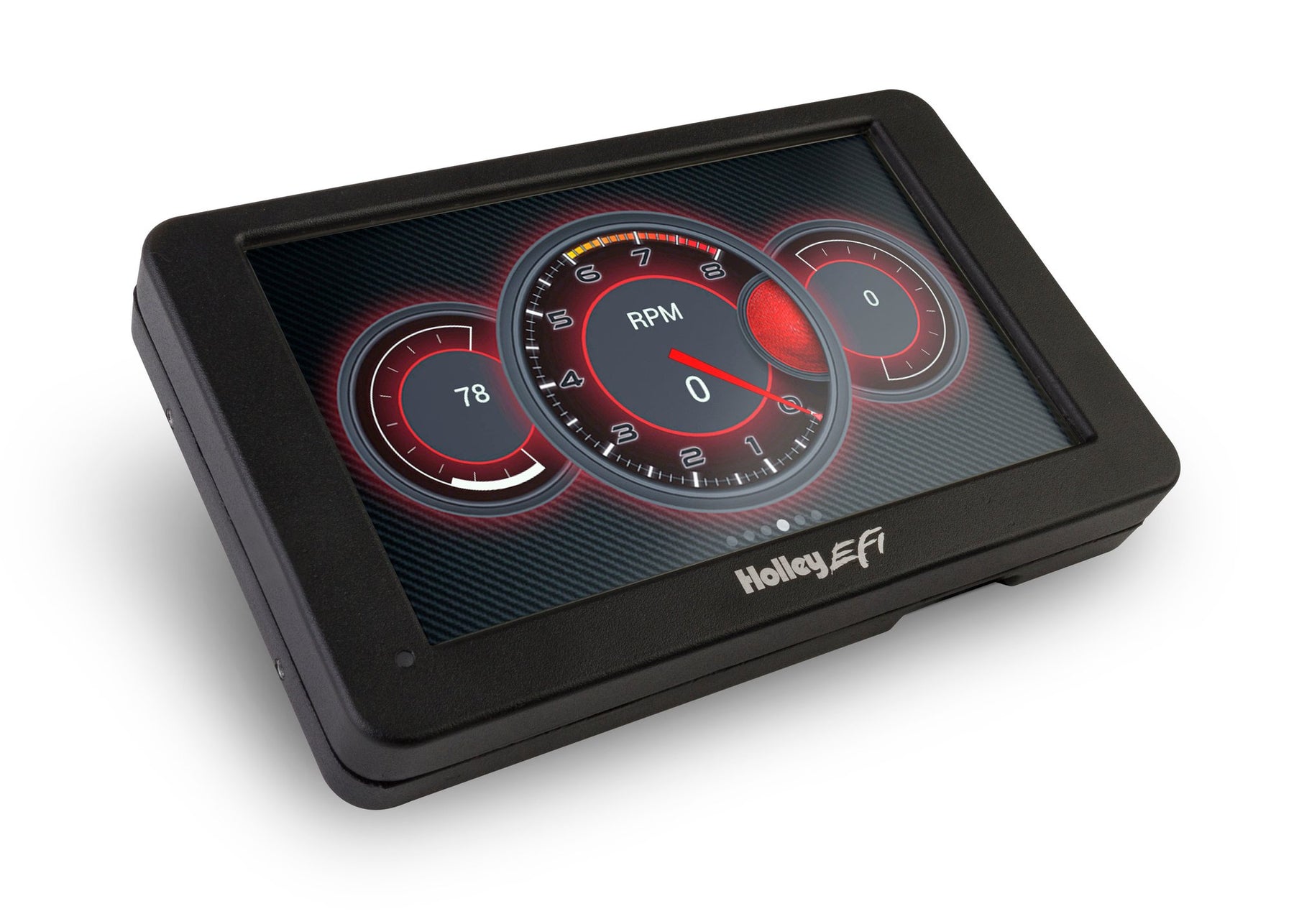

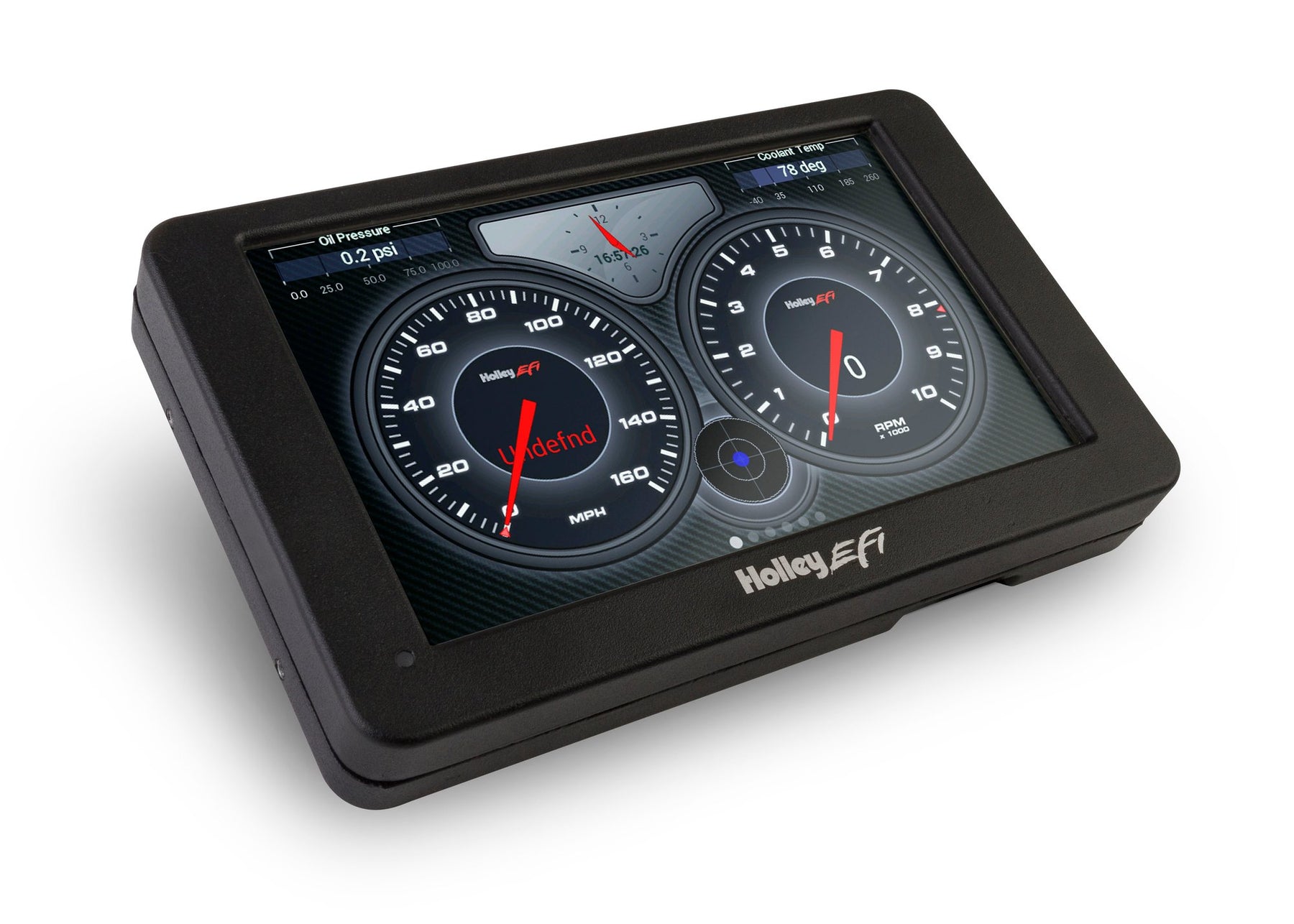

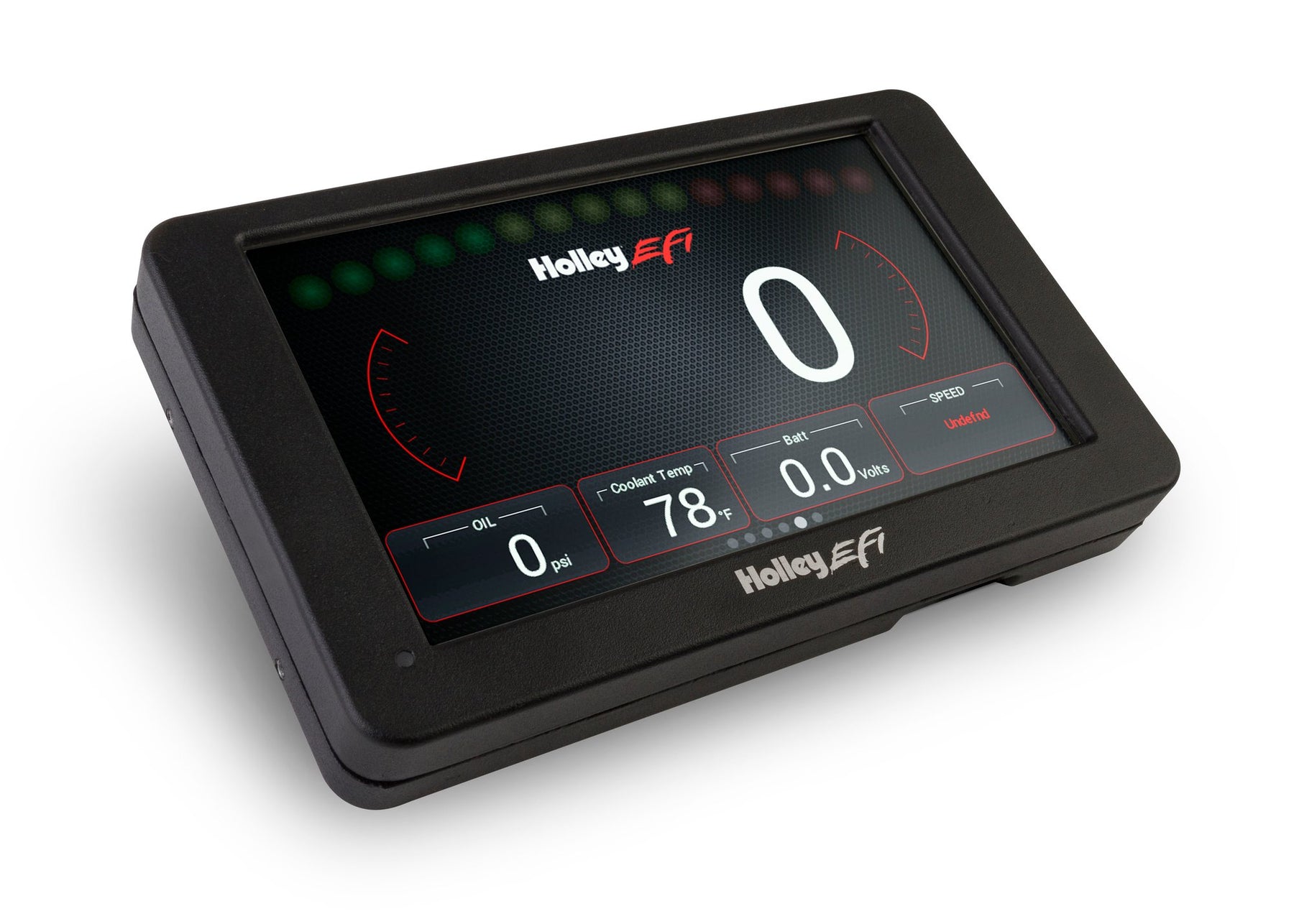

Have you been looking for a dash solution for your vehicle, but just cannot find anything you like or that is cost-effective? No need to look any further as Holley has created a full-color touch screen dash that includes sensors for monitoring basic engine parameters as well as a GPS speedometer all in a cost-effective package. Holley's standalone digital dash has great features such as, a weather-resistant aluminum housing for durability, multiple gauge and indicator type selections, customizable screen and gauge layouts, and a virtual switch panel just to name a few. With the integrated 3 axis accelerometer and data logging, the dash is ideal for anything from a JR dragster to Sportsman racing. It is also equally at home in a daily driver or a show winning roadster.

• Plug and play to Holley EFI systems via CAN bus (not compatible with Sniper 2)
• Weatherproof aluminum housing allowing flexible mounting options (template included)
• 7” screen with 800 x 480 resolution measuring at 4.625" H x 7.5” W x 1" Depth
• Auto brightness and dimming with low glare to the touchscreen to view from any driving angle
• 10 preconfigured screens you can customize to personal preferences displaying any measurements
• Complete customizable display of all EFI parameters including every user configurable input and output available
• Numerous gauge and indicator types with limitless customization options
• Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
• Virtual switch panel replacing the need for physical switches in vehicles
• Built in warning lights and alarms to keep you alert for any set parameters
• Progressive shift light and multiconfiguration light bar
• Control and on-screen playback of data logs
• Download and save data logs to external USB memory stick or expand internal storage on onboard microSD card
• Integrated 3 Axis Accelerometer
• Ability to connect to Holley and non-Holley ECU’s

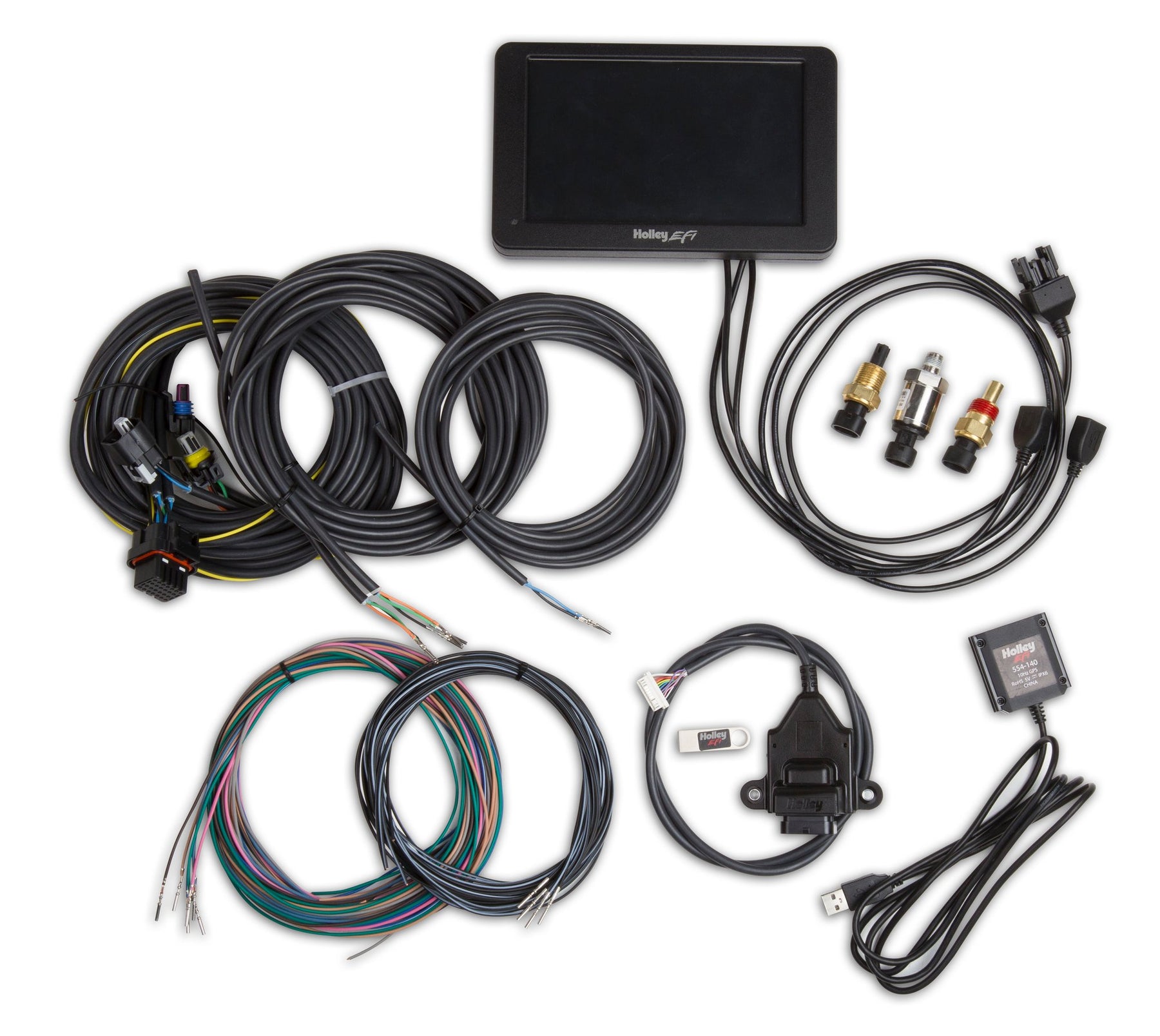

• Includes digital dash with input/output adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, coolant temperature sensor, manifold air pressure (MAP) sensor, GPS module

Specifications

• Brand: Holley EFI
• Category: Body
• Depth: 1"
• Emission Code: 5
• Grade Type: Performance
• Height: 4.625"
• Illuminated: Yes
• Maximum Gauge Diameter: Programmable
• Minimum Gauge Diameter: Programmable
• Mounting Hardware Included: No
• Part Type: Electronic Multi-Purpose Gauge
• Product Type: Digital Dash
• Screen Size: 7" Diagonal
• Screen Type: Resistive touch screen
• Sub Category: Instrument Panel
• Width: 7.5"
• Part Number: 553-109
