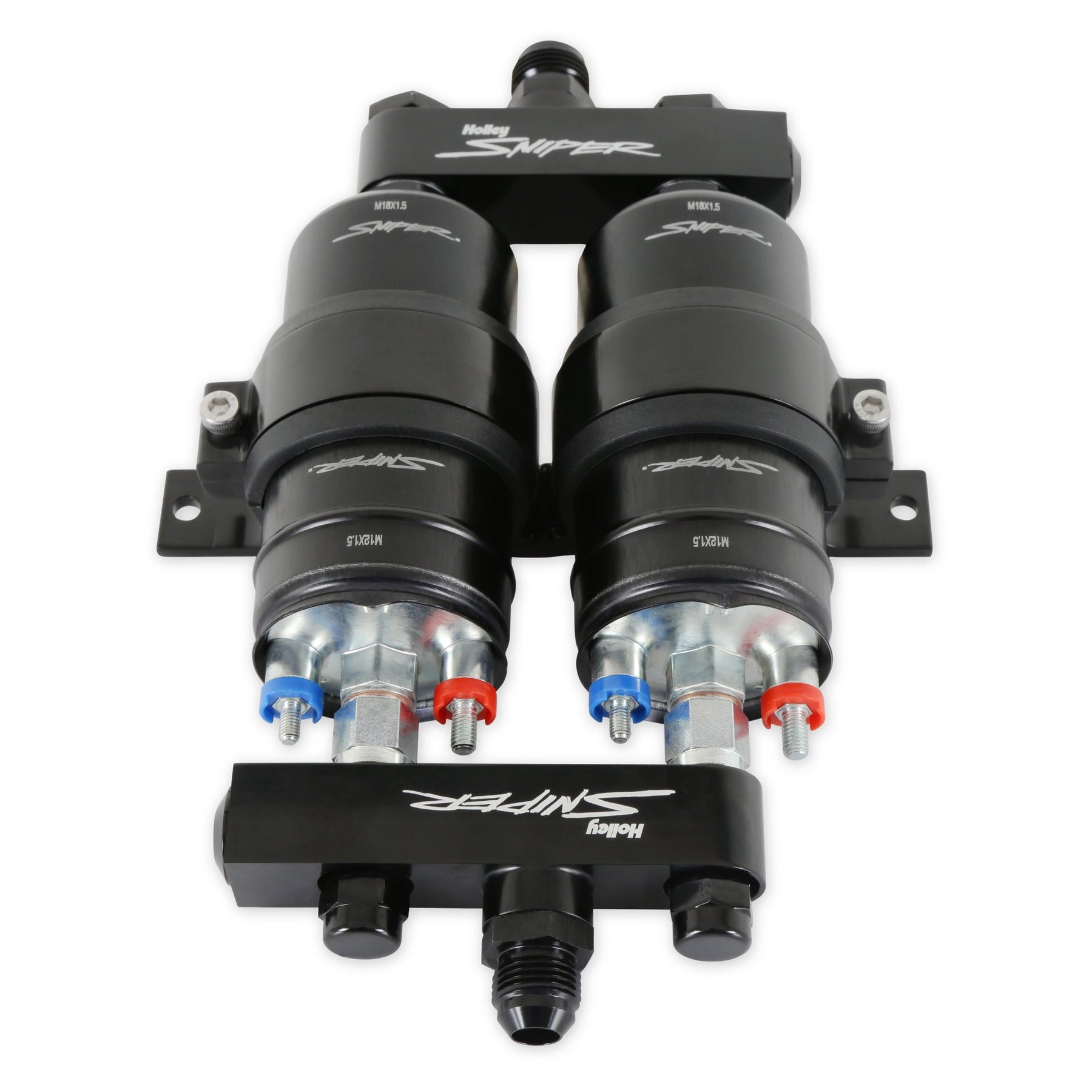

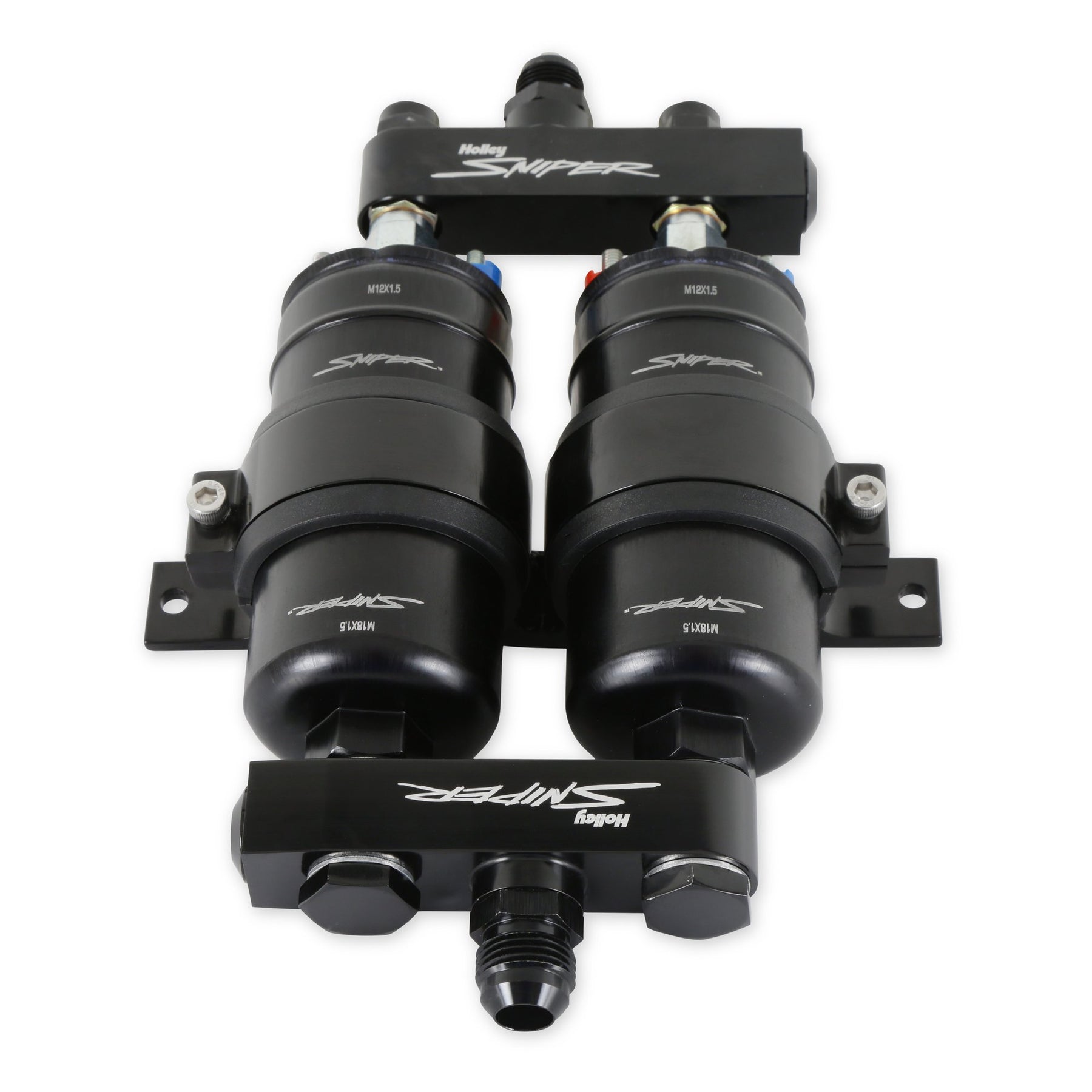

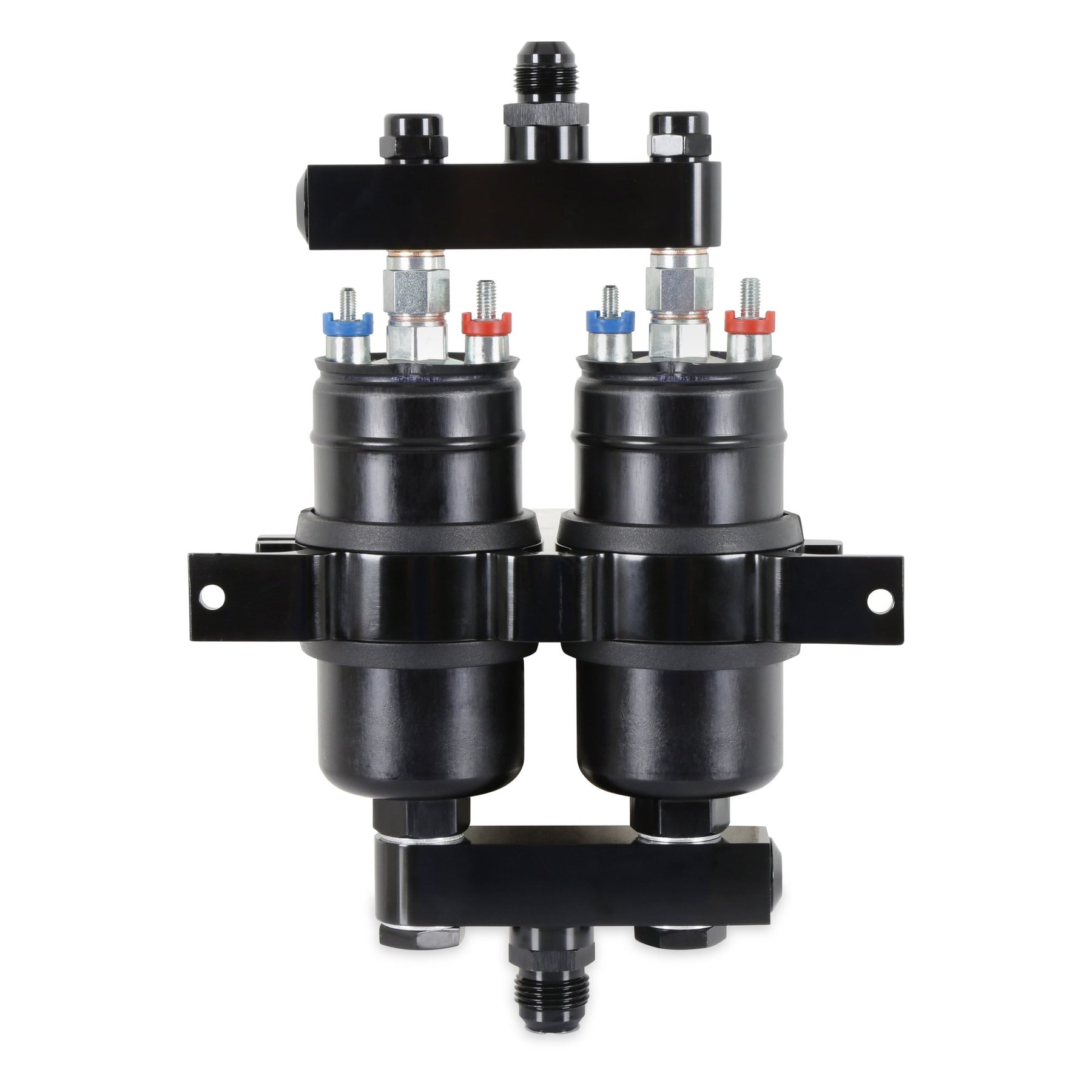

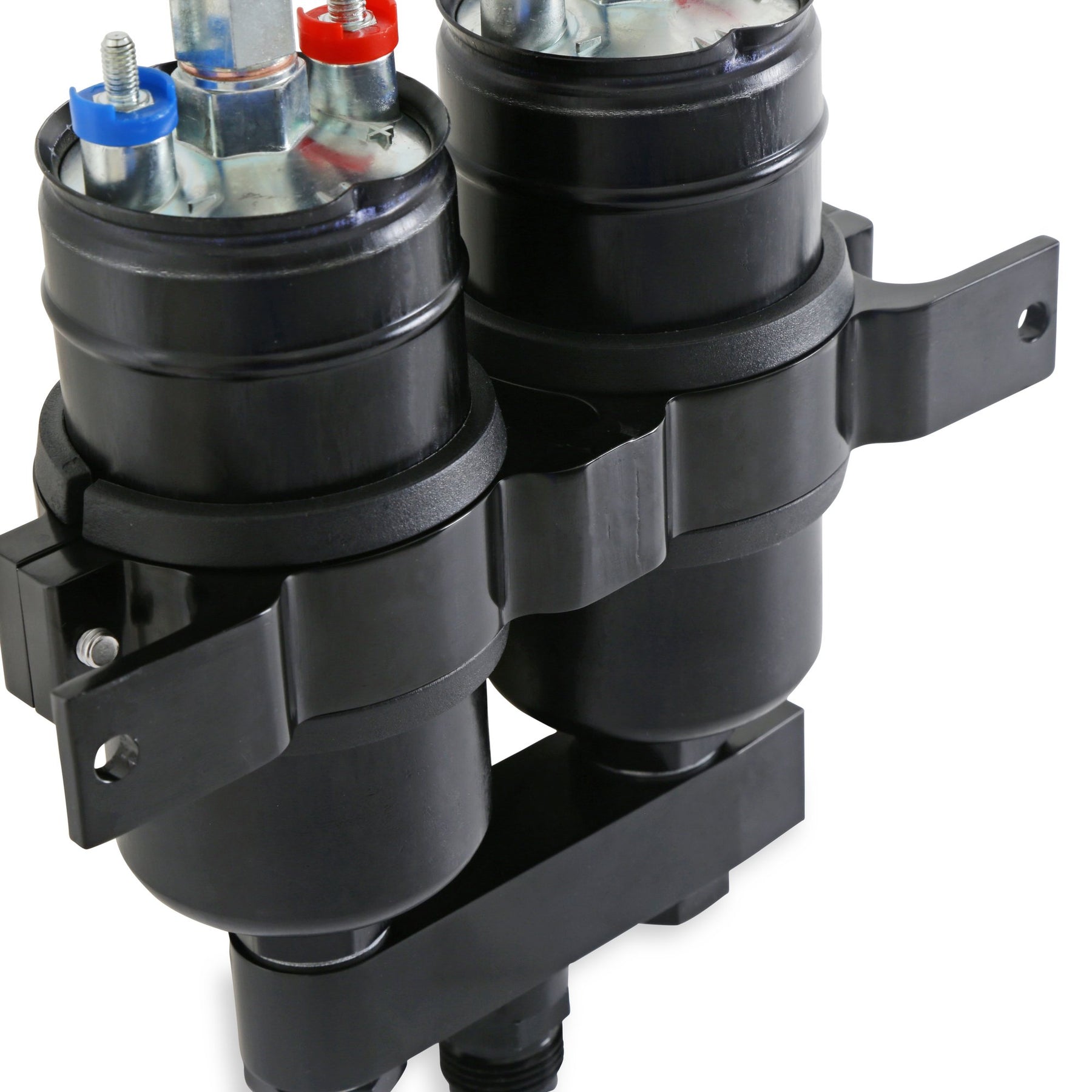

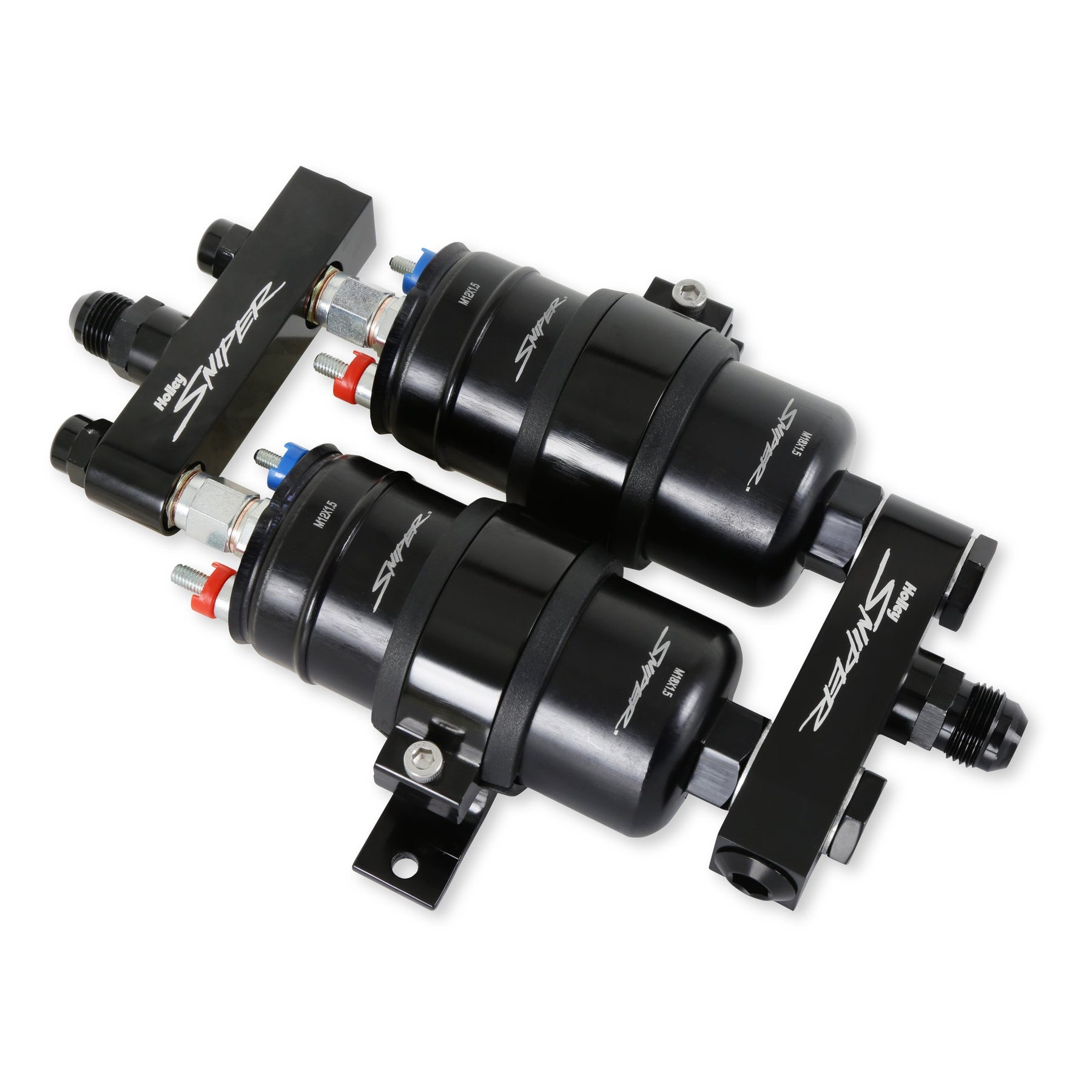

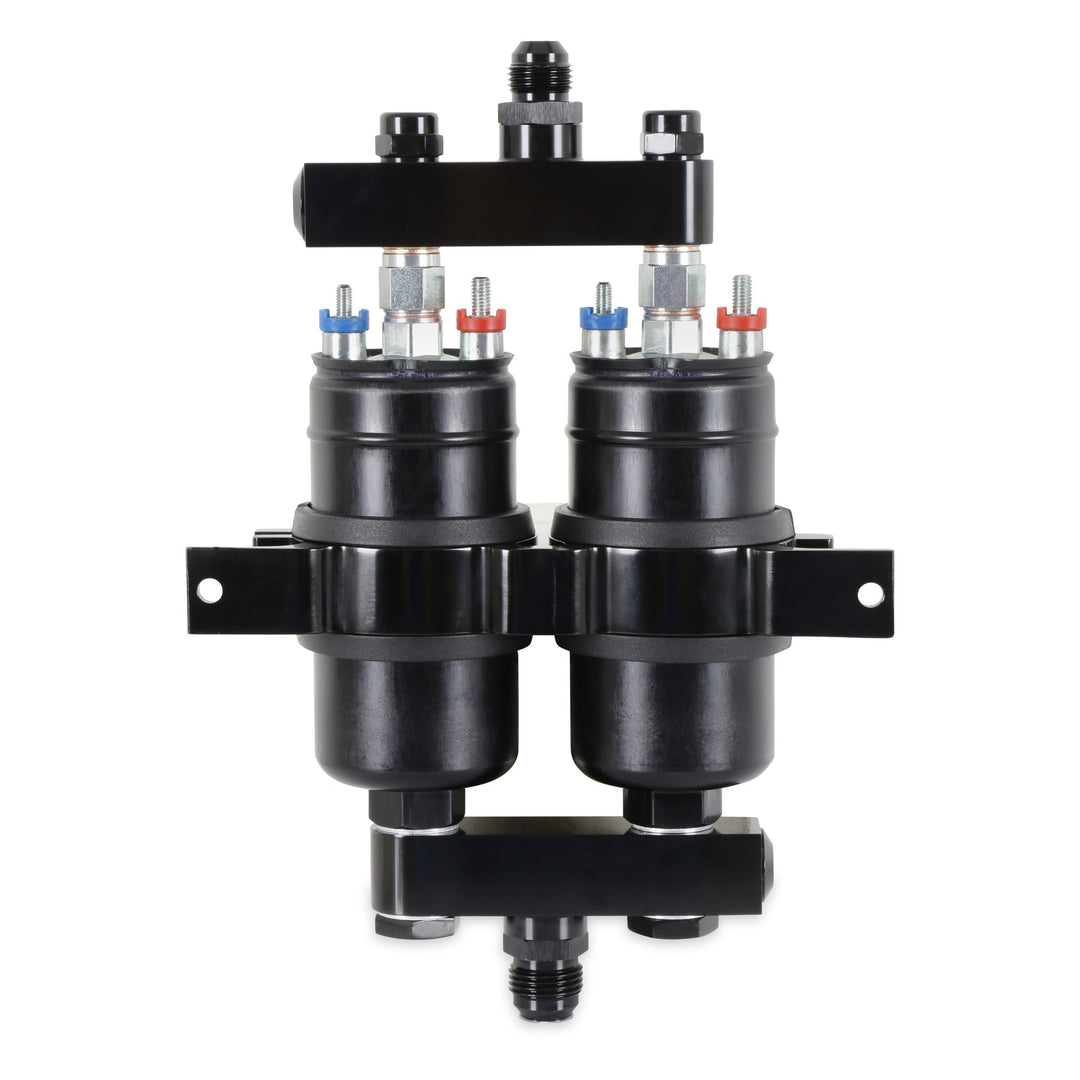

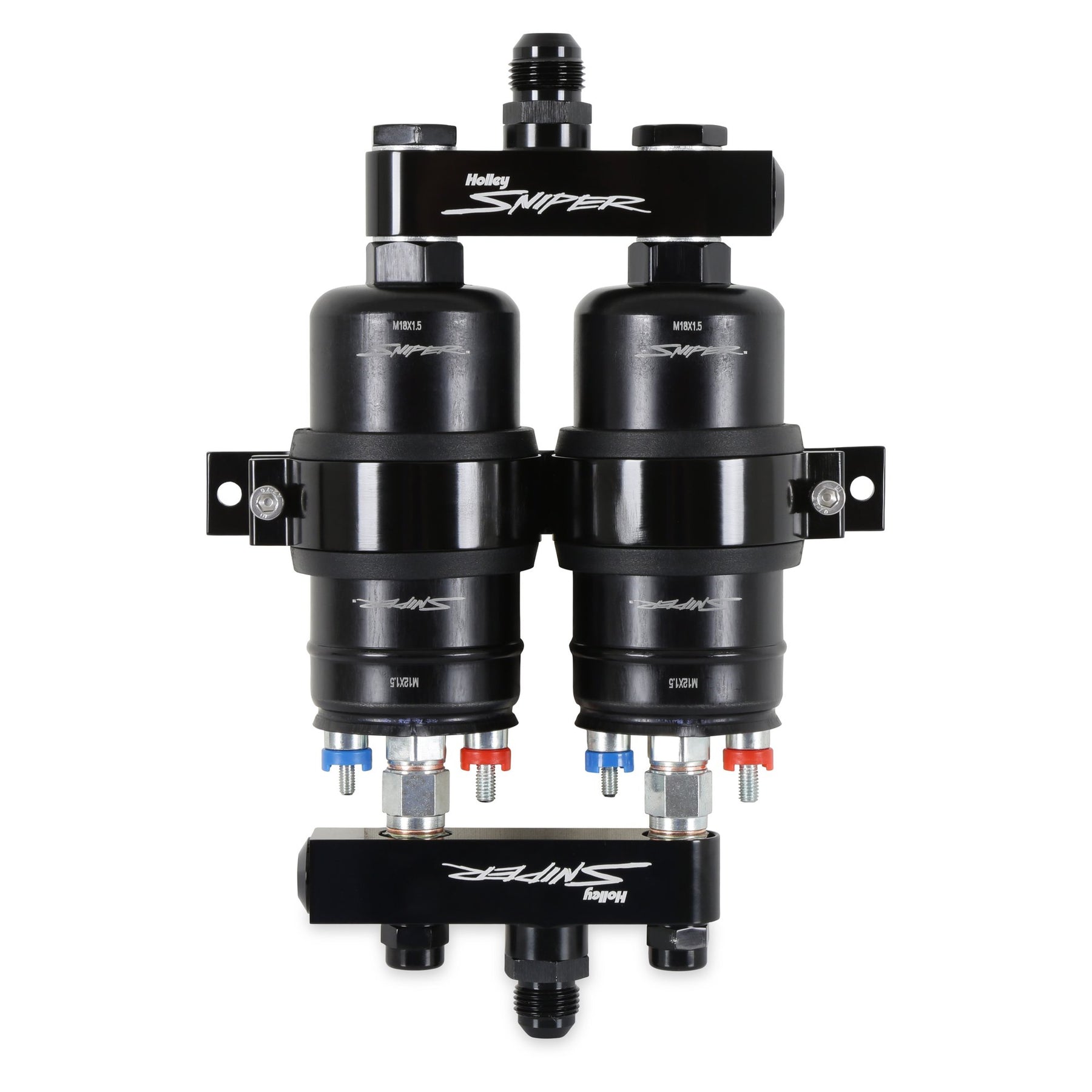

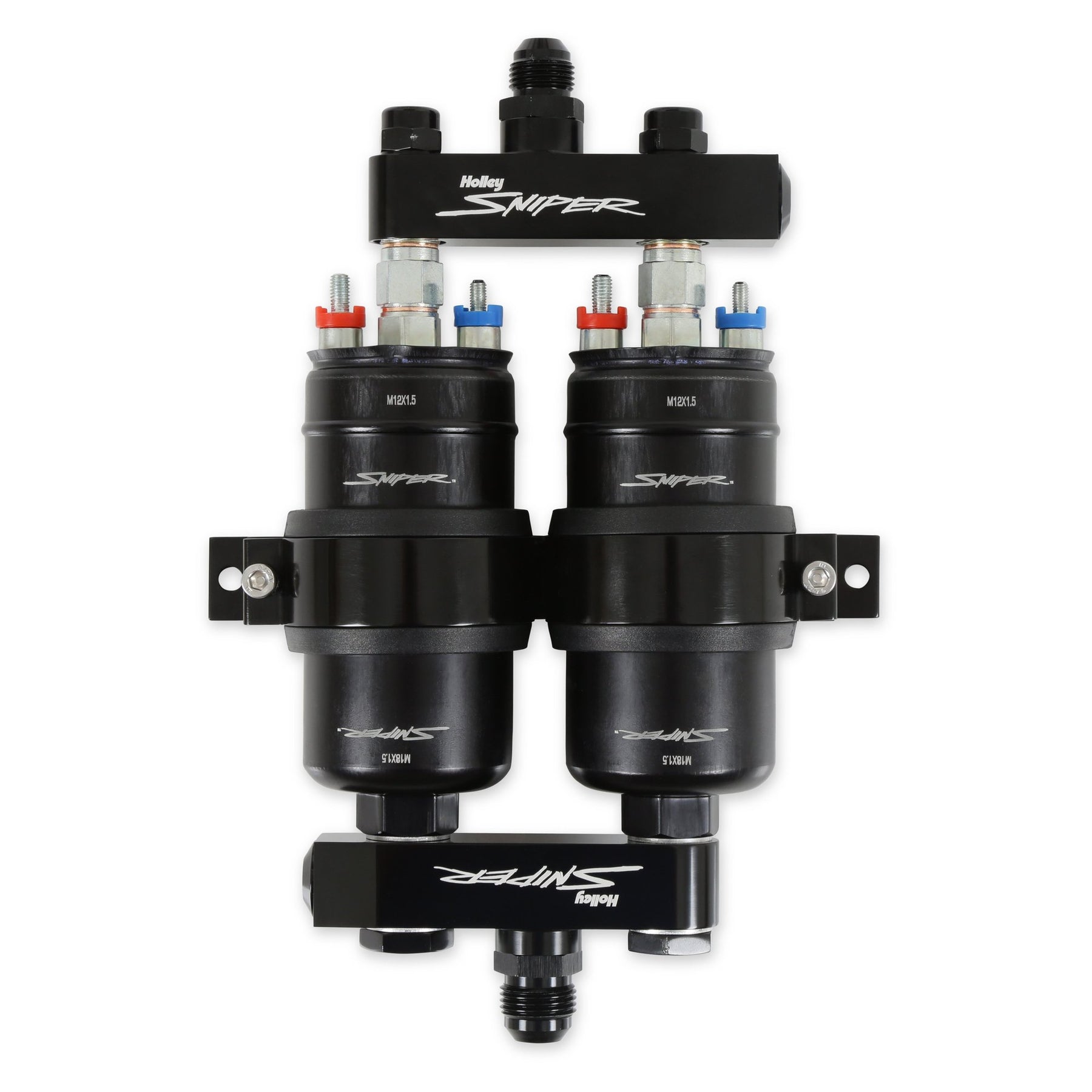

Holley Sniper 3.5 GPM Twin Pump and Manifold Kit

Holley Sniper's 3.5 gpm (gallons per minute) fuel pump is designed for high performance naturally aspirated and forced induction EFI vehicles. The twin pump manifold utilizes -10 AN male inlet and -8 AN male outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The 12-270 supports over 1000 hp Compatible with Gasoline or E85. The Max Flow is 3.5 gpm @13.5V and 4 gpm @18V.

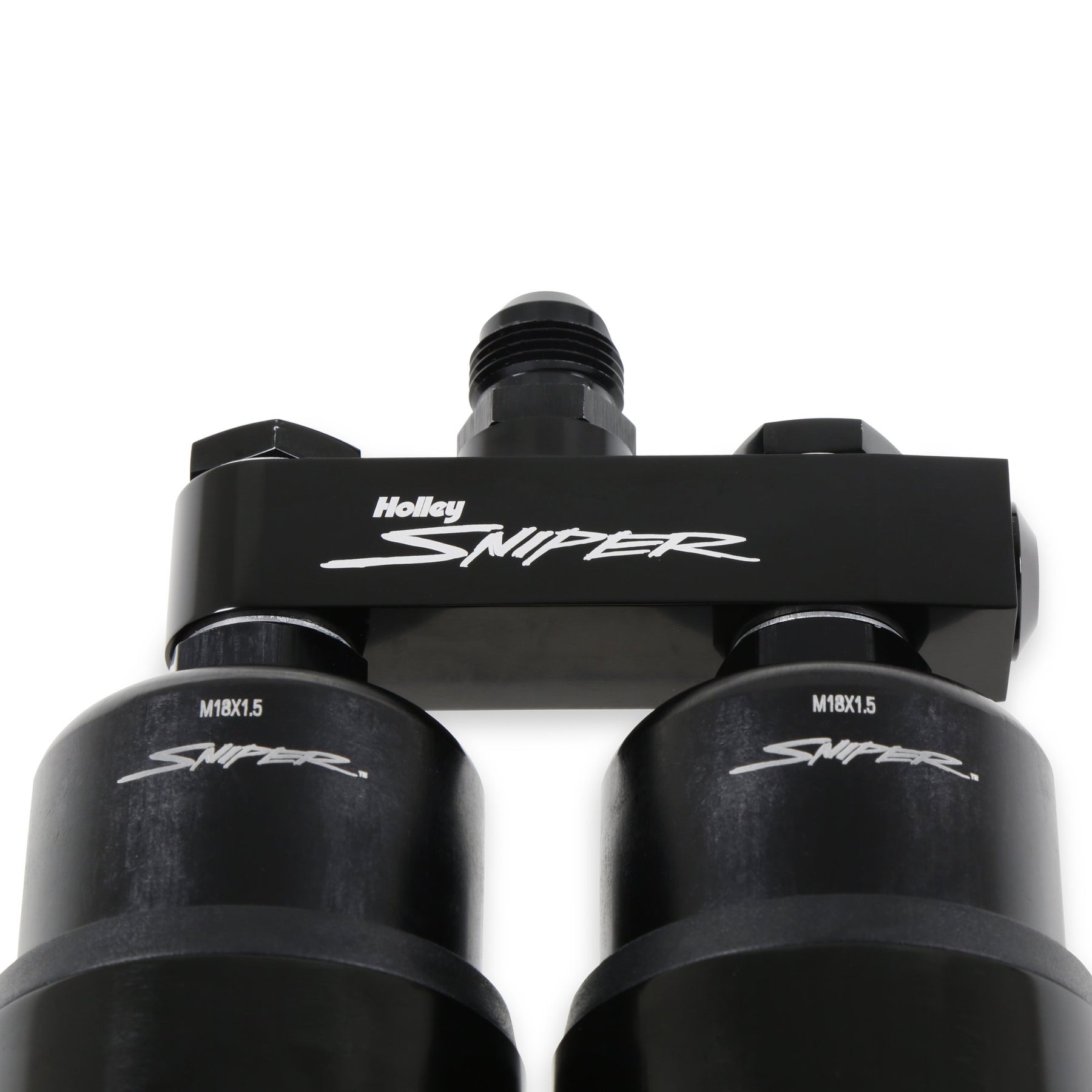

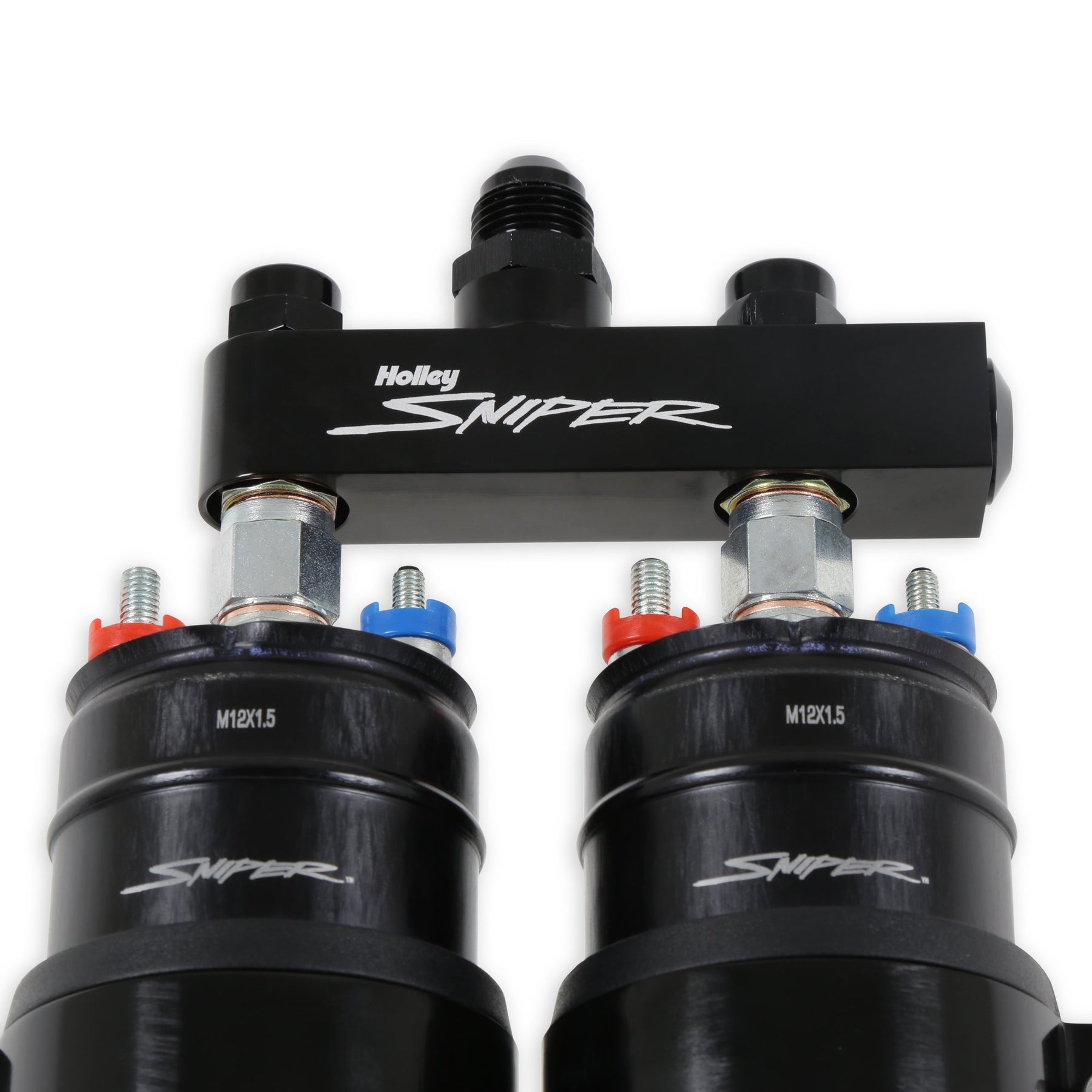

The pump manifold assembly is made from billet, anodized, and laser etched for good looks. The manifold inlet and outlet manifolds have 2 ORB ports each to accommodate for different mounting and plumbing situations. Plugs are included to seal off unused ports. The kit includes connectors, seals and detailed assembly instructions.

• Max amperage: 20A (per pump)
• Rated for gas and E-85, pump life will be diminished if used with 100% ethanol fuels
• Billet, anodized, laser etched components for good looks
• Manifold -10 AN male inlet fitting and -8 AN male outlet fitting included, others must be purchased separately
• Pump I/O: -8 AN ORB
• Pumps can be staged or ran in parallel
• Inlet and outlet manifolds have 2 ORB ports each to accommodate for different mounting and plumbing situations. Plugs are included to seal off unused ports
• Wiring kits for each pump that contain connectors and seals included
• Detailed assembly instructions included
• Can be used in both EFI and carbureted fuel systems

Specifications

• Application: Universal
• Brand: Holley Sniper EFI
• Category: Air and Fuel Delivery
• Color: Black
• Emission Code: 5
• Finish: Coated
• Free Flow GPH: 420
• Free Flow LPH: 1590
• Fuel Delivery Type: Fuel Injection
• Fuel Sending Unit Included: No
• Fuel System: Carbureted
• Fuel Type: Gasoline/E85 Compatible
• Gasket Or Seal Included: No
• Grade Type: Performance
• Inlet Type: 10 AN
• Internal Or External: External
• Material: Aluminum and Steel
• Maximum Amperage Draw: 40
• Maximum Flow Rating: 3.5
• Mounting Hardware Included: Yes
• Negative Ground: Yes
• Outlet Quantity: 1
• Outlet Type: 8 AN
• Part Type: Electric Fuel Pump
• Product Type: Fuel Pump
• Pump Body Color: Black Anodized
• Regulator Included: No
• Strainer Included: No
• Sub Category: Fuel Pumps and Related Components
• Terminal Quantity: 2
• Universal Or Specific Fit: Universal
• Voltage: 12-18.5 2H
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Quantity: 4
• Wiring Harness Included: Yes
• Part Number: 12-270
