Take control of your LS engine with Terminator X Max! Don't settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price!
Terminator X Max features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Part number 550-929 also has Drive-by wire throttle body control. Terminator X Max comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X MAX has the features and technology you need at a price that won't break the bank!
- For GM LS1/LS6 engines with 24x crank reluctor and a Drive-By-Wire Throttle Body, and EV6 Injectors
- Real-Time fuel map learn, takes the guess work out of tuning your base fuel table.
- High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)

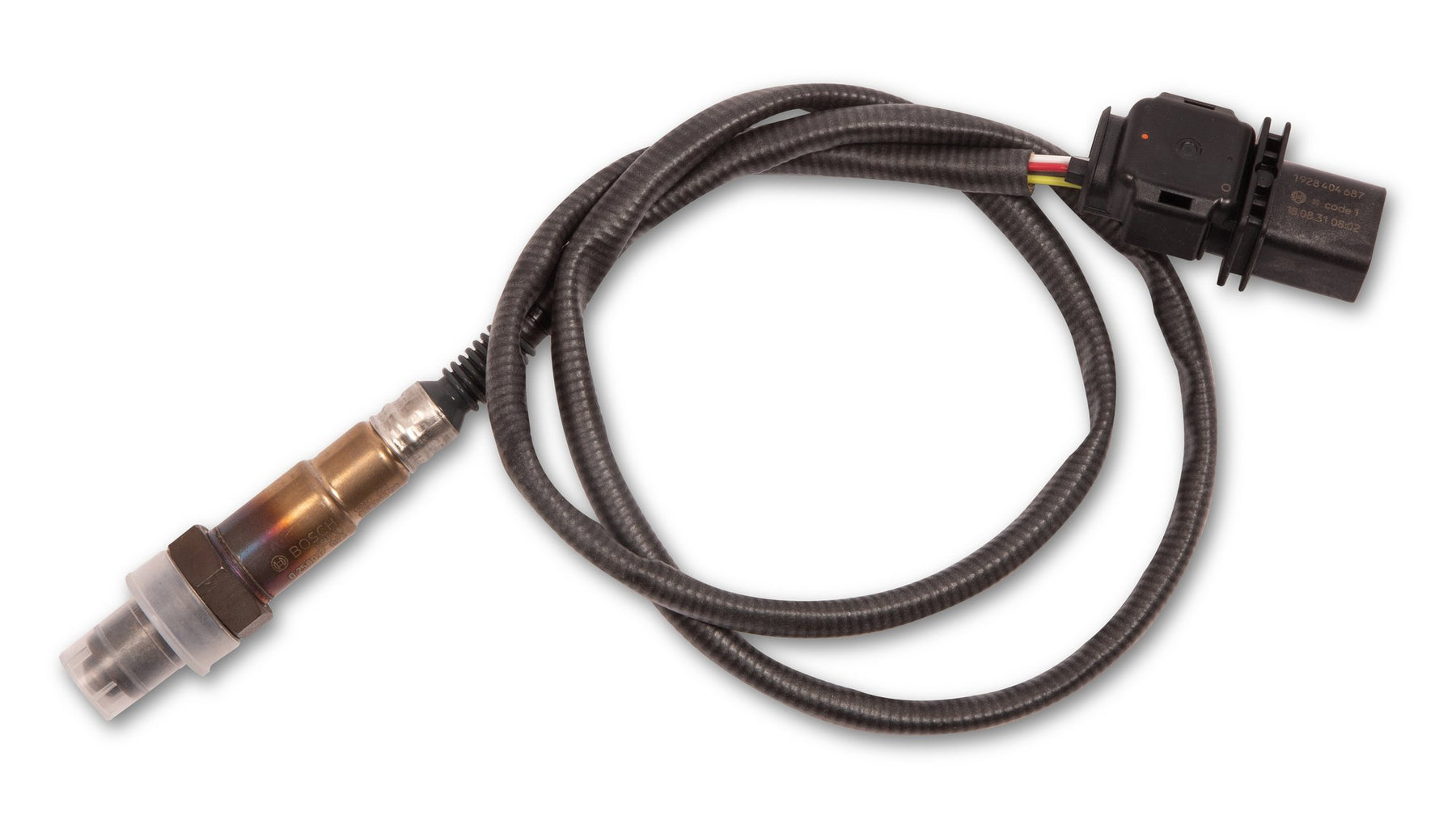

- All of the new Terminator X Max systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.
- On-Board 1bar MAP sensor, is perfect for N/A or Nitrous engine combos. If your combination requires a 2+Bar, we recommend GM 12592525, and our adapter part number 558-416.

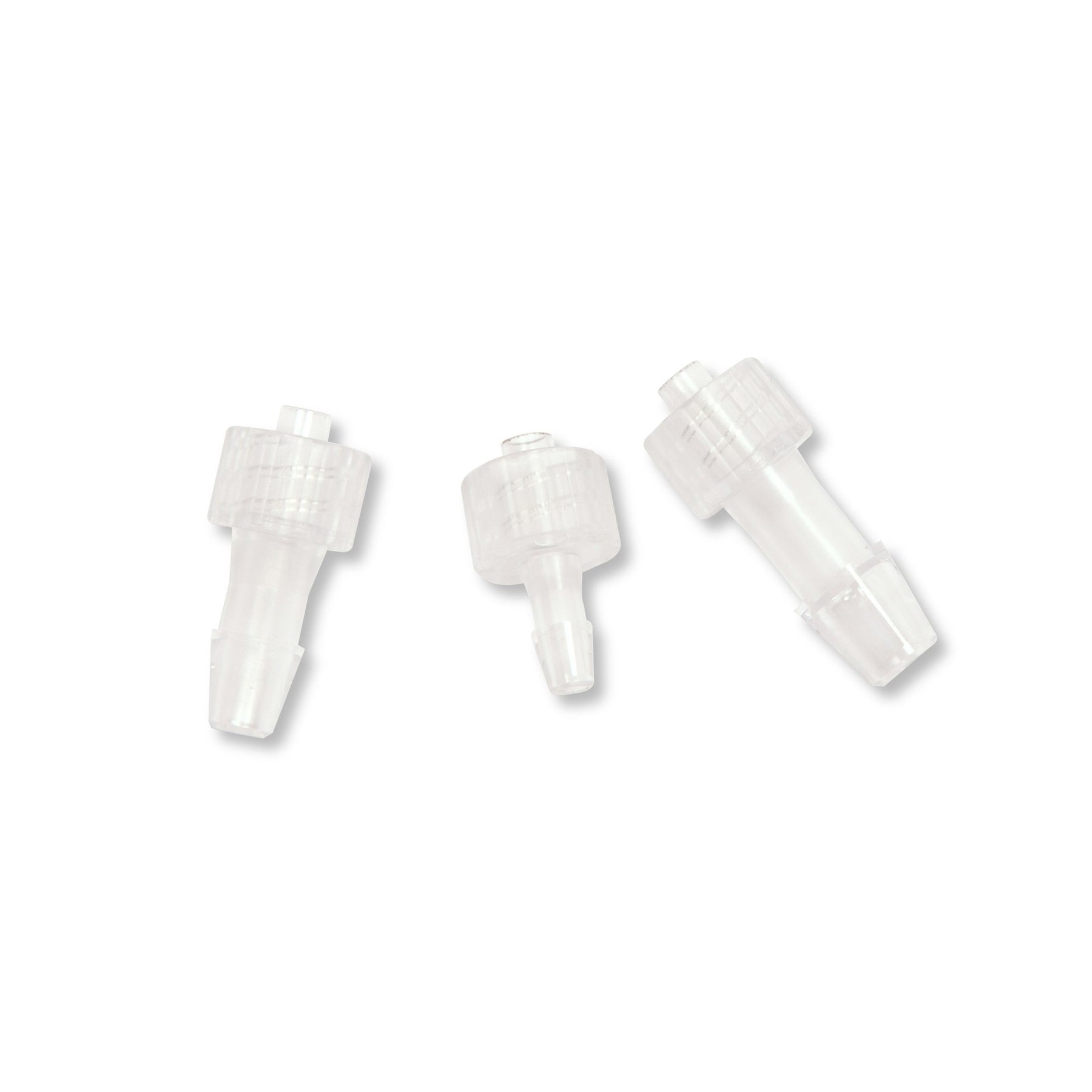

- MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
- 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
- 4 Outputs – Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
- Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!
- On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance
- The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display.

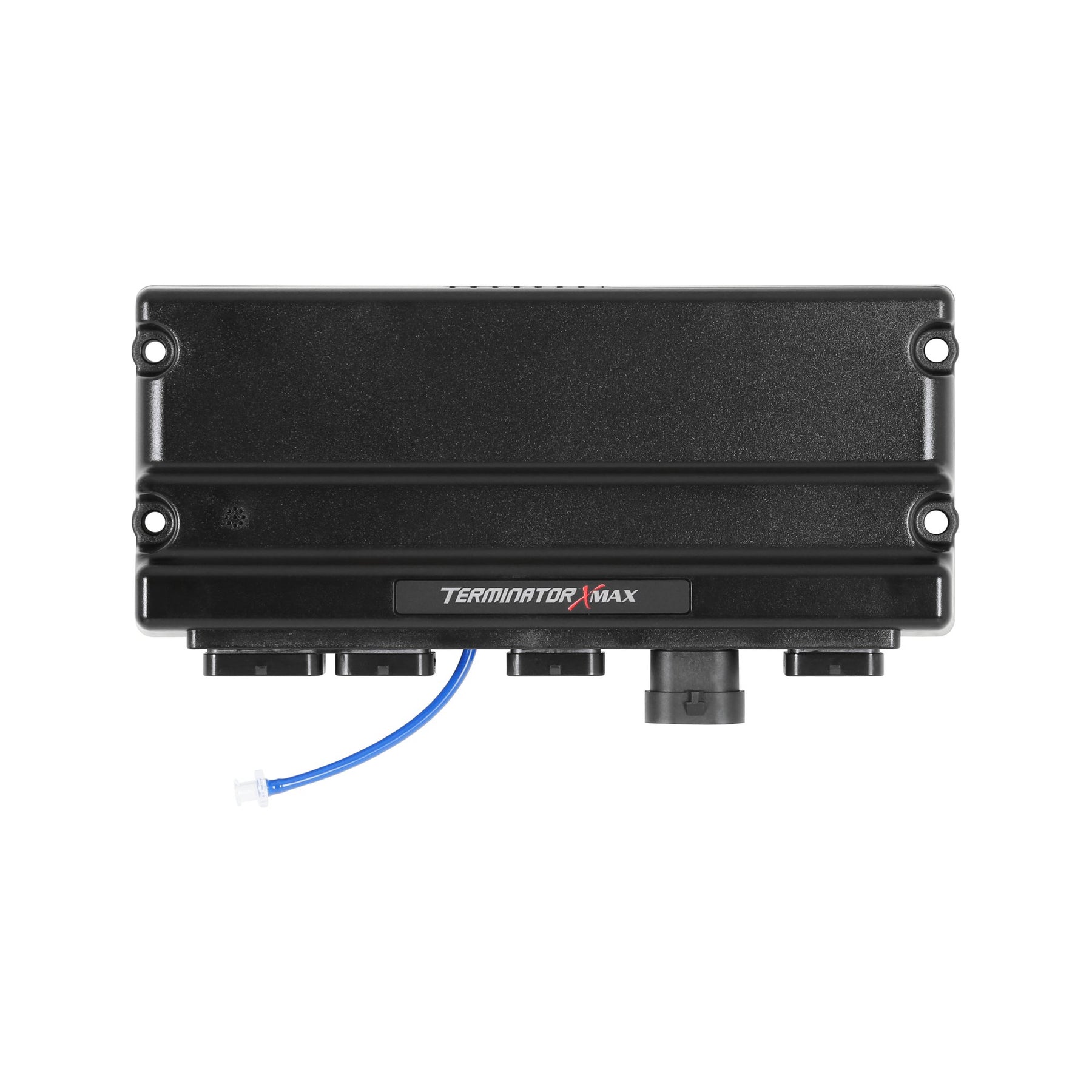

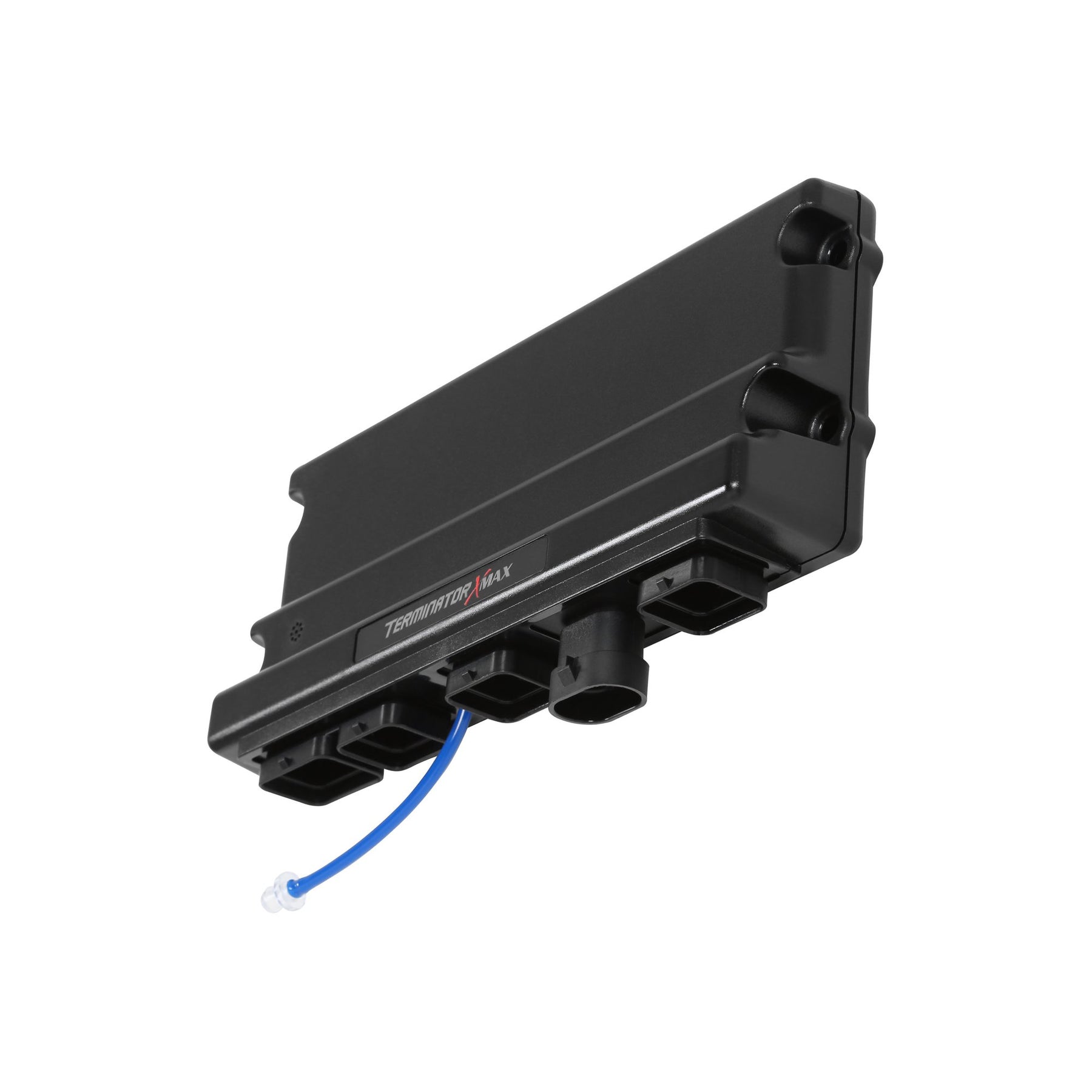

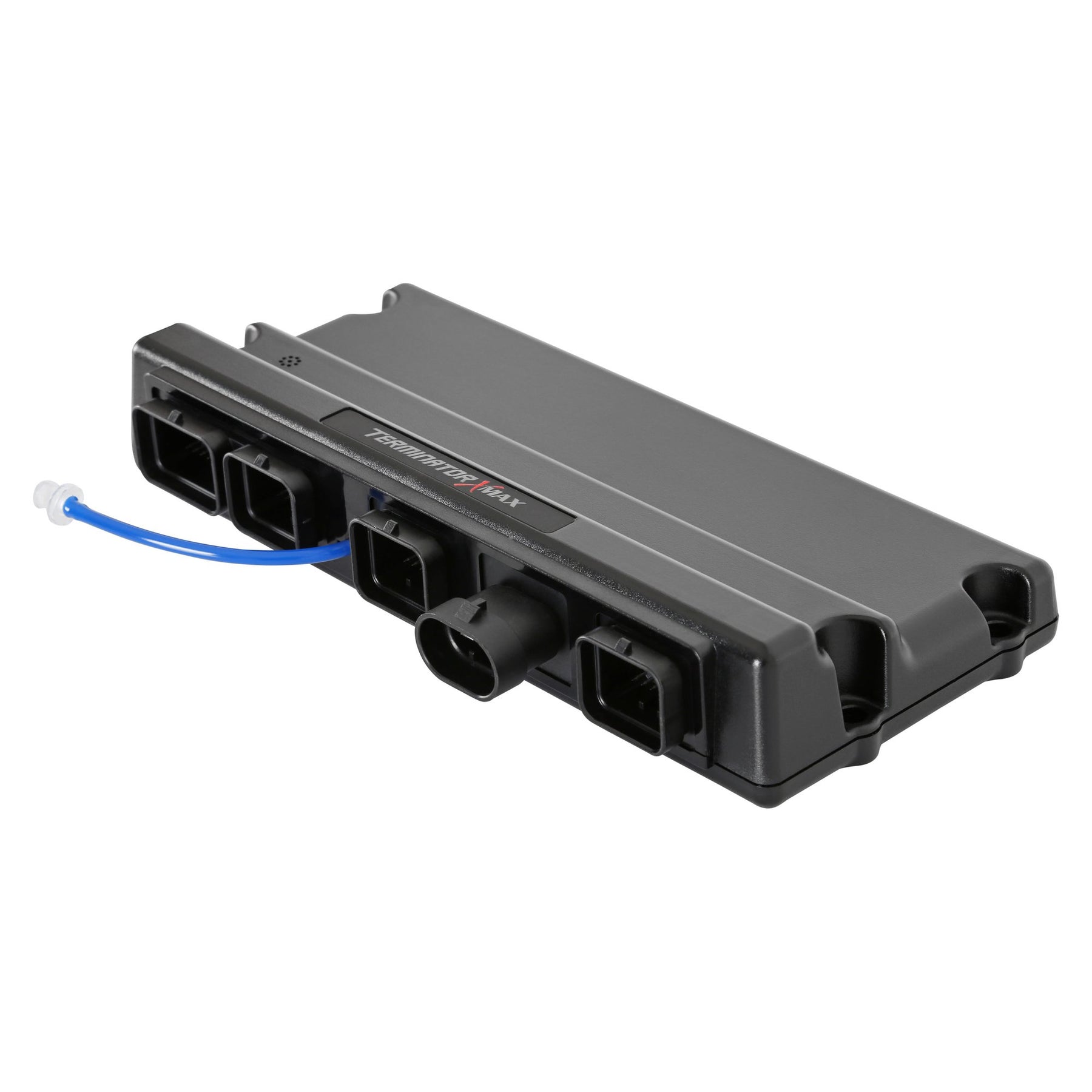

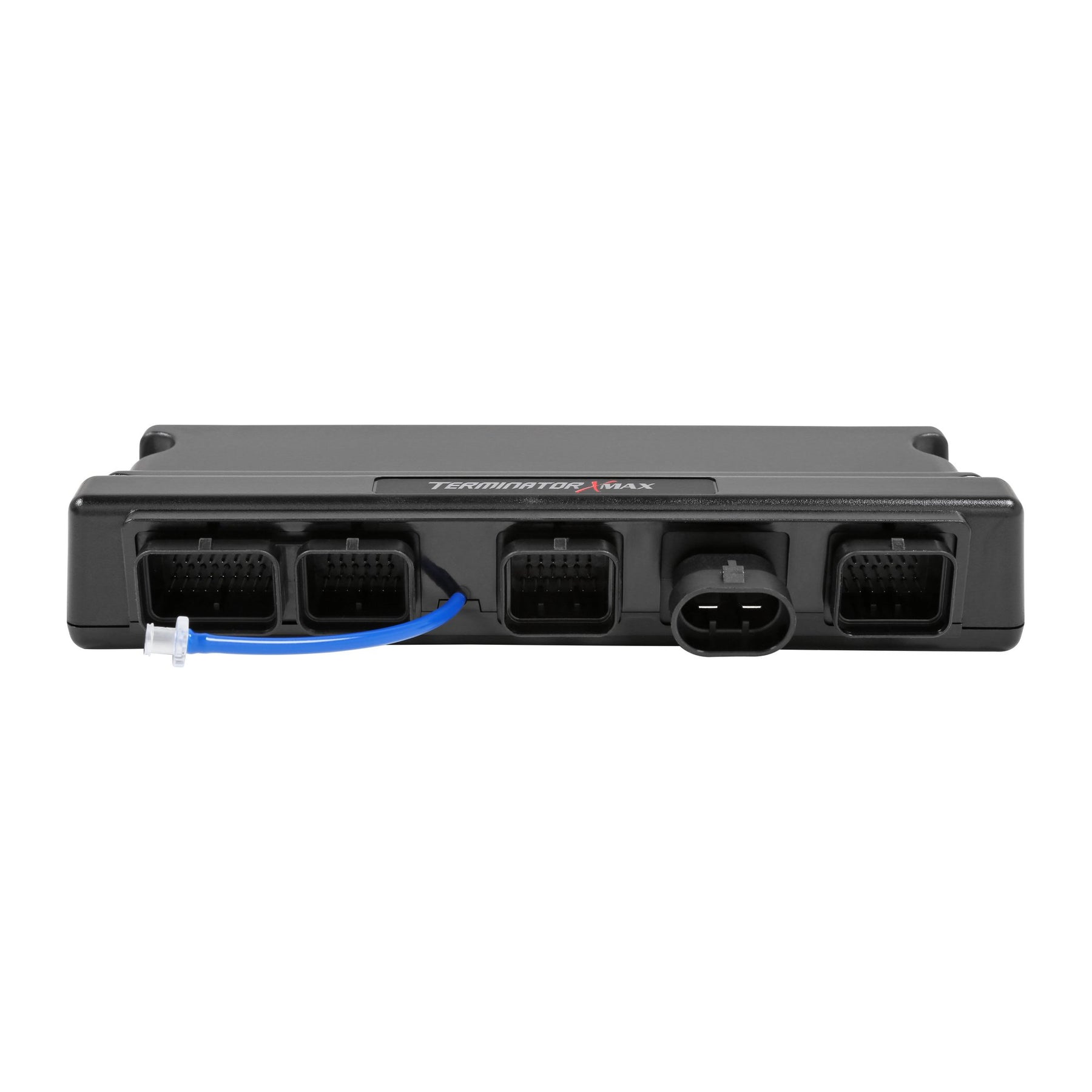

- The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
- Plug and play compatible with multiple Holley EFI accessories including our gauges, shift lights, various modules, and digital and pro dashes (Holley P/N's 553-106, 553-111, and 553-112)
- Free EFI Tuning Software for complete control of your Terminator X power plant
- Recommended Pedal part number - 10379038

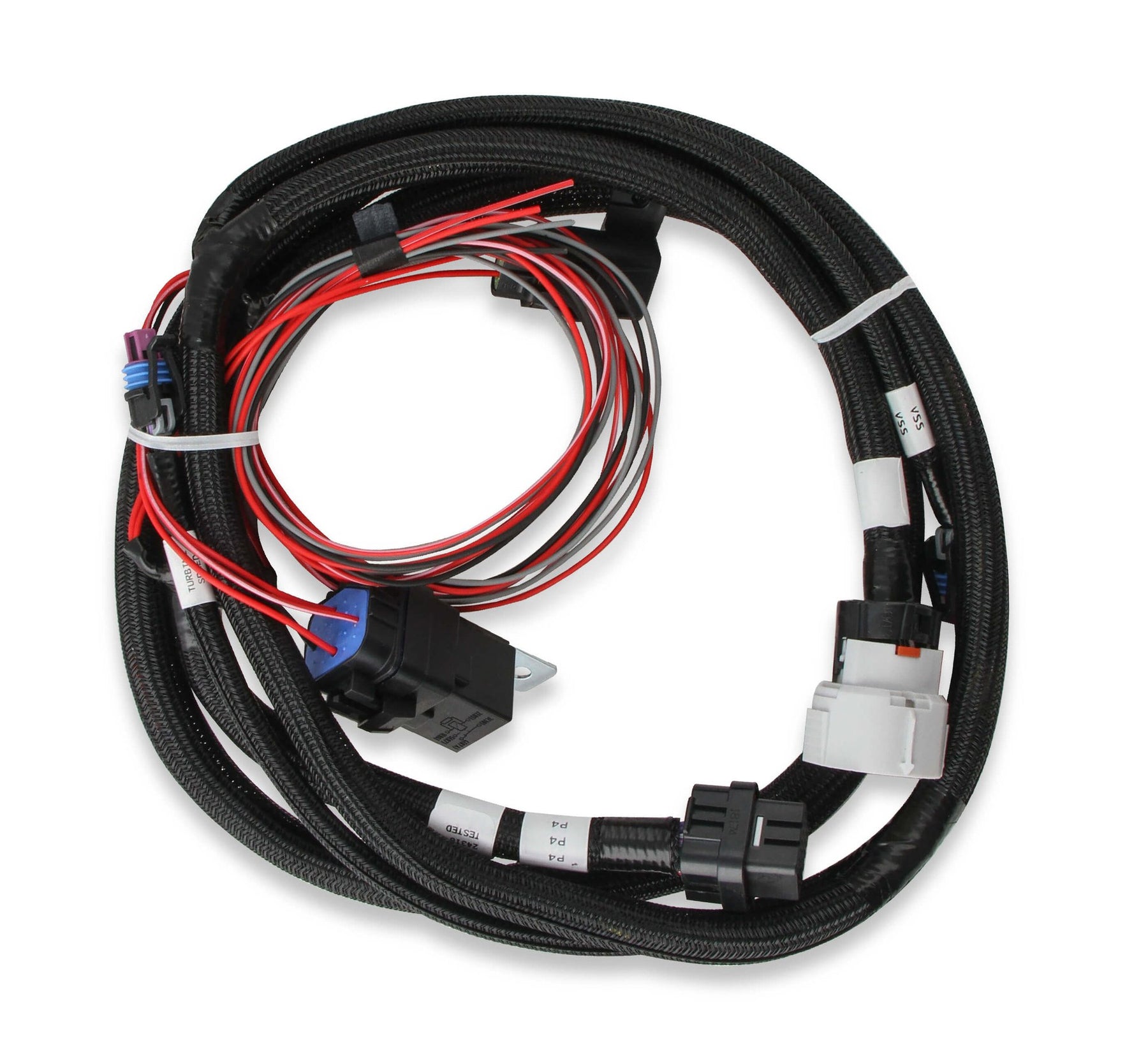

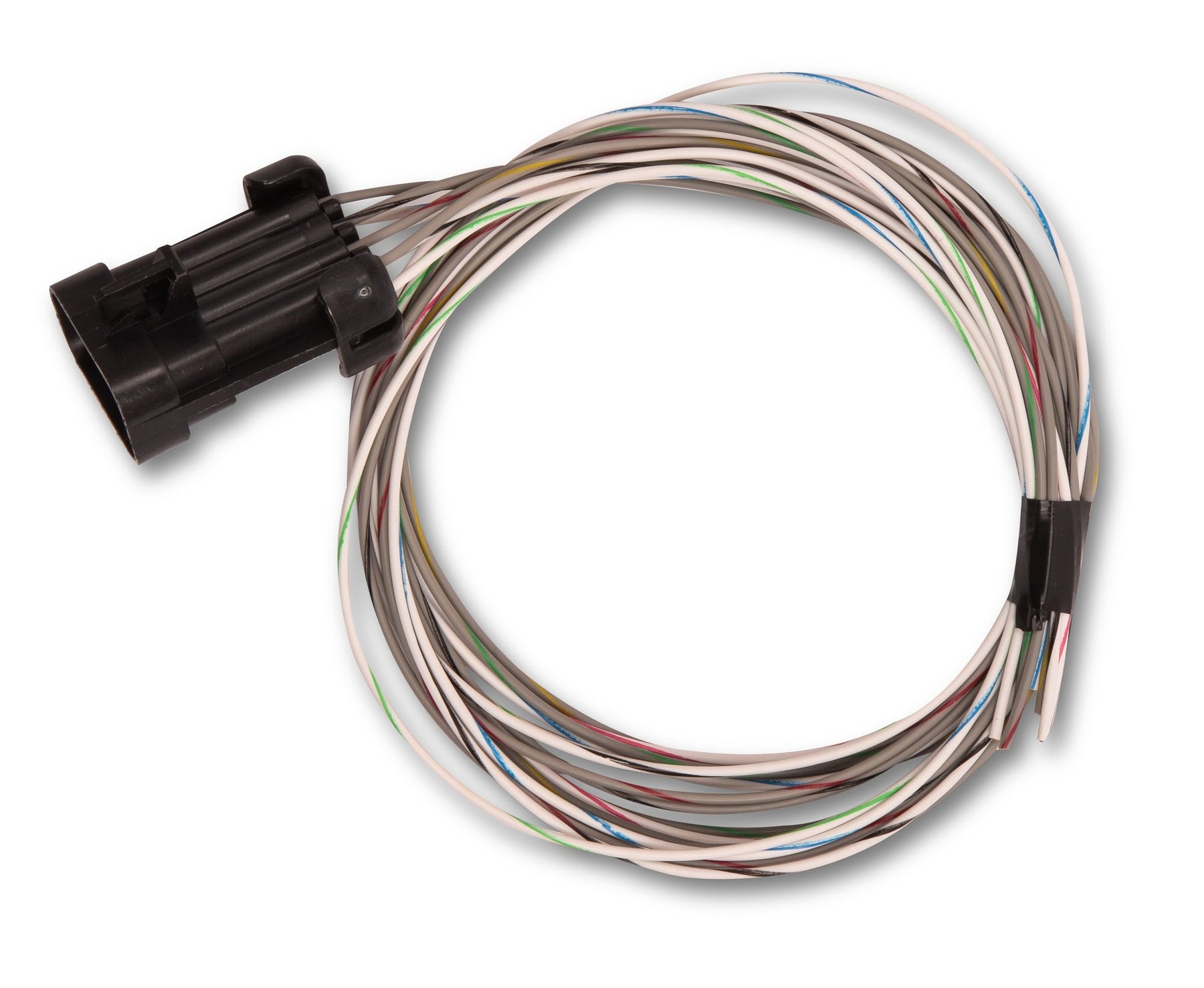

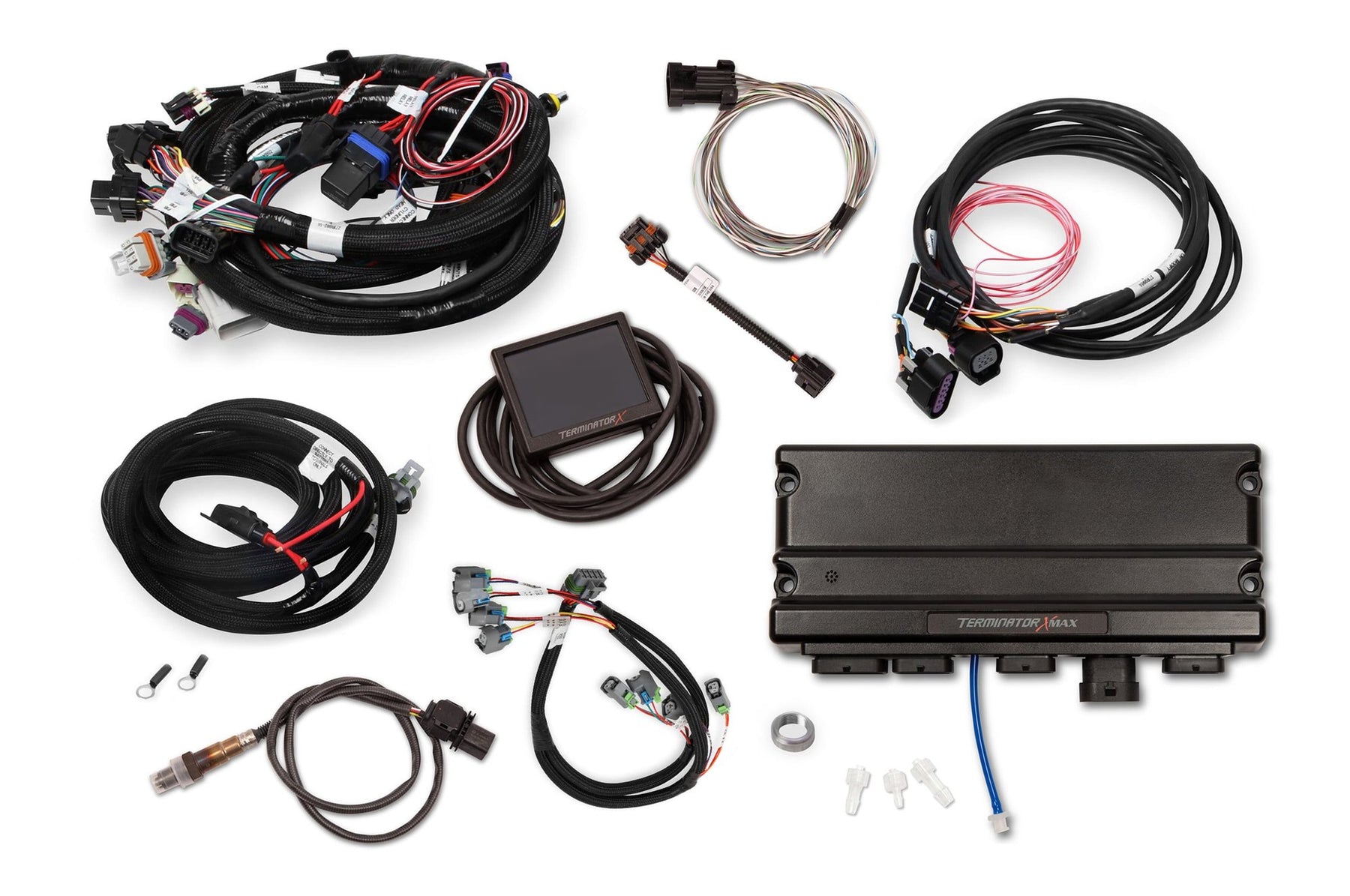

- Includes: 24x LS Engine Main Harness - EV6 Injector Harness - DBW Throttle Body Harness - Terminator X MAX ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - Input/Output Harness - and assorted vacuum adapters.
Specifications
-
Accelerometer Support: Yes
-
Boost Control: Yes
-
Brand: Holley EFI
-
CAN-BUS Support: Yes
-
Category: Air and Fuel Delivery
-
Coil Per Cylinder Ignition Support: Yes
-
Color: Black
-
Crank Reluctor: 24x
-
Datalogging Support: Yes
-
Display: 3.5 in. Handheld
-
Distributor Included: No
-
Drive-By-Wire: Yes
-
Dry Nitrous Control: Yes
-
e85 Support: Yes
-
EGT Support: Yes
-
Emission Code: 3
-
Engine: GM LS1/LS2/LS6
-
Finish: Textured
-
Forced Induction Support: Yes
-
Fuel Filter Included: No
-
Fuel Hose Included: No
-
Fuel Injectors Included: No
-
Fuel Pressure Regulator Included: No
-
Fuel Pump Included: No
-
Grade Type: Performance
-
Handheld Included: Yes
-
Idle Air Control Motor Included: No
-
Ignition Timing Control: Yes
-
Ignition Type: GM LS 24x
-
Individual Cylinder Fuel Corrections: Yes
-
Injector Connector: USCAR (EV6)
-
Intake Manifold Included: No
-
Knock Retard Support: Yes
-
MAP Sensor: 1bar
-
Mounting Hardware Included: No
-
Multi-Stage Nitrous Control: Yes
-
Part Type: Fuel Injection System
-
Product Type: EFI System
-
Progressive Nitrous Control: Yes
-
Self-Tuning: Yes
-
Sub Category: Fuel Injection System and Related Components
-
Terminator LS Options: Fuel, Spark, Drive-by-Wire
-
Throttle Position Sensor Included: No
-
Transmission: None
-
User-Tuneable: Yes
-
Wet Nitrous Control: Yes
-
Part Number: 550-932
