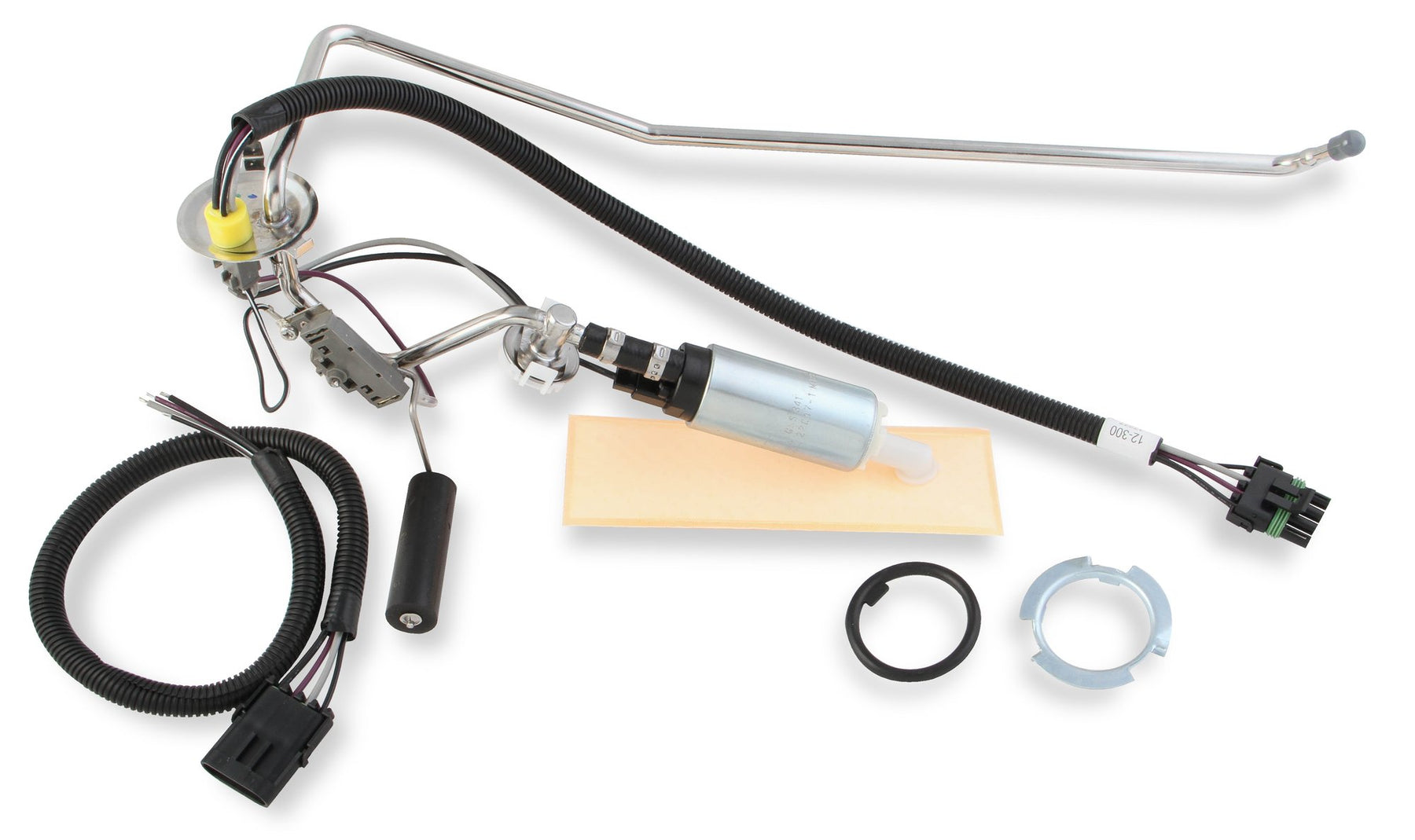

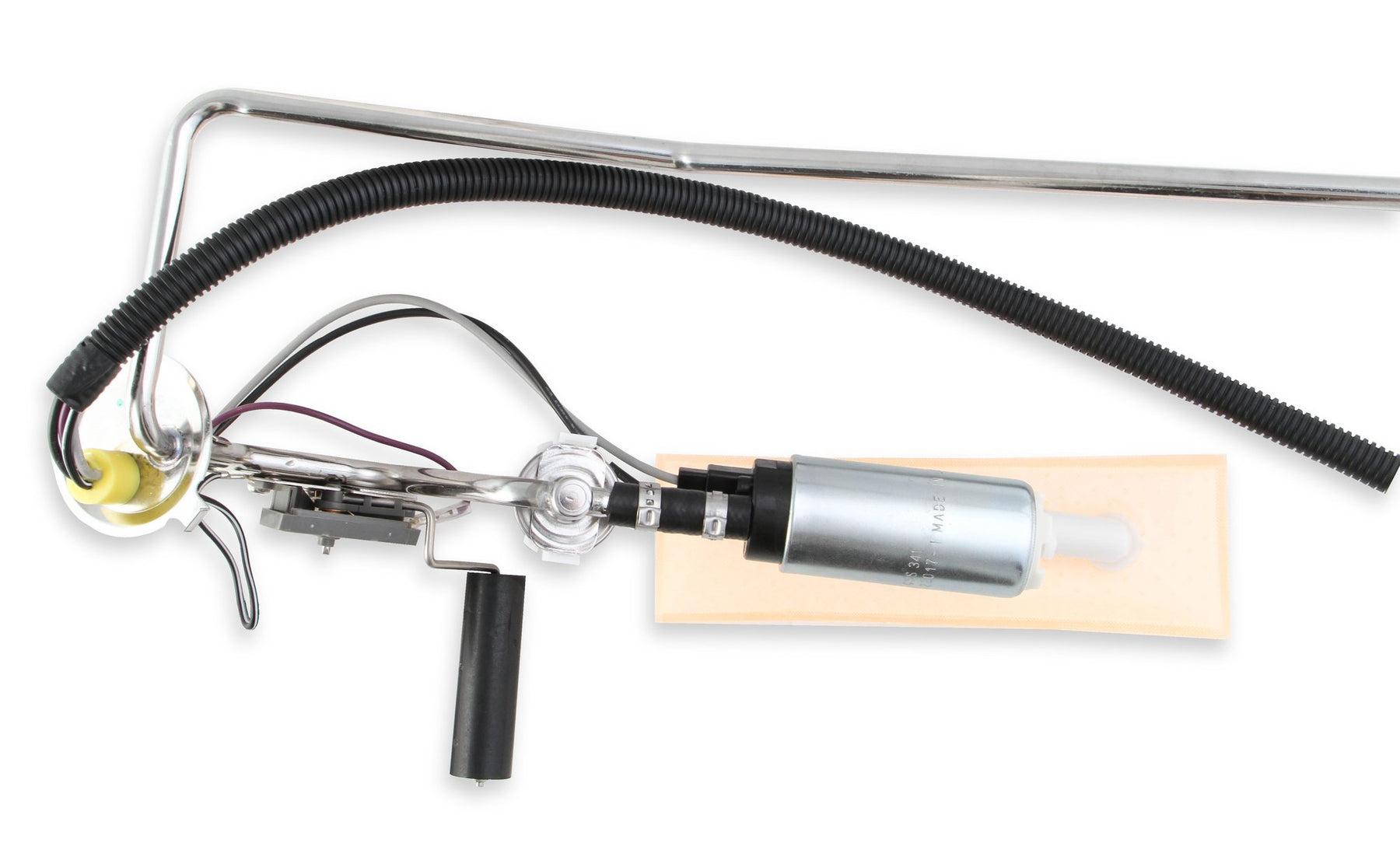

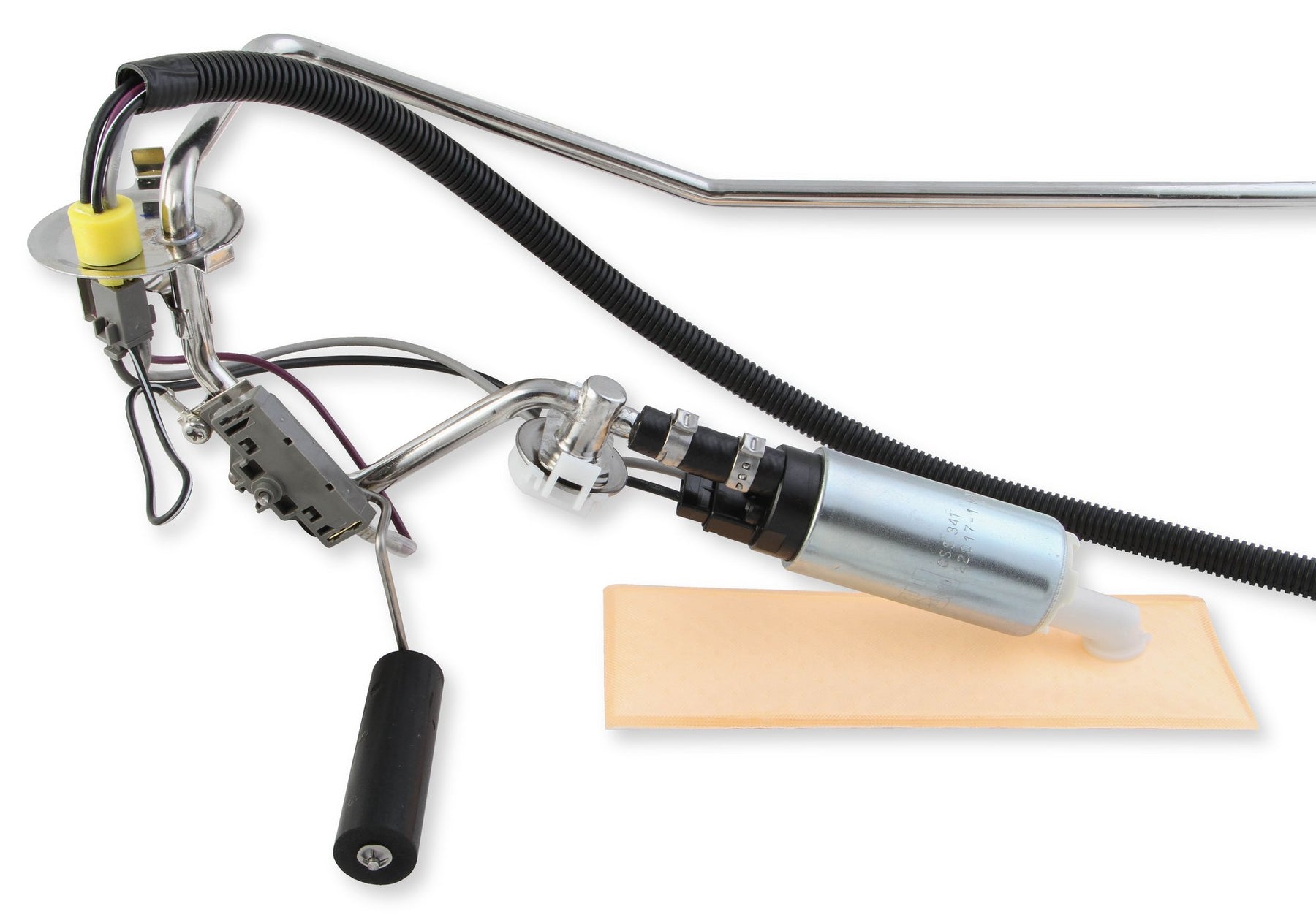

Holley EFI Fuel Tank Module - 255 LPH - Camaro, Firebird, and Nova

This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower. A pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates

Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1967-69 GM F-body Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

• Supports up to 550 horsepower (HP)
• Flows 255 liters per hour (LPH)
• Internally regulated to 58 PSI

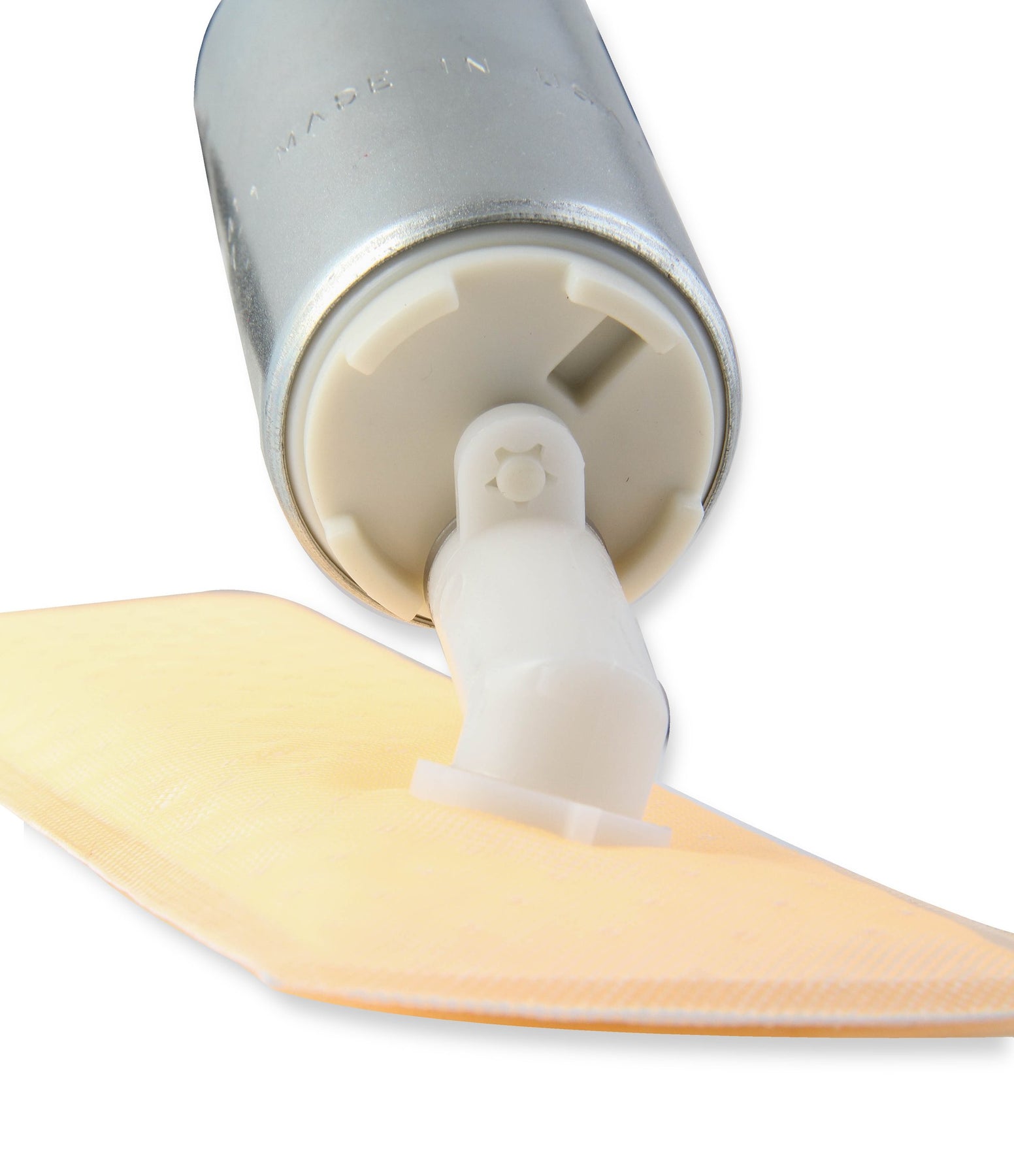

• Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues

Specifications

• Application: 1967-69 Camaro/Firebird, 1968-72 CHEVY II / NOVA
• Average Flow Rating: 255 LPH
• Brand: Holley Sniper EFI
• Category: Air and Fuel Delivery
• Connector Gender: Male
• Emission Code: 5
• Free Flow LPH: 255
• Fuel Filter Included: Yes
• Fuel Sending Unit Included: Yes
• Fuel Sending Unit Ohms: 0-90 Ohms
• Fuel Tank Pressure Sensor Included: No
• Fuel Type: Gasoline
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• In Tank or External: In Tank
• Inlet Diameter (in): 5/16 IN
• Inlet Quantity: One
• Lock Ring Included: Yes
• Material: Steel
• Maximum Pressure: 58 PS
• Negative Ground: Yes
• Outlet Outside Diameter: 3/8 IN
• Outlet Quantity: One
• Part Type: Fuel Pump Module Assembly
• Product Type: Fuel Pump Module
• Pump Type: Electric
• Regulator Included: Yes
• Resistance Ohms Empty: 0 82
• Resistance Ohms Full: 90 82
• Strainer Included: Yes
• Sub Category: Fuel Pumps and Related Components
• Universal Or Specific Fit: Specific
• Vent Size: N/A
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wire Harness Included: Yes
• Part Number: 12-300
