Holley EFI Fuel Pump Module - 525 LPH

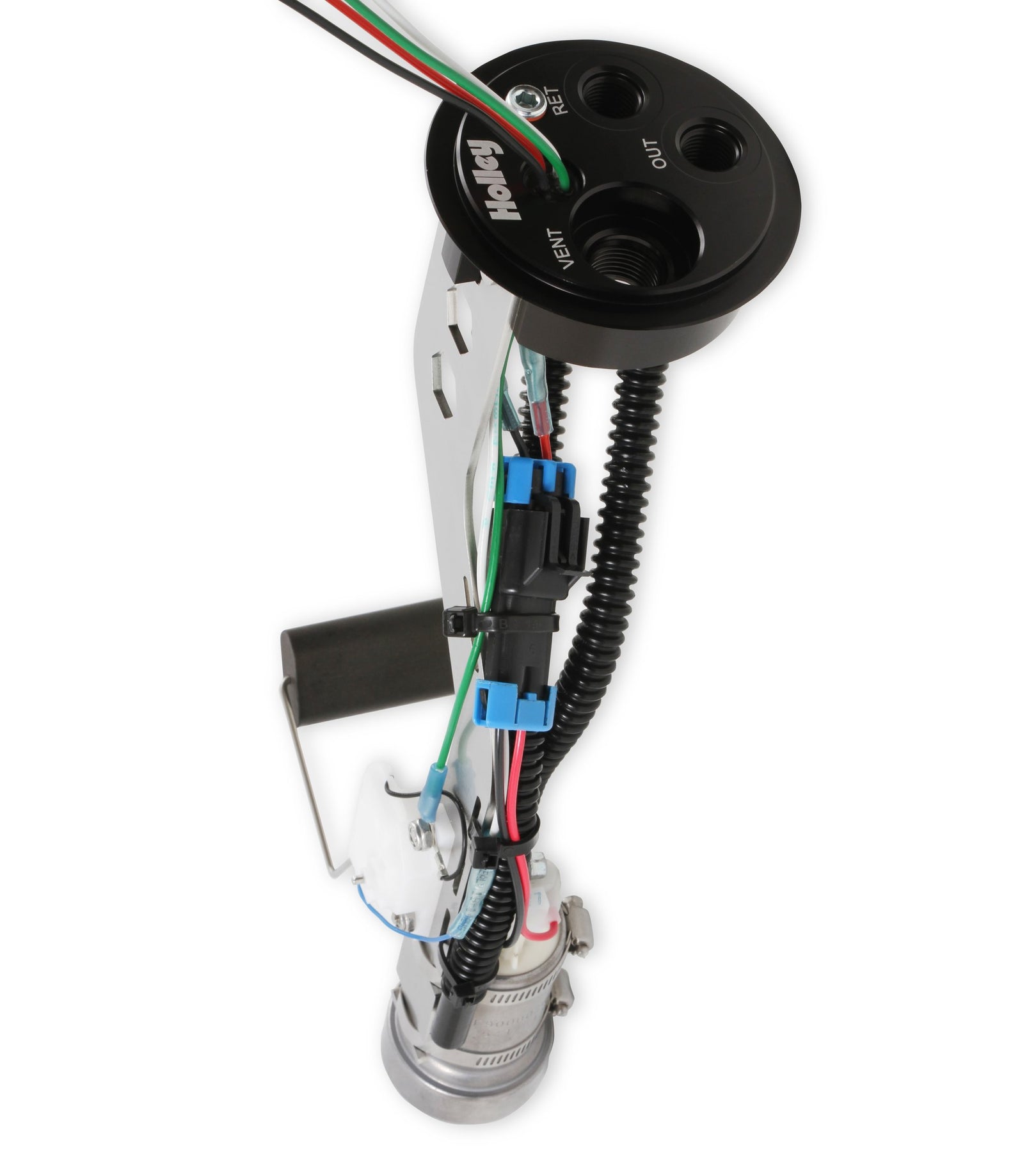

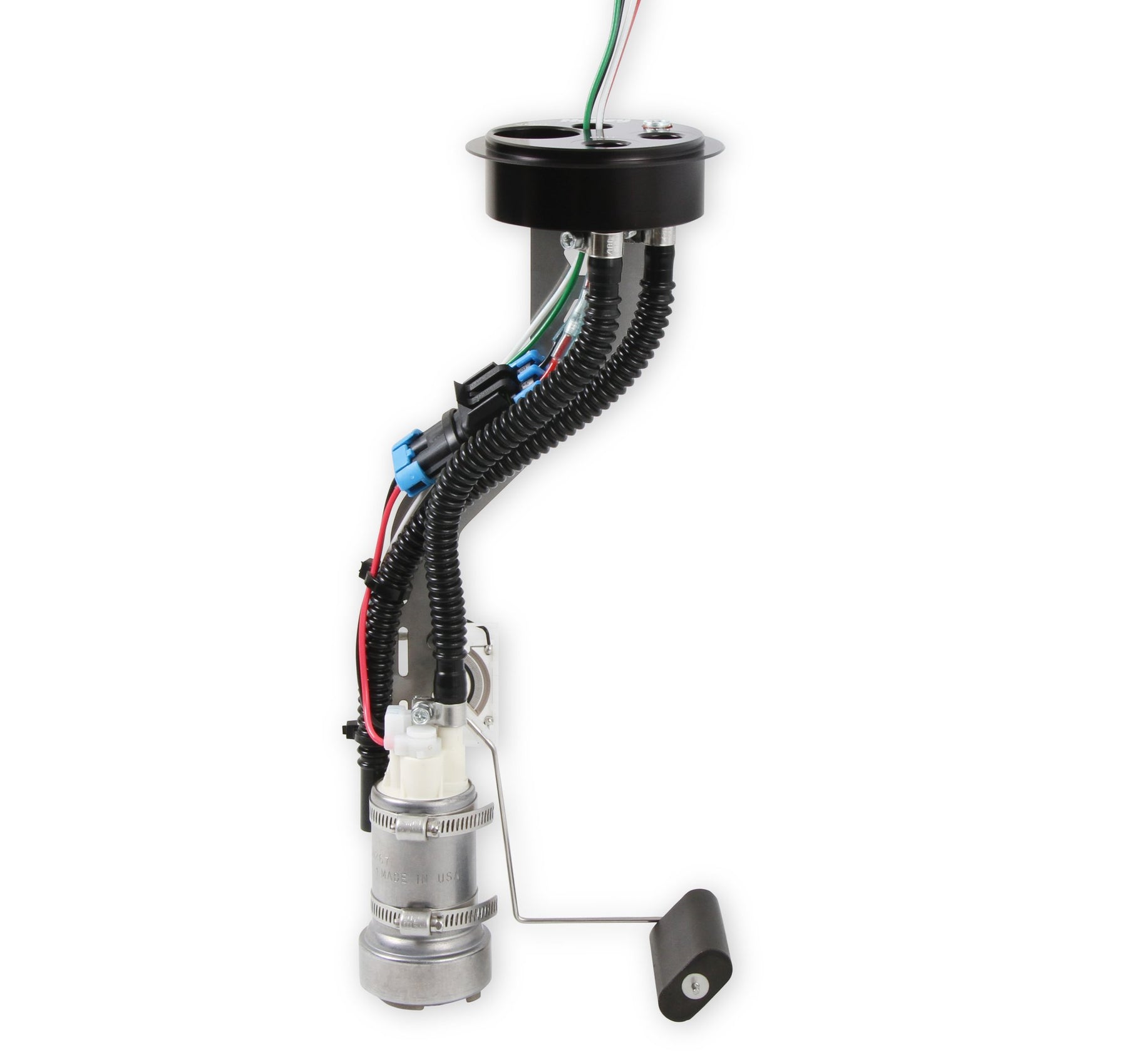

This direct fit fuel pump module will drop directly into any 1988-1998 GM C/K Series truck EFI fuel tank. The module has been designed with a 525 LPH (liters per hour) Holley EFI fuel pump that will support up to 1200 EFI or 1450 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 16.9 AMP Draw). The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.

For the 1988-1998 GM C/K Trucks, we also have a 340 LPH module (12-353) that supports up to 700 EFI or 900 Carb HP.

Bypass fuel pressure regulator required; 12-879 or 12-880 regulators recommended.

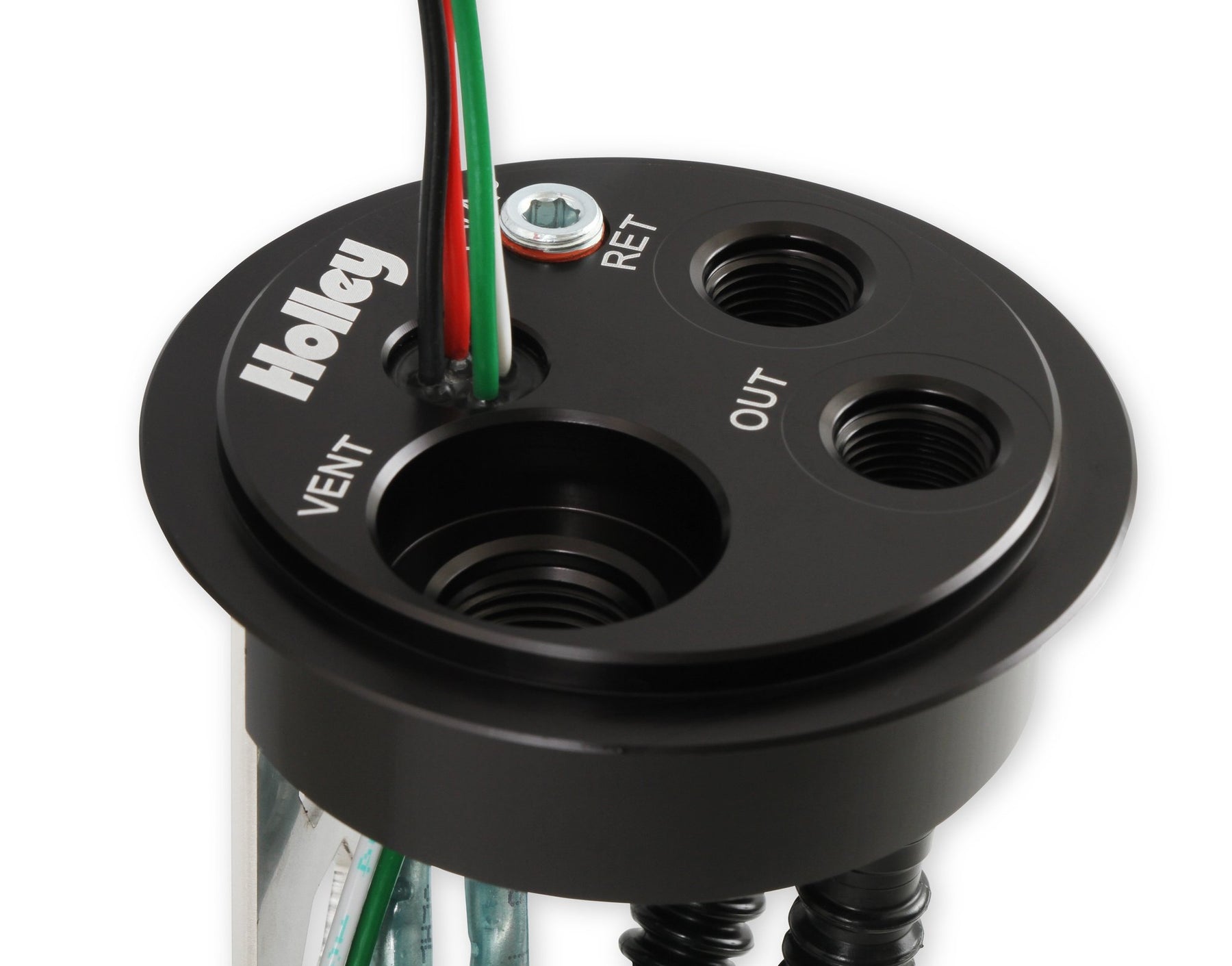

• 6061-T6 Aluminum fuel pump flange, bright-dip black anodized for corrosion protection
• 525 LPH Holley EFI Fuel Pump Module
• 60 PSI at 13.5 Volts / 16.9 AMP Draw
• Drops into stock 1988-1998 GM C/K Truck fuel tanks

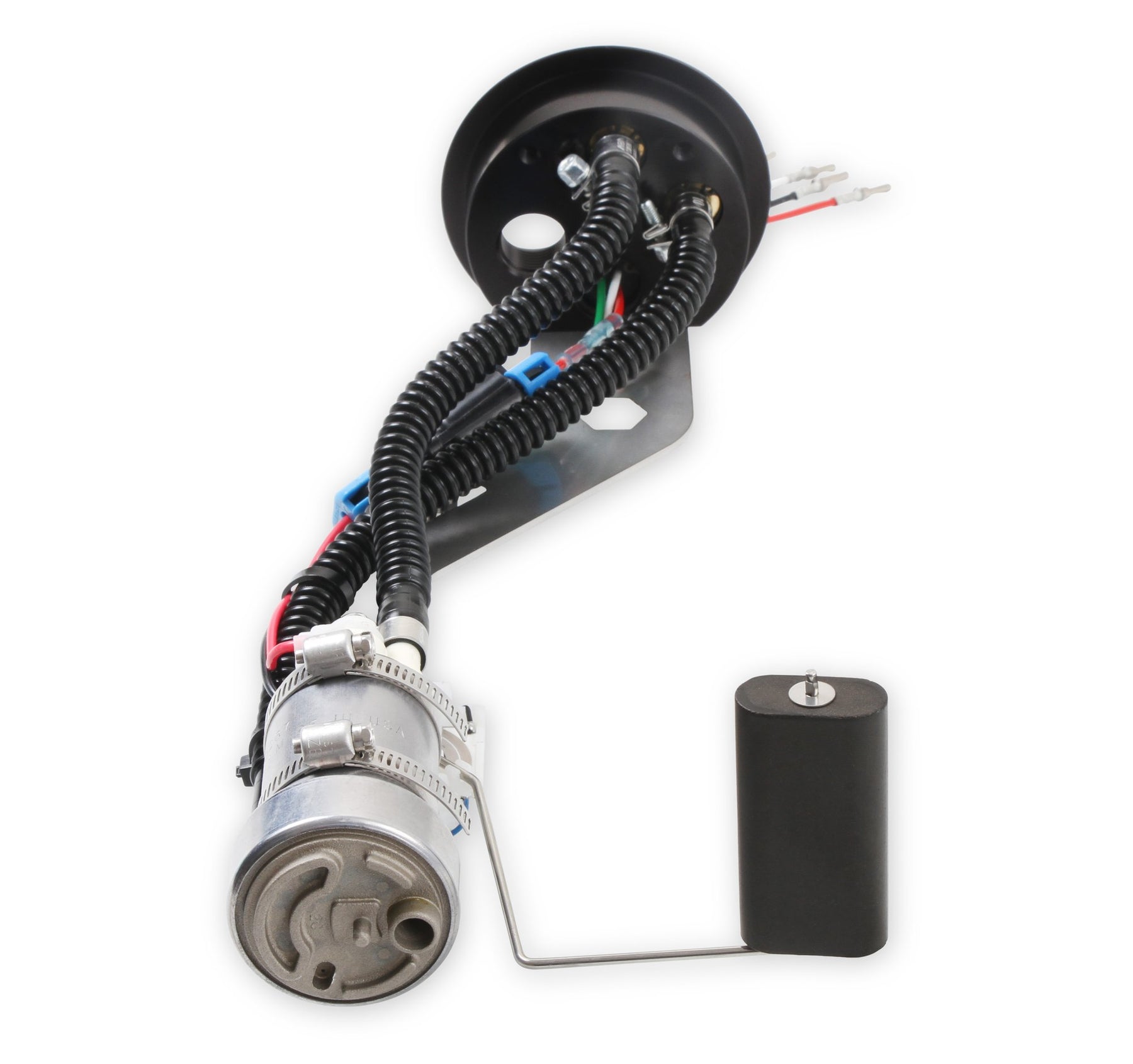

• Fuel sending unit designed to work with the factory gauges

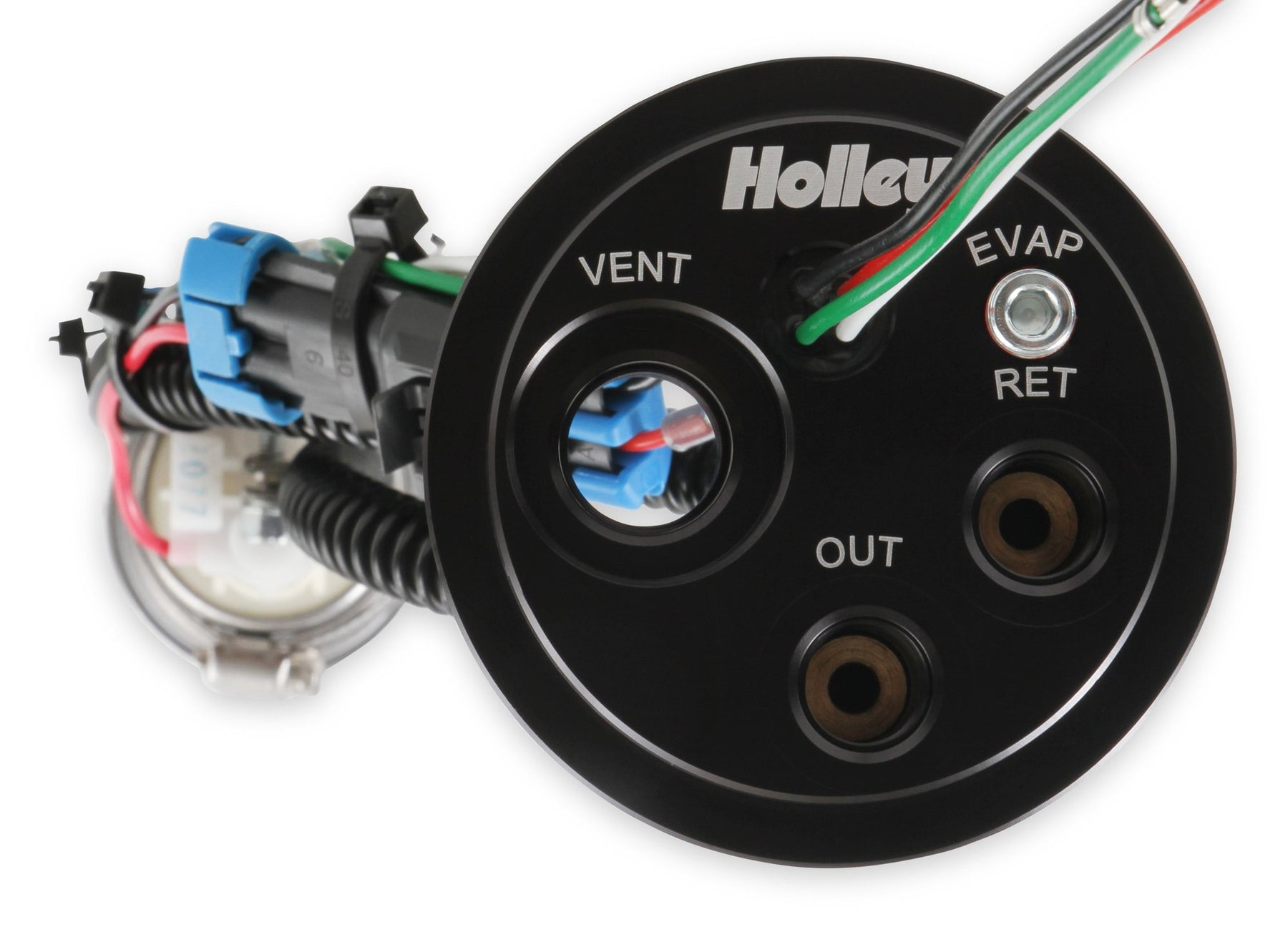

• 6AN O-Ring Boss outlet and return ports for easy plumbing connections
• 8AN O-Ring Boss vent port
• 1/8" NPT evap port

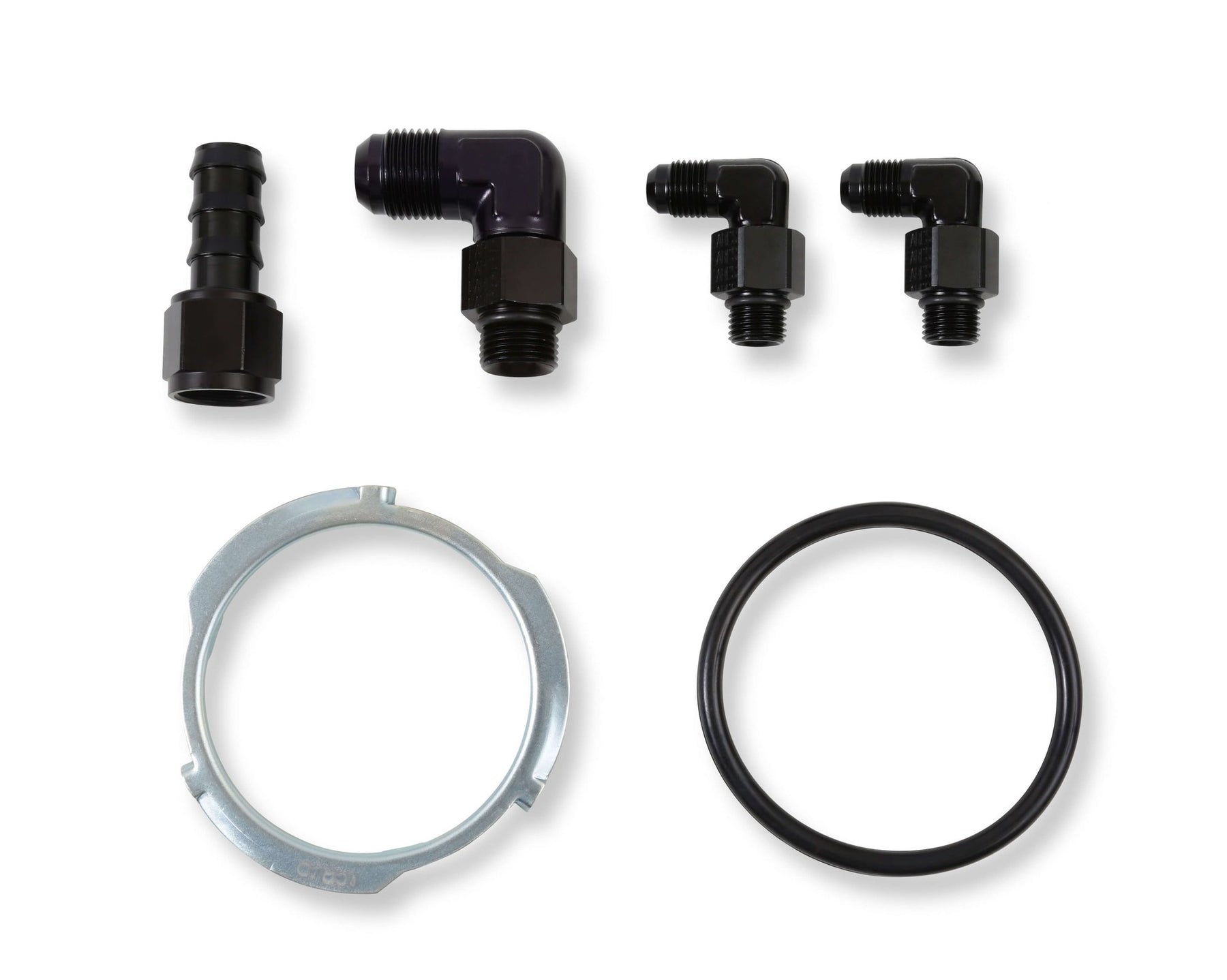

• Filter sock, flange o-ring, and fuel tank lock ring included to complete your installation
• Can be used with both carbureted and EFI fuel systems
• Supports up to 1200 EFI or 1450 Carb HP (estimates are based on gasoline)
• Bypass fuel pressure regulator required; 12-879 or 12-880 regulators recommended.

Specifications

• Application: 1988-1998 GM C/K Trucks
• Brand: Holley EFI
• Category: Air and Fuel Delivery
• Emission Code: 5
• Free Flow LPH: 525
• Fuel Filter Included: No
• Fuel Sending Unit Included: Yes
• Fuel Tank Pressure Sensor Included: No
• Fuel Type: Gasoline/E85 Compatible
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• In Tank or External: In Tank
• Inlet Quantity: One
• Installation Warnings: Yes
• Lock Ring Included: Yes
• Material: 6061-T6 Aluminum
• Maximum Flow Rating: 525 LPH
• Mounting Hardware Included: Yes
• Negative Ground: Yes
• Outlet Quantity: One
• Outlet Type: AN
• Part Type: Fuel Pump Module Assembly
• Product Type: Fuel Pump Module
• Pump Type: Electric
• Regulator Included: No
• Strainer Included: No
• Sub Category: Fuel Pumps and Related Components
• Universal Or Specific Fit: Specific
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 12-354
