Dual Tank Fuel Pump Kit

This kit is designed to allow the use for all Holley MPI / TBI / Terminator EFI systems on vehicles equipped with dual fuel tanks. The fuel injection systems require a fuel return line. In dual tank applications, the fuel must be returned to the tank from which it was drawn. Originally designed for all TBI 4 bbl Pro-Jection and 950 MPFI/4 bbl TBI systems.

• For 4 barrel
• Dual tank use
• MPI, TBI, and Terminator EFI systems up to 600 HP

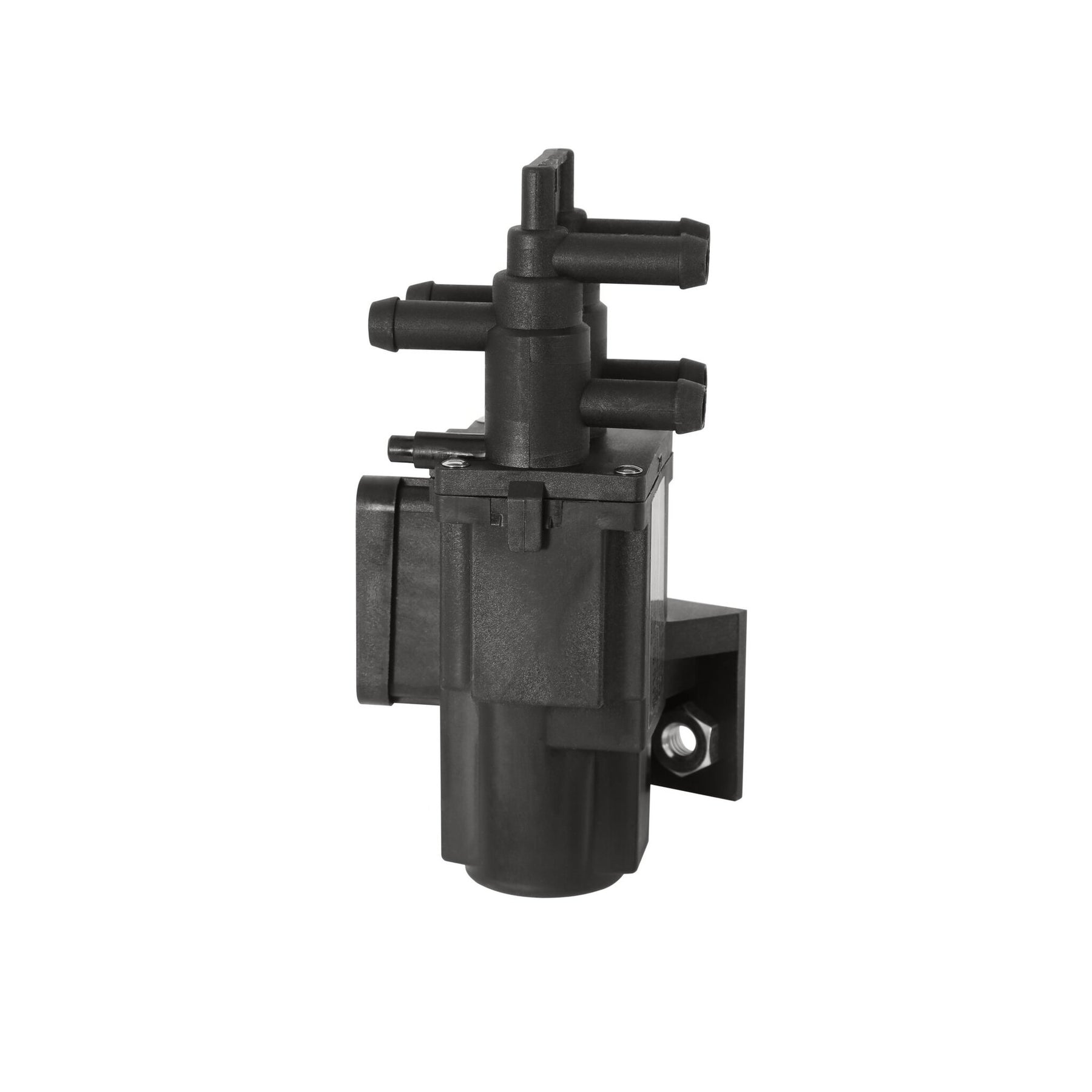

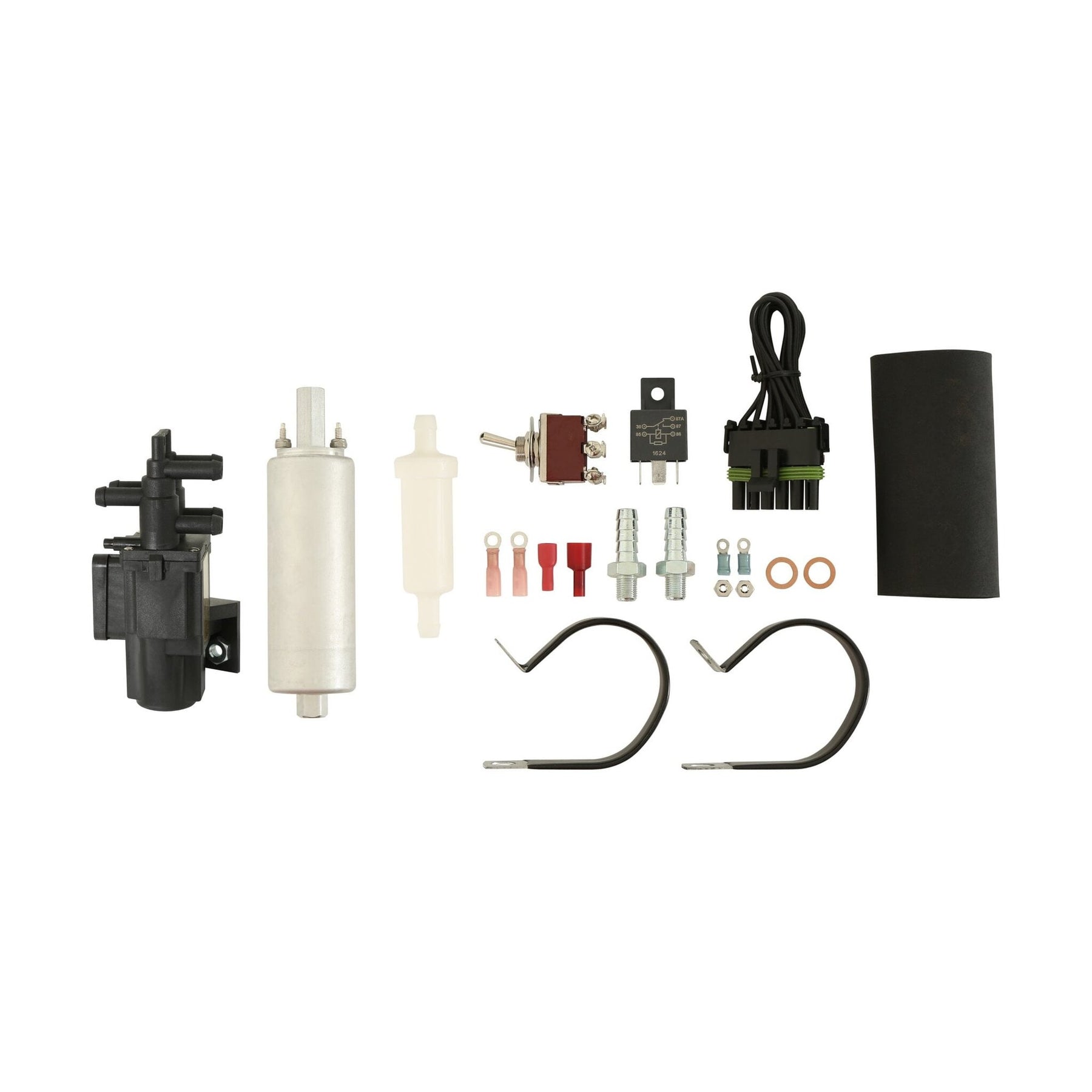

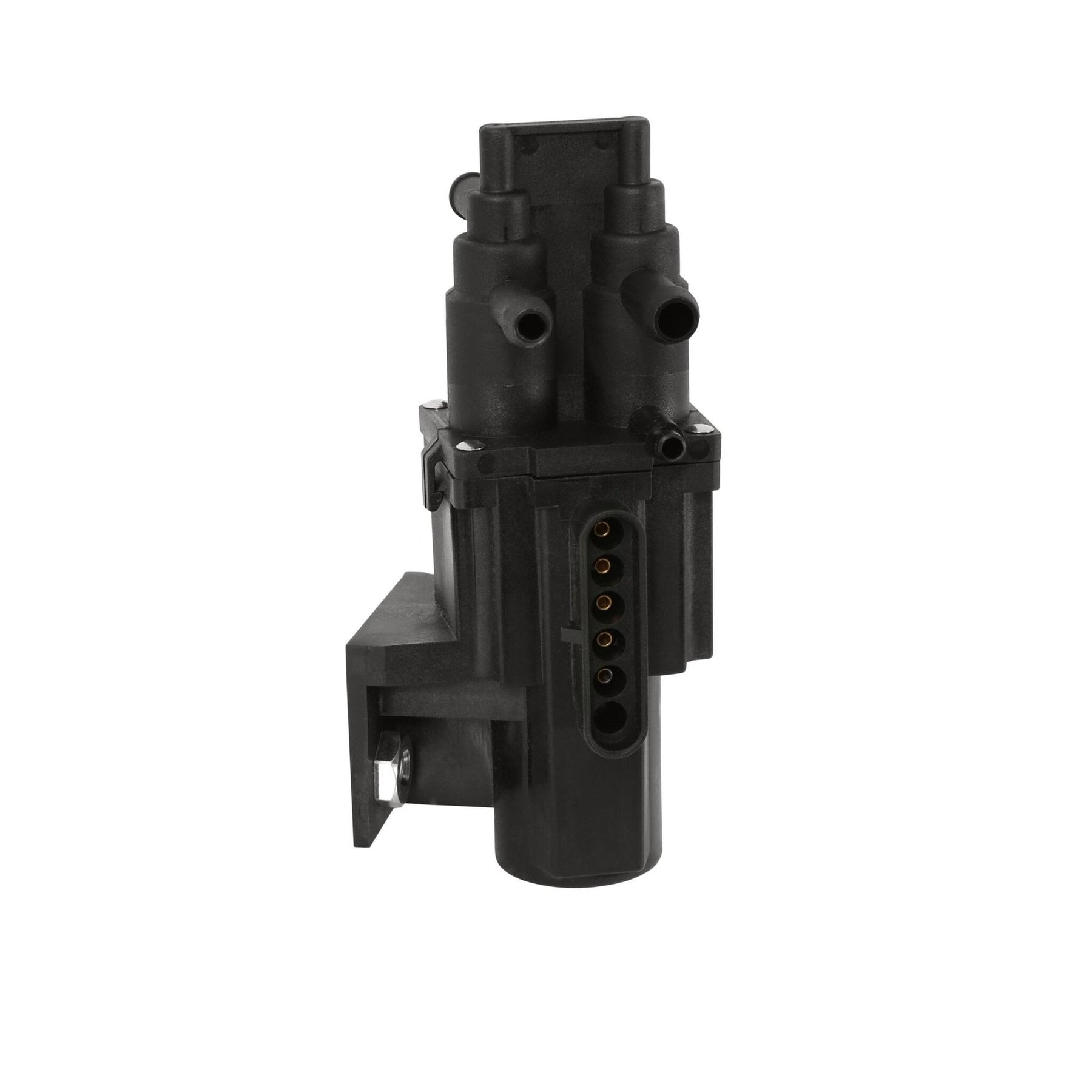

• Includes switching valve, relay, switch, and harness
• Review Associated Comments for further installation notes

Specifications

• Application: Automotive
• Brand: Holley EFI
• Category: Air and Fuel Delivery
• Color: Silver
• Emission Code: 5
• Finish: Zinc
• Free Flow GPH: 80
• Free Flow LPH: 302
• Fuel Delivery Type: Fuel Injection | Carburetor
• Fuel Sending Unit Included: No
• Fuel Type: Gasoline
• Gasket Or Seal Included: No
• Grade Type: Performance
• Inlet Type: Barb
• Internal Or External: External
• Mounting Bracket Included: Yes
• Mounting Hardware Included: No
• Negative Ground: Yes
• Outlet Type: Barb
• Product Type: Dual Tank
• Regulator Included: No
• Seal And Lock Ring Included: No
• Strainer Included: Yes
• Terminal Quantity: 2
• Universal Or Specific Fit: Specific
• Warranty: Manufacturer's Limited 90 Day Warranty
• Wiring Harness Included: Yes
• Part Number: 534-38
