Holley EFI Bypass Fuel Pressure Regulator Kit

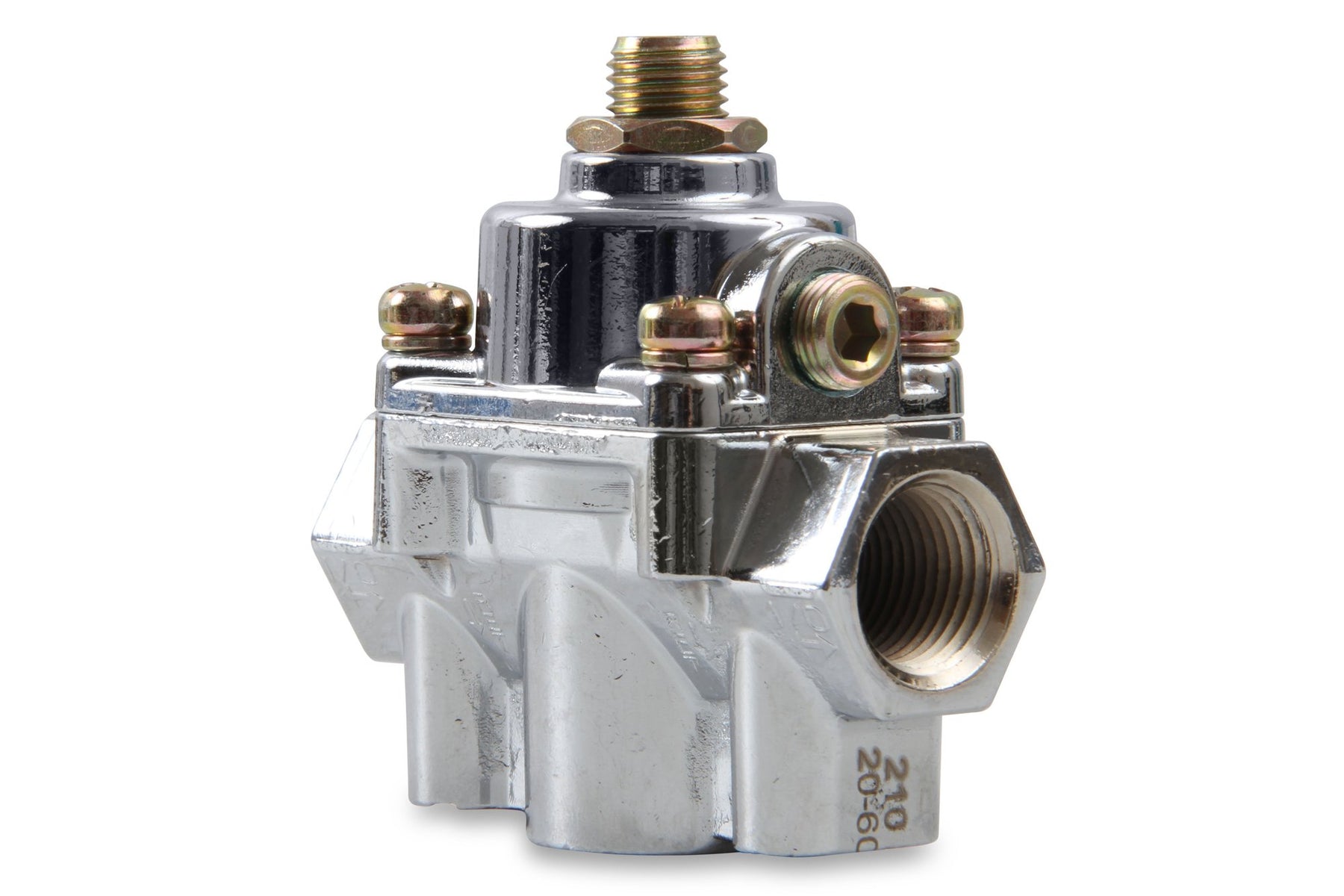

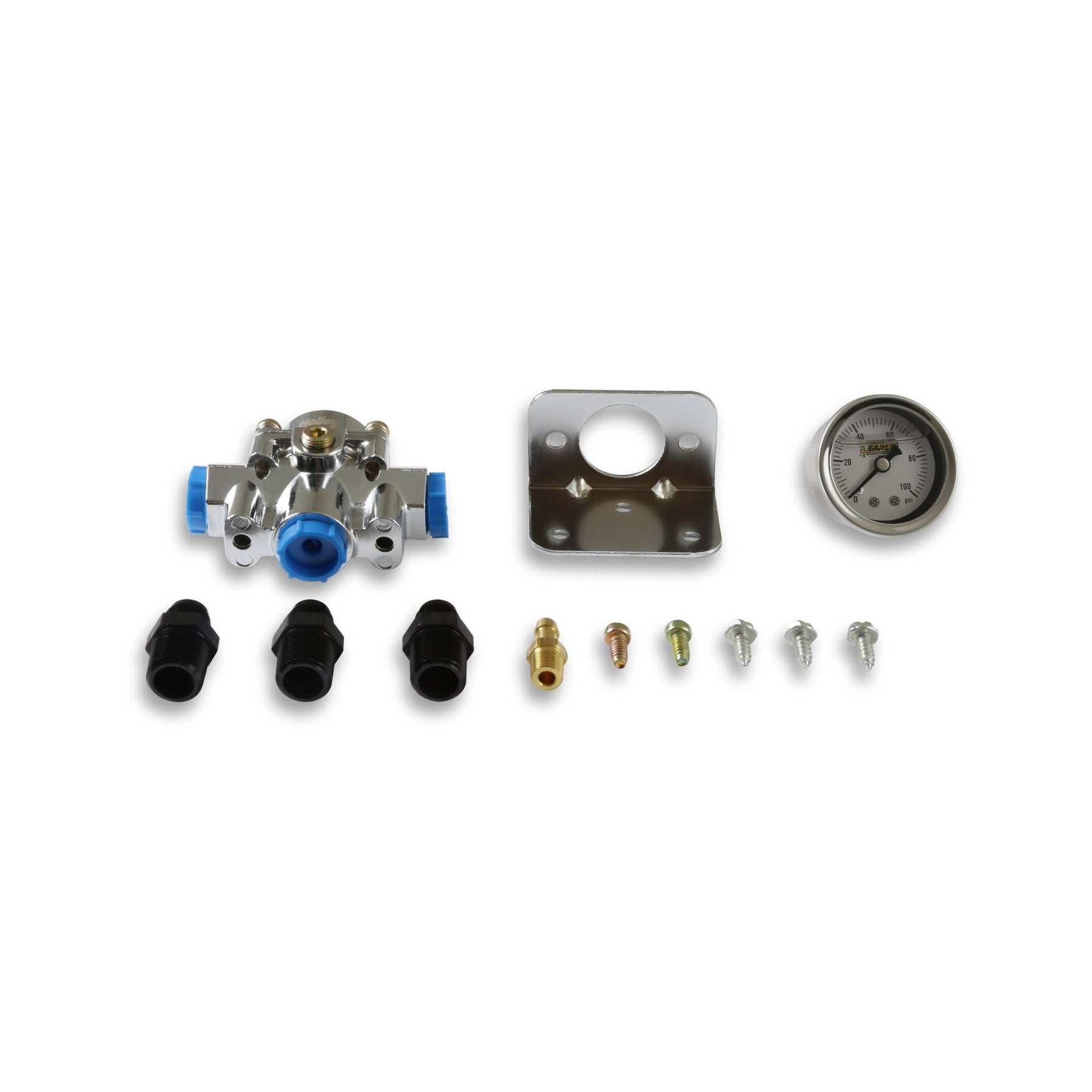

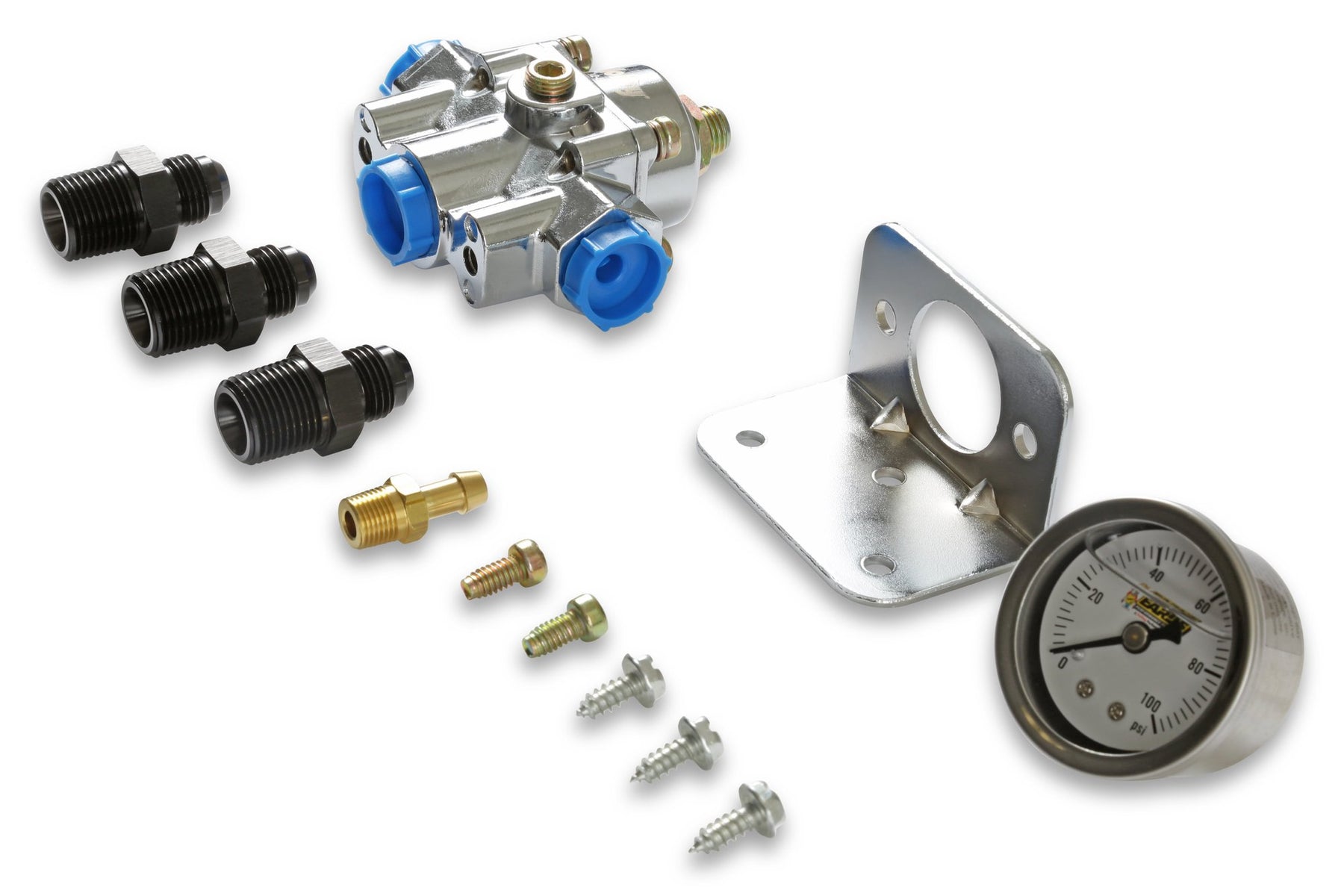

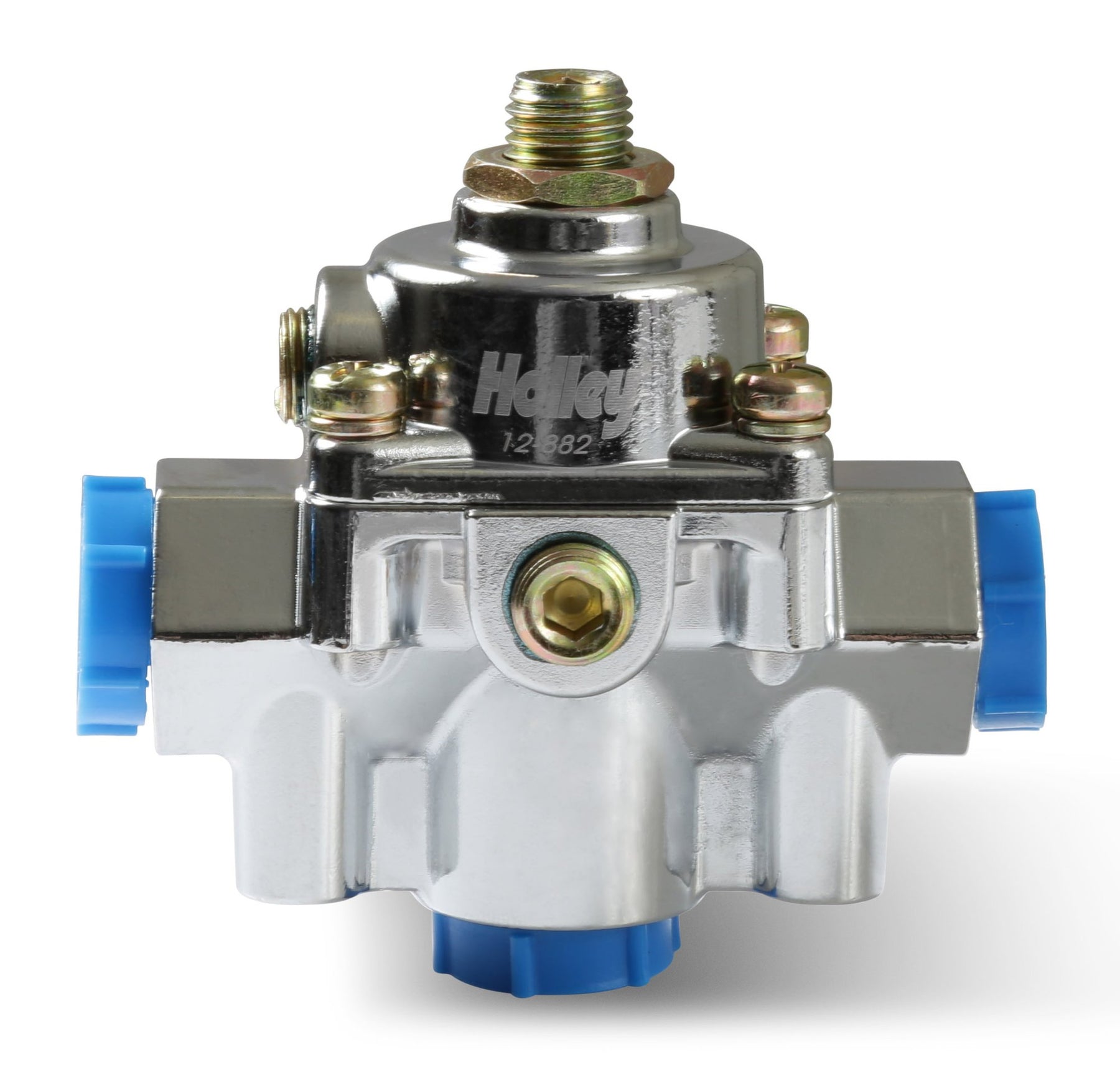

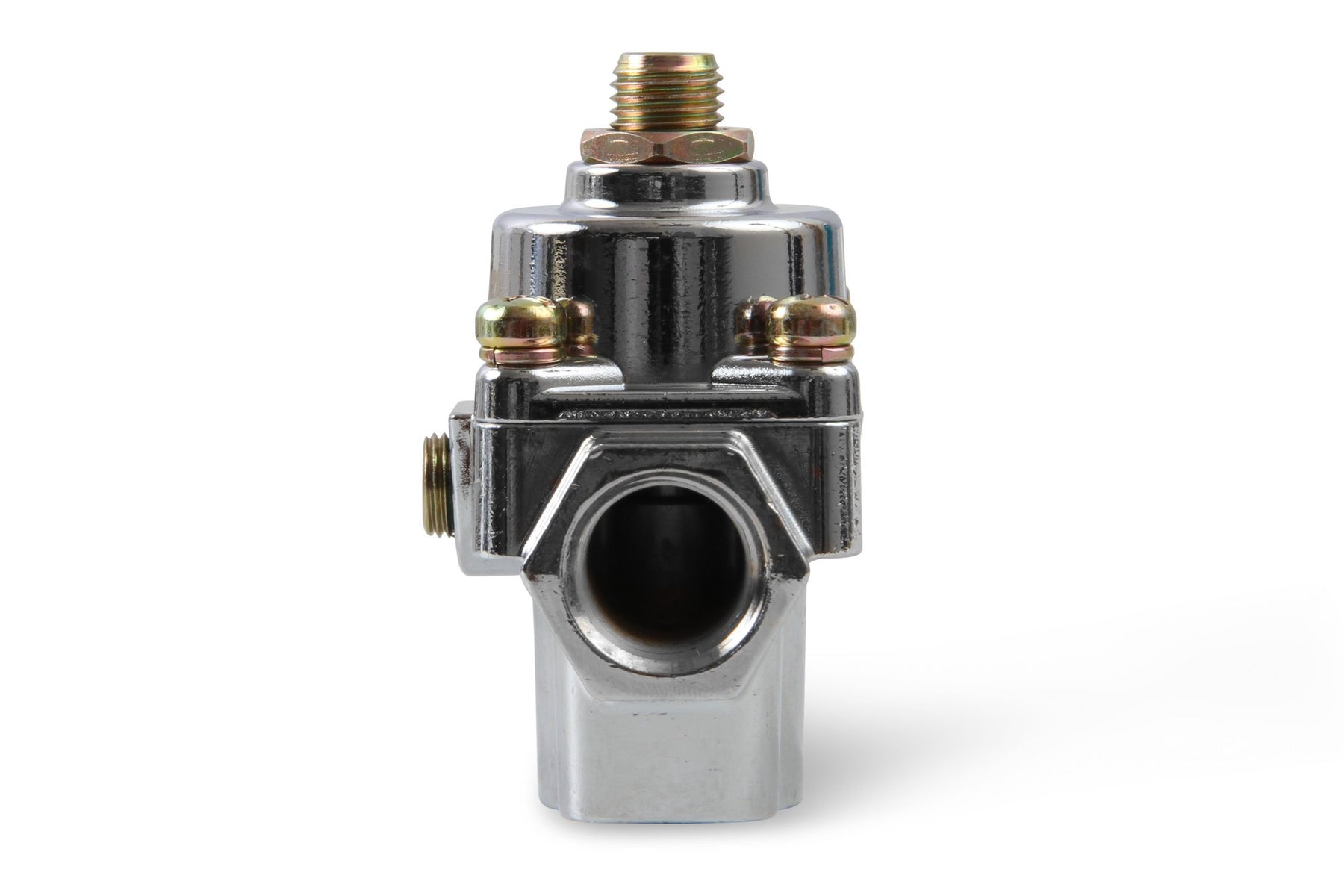

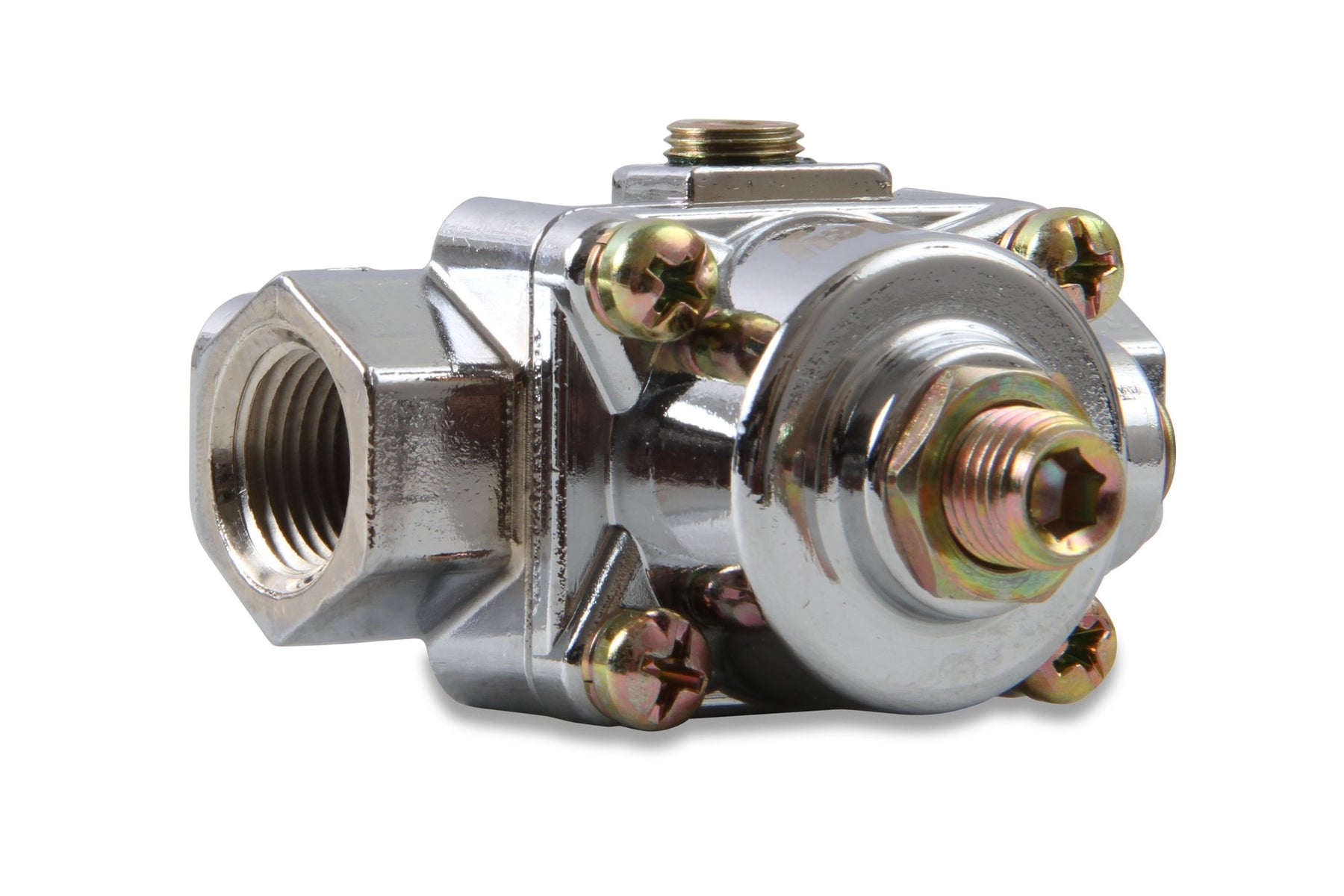

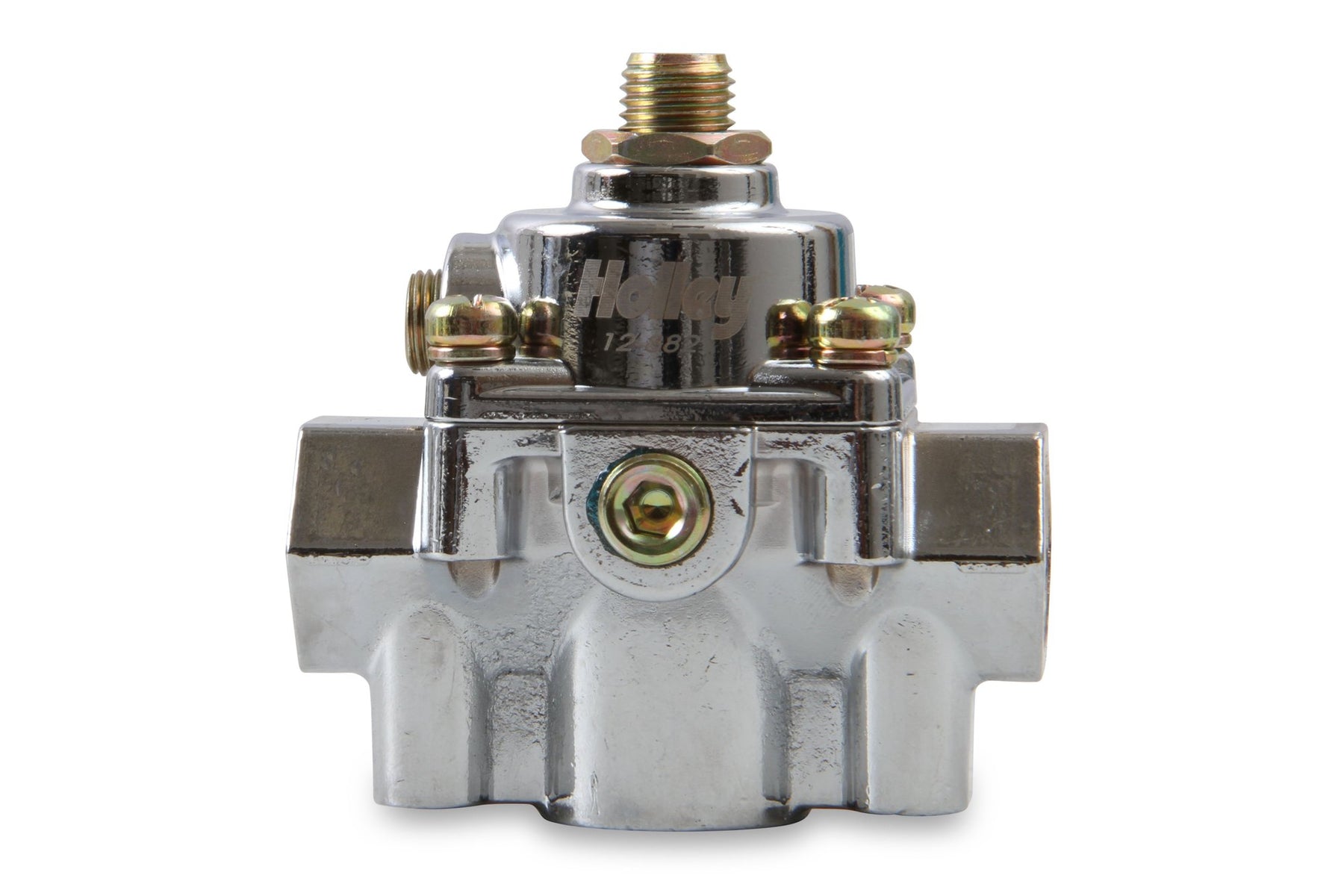

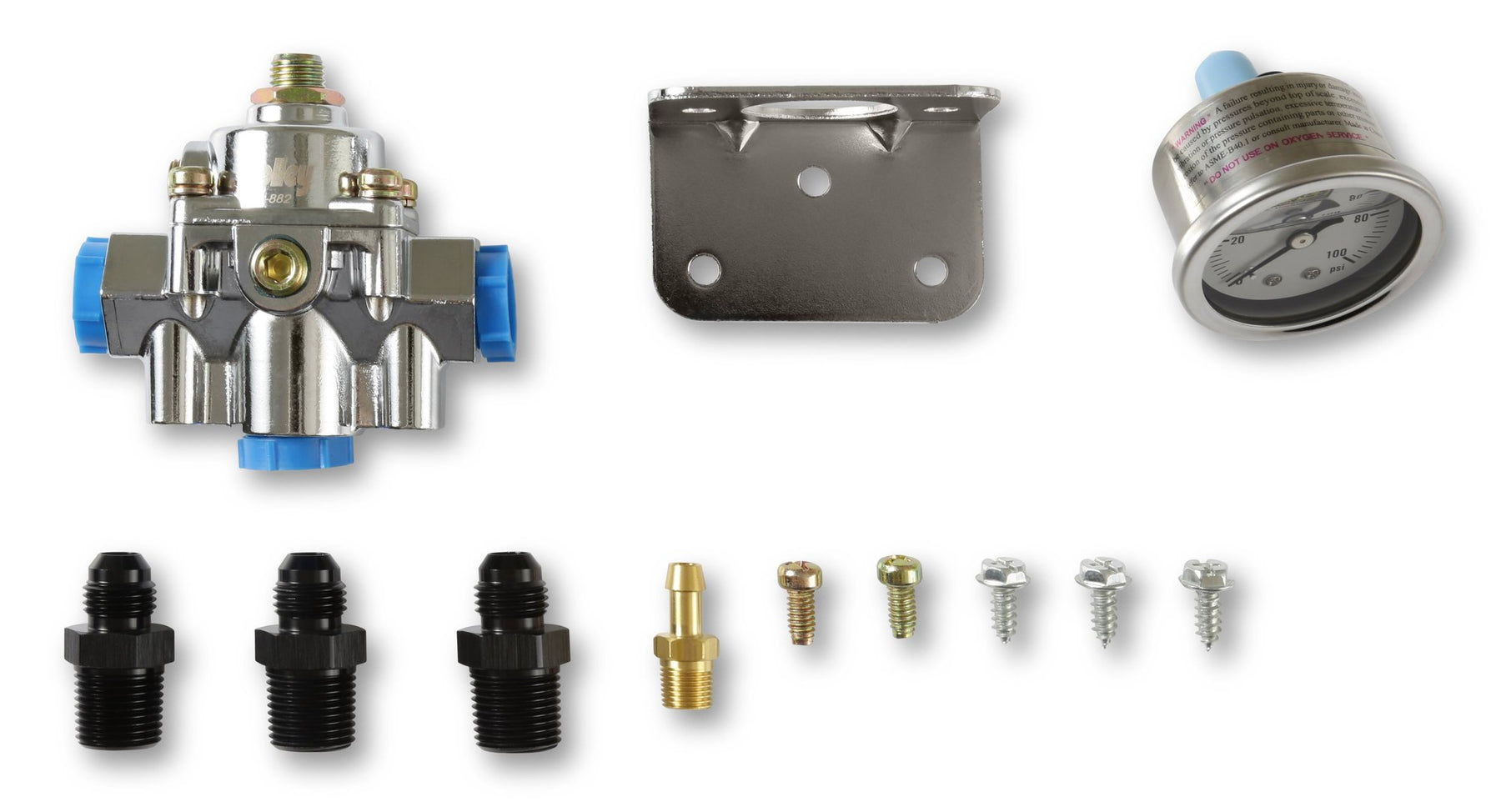

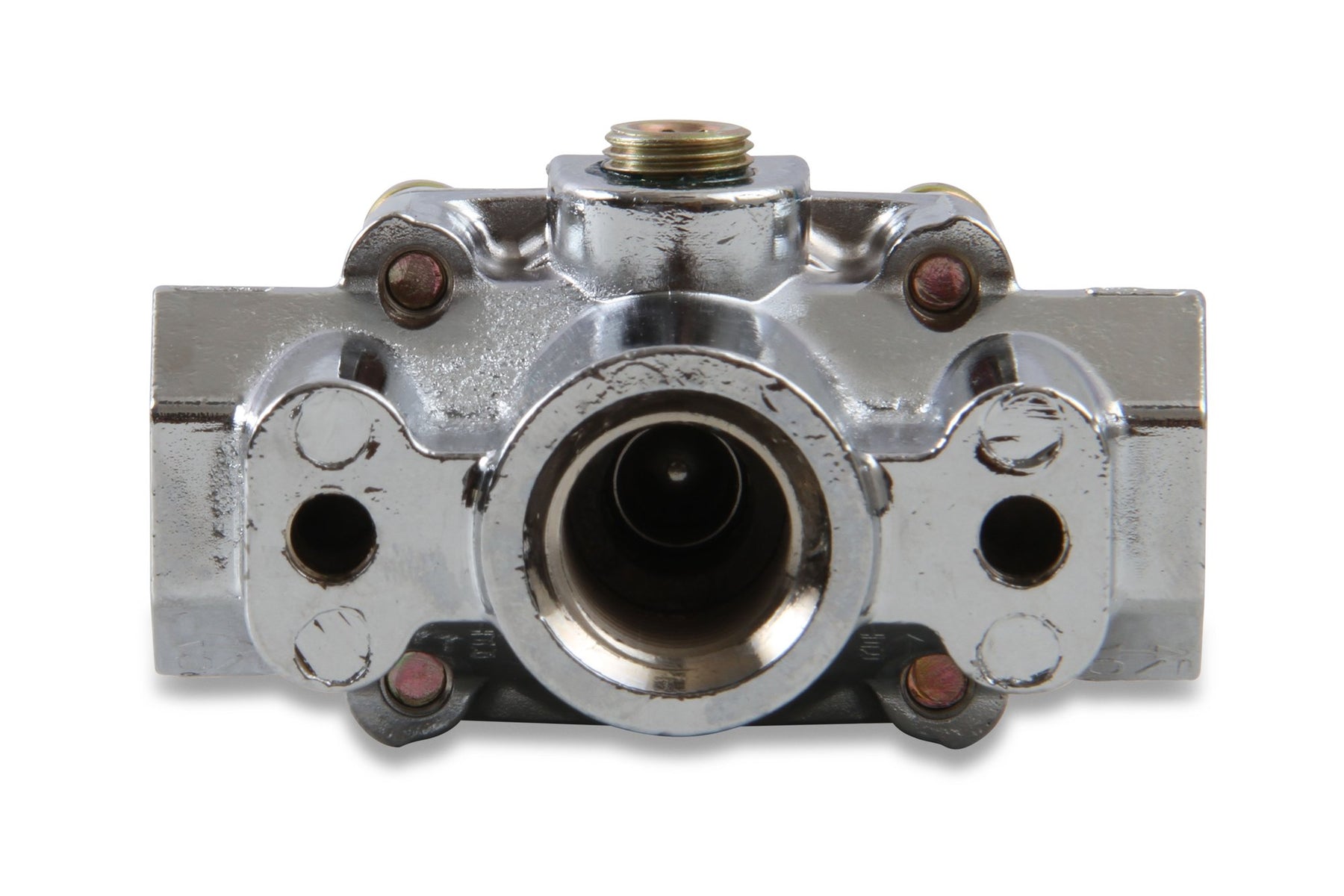

Holley EFI bypass fuel pressure regulator kits are part of a complete line of fuel system products from Holley. The included 12-882 EFI Fuel Regulator features a die cast aluminum body and a chrome finish for corrosion resistance and clean appearance. The regulator contains 3/8" NPT inlet/outlet ports, 3/8" NPT return port, 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 Earl's 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included in the kit.

• Die cast aluminum construction with chrome finish
• Adjustable from 15-60 psi for precise fuel pressure adjustments
• 60 PSI preset pressure
• Used in return style systems with a line back to the fuel tank
• 3/8” NPT inlet/outlet ports
• 3/8" NPT return port
• 1/8” NPT gauge port

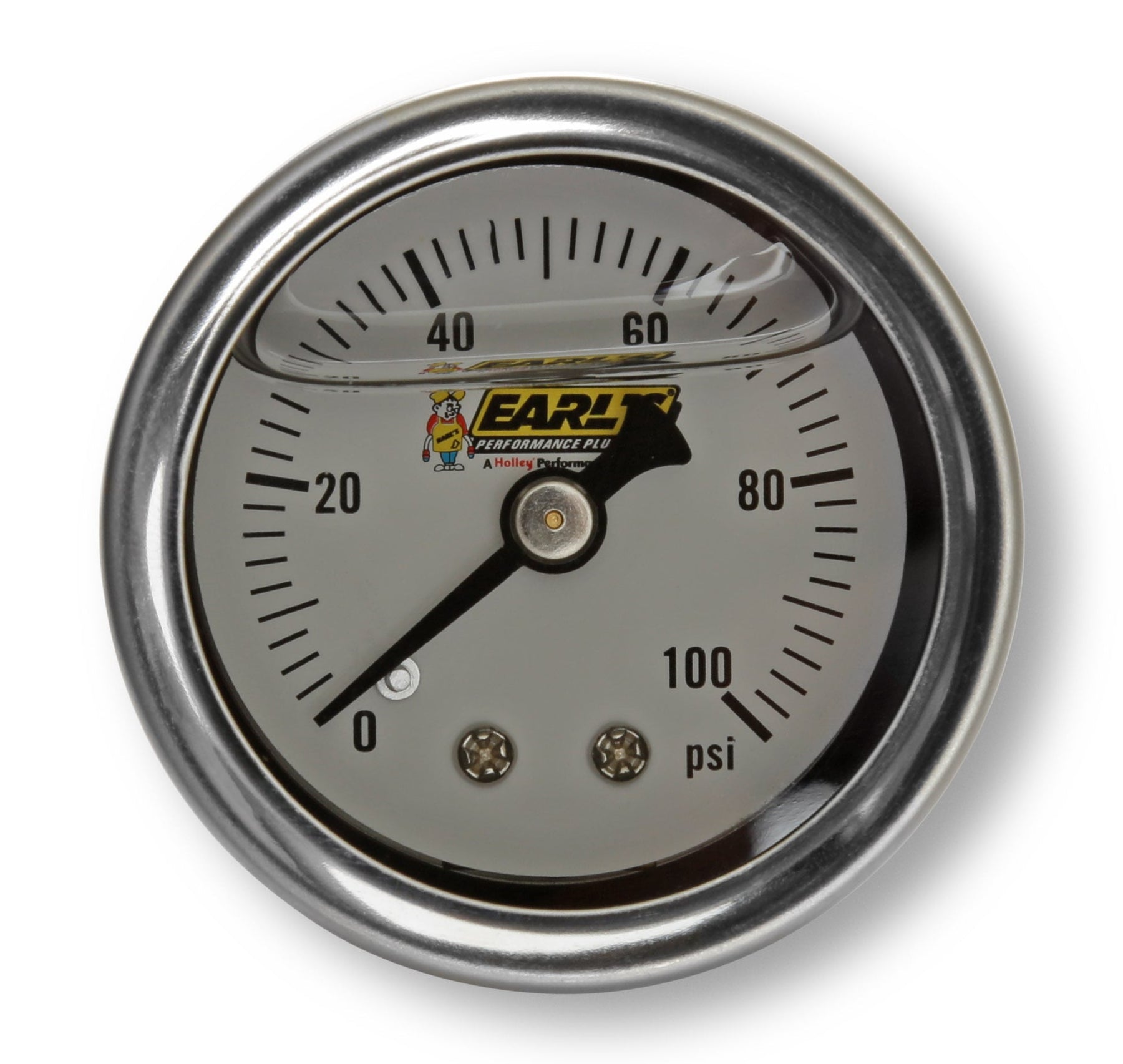

• Earl's fuel pressure gauge (100187ERL)

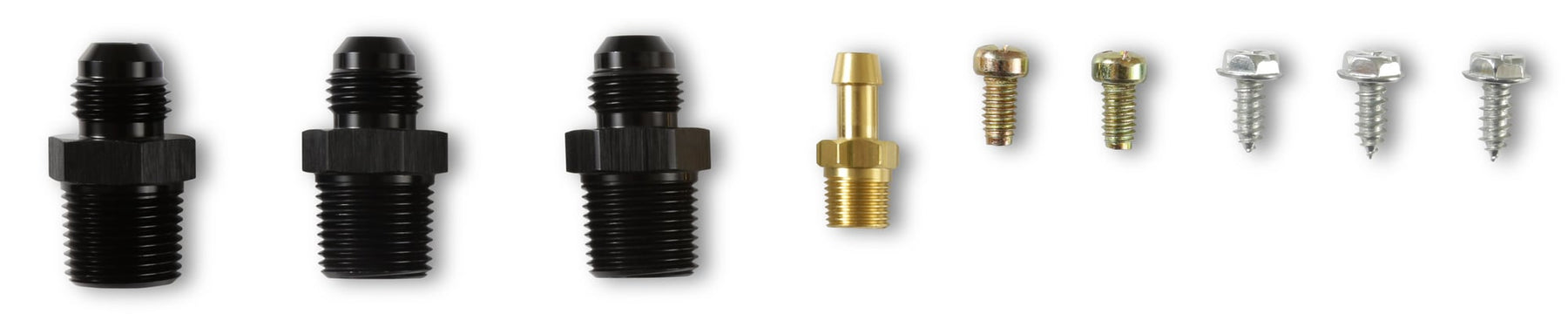

• Earl's 3/8” NPT to -6 AN fittings (AT981666ERL x3)
• 1/8" NPT Boost Reference (1:1) and Barbed Fitting
• Mounting Bracket Included

Specifications

• Adjustable: Yes
• Brand: Holley EFI
• Category: Air and Fuel Delivery
• Color: Chrome
• Emission Code: 5
• Fuel System: EFI
• Fuel Type: Gasoline
• Gauge Included: Yes
• Gauge Port Included: Yes
• Grade Type: Performance
• Inlet Gender: Female
• Inlet Port Diameter: 3/8 NPT IN
• Inlet Size: 3/8 inch NPT
• Inlet Type: NPT
• Material: Aluminium
• Maximum Pressure: 60 PS
• Minimum Pressure: 15 PS
• Mounting Bracket Included: Yes
• Mounting Hardware Included: Yes
• Mounting Type: Bolt On
• Outlet Gender: Female
• Outlet Port Diameter: 3/8 NPT IN
• Outlet Size: 3/8 inch NPT
• Outlet Type: NPT
• Part Type: Fuel Pressure Regulator
• Port Quantity: 5
• Pressure Range: 15-60 PSI
• Pressure Rating: 15-60 PS
• Product Type: Fuel Pressure Regulator
• Rebuildable: Yes
• Return Size: 3/8 inch NPT
• Style: Bypass
• Sub Category: Carburetion
• Vacuum Port Quantity: 1
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 12-882KIT
