Bilstein B8 5100 Adjustable Height Front Shock 2021+ Ford Bronco 24-323550

Bilstein B8 5100 Adjustable Height Front Shock 2021+ Ford Bronco 24-323550 – Bilstein part number 24-323550.

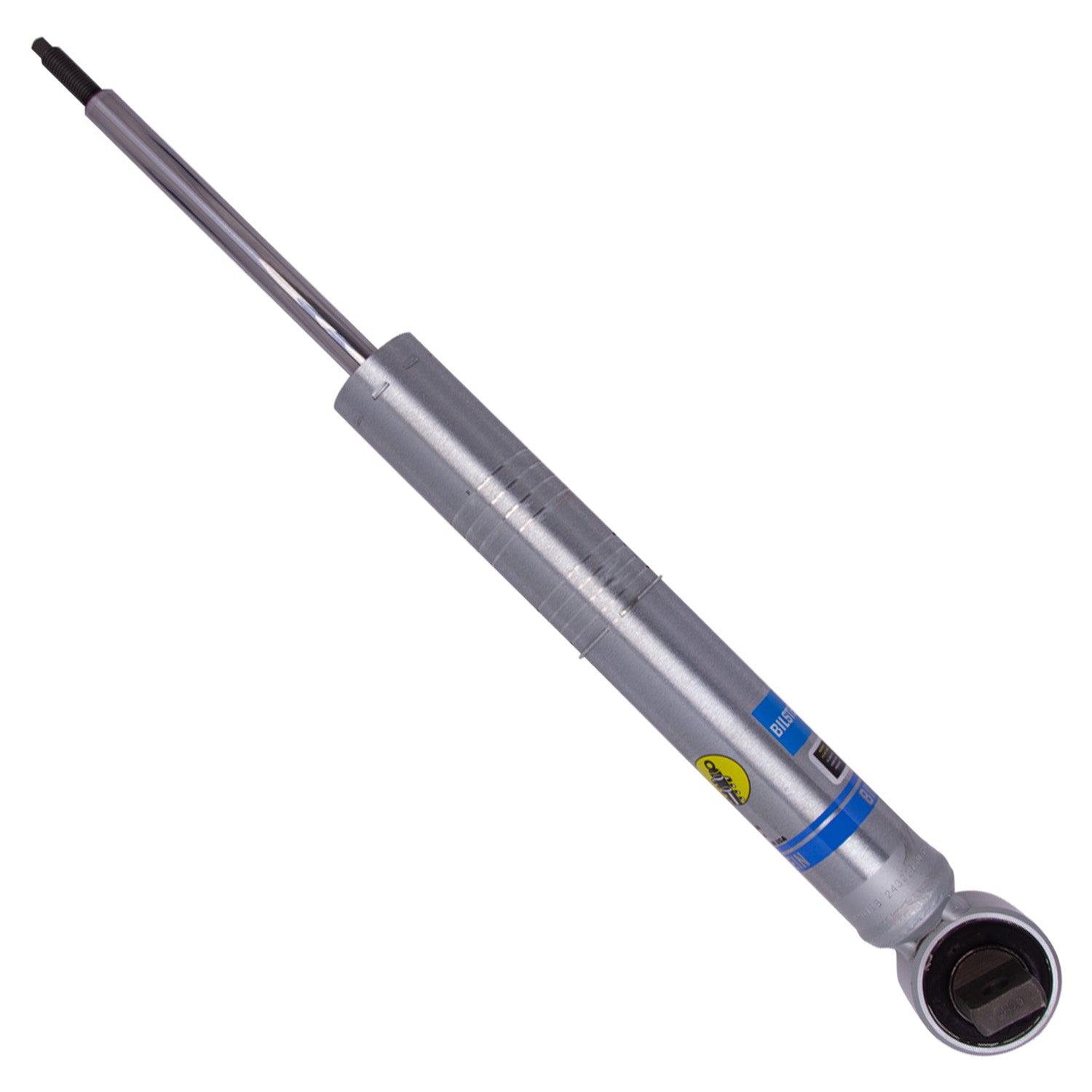

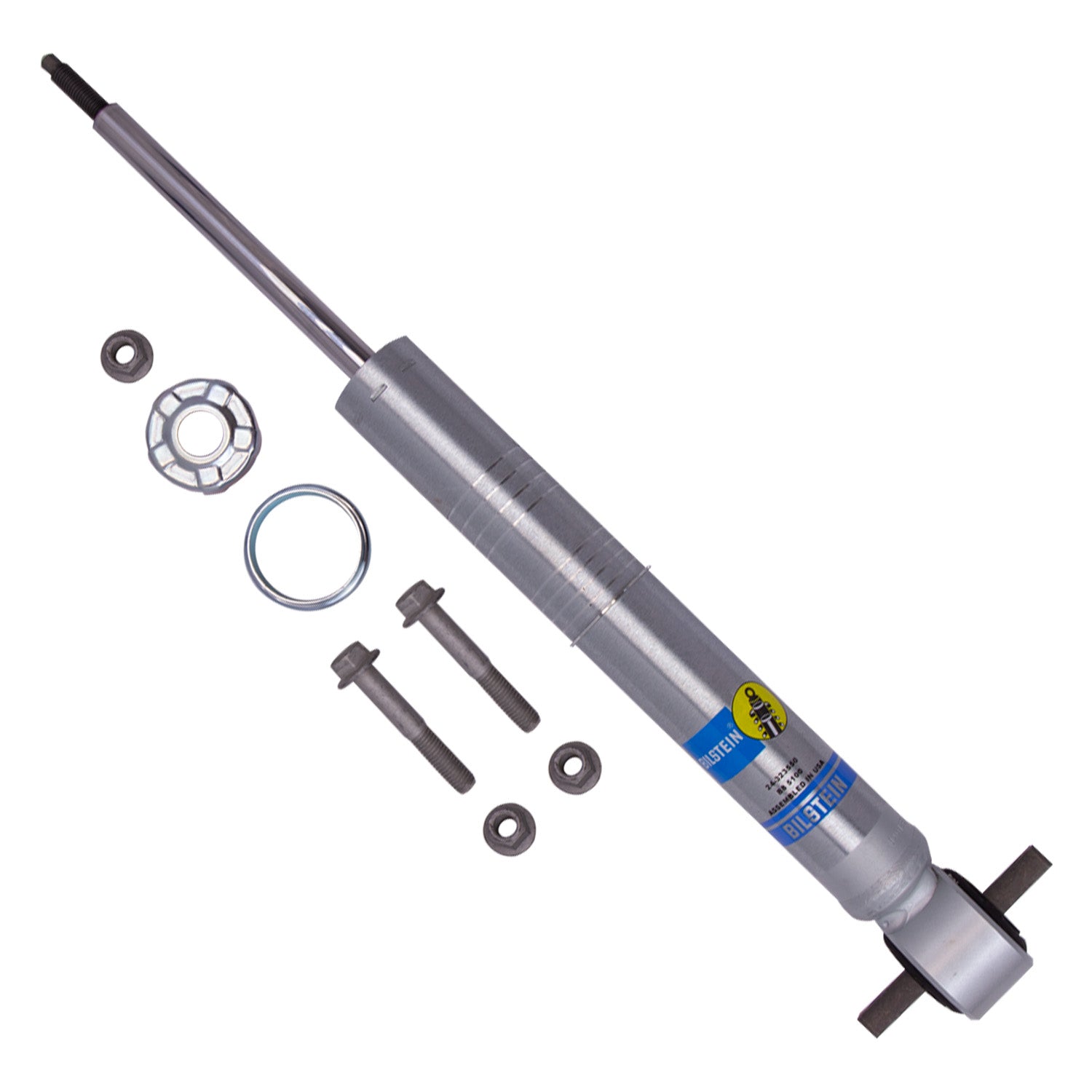

This Bilstein B8 5100 Ride Height Adjustable front shock is made for the 2021+ Ford Bronco. Specs: 6.17 in of travel, 16.62 in collapsed, 22.80 in extended.

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Details:

• Position: Front
• Travel: 6.17 in
• Extended length: 22.80 in
• Collapsed length: 16.62 in
• Upper mount: Stem
• Lower mount: Crossbar
• Body diameter: 2.0 in
• Piston diameter: 46mm
• Shaft diameter: 18mm
• Reservoir: No
• Damping: Non-Adjustable
• Internal design: Monotube
• Finish: Zinc Plated
• Country of origin: USA

Fitment:

• Ford Bronco 2021-2026
• Note: Provides 0.7-2.5" Front Lift Without Sasquatch Package;0-1.7" Front Lift With Sasquatch Package
• Note: Provides 1-2.9" Front Lift Without Sasquatch Package;0-1.7" Front Lift With Sasquatch Package
• Note: Provides 0-1.7" Front Lift

Always confirm fitment for your exact year, drivetrain and lift height before ordering.

Product information

• Bilstein part number: 24-323550
• Sold individually (price is for one shock)
• Shipping weight: 8.4 lb

Resources

• Installation instructions (PDF)
