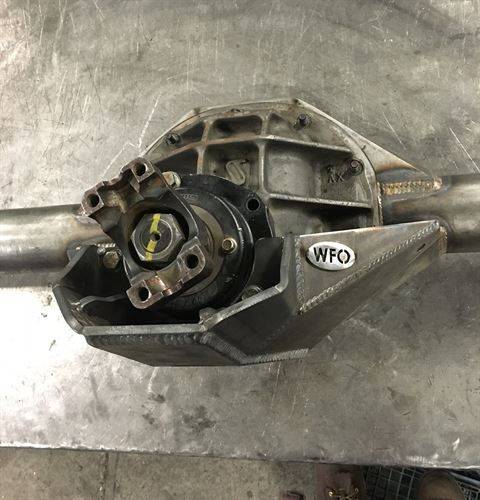

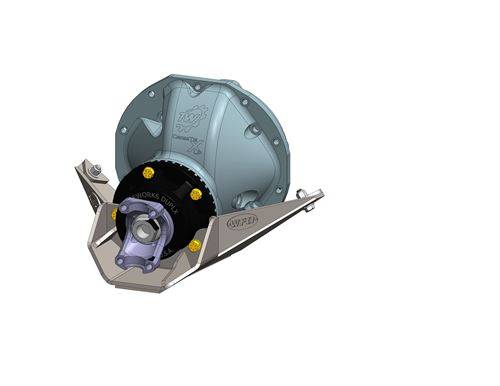

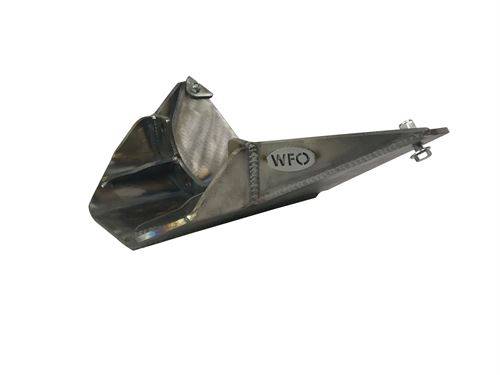

WFO 9"/10" Low Pinion Diff Guard
WFO 9"/10" Low Pinion Diff Guard
WFO 9"/10" Low Pinion Diff Guard

WFO 9"/10" Low Pinion Diff Guard

WFO 1990

Regular price$299.99
/
Shipping calculated at checkout.

Description

WFO 1990 – 9”/10” LOW Pinion Guard

  • Can be used with the following 3rd Members:
    • Gearworks low pinion 3rd member
    • Tubeworks CrossTie Billet low pinion 3rd member
    • Strange Engineering low pinion 3rd member
    • Yukon Gear & Axle low pinion 3rd member (might need a spacer due to thin pinion flanges)
    • Can also be used with combined companies
      • Gearworks 3rd member with a Tubeworks pinion support
      • Strange 3rd member with Gearworks Pinion Support
  • Completely made from ¼” P&O steel and bottom plated with a strip of ¼” AR skid resistant steel
  • Accepts up to a 1480 forged or billet u-joint style yolk or flange
  • Bolts to the lower 3 bolts as well as 2 provided tabs you weld onto your housing
  • From pinion mounting face to bottom housing flange is 5"
  • Does not come with longer pinion bolts. You will need to source qty. (3) 1/4" longer bolts
  • Product comes unpainted raw steel

MADE IN THE USA!
