Clayton Off Road 8.0" Long Arm Lift Kit with Rear Coil Conversion — 1984–2001 Jeep Cherokee XJ | COR-3201331
COR-3201331
The Clayton Off Road 8.0" Long Arm Lift Kit with Rear Coil Conversion (part number COR-3201331) is a complete front and rear long arm suspension system designed for 1984–2001 Jeep Cherokee XJ. This kit converts the rear suspension from leaf springs to coil springs, delivering a superior ride quality and dramatically improved flex. Designed to run 35-inch tires with some fender trimming due to the extreme flex this kit produces. Made in the USA.
Important Installation Notes:
- Welding and cutting is required to install this lift kit — intended for experienced builders or a high-end fabrication shop
- A custom exhaust is required
- A SYE kit and CV-style driveshaft are required
- Moving the e-brake bracket may be necessary on certain model years
- Skid plate requires drilling and tapping for the 1" hardware
- Rear coil conversion crossmember requires fully drilling through two holes for the 4" bolts to pass through
- Shocks are not included — Bilstein 5100s are recommended

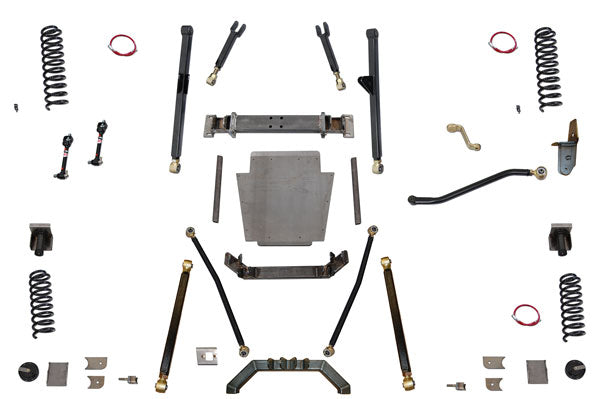

Kit Includes:
| Component | SKU |
|---|---|
| Front Lower Control Arms (pair) | COR-1900100 |
| Front Upper Control Arms (pair) | COR-1900011 |
| Rear Lower Long Arms (pair) | COR-1901100 |
| Rear Upper Control Arms (pair) | COR-1901101 |
| Front Coil Springs | COR-1504700 |
| Rear Coil Conversion Coil Springs | COR-1504701 |
| Front 3-Piece Cross Member | COR-2101100 |
| Rear Coil Conversion Cross Member (1-piece weld-in) | COR-2101040 |
| Rear Coil Conversion Axle Bracket Kit (high clearance) | COR-1201130 |
| 4-Link Axle Truss | COR-1200010 |
| Adjustable Front Track Bar | COR-4500200 |
| Track Bar Drop Bracket | COR-4500410 |
| Drop Pitman Arm | COR-2400200 |
| Front Sway Bar Quicker Disconnects | JKS-2001 |
| Upper Shock Mount | COR-2201040 |
| Upper Coil Bucket Brackets (pair) | COR-2201030 |
| 1/4" Flat Skid Plate | COR-4101102 |
| Skid Plate Rails (pair) | COR-2201010 |
| Skid Plate Hardware | COR-4101101 |
| Front Stainless Steel Spring Retainers | COR-1100108 |
| Front Brake Lines 24" | COR-1300102 |
| Rear Brake Line 24" | COR-1300101 |
