Name: Radflo 2.0 Hydraulic Bump Stop
Brand: Radflo
SKU: 5SB-001-00
Price: 285.0 USD
Availability: InStock

Radflo 2.0 Hydraulic Bump Stop 5SB-001-00

Radflo 2.0 Hydraulic Bump Stop 5SB-001-01

Radflo 2.0 Hydraulic Bump Stop 5SB-002-00

Radflo 2.0 Hydraulic Bump Stop 5SB-002-01

Radflo 2.0 Hydraulic Bump Stop 5SB-003-00

Radflo 2.0 Hydraulic Bump Stop 5SB-003-01

$285.00

Shipping calculated at checkout.

Radflo 2.0 Hydraulic Bump Stop is a universal hydraulic bump stop, not vehicle specific. Pick your travel length and mount above. Each option is its own Radflo part number, listed in the chart below.

Our hydraulic bump stops are the perfect solution for vehicles that experience suspension bottoming at high speeds or when heavily laden. As the suspension reaches maximum compression, this secondary shock progressively increases damping resistance for maximum impact control.

As a result, the vehicle and occupants are protected from high stress loads. Protects vehicle and driver from high stress loads caused by severe suspension impacts.

Radflo bump stops are engaged during the last few inches of compression travel to help cushion heavy impacts. When used correctly, they can significantly reduce dangerous stress loads that could otherwise harm the vehicle and driver.

This hydraulic bump stop is picked by dimensions, not by vehicle. Confirm collapsed length, extended length, mount types, mounting widths, bolt sizes and chassis clearance before ordering.

Mounting cans are sold separately. Radflo can part numbers line up with the bump stop part numbers (for example MT-5SB00100 goes with 5SB-001-00).

Details:

Diameter: 2.0 Inch
Shaft diameter: 1 1/4 Inch
Body style: SSID Alloy Steel Tube
Finish: Zinc Plated w/Clear Coat
Body caps/eyelets: CNC Machined 6061 Aluminum Black Anodized
Rod: Steel
Rod finish: Mirror Polished Chrome Plated
Rod guide material: Machined Bronze
Rod guide finish: PTFE Coating
Piston: Radflo Freeflo Racing Piston
Oil: Radflo High-Temp Foam Resistant Suspension Fluid
Pressurization: Nitrogen Gas
PSI: 200 psi
Reservoir type: Emulsion
Seal: Rebuildable Combination Quad Ring And Lip Seal
Valving: Velocity-Sensitive Deflective Disc, Self-Adjusting
Service: Consumer or factory serviceable
Tuning: Consumer Or Factory Tunable
Location: Front/Rear
Warranty: 1 Year Limited Warranty
Country of origin: USA

Part numbers and sizes:

Part number	Mount	Travel	Extended	Collapsed

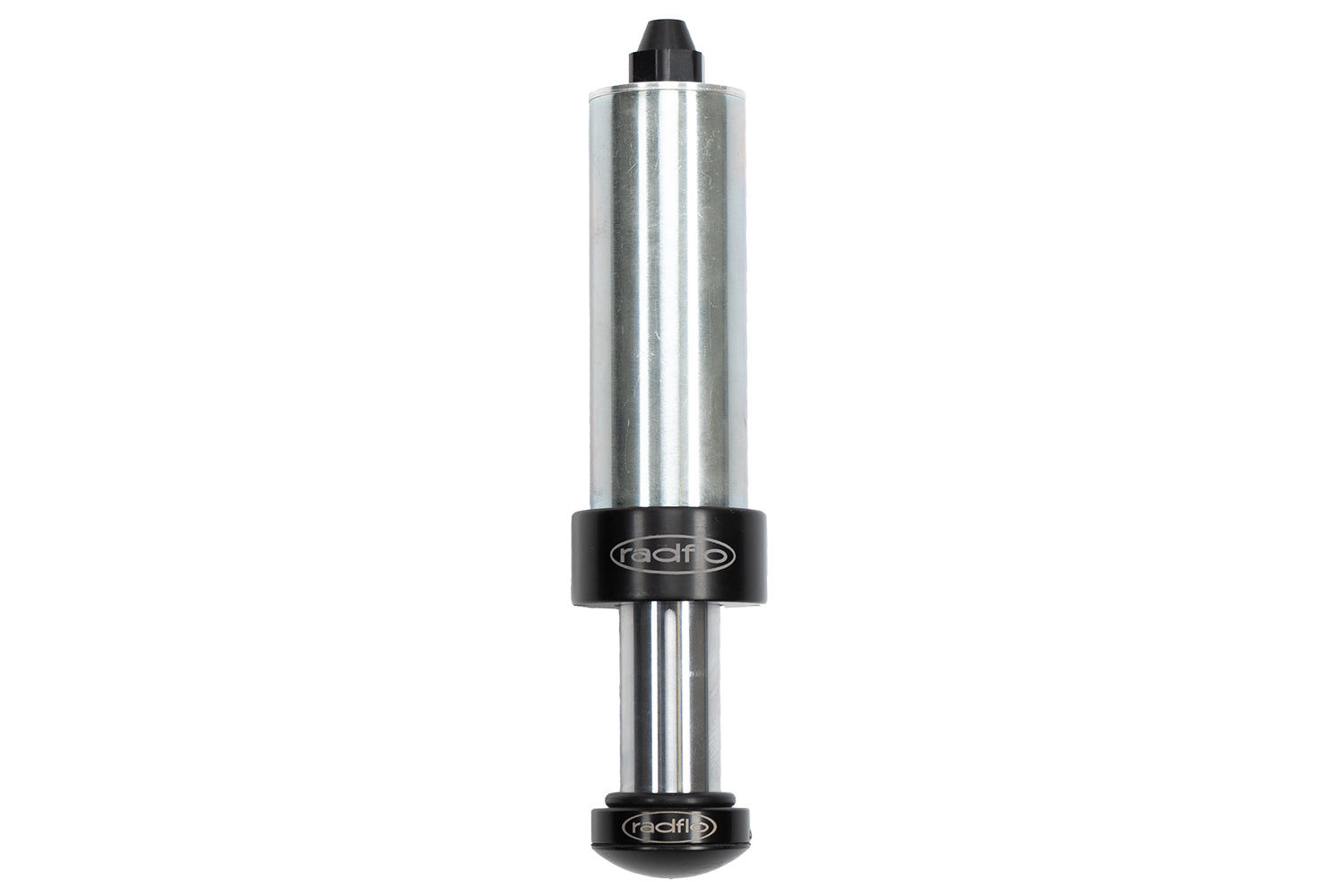

5SB-001-00	Pinch Mount	2 in	-	-

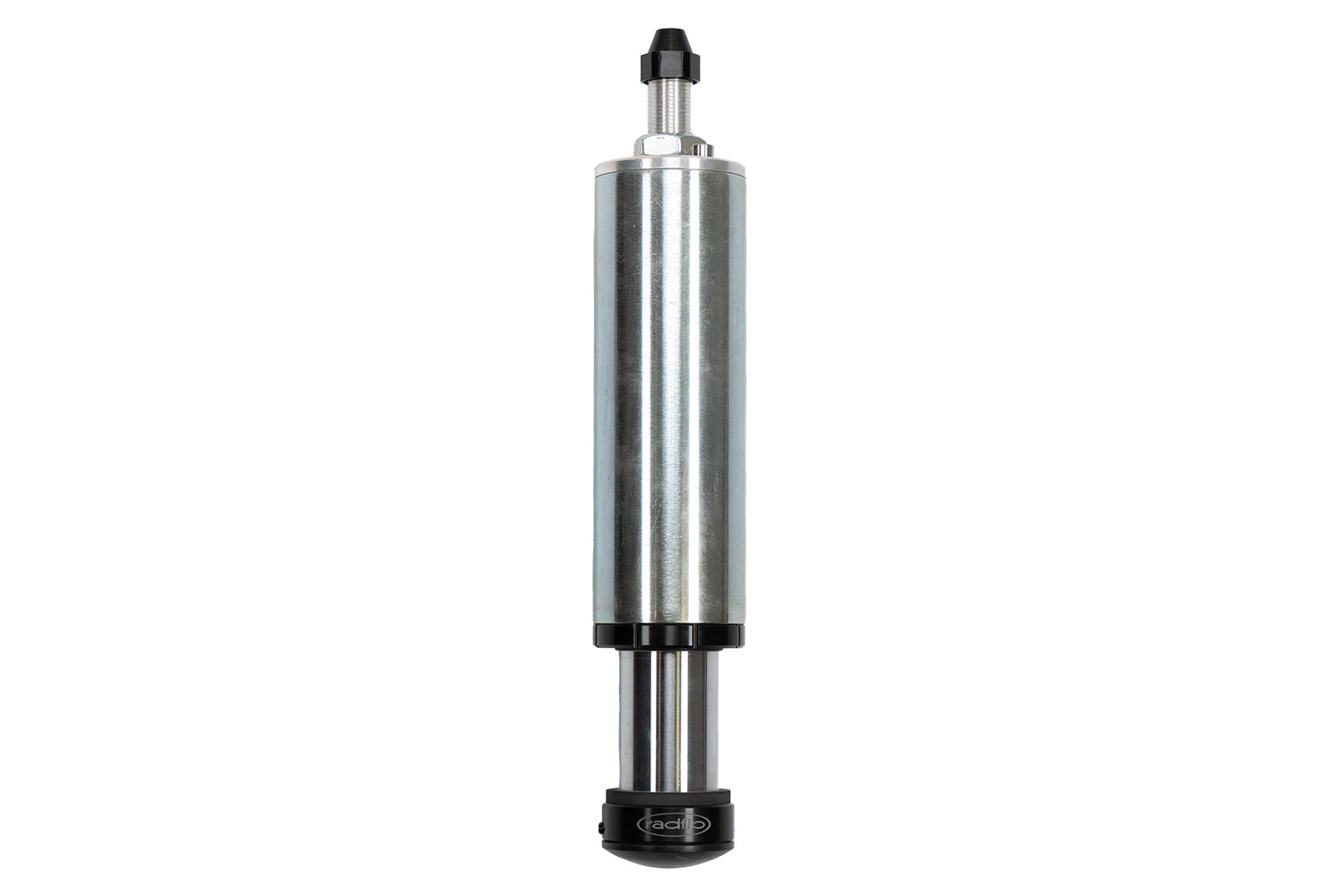

5SB-001-01	Pin Mount	2 in	-	-

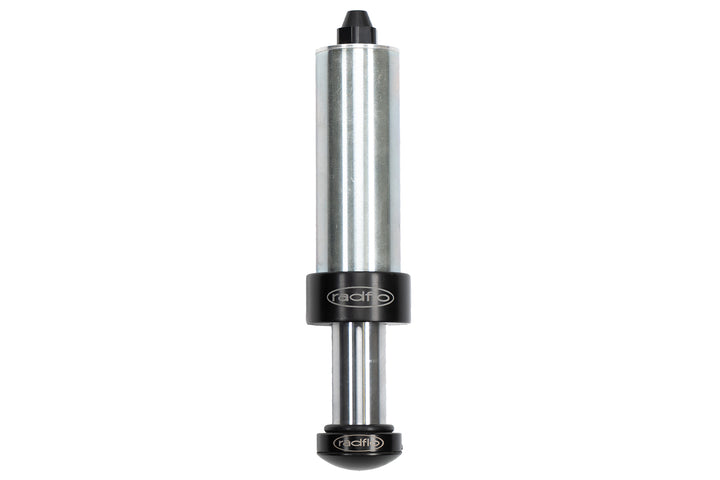

5SB-002-00	Pinch Mount	3 in	-	-

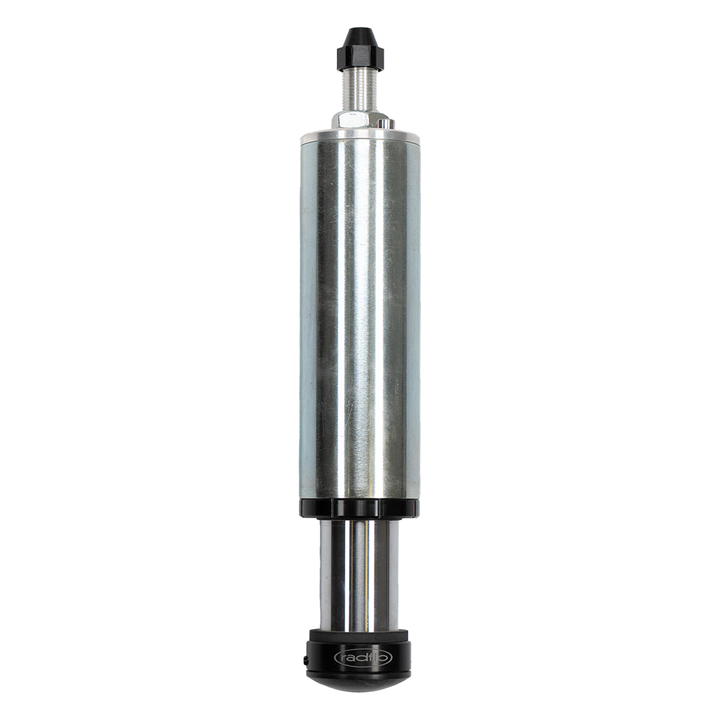

5SB-002-01	Pin Mount	3 in	-	-
5SB-003-00	Pinch Mount	4 in	-	-
5SB-003-01	Pin Mount	4 in	-	-

California Proposition 65 warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
