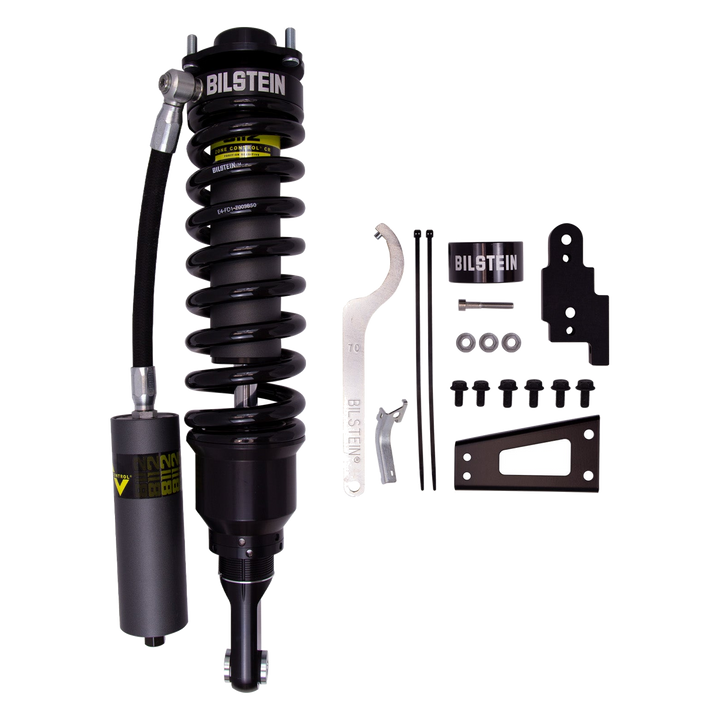

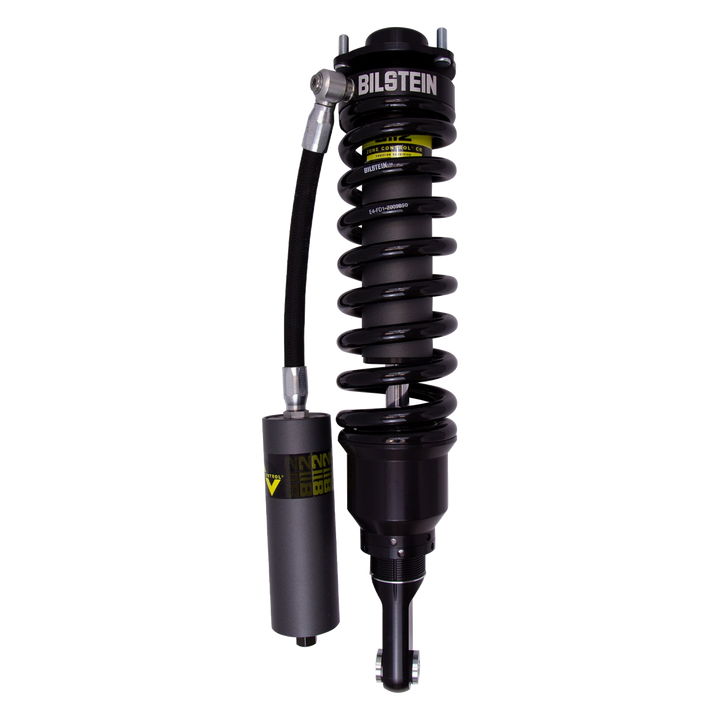

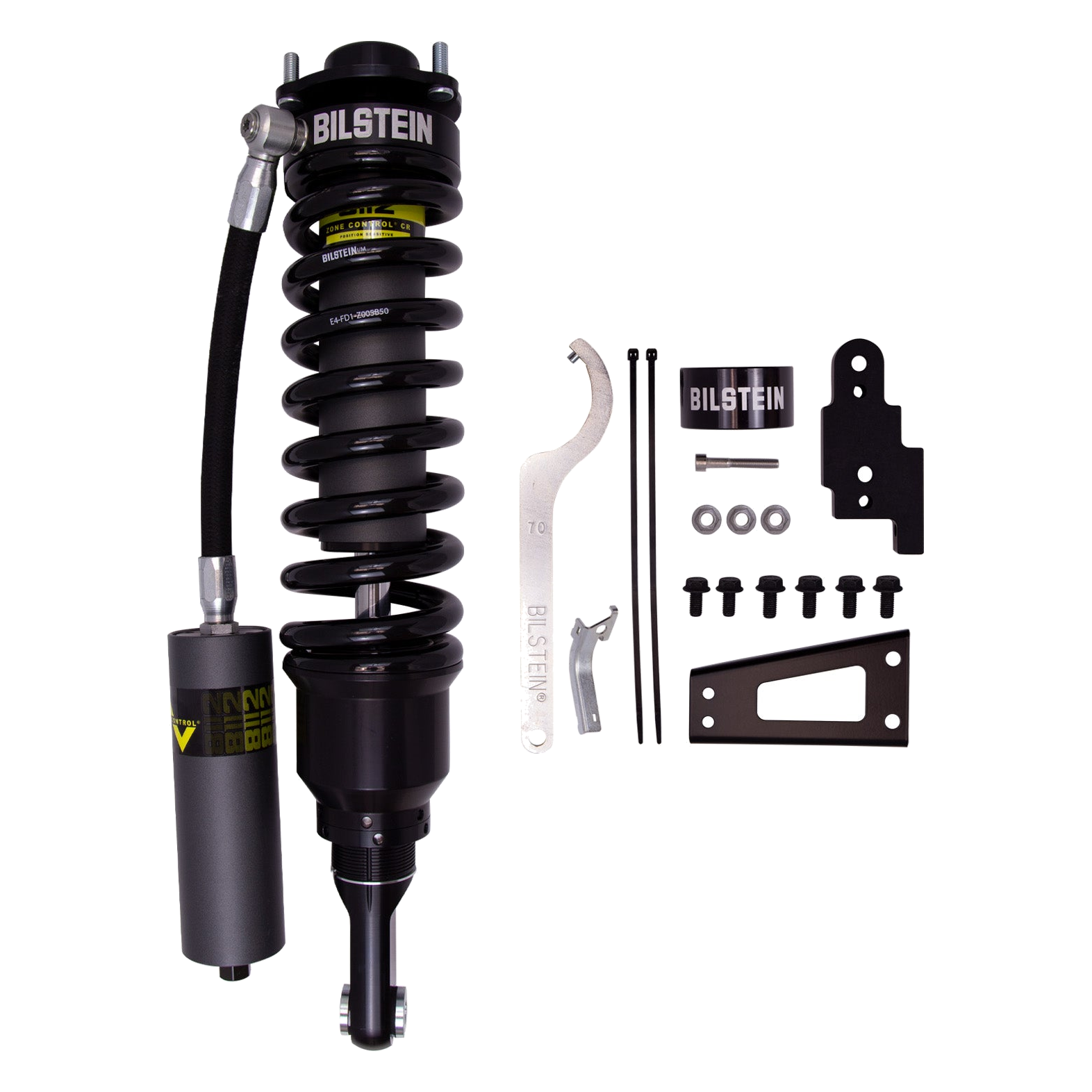

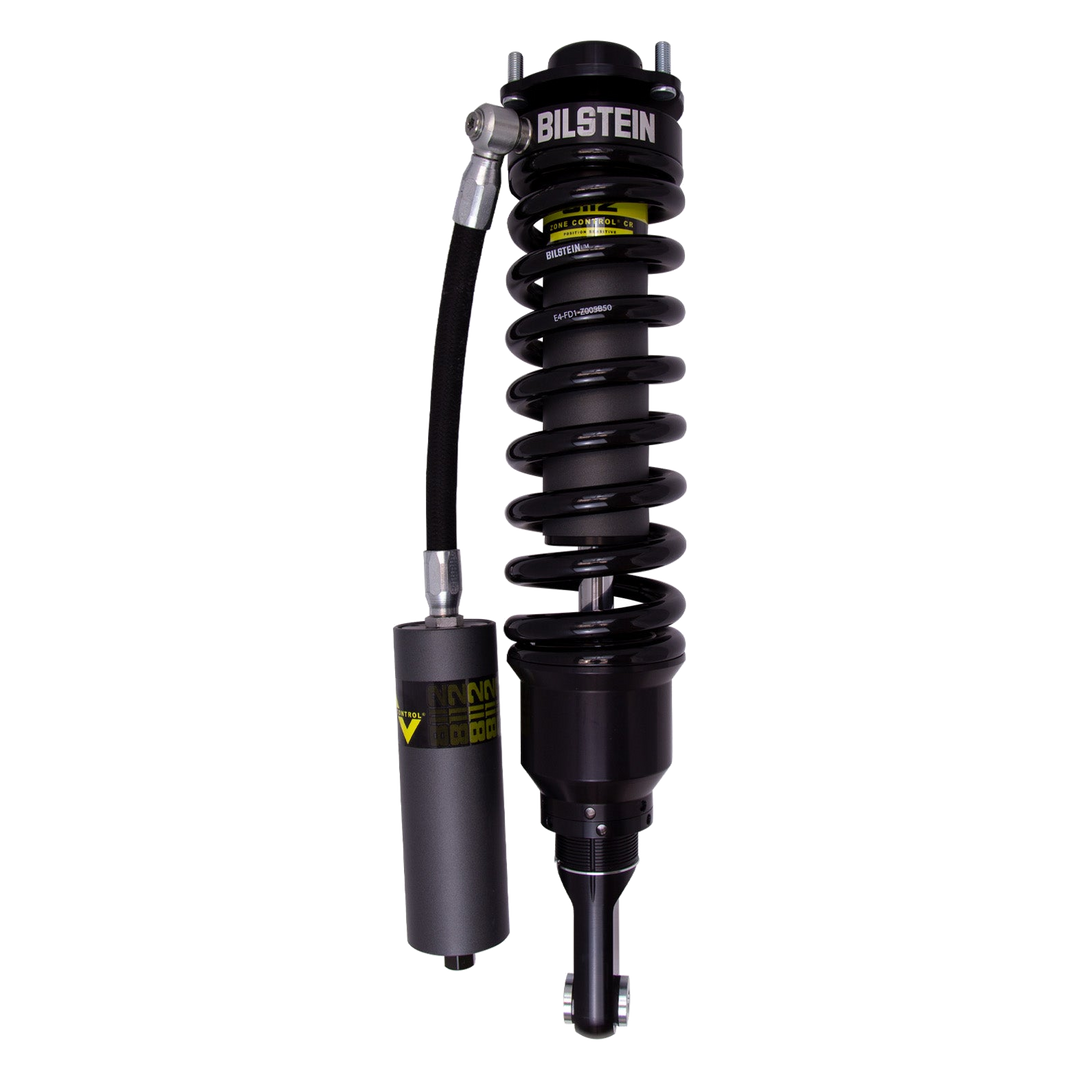

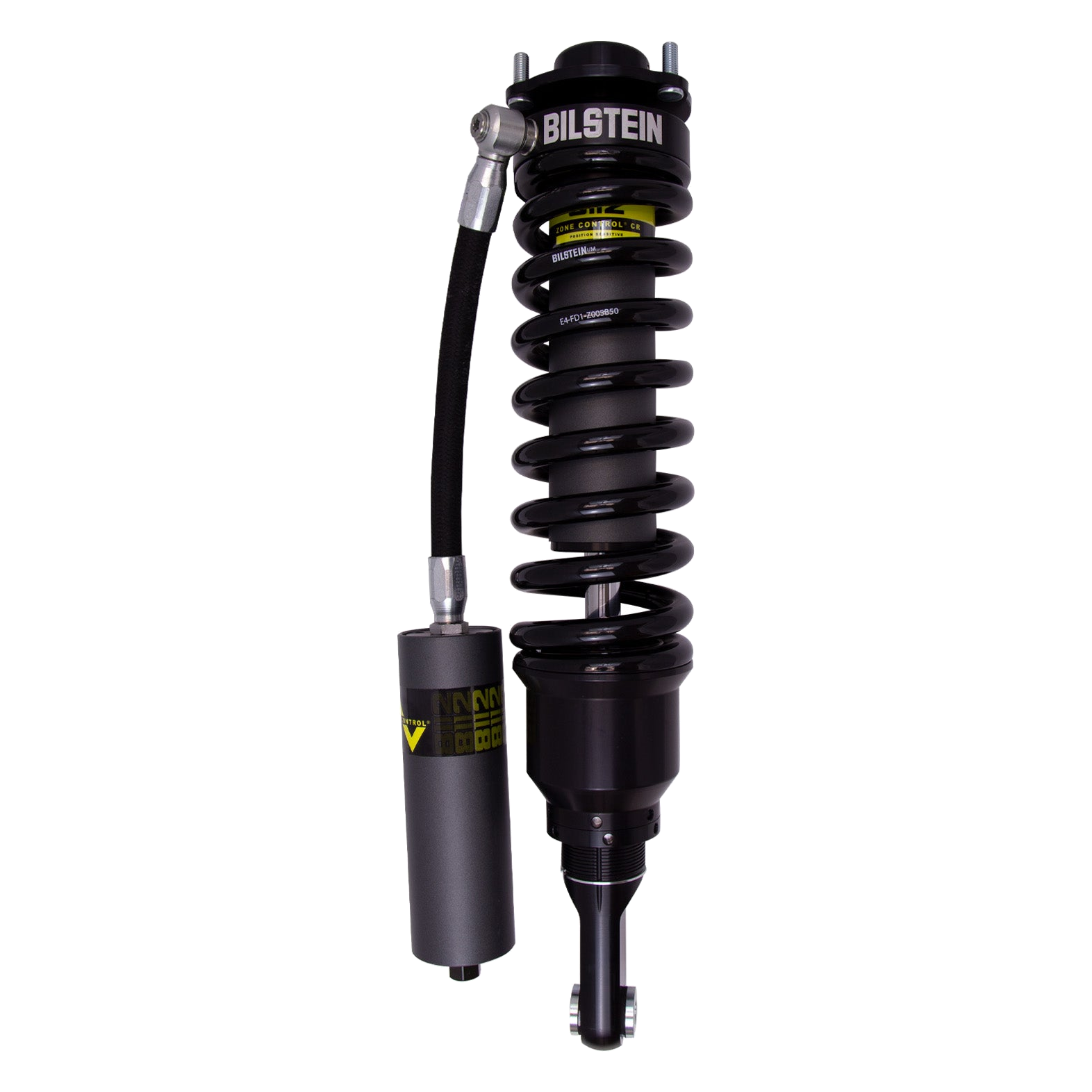

Bilstein B8 8112 ZoneControl CR Front Left Coilover 2005-2023 Toyota Tacoma 41-322673 – Bilstein part number 41-322673.
This Bilstein B8 8112 ZoneControl CR front left coilover is made for the 2005-2023 Toyota Tacoma. Specs: 4.96 in of travel, 17.43 in collapsed, 22.39 in extended.
Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Details:
- Position: Front Left
- Travel: 4.96 in
- Extended length: 22.39 in
- Collapsed length: 17.43 in
- Upper mount: Special
- Lower mount: Eye 14.1mm
- Body diameter: 2.65 in
- Piston diameter: 60mm
- Reservoir: Yes
- Damping: Non-Adjustable
- Internal design: Monotube
- Finish: Dampers: EVO Grey/Springs: Black
- Front Main Spring Rate (lbs/in): 600 lbs
- Body Material: Steel
- Shaft Diameter (mm): 22.0
- Country of origin: USA
Fitment:
- Toyota Tacoma 2005-2023
- Note: Provides 0.9-2.6" Front Lift
- Note: Provides 1.2-2.6" Front Lift
- Note: Provides 0.4-2" Front Lift
- Note: Provides 0.8-2.2" Front Lift
- Note: Provides 0.6-2" Front Lift
- Note: Provides 1.7-2.2" Front Lift
Always confirm fitment for your exact year, drivetrain and lift height before ordering.
Product information
- Bilstein part number: 41-322673
- Sold individually (price is for one coilover)
- Shipping weight: 35.1 lb
