Bilstein B8 8112 ZoneControl CR DSA+ Front Right Coilover 2007-2021 Toyota Tundra 41-326091
41-326091
Bilstein B8 8112 ZoneControl CR DSA+ Front Right Coilover 2007-2021 Toyota Tundra 41-326091 – Bilstein part number 41-326091.

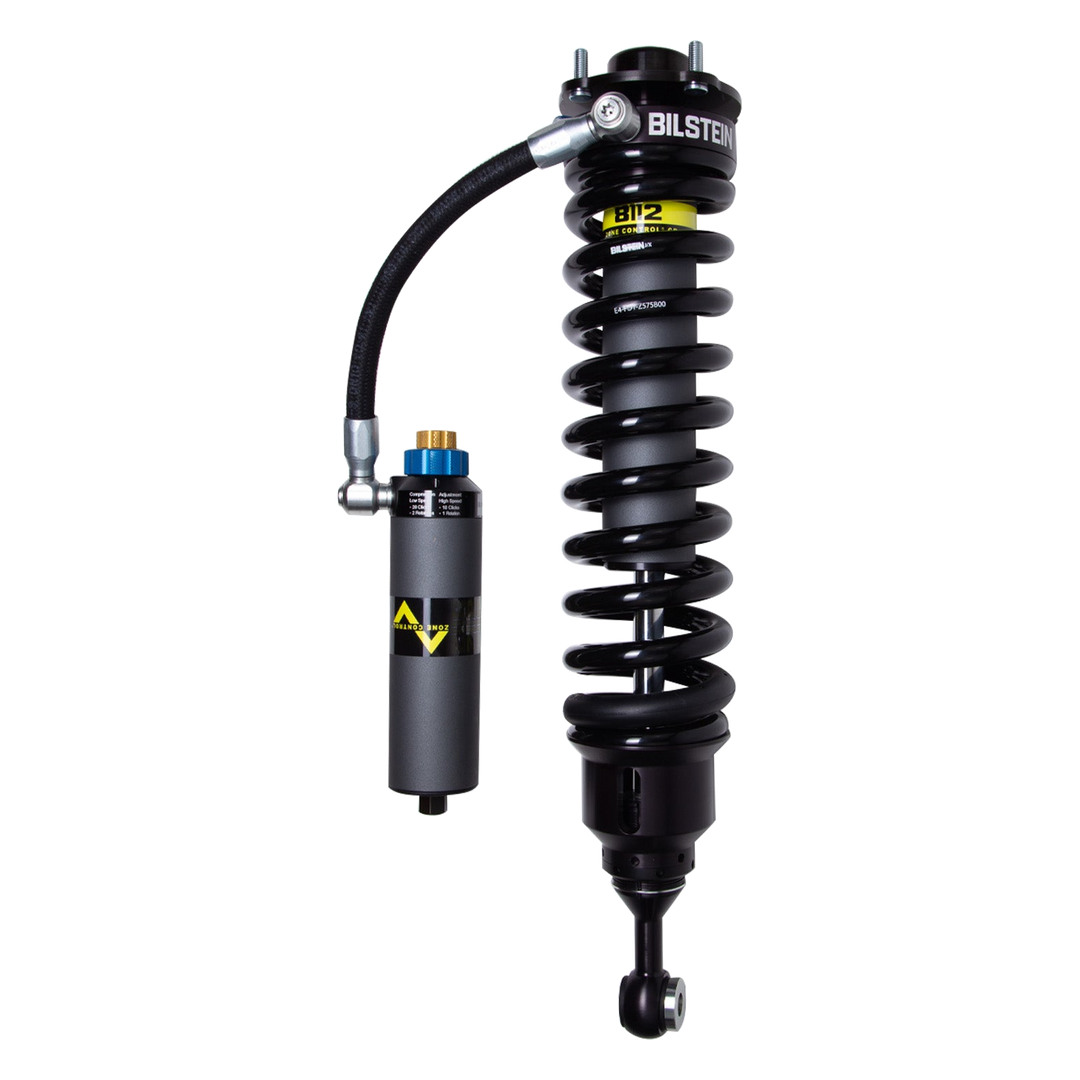

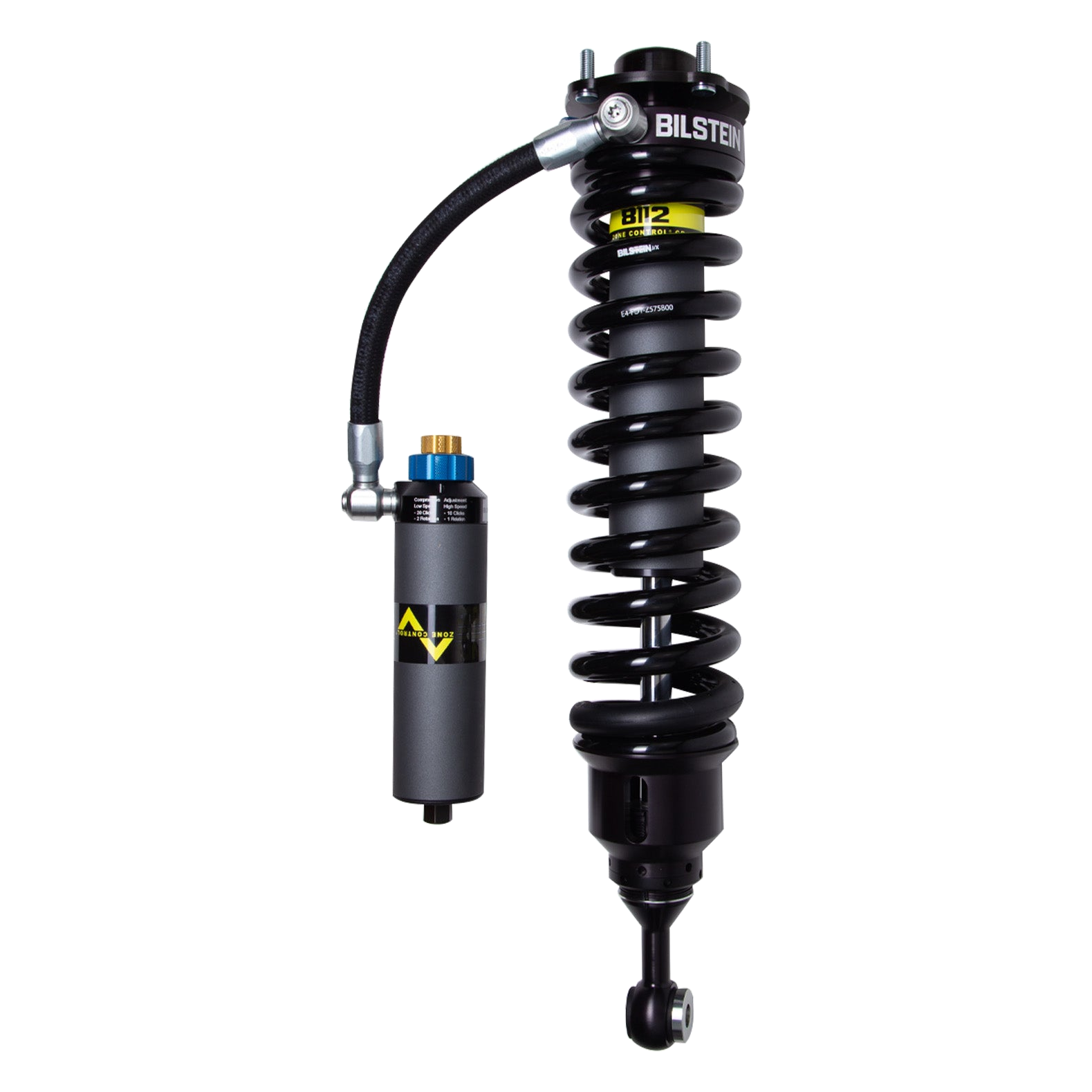

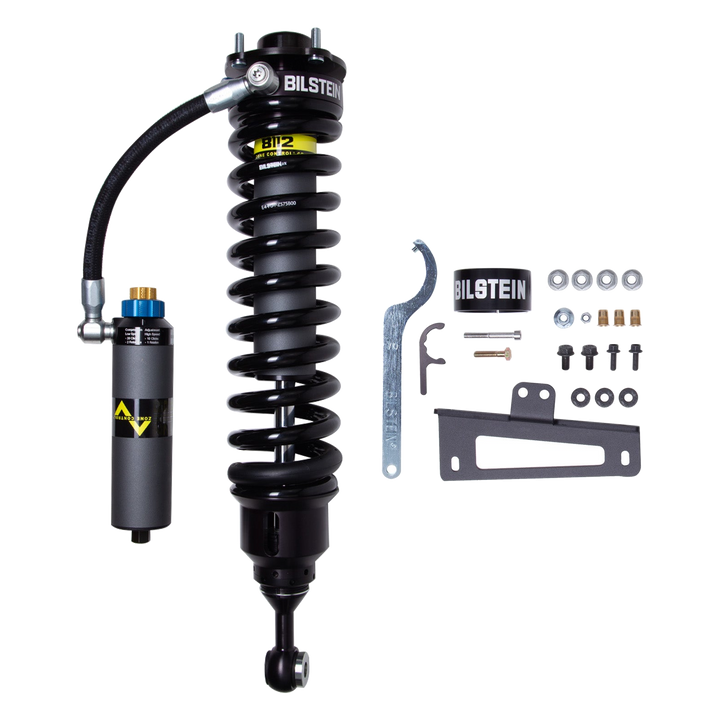

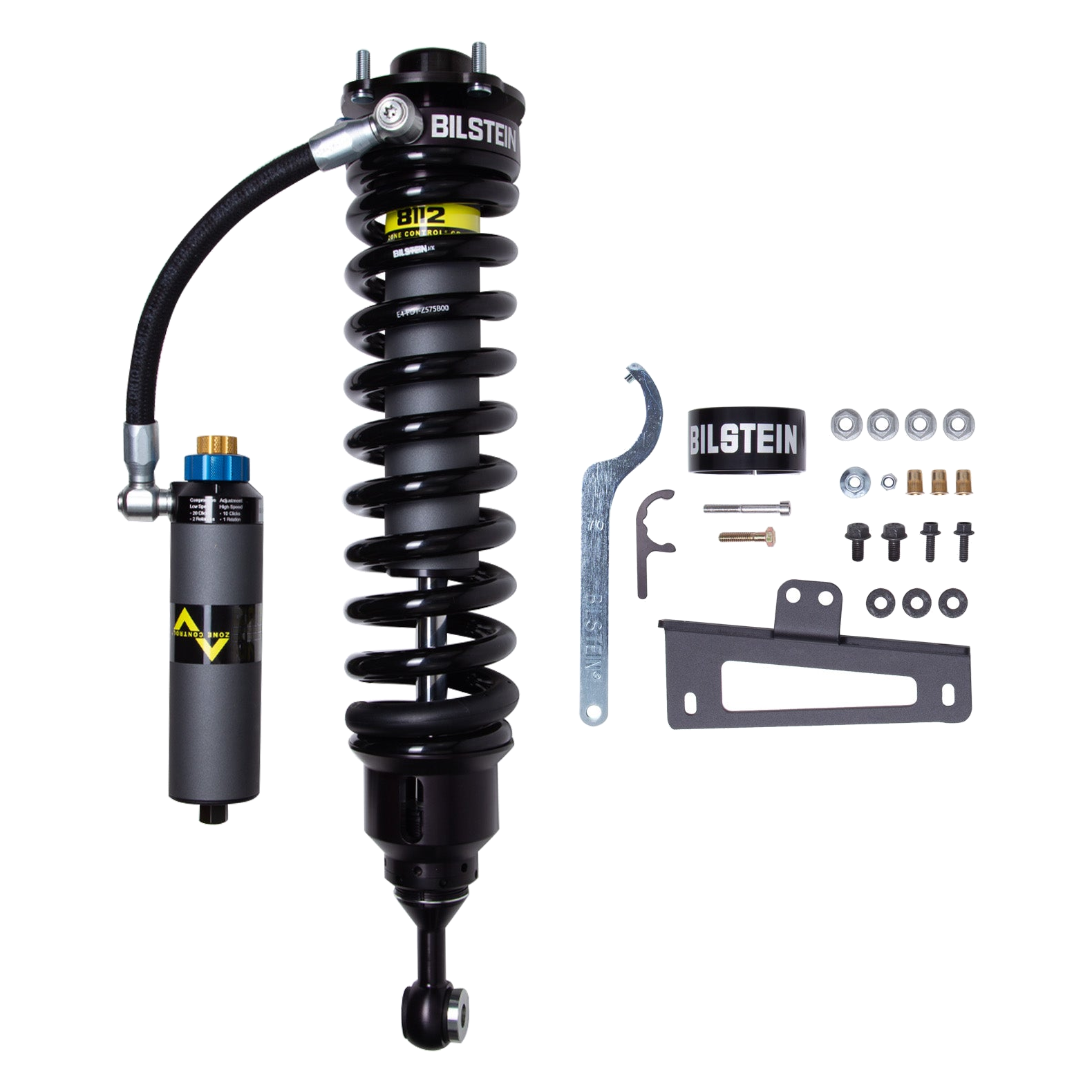

This Bilstein B8 8112 ZoneControl CR DSA+ front right coilover is made for the 2007-2021 Toyota Tundra. Specs: 6.30 in of travel, 18.90 in collapsed, 25.20 in extended.
Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Details:
- Position: Front Right
- Travel: 6.30 in
- Extended length: 25.20 in
- Collapsed length: 18.90 in
- Upper mount: Special
- Lower mount: Eye 19.05mm
- Body diameter: 2.65 in
- Piston diameter: 60mm
- Reservoir: Yes
- Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
- Internal design: Monotube
- Finish: Dampers: EVO Grey/Springs: Black
- Front Main Spring Rate (lbs/in): 650
- Body Material: Steel
- Shaft Diameter (mm): 22.0
- Country of origin: USA
Fitment:
- Toyota Tundra 2007-2021
- Note: Provides 2.25-3.25" Front Lift;Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended
- Note: Provides 2.75-3.25" Front Lift;Aftermarket Upper Control Arms required - Bilstein B8 Pro
Always confirm fitment for your exact year, drivetrain and lift height before ordering.
Product information
- Bilstein part number: 41-326091
- Sold individually (price is for one coilover)
- Shipping weight: 44.8 lb
