Bilstein B8 8112 Black Hawk Rear Left Coilover 2021+ Ford Bronco 41-314326

Bilstein B8 8112 Black Hawk Rear Left Coilover 2021+ Ford Bronco 41-314326 – Bilstein part number 41-314326.

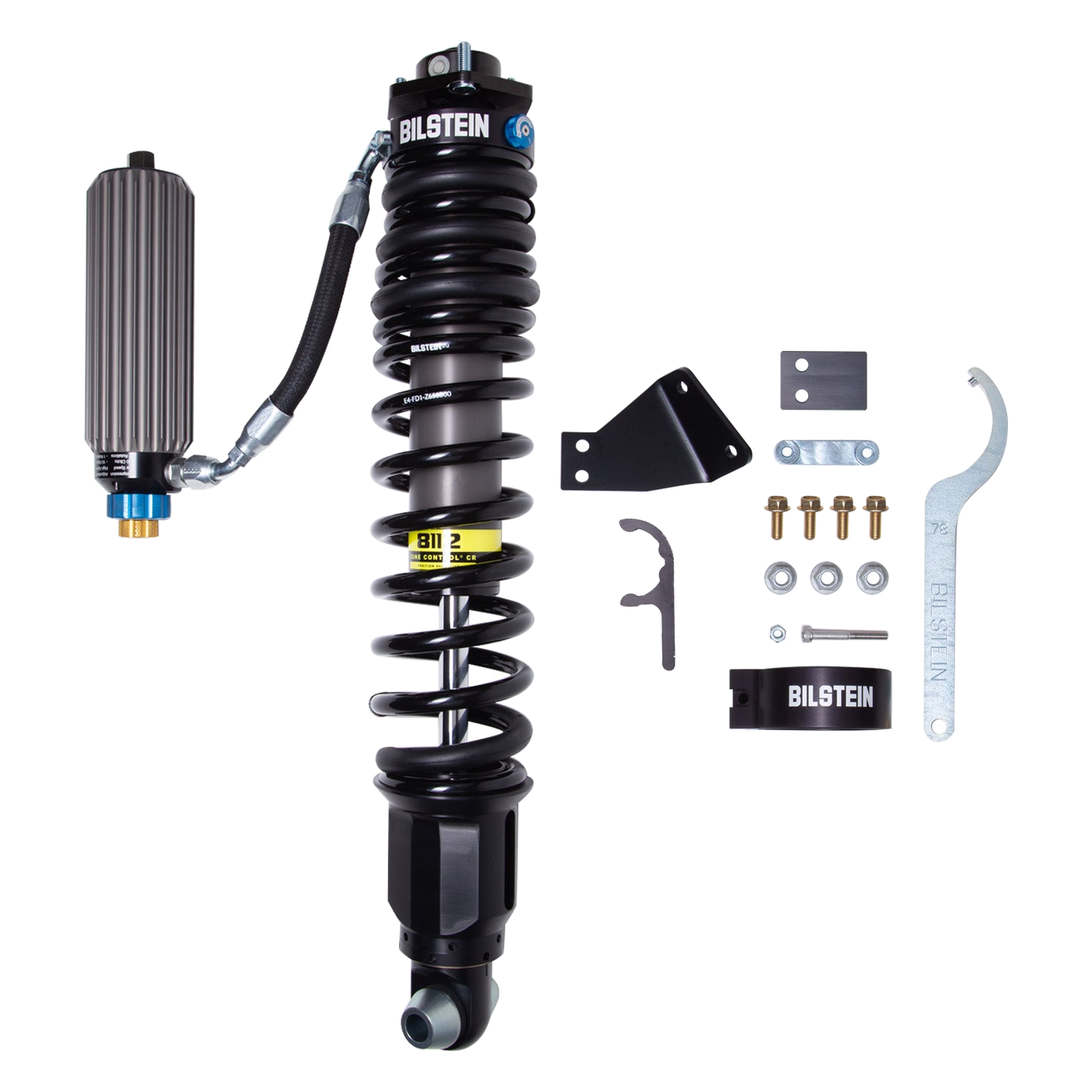

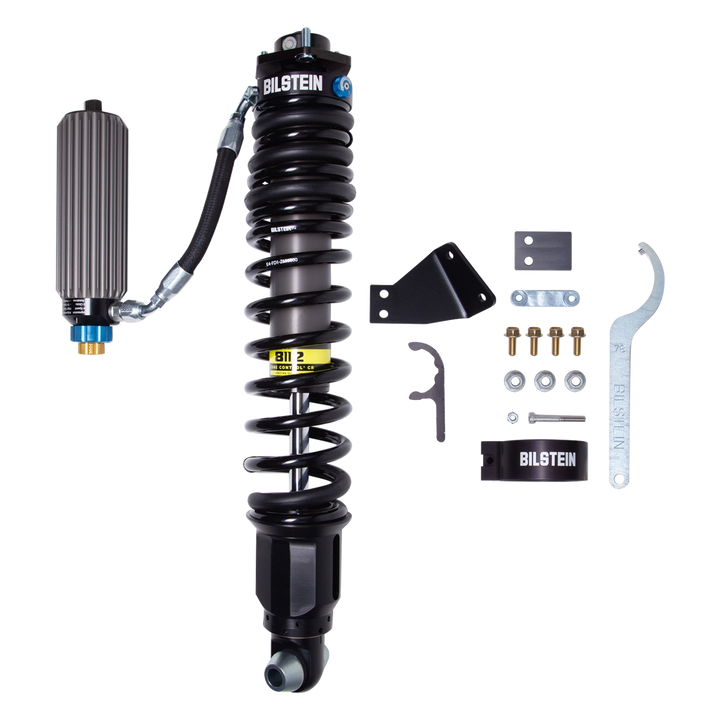

This Bilstein B8 8112 Black Hawk rear left coilover is made for the 2021+ Ford Bronco. Specs: 8.20 in of travel, 18.40 in collapsed, 26.60 in extended.

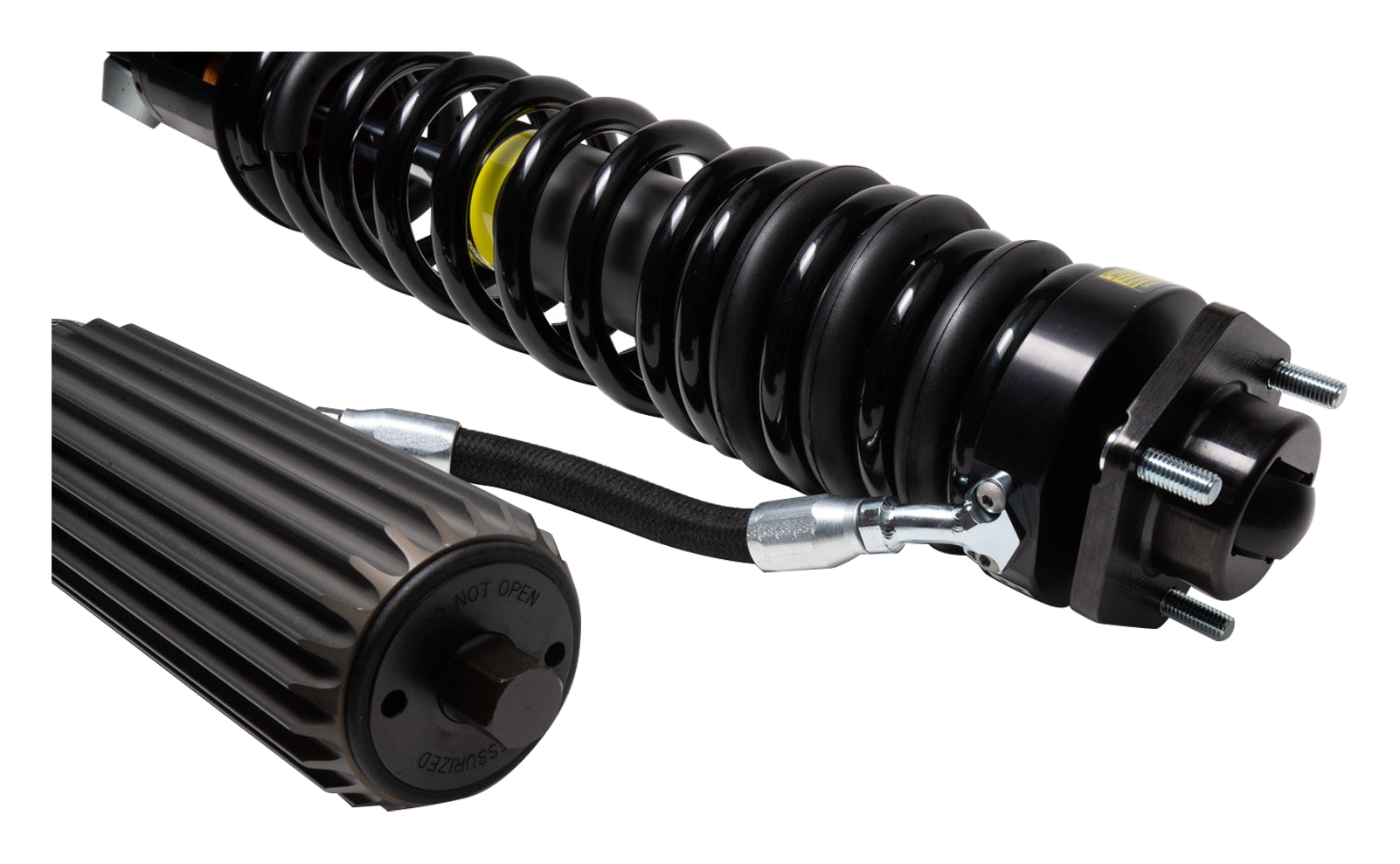

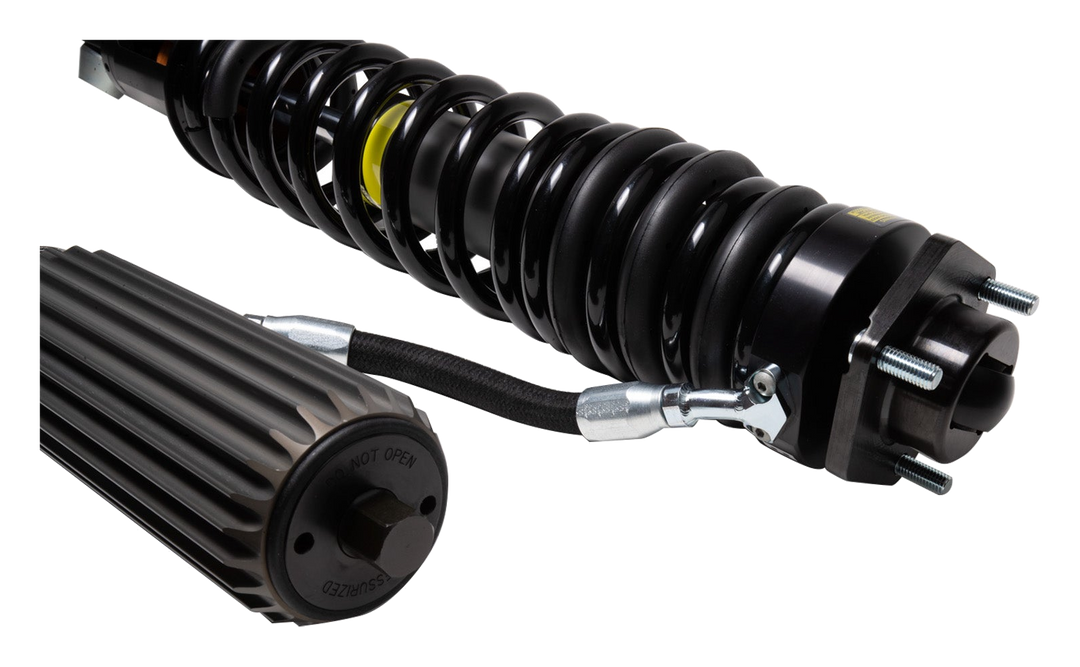

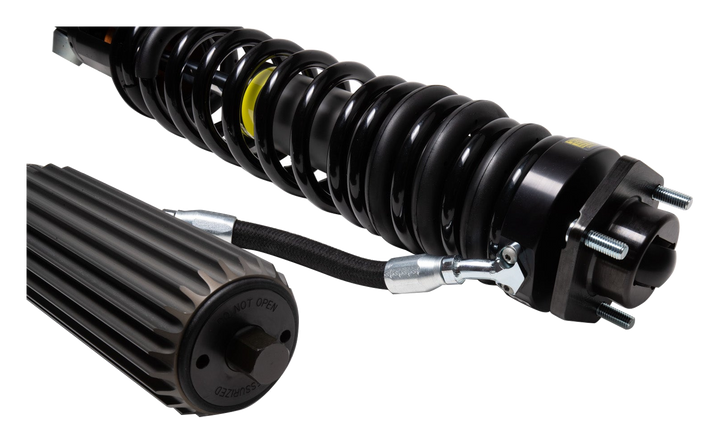

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.

Details:

• Position: Rear Left
• Travel: 8.20 in
• Extended length: 26.60 in
• Collapsed length: 18.40 in
• Upper mount: Special
• Lower mount: Eye 25.4mm with Heim Spacers
• Body diameter: 2.65 in
• Piston diameter: 60mm
• Reservoir: Yes - Finned Aluminum
• Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
• Internal design: Monotube
• Finish: Dampers: EVO Grey/Springs: Black
• Rear Main Spring Rate (lbs/in): 288
• Body Material: Aluminum
• Shaft Diameter (mm): 22.0
• Country of origin: USA

Fitment:

• Ford Bronco 2021-2026
• Note: Provides 1.6-2.2" Rear Lift Without Sasquatch Package;0.5-1.1" Rear Lift With Sasquatch Package
• Note: Provides 2.1-2.9" Rear Lift Without Sasquatch Package;1.0-1.7" Rear Lift With Sasquatch Package
• Note: Provides 2.7-3.3" Rear L

Always confirm fitment for your exact year, drivetrain and lift height before ordering.

Product information

• Bilstein part number: 41-314326
• Sold individually (price is for one coilover)
• Shipping weight: 41.9 lb

Resources

• Installation instructions (PDF)
