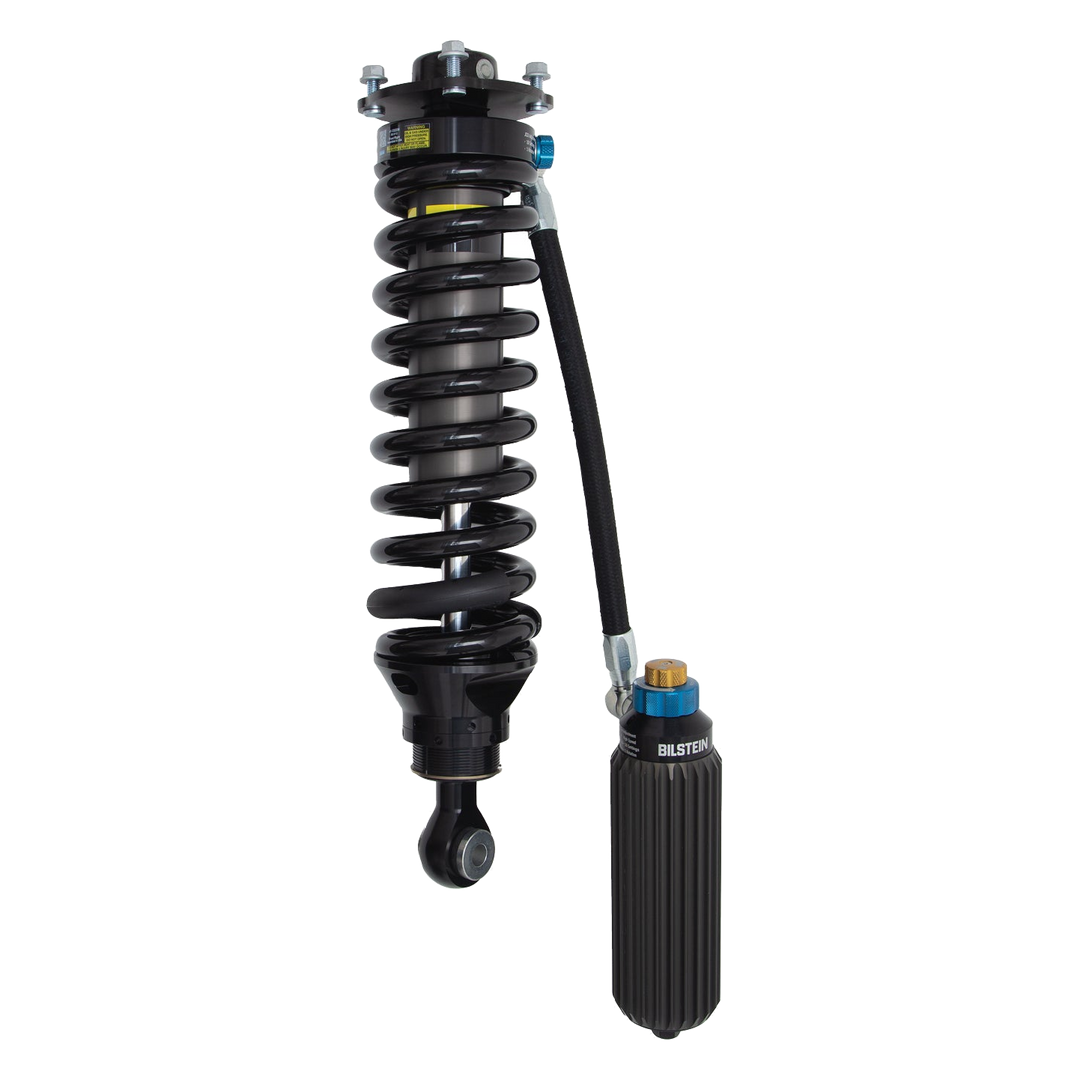

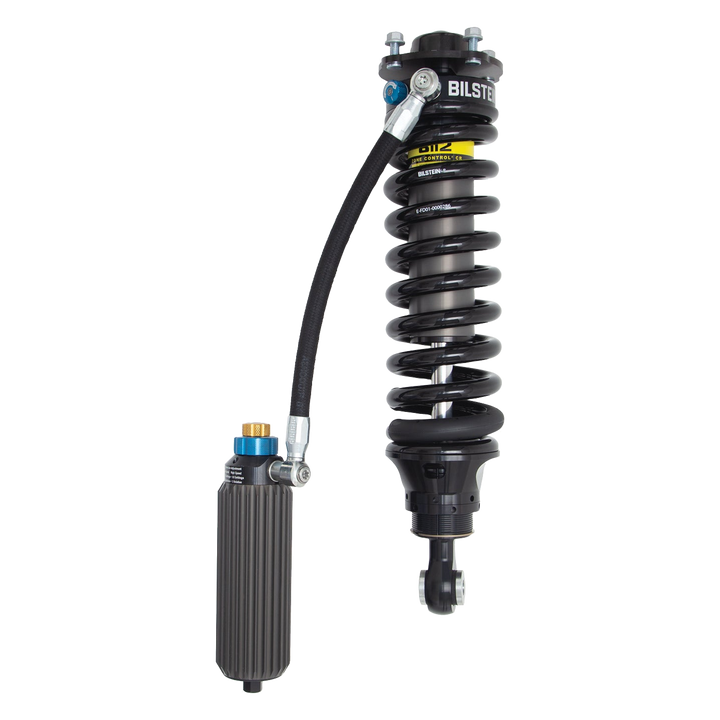

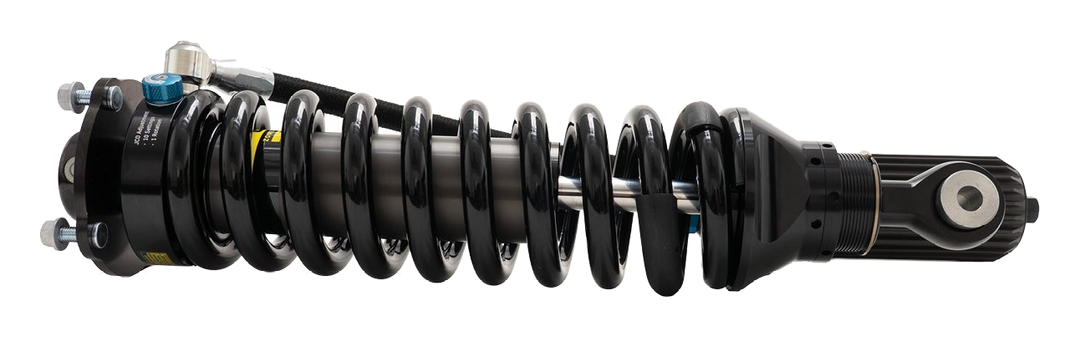

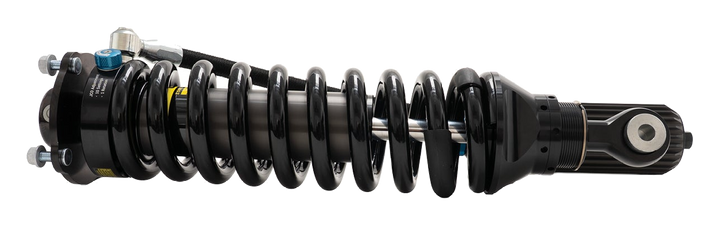

Bilstein B8 8112 Black Hawk Front Right Coilover 2022+ Toyota Tundra 41-332238

Bilstein B8 8112 Black Hawk Front Right Coilover 2022+ Toyota Tundra 41-332238 – Bilstein part number 41-332238.

This Bilstein B8 8112 Black Hawk front right coilover is made for the 2022+ Toyota Tundra. Specs: 5.03 in of travel, 16.80 in collapsed, 21.83 in extended.

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.

Details:

• Position: Front Right
• Travel: 5.03 in
• Extended length: 21.83 in
• Collapsed length: 16.80 in
• Upper mount: Special
• Lower mount: Eye 19.05mm
• Body diameter: 2.65 in
• Piston diameter: 60mm
• Reservoir: Yes - Finned Aluminum
• Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
• Internal design: Monotube
• Finish: Dampers: EVO Grey/Springs: Black
• Front Main Spring Rate (lbs/in): 600 lbs
• Body Material: Aluminum
• Shaft Diameter (mm): 22.0
• Country of origin: USA

Fitment:

• Toyota Tundra 2022-2026
• Note: Provides 1-2.25" Front Lift;Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-332334 recommended
• Note: Provides 1-2" Front Lift;Aftermarket Upper Control Arms required - Bilstein B8 Pro Control A

Always confirm fitment for your exact year, drivetrain and lift height before ordering.

Product information

• Bilstein part number: 41-332238
• Sold individually (price is for one coilover)
• Shipping weight: 35 lb

Resources

• Installation instructions (PDF)
