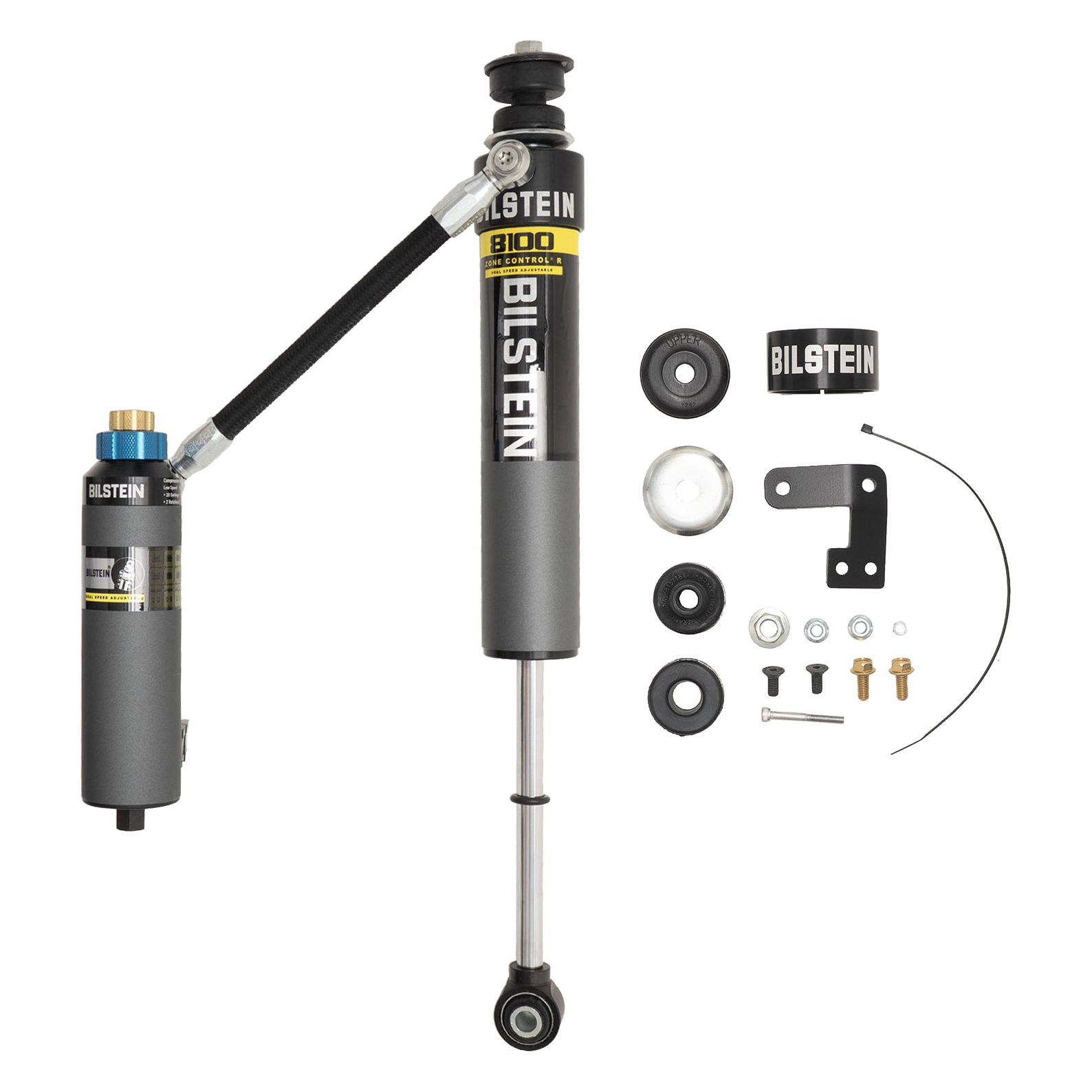

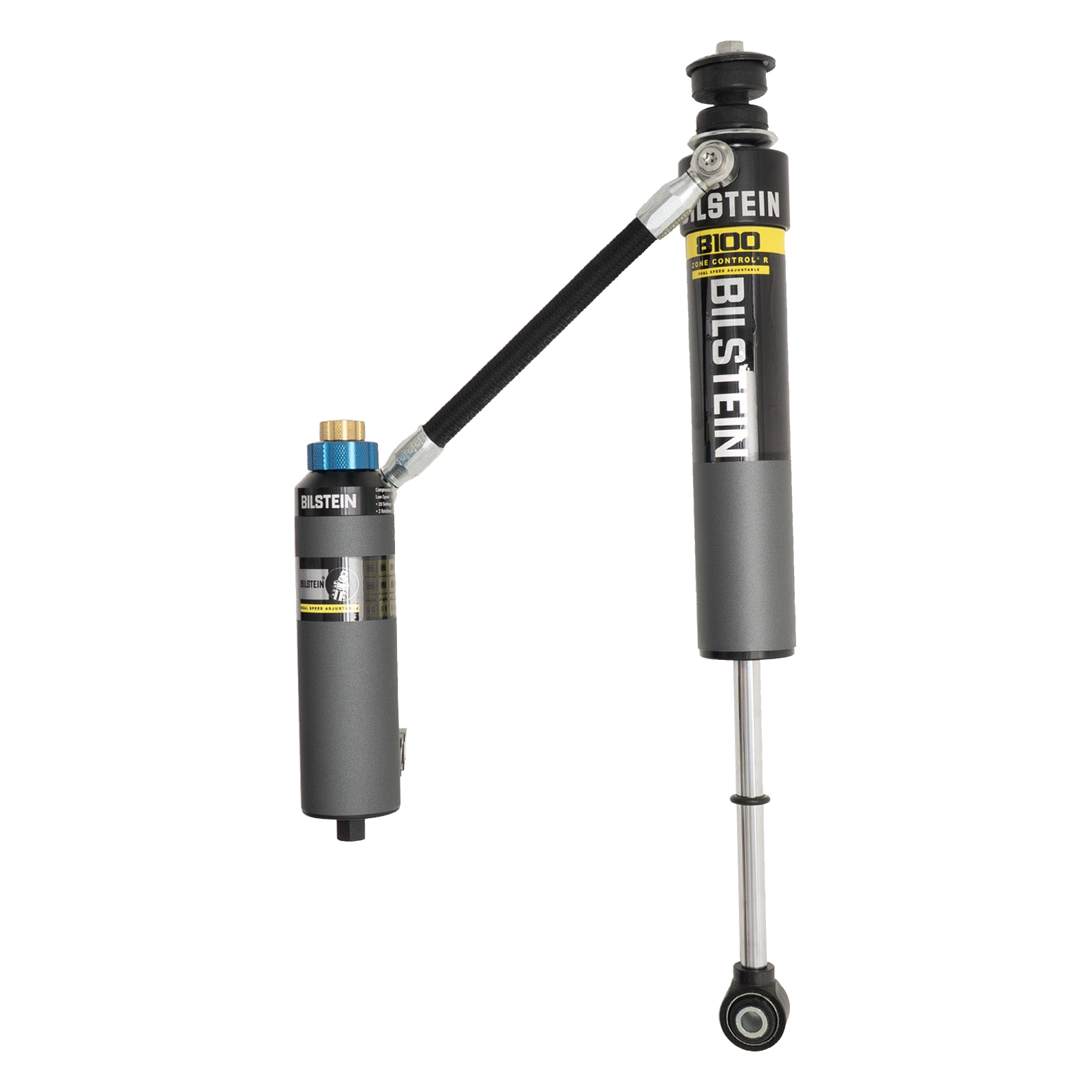

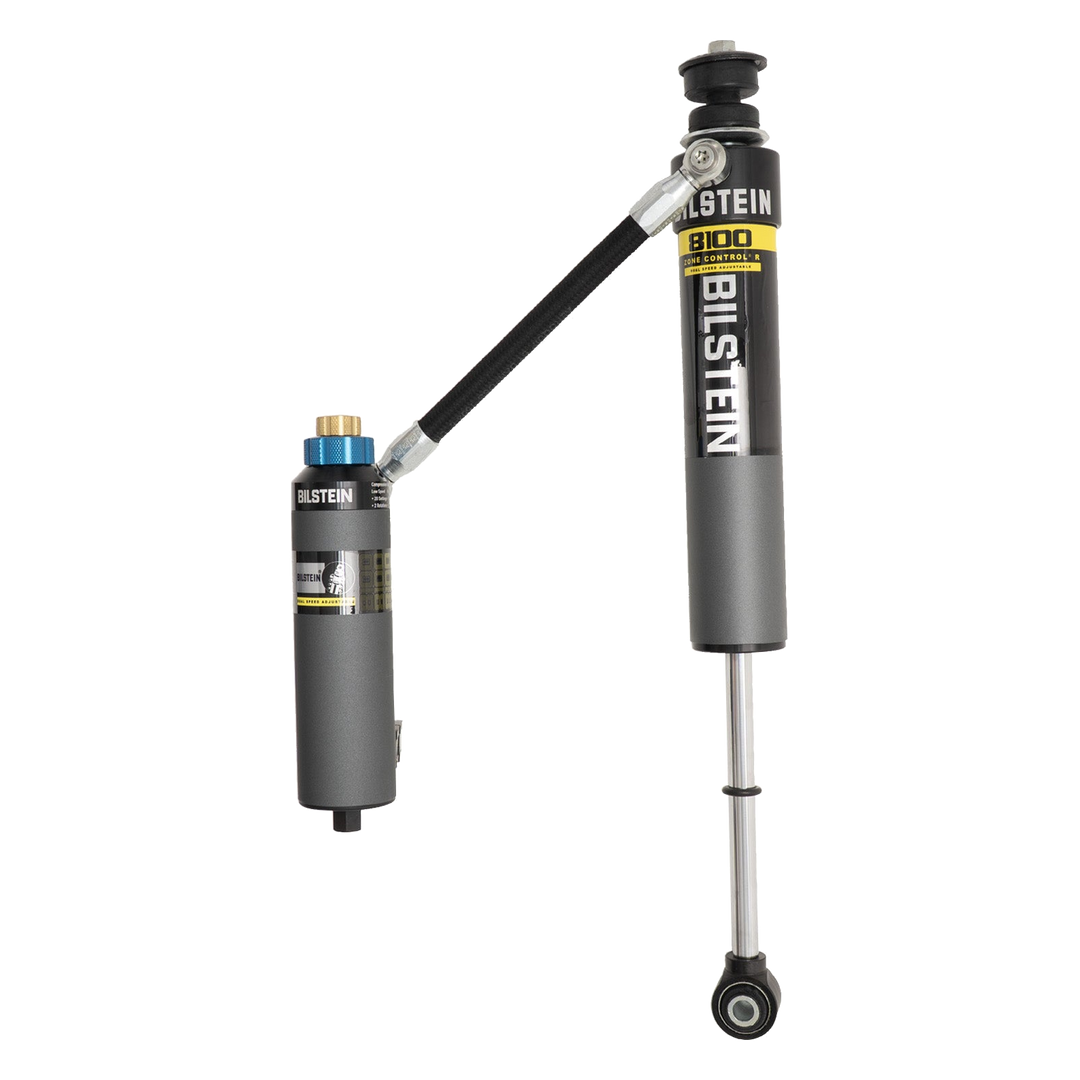

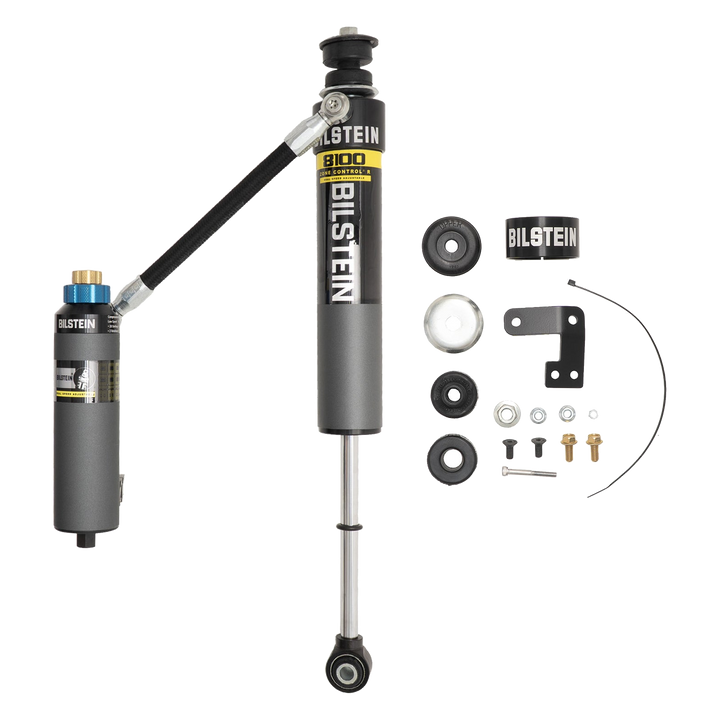

Bilstein B8 8100 ZoneControl R DSA Front Right Shock 2019+ Ram 2500 2-2.5" Lift 25-335903

Bilstein B8 8100 ZoneControl R DSA Front Right Shock 2019+ Ram 2500 2-2.5" Lift 25-335903 – Bilstein part number 25-335903.

This Bilstein B8 8100 ZoneControl R DSA front right shock is made for the 2019+ Ram 2500. Intended lift height: 2-2.5 in. Specs: 8.34 in of travel, 14.65 in collapsed, 22.99 in extended.

The B8 8100 (ZoneControl R DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. ZoneControl R is a revolutionary double piston technology delivering position sensitive rebound damping which eliminates harsh suspension top-out events and the need for an external limit strap. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (ZoneControl R DSA) offers unmatched levels of adjustable ride comfort and control.

Details:

• Position: Front Right
• Lift height: 2-2.5" lift
• Travel: 8.34 in
• Extended length: 22.99 in
• Collapsed length: 14.65 in
• Upper mount: Stem
• Lower mount: Eye 14.1mm
• Body diameter: 2.65 in
• Piston diameter: 60mm
• Shaft diameter: 18mm
• Reservoir: Yes
• Damping: Double Adjustable Compression with Click Adjuster Knobs
• Internal design: Monotube
• Finish: EVO Grey
• Country of origin: USA

Fitment:

• Ram 2500 2019-2026
• Note: Fits Vehicles With 2-2.5" Front Lift;Bilstein B12 Special spring kit recommended - 53-317315 for Diesel engine or 53-317322 for Gas engine

Always confirm fitment for your exact year, drivetrain and lift height before ordering.

Product information

• Bilstein part number: 25-335903
• Sold individually (price is for one shock)
• Shipping weight: 20 lb

Resources

• Installation instructions (PDF)
