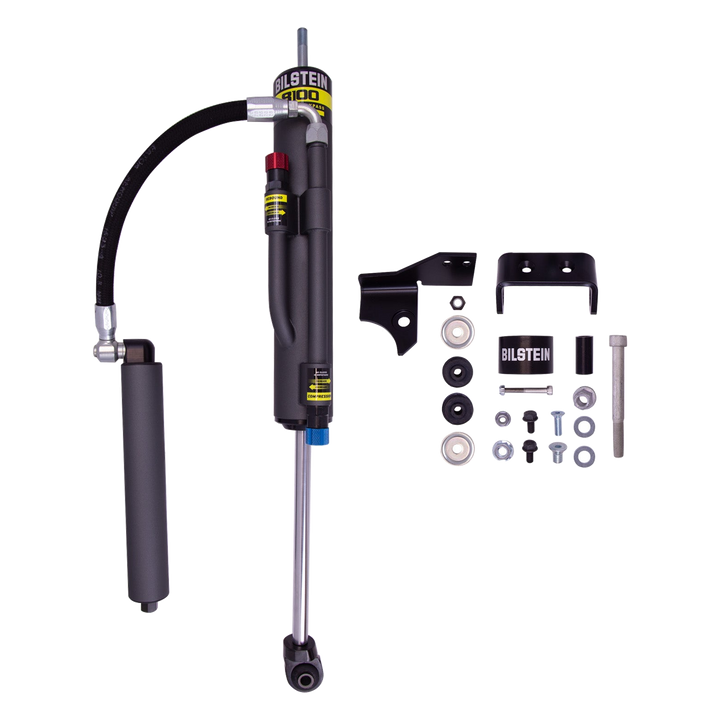

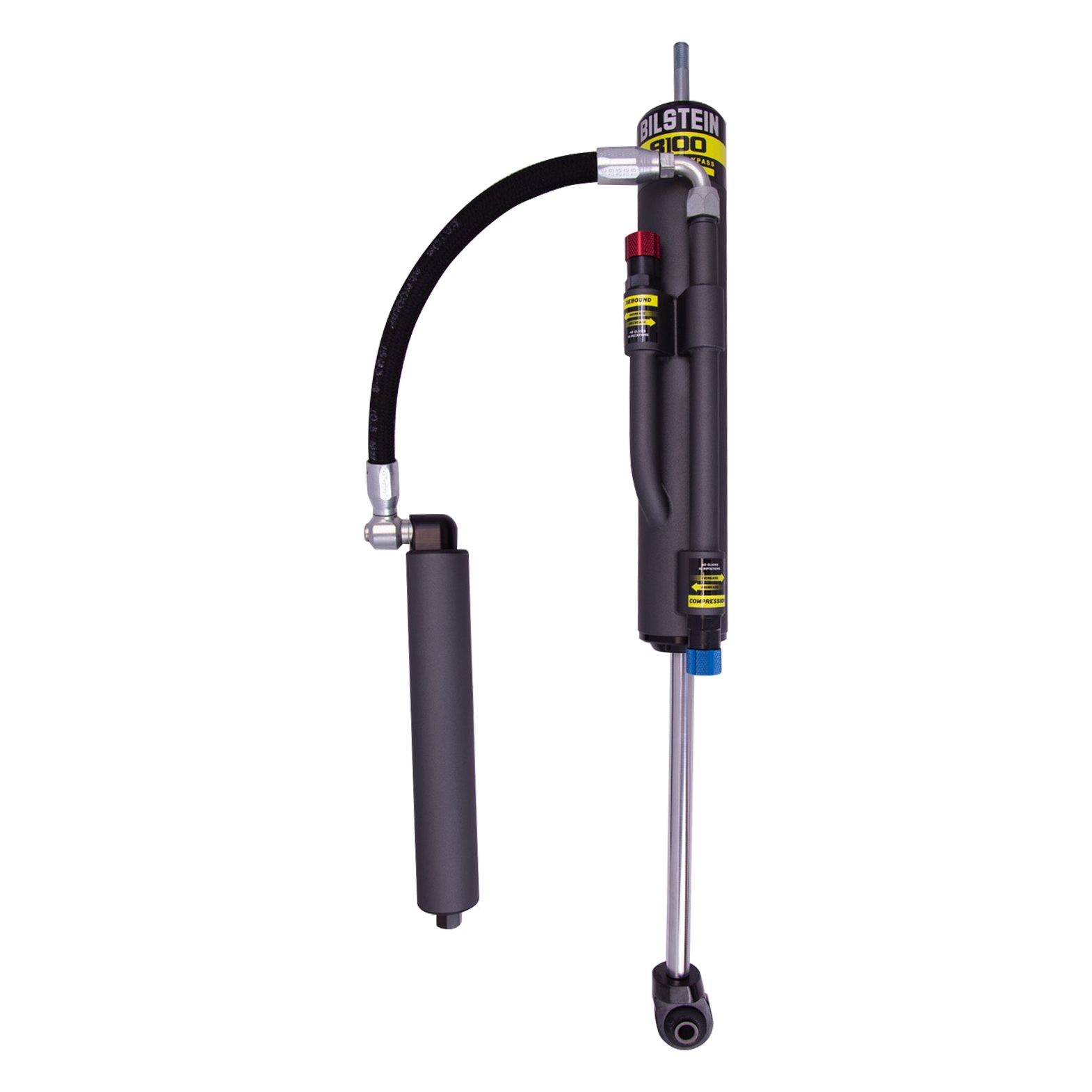

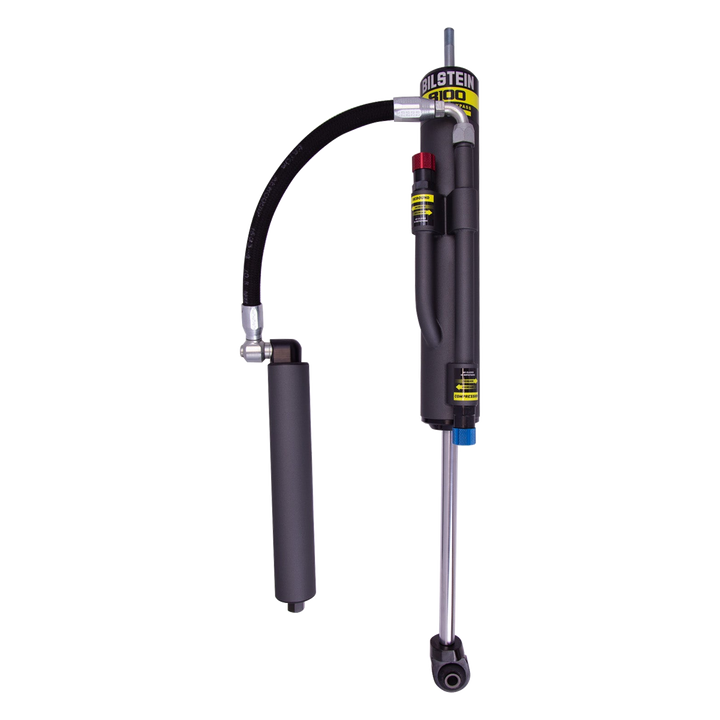

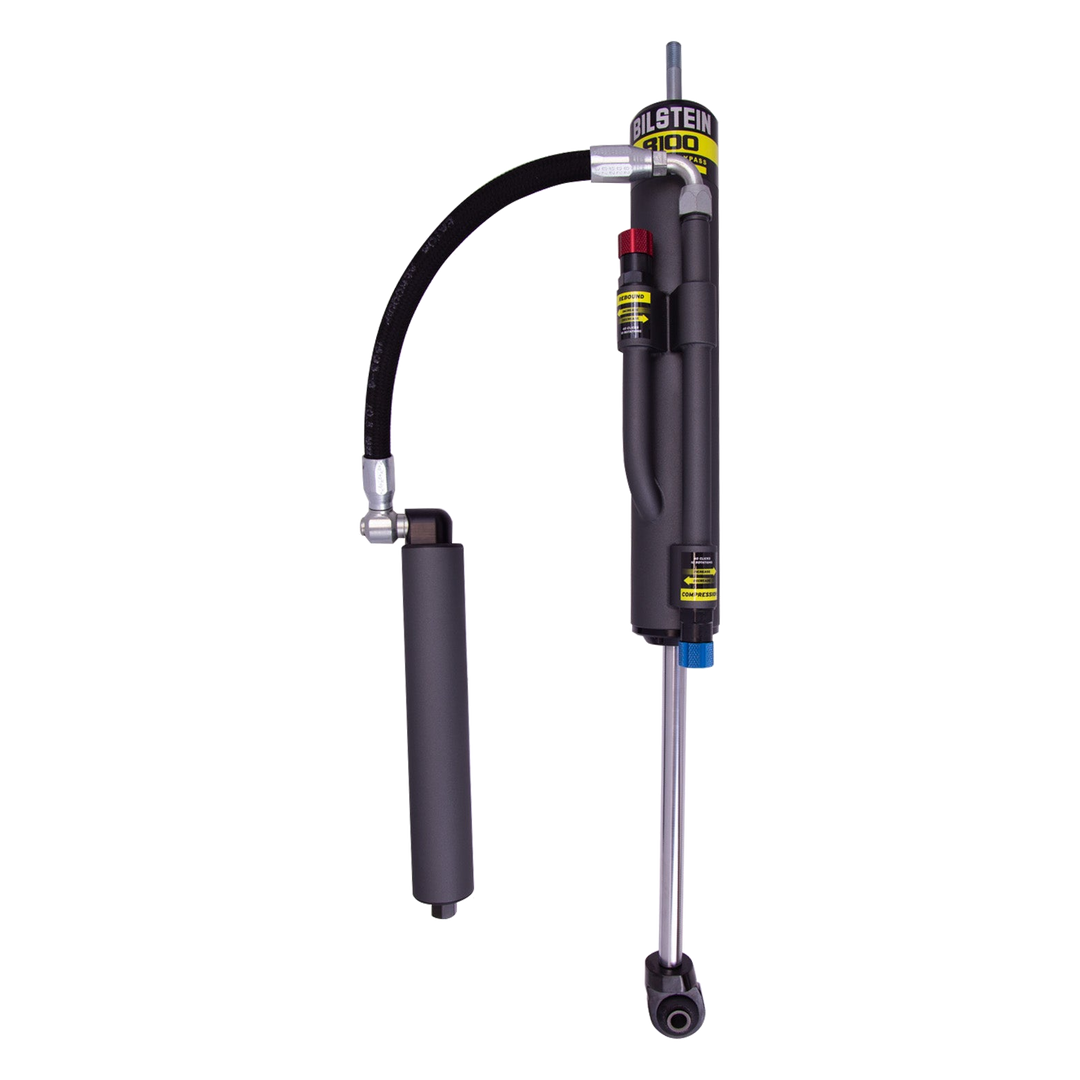

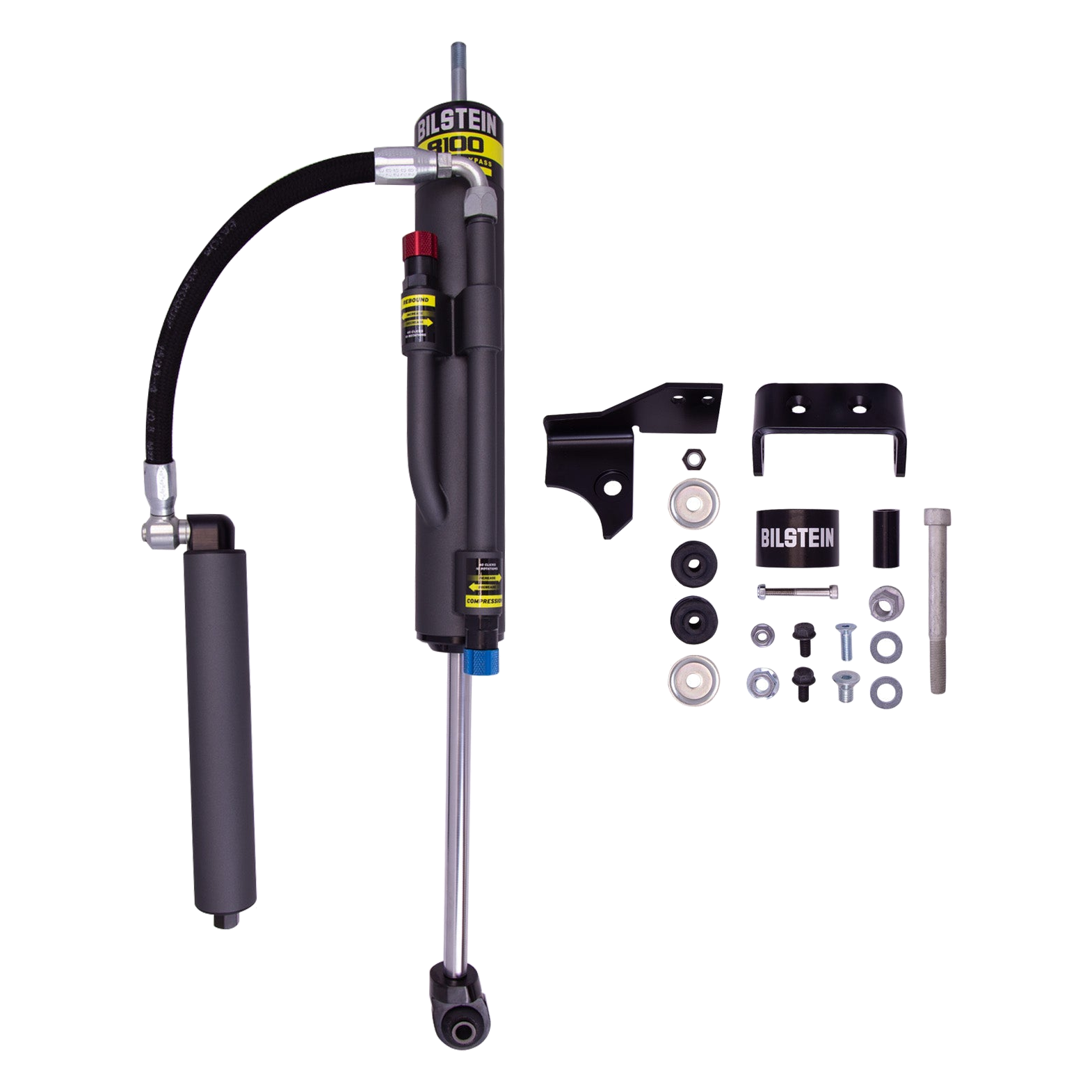

Bilstein B8 8100 Bypass Front Left Shock 2007-2017 Jeep Wrangler 3.5-5" Lift 25-291308 – Bilstein part number 25-291308.
This Bilstein B8 8100 Bypass front left shock is made for the 2007-2017 Jeep Wrangler. Intended lift height: 3.5-5 in. Specs: 9.83 in of travel, 17.20 in collapsed, 27.03 in extended.
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Details:
- Position: Front Left
- Lift height: 3.5-5" lift
- Travel: 9.83 in
- Extended length: 27.03 in
- Collapsed length: 17.20 in
- Upper mount: Stem
- Lower mount: Eye 12.1mm
- Body diameter: 2.65 in
- Piston diameter: 60mm
- Shaft diameter: 18mm
- Reservoir: Yes
- Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
- Internal design: Monotube
- Finish: EVO Grey
- Country of origin: USA
Fitment:
- Jeep Wrangler 2007-2017, Wrangler JK 2018
- Note: Fits Vehicles With 3.5-5" Front Lift
Always confirm fitment for your exact year, drivetrain and lift height before ordering.
Product information
- Bilstein part number: 25-291308
- Sold individually (price is for one shock)
- Shipping weight: 22.6 lb
