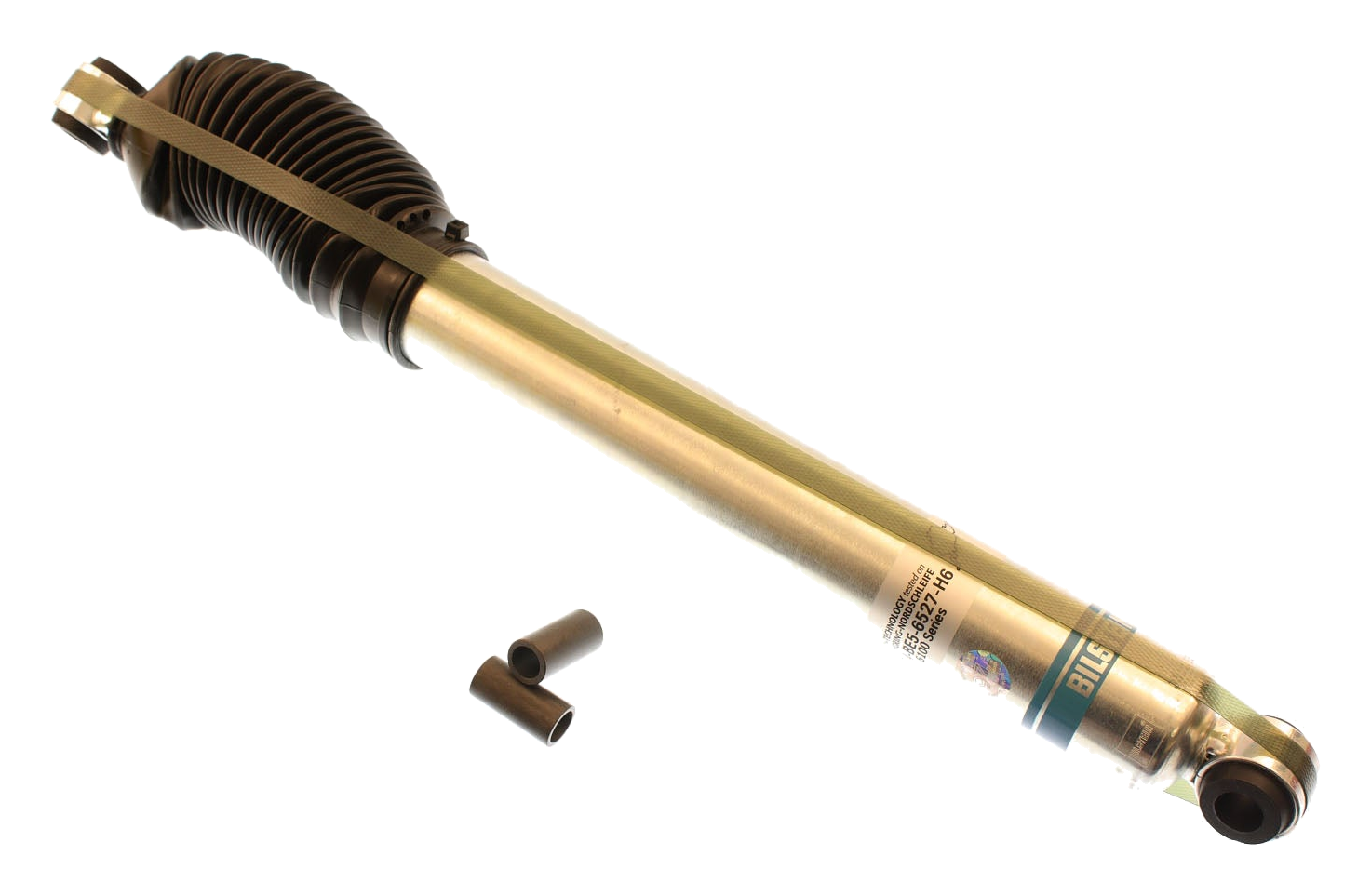

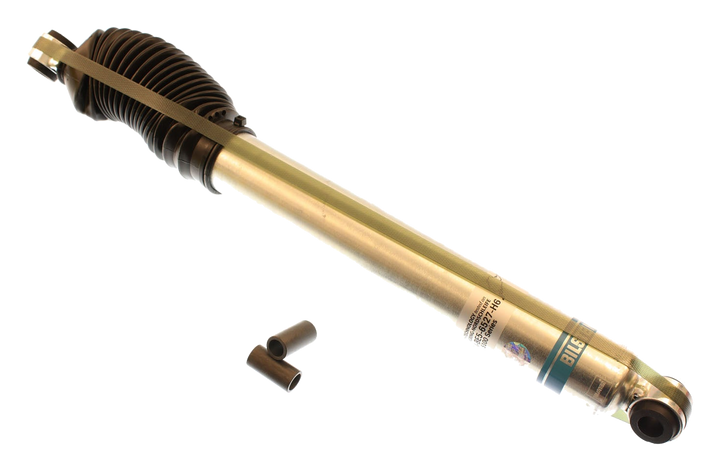

Bilstein B8 5100 Rear Shock 1980-1996 Ford F-150 24-065276 – Bilstein part number 24-065276.
This Bilstein B8 5100 rear shock is made for the 1980-1996 Ford F-150. Specs: 11.00 in of travel, 17.01 in collapsed, 28.01 in extended.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Details:
- Position: Rear
- Travel: 11.00 in
- Extended length: 28.01 in
- Collapsed length: 17.01 in
- Upper mount: Eye 16mm
- Lower mount: Eye 16mm
- Body diameter: 2.0 in
- Piston diameter: 46mm
- Shaft diameter: 14mm
- Reservoir: No
- Damping: Non-Adjustable
- Internal design: Monotube
- Boot: Black Bellows
- Finish: Zinc Plated
- Country of origin: Mexico
Fitment:
- Ford F-150 1980-1996, F-250 1980-1996, F-250 HD 1997, F-250 Super Duty 1999-2016, F-350 1980-1997, F-350 Super Duty 1999-2016, Ranger 1983-1997
- Note: Fits Vehicles With 4" Rear Lift
- Note: Fits Vehicles With 3-4" Rear Lift
- Note: Fits Vehicles With 3-4" Rear Lift;8-lug Wheels
- Note: Fits Vehicles With 0-1" Rear Lift
- Note: Fits Vehicles With 2-3" Rear Lift
- Note: Fits Vehicles With 4-6" Rear
Always confirm fitment for your exact year, drivetrain and lift height before ordering.
Product information
- Bilstein part number: 24-065276
- Sold individually (price is for one shock)
- Shipping weight: 4.63 lb
