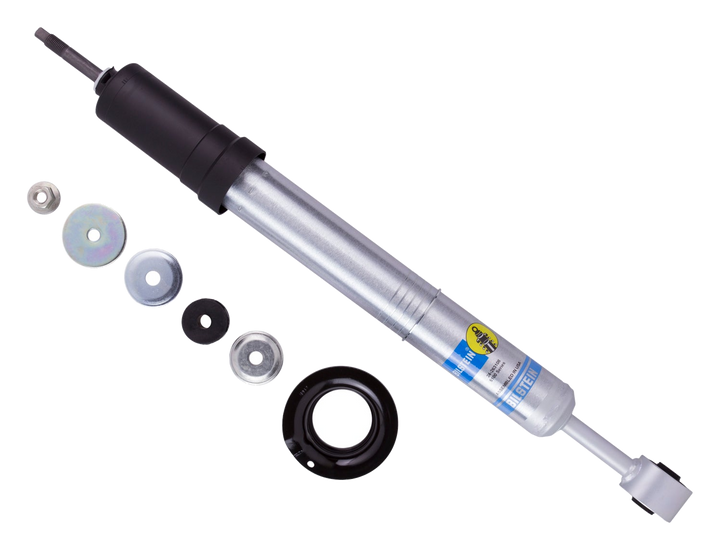

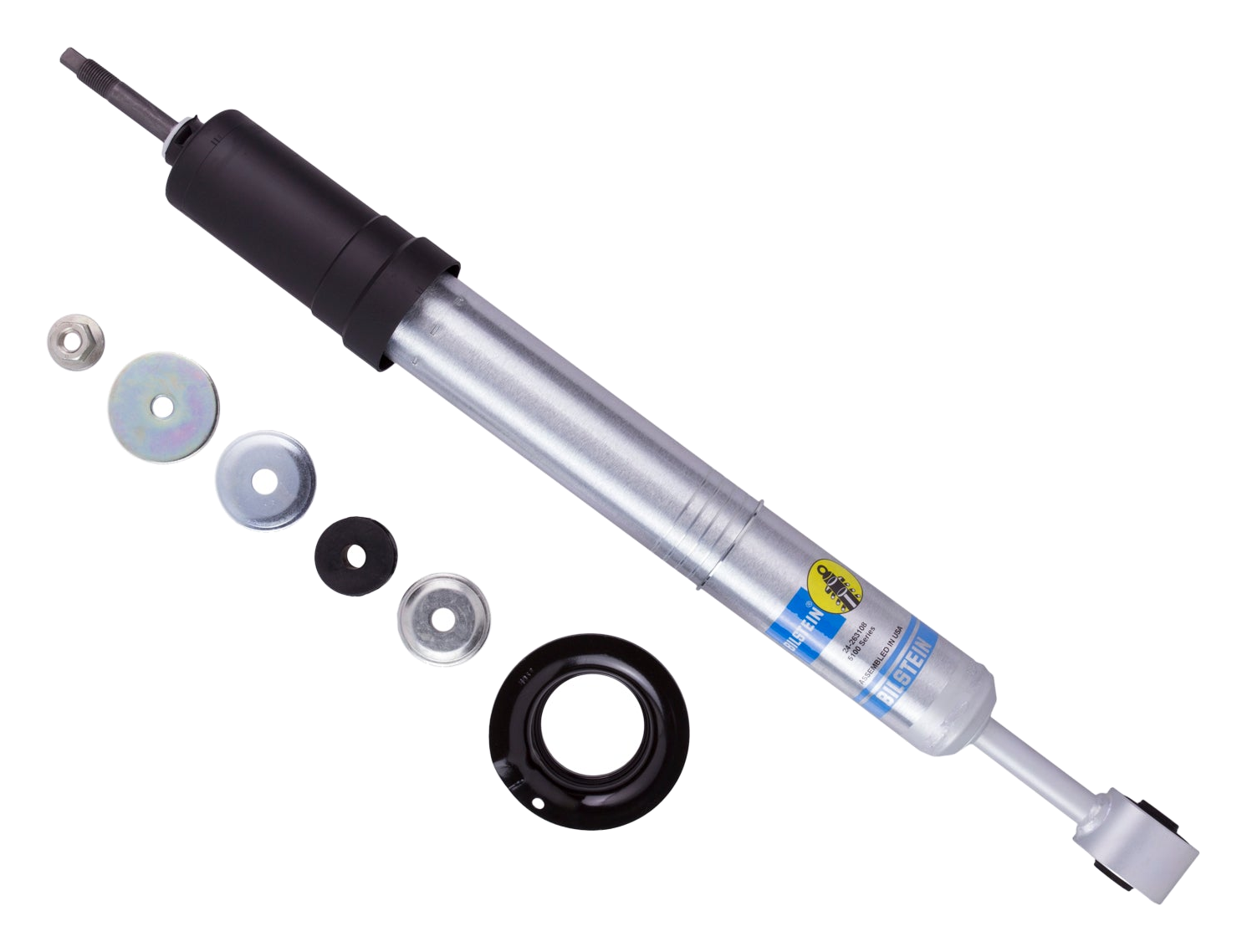

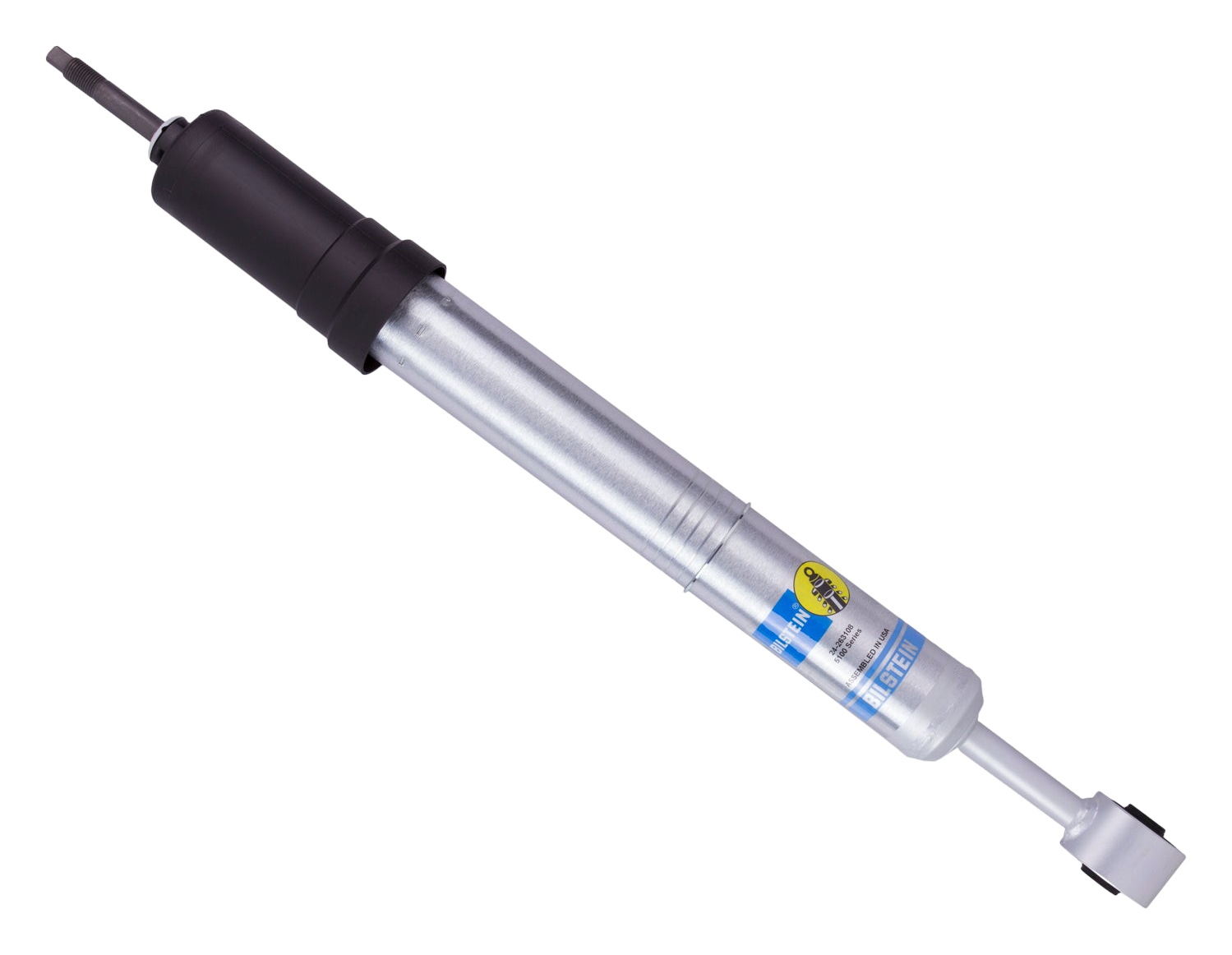

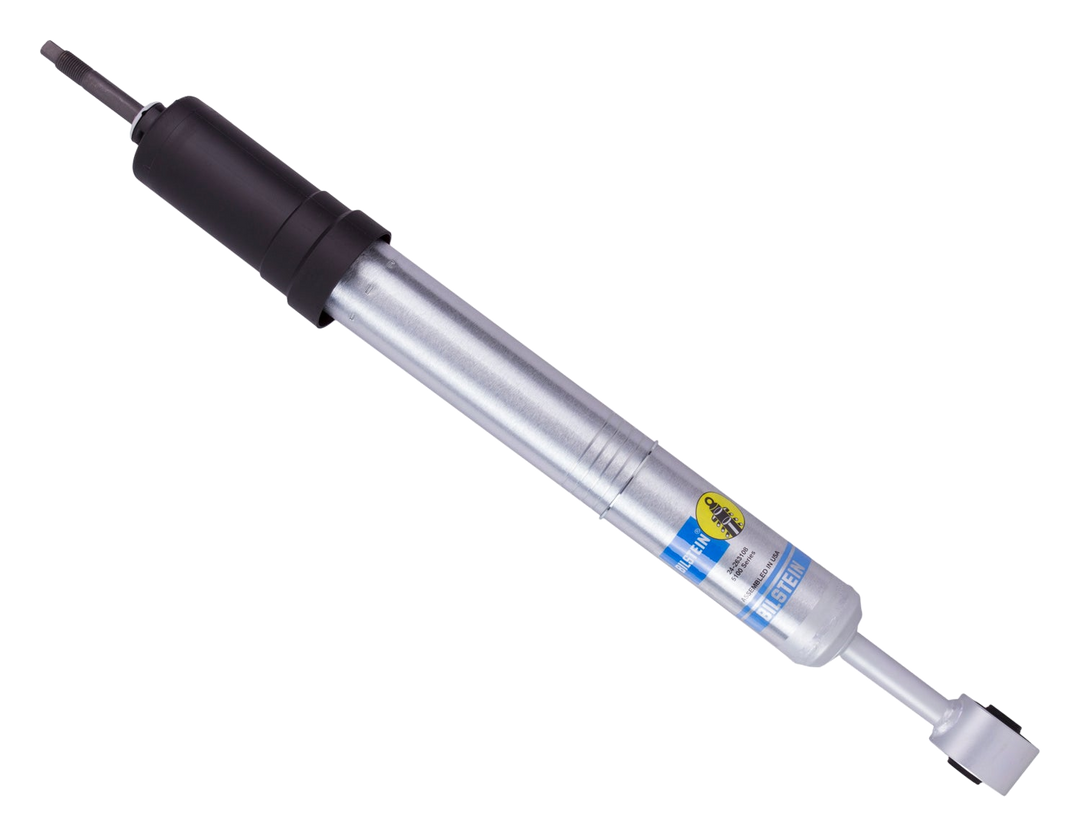

Bilstein B8 5100 Adjustable Height Front Shock 2016-2023 Toyota Tacoma 0-2" Lift 24-263108
24-263108
Bilstein B8 5100 Adjustable Height Front Shock 2016-2023 Toyota Tacoma 0-2" Lift 24-263108 – Bilstein part number 24-263108.
This Bilstein B8 5100 Ride Height Adjustable front shock is made for the 2016-2023 Toyota Tacoma. Intended lift height: 0-2 in. Specs: 4.64 in of travel, 17.58 in collapsed, 22.37 in extended.
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Details:
- Position: Front
- Lift height: 0-2" lift
- Travel: 4.64 in
- Extended length: 22.37 in
- Collapsed length: 17.58 in
- Upper mount: Stem
- Lower mount: Eye 14.2mm
- Body diameter: 2.0 in
- Piston diameter: 46mm
- Shaft diameter: 14mm
- Reservoir: No
- Damping: Non-Adjustable
- Internal design: Monotube
- Boot: Black Straight
- Finish: Zinc Plated
- Country of origin: Mexico
Fitment:
- Toyota Tacoma 2016-2023
- Note: Provides 0-2" Front Lift
Always confirm fitment for your exact year, drivetrain and lift height before ordering.
Product information
- Bilstein part number: 24-263108
- Sold individually (price is for one shock)
- Shipping weight: 6.42 lb
