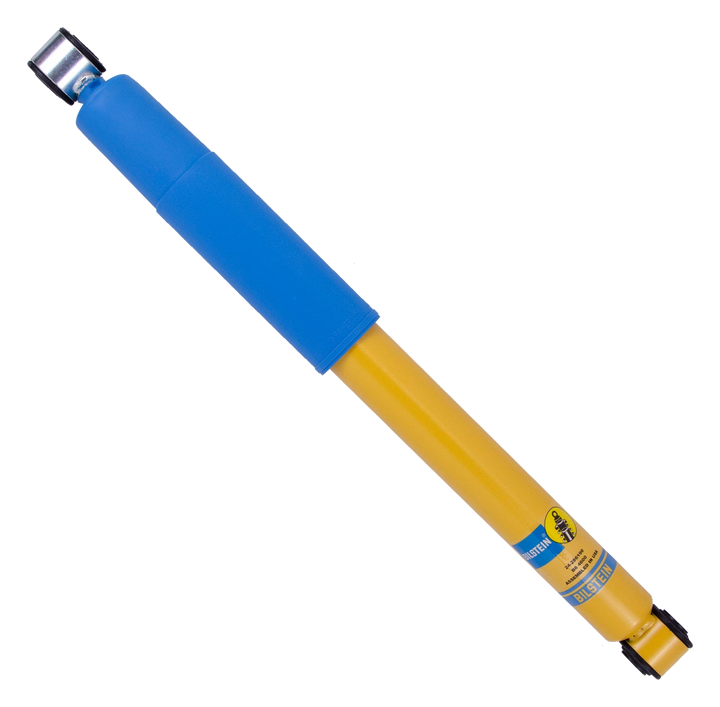

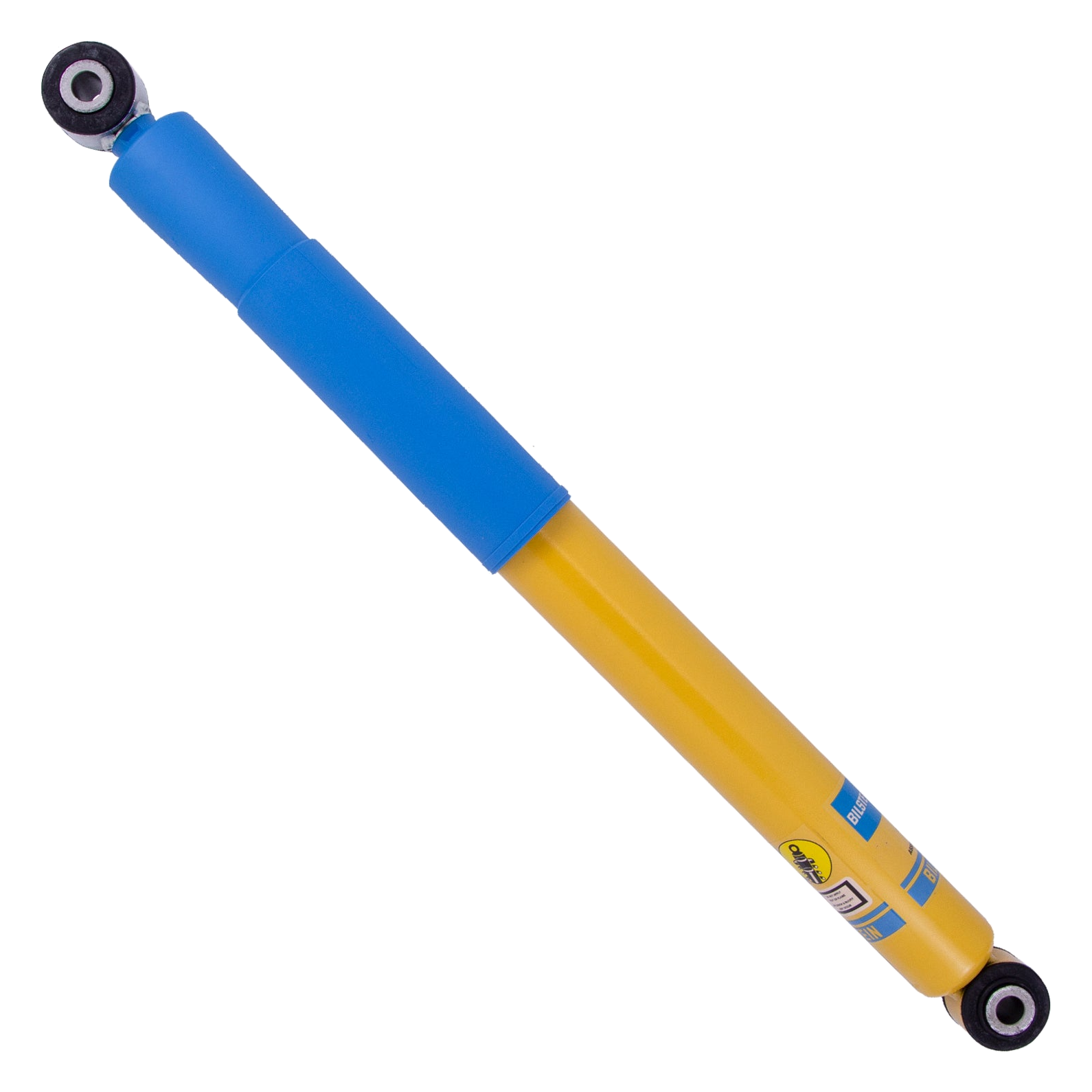

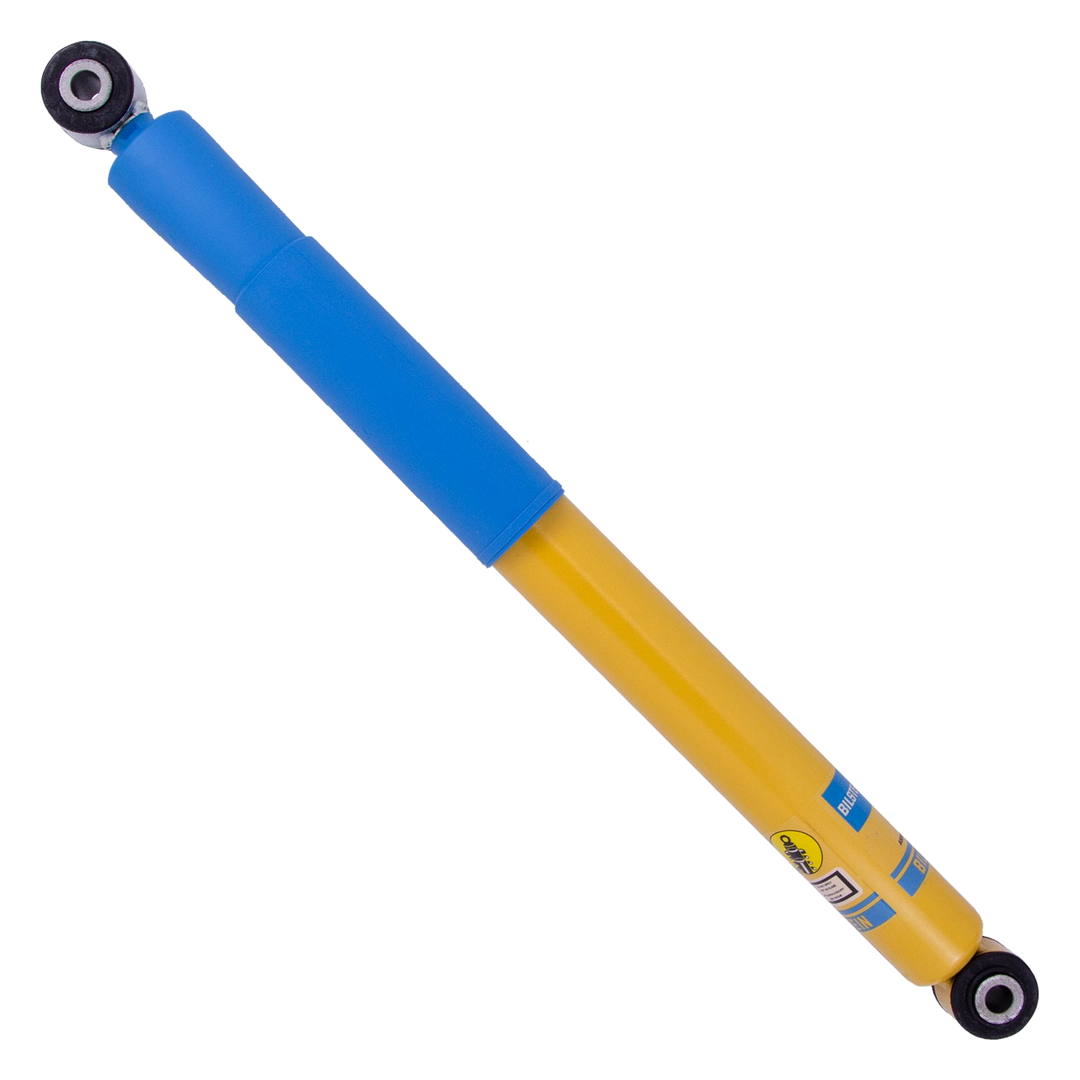

Bilstein B6 4600 Rear Shock 2016-2019 Nissan TITAN XD 24-286190 – Bilstein part number 24-286190.
This Bilstein B6 4600 rear shock is made for the 2016-2019 Nissan TITAN XD. Specs: 8.59 in of travel, 16.20 in collapsed, 24.79 in extended.
Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Details:
- Position: Rear
- Travel: 8.59 in
- Extended length: 24.79 in
- Collapsed length: 16.20 in
- Upper mount: Eye 14mm
- Lower mount: Eye 14mm
- Body diameter: 2.0 in
- Piston diameter: 46mm
- Shaft diameter: 14mm
- Reservoir: No
- Damping: Non-Adjustable
- Internal design: Monotube
- Boot: Blue Straight
- Finish: Yellow Paint
- Country of origin: Mexico
Fitment:
- Nissan TITAN XD 2016-2019
Always confirm fitment for your exact year, drivetrain and lift height before ordering.
Product information
- Bilstein part number: 24-286190
- Sold individually (price is for one shock)
- Shipping weight: 5.5 lb
