Advance Adapters Atlas 2-Speed Transfer Case Rebuild Kit — 32 Spline Front Output | AB1000

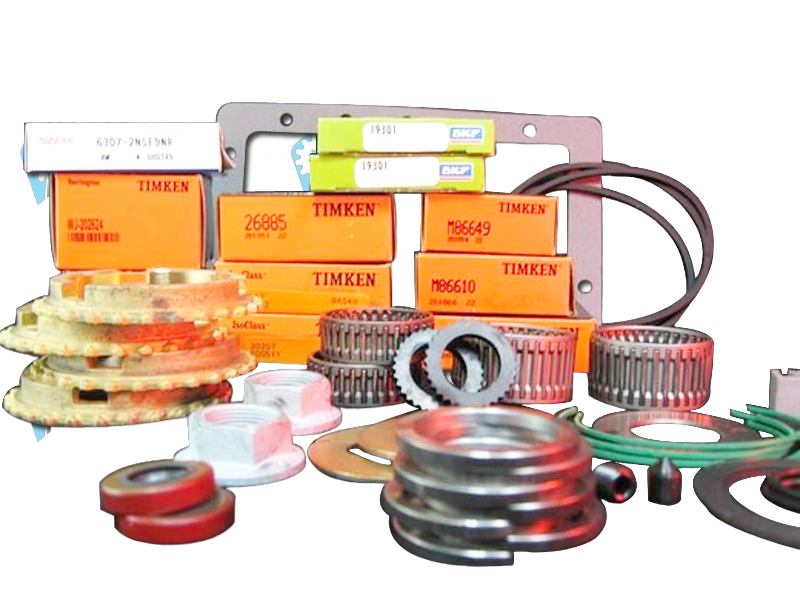

The Advance Adapters Atlas 2-Speed Rebuild Kit (part number AB1000) is a complete bearing and seal rebuild kit designed for the Atlas 2-Speed transfer case with a 32 spline front output. This kit includes all the components necessary for a complete rebuild — high-performance Timken bearings along with shift fork pads, shims, synchro components, and all required hardware.

Need a New Front Output Shaft? If a new front output shaft is also needed, part number AB1001 includes the identical rebuild kit components plus the new front output shaft.

Kit Contents Include:

• 7/8"-20 flange locknut (Atlas/SYE 32T)
• Atlas high-speed thrust washer
• Atlas shift rail seal
• O-ring for 4.56" and 5.00" bore
• Input shaft seal and dual spring Viton seal
• Shifter fork set screw
• 1-1/4" idler shaft O-ring and thrust washer
• Tapered roller bearing (26885 cone) and bearing race (26822 cup)
• Atlas brass synchro ring and synchro spring
• Shift fork pad
• Front output low speed gear washer
• Input shaft gear external snap ring
• Atlas pan gasket
• Seal washer
• Front input shims — 2 sizes (.006" / .0045")
• Caged needle support bearing
• Atlas bearing cap shims
• Caged needle bearing for low speed gear and high speed gear
• Front output bearing race (M86610 cup) and tapered bearing (M86649 cone)
• Single row front input shaft bearing
• Tapered bearing set (X30207 cup / Y30207 cone)
• 1-1/4" idler gear caged needle bearing
• 10-piece shim kit, .159"–.168" (most popular size)

Fitment: Atlas 2-Speed transfer case — 32 spline front output configuration.

Part Number: AB1000
