BDS 4" Lift Kit FOX 2.5 Coil-Over Tahoe Suburban Yukon 07-14 4WD

BDS 4-Inch Lift Kit with FOX 2.5 Coil-Overs - 2007-2014 Chevy/GMC SUVs 4WD

Transform your 2007-2014 Chevy Avalanche, Suburban, Tahoe, or GMC Yukon 1500 into the ultimate off-road performer with BDS Suspension's comprehensive 4-inch lift kit featuring premium FOX 2.5 Factory Race Series coil-over shocks. This complete system delivers enhanced ground clearance, improved suspension travel, and clearance for aggressive 33-inch tires while maintaining exceptional on-road comfort and handling.

FOX 2.5 Factory Race Series Coil-Overs - The Ultimate Upgrade

What separates this kit from basic lift kits is the inclusion of proprietary FOX 2.5 Factory Race Series coil-over shocks designed specifically for your application. These aren't off-the-shelf shocks—they're engineered in partnership with BDS to deliver bolt-on performance with:

• Increased Suspension Travel: Extended shock travel allows your suspension to articulate over rough terrain without bottoming out
• Smooth Bore Technology: 2.5-inch seamless steel body provides consistent damping and fade-free performance
• Application-Specific Valving: Custom-tuned to handle the weight and dynamics of lifted full-size SUVs
• Adjustable Eibach Racing Springs: 3.0 Eibach coil springs fine-tuned for optimal ride height and load capacity
• Premium Finish: Zinc-plated and double-clear coated body with black-anodized CNC-machined 6061-T6 billet aluminum components

The result? A lifted truck that soaks up the roughest off-road terrain while maintaining smooth, controlled on-road comfort.

High-Clearance Design - Maximum Ground Clearance

BDS's tried-and-true high-clearance design philosophy is built into every component of this kit. Unlike budget lift kits that simply add height, the BDS system strategically relocates components for:

• Maximum Ground Clearance: High-arched 1/4-inch thick steel crossmembers keep vulnerable components away from obstacles
• Off-Road Protection: Heavy-duty skid plates and multipiece differential relocation brackets protect critical drivetrain components
• Strength and Durability: Robust construction handles the abuse of serious off-road use

Corrected Suspension and Steering Geometry

Lifting your SUV changes suspension angles and steering geometry. BDS addresses this with precision-engineered components:

• CNC-Machined Ductile Iron Steering Knuckles: Correct steering geometry at the new ride height while maintaining ESC (Electronic Stability Control) system compliance
• Full-Length Replacement Strut Shocks: Properly valved for lifted applications
• Sway Bar Drops: Restore proper sway bar geometry
• Bump Stop Extensions: Prevent suspension over-travel
• Brake Line Brackets: Ensure brake lines aren't over-extended
• CV Spacers: Maintain proper CV axle angles

Complete Kit - Everything You Need

This comprehensive kit includes:

• FOX 2.5 DSC coil-over front shocks (pair)
• FOX 2.0 Performance Series rear shocks (pair)
• 3-inch rear coil spring spacers
• High-clearance steel crossmembers
• Differential relocation brackets
• Heavy-duty skid plates
• Ductile iron steering knuckles
• Sway bar drop brackets
• Bump stop extensions
• Brake line relocation brackets
• CV spacers
• All necessary hardware and installation instructions

Fits 33-Inch Tires

With 4 inches of front lift and 3 inches of rear lift, this kit provides clearance for aggressive 33-inch tires. BDS recommends 20-inch wheels with 5" to 5-3/4" backspacing to minimize trimming requirements.

Important Application Notes

• 4WD Only: This kit is designed for 4-wheel drive models
• No AutoRide: Will NOT work with factory AutoRide-equipped vehicles
• Installation Requirements: Strut compressor required; minor frame bracket modification and welding required
• AWD Models: Add BDS part number 121651 auxiliary differential bracket for AWD applications
• Driveline: May require front driveline modification
• StabiliTrak: Minor premature engagement may occur during certain driving maneuvers

Professional Installation Recommended

While experienced DIYers with proper tools can install this kit, professional installation is strongly recommended to ensure proper alignment, suspension setup, and safe operation.

BDS Quality and Warranty

BDS Suspension has been a leader in the lift kit industry for decades, known for precision engineering, comprehensive kits, and industry-leading warranties. This kit is engineered, tested, and manufactured to deliver years of reliable performance on and off the road.

Ready to Elevate Your Ride?

Take your full-size Chevy or GMC SUV to new heights with the performance, capability, and premium ride quality that only a BDS lift kit with FOX coil-overs can deliver.

KEY FEATURES / BULLET POINTS:

✅ 4" Front / 3" Rear Lift – Aggressive stance, fits 33" tires
✅ FOX 2.5 DSC Coil-Overs – Factory Race Series front shocks
✅ FOX 2.0 Performance Rear Shocks – Smooth on/off-road performance
✅ High-Clearance Design – Maximum ground clearance
✅ Ductile Iron Knuckles – Corrects steering geometry, maintains ESC
✅ Heavy-Duty Skid Plates – Off-road protection
✅ Complete Kit – Everything included for installation
✅ 2007-2014 Fitment – Tahoe, Suburban, Yukon, Avalanche 1500 4WD
✅ Adjustable Eibach Springs – Application-specific tuning
✅ Made in USA – BDS quality and warranty

TECHNICAL SPECIFICATIONS:

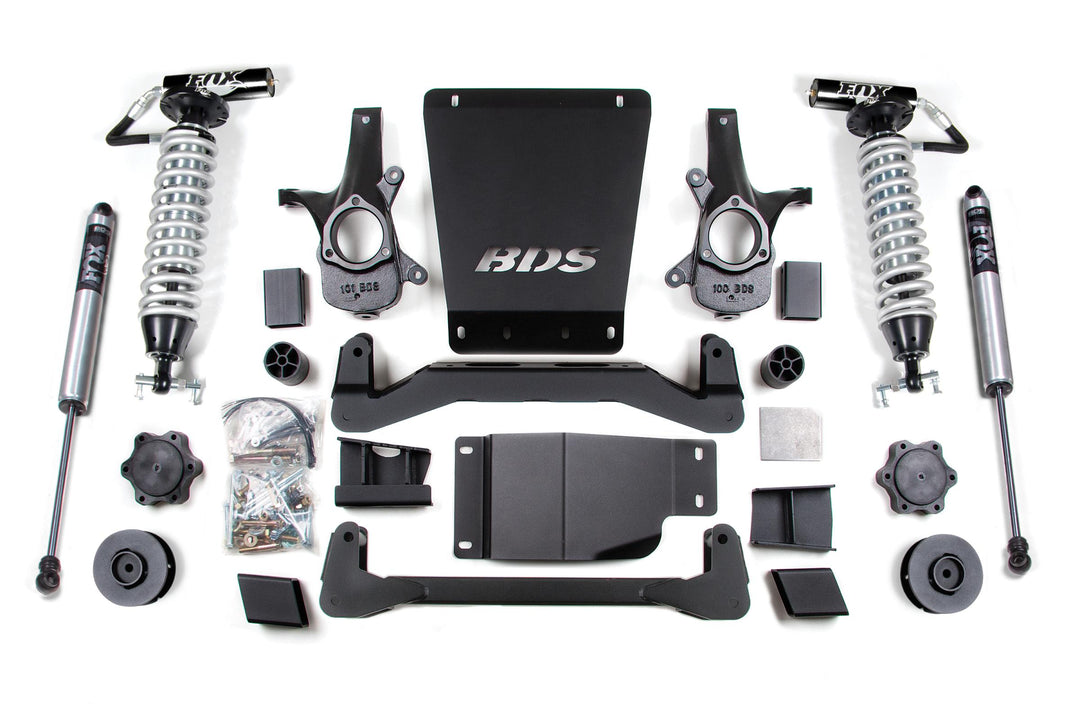

WHAT'S INCLUDED:

Complete Kit Components:

• (2) FOX 2.5 Factory Race Series DSC coil-over shocks (front)
• (2) FOX 2.0 Performance Series shocks (rear)
• (2) 3-inch rear coil spring spacers
• High-clearance steel crossmembers (1/4" thick)
• Multipiece differential relocation brackets
• Heavy-duty skid plates
• CNC-machined ductile iron steering knuckles (pair)
• Sway bar drop brackets
• Bump stop extensions
• Brake line relocation brackets
• CV spacers
• All mounting hardware
• Detailed installation instructions
