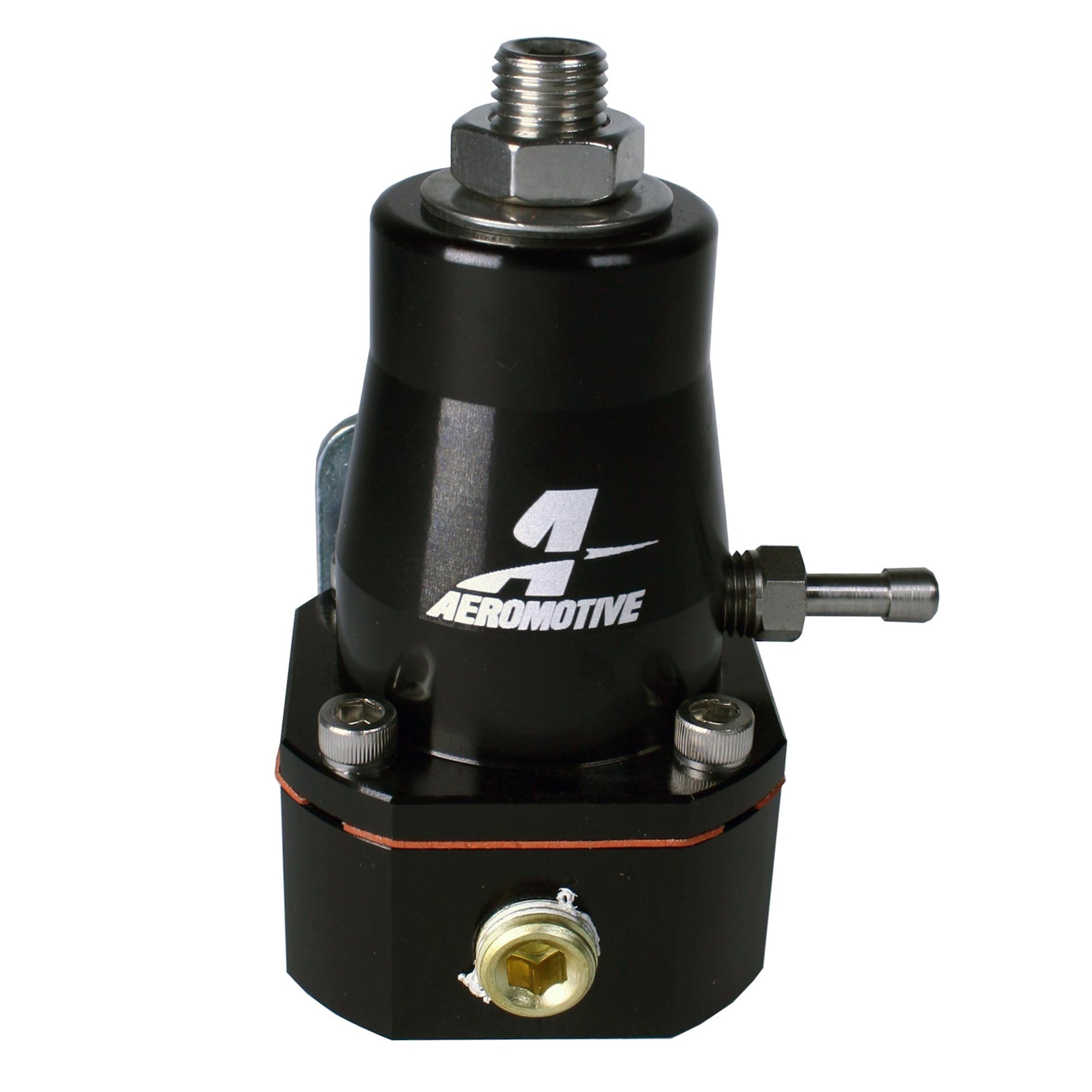

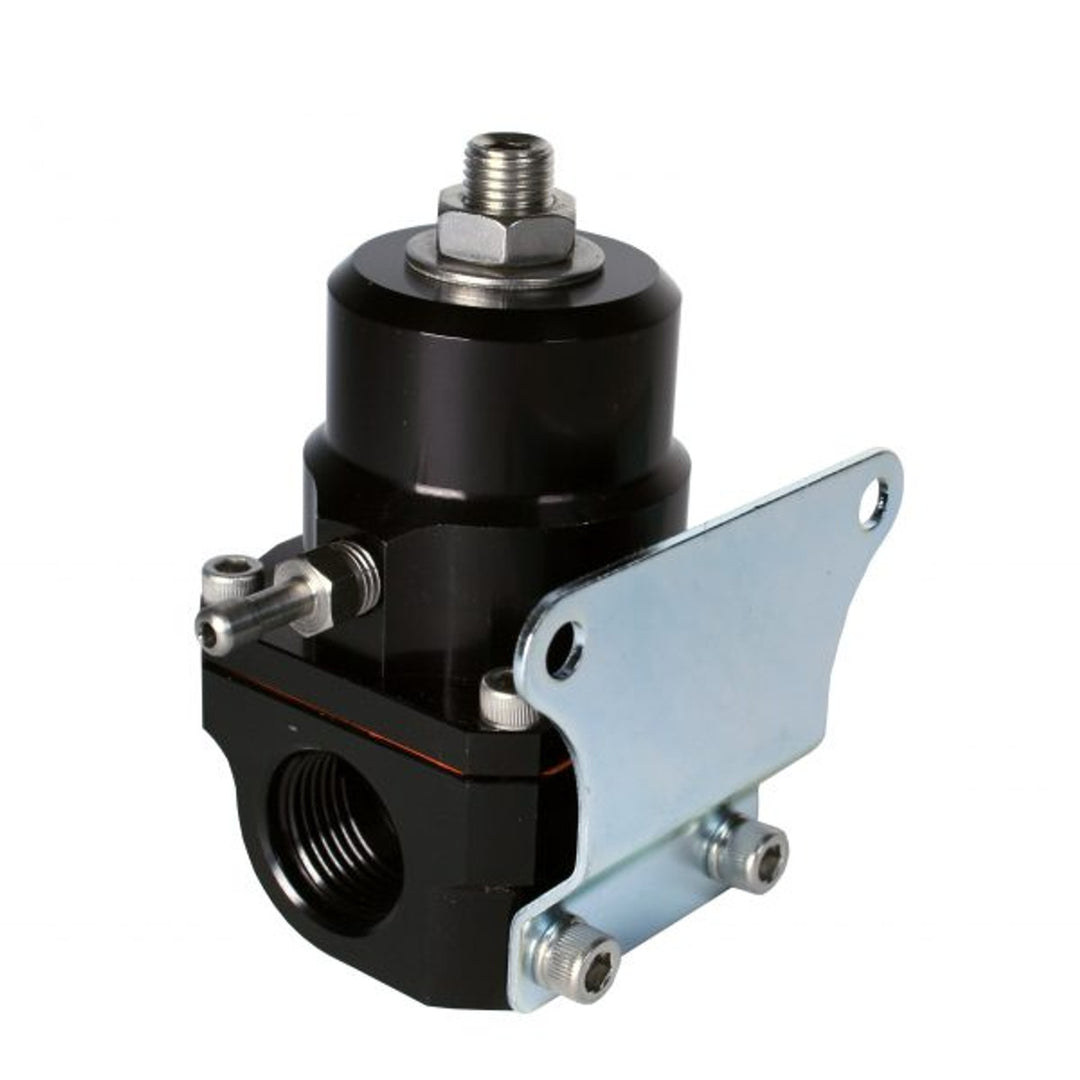

Aeromotive’s Compact EFI Regulator (P/N 13136) packs big performance in a compact, lightweight billet aluminum housing finished in bright-dip black anodize—perfect for high-output systems up to 1,000 HP, especially where space is tight.
Key Features:
-
Pressure Range: 40–75 psi adjustable base pressure for precise tuning.
-
Boost Compensation: Fuel pressure rises in a 1:1 ratio with boost—ideal for turbo and supercharged engines.
-
Ports: Two ORB‑06 inlet/outlet ports plus a third ORB‑06 return port; includes 1/8″ NPT gauge port.
-
Vacuum Boost Port: Allows intake manifold reference for accurate boost-based fuel adjustment.
-
Construction: Precision CNC-machined from 6061-T6 billet aluminum, finished with black bright-dip anodizing for corrosion resistance and aesthetics.
-
Compact Size: Smaller and lighter than traditional high-flow regulators—ideal for tight engine bays.
-
Installation: Includes mounting bracket; equipped with removable AN‑6 male fittings, reducing need for extra adapters or O‑rings.
Specifications
| Spec | Detail |
|---|---|
| Base Pressure | Adjustable 40–75 psi |
| Boost Referencing | 1:1 ratio with boost |
| Inlet/Outlet Ports | 2 × ORB‑06 (female) |
| Return Port | 1 × ORB‑06 (female) |
| Gauge Port | 1 × 1/8″ NPT |
| Vacuum Port | Yes |
| Fittings | AN‑6 male (removable) |
| Construction | 6061-T6 aluminum, CNC-machined |
| Finish | Bright-dip black anodize |
| Max Support | Up to 1,000 HP systems |
| Mounting | Bracket included |
| Weight | ~0.6 lb |
| Legal Usage | Not EPA-legit for street/emissions vehicles unless OEM-matched |
