Radflo

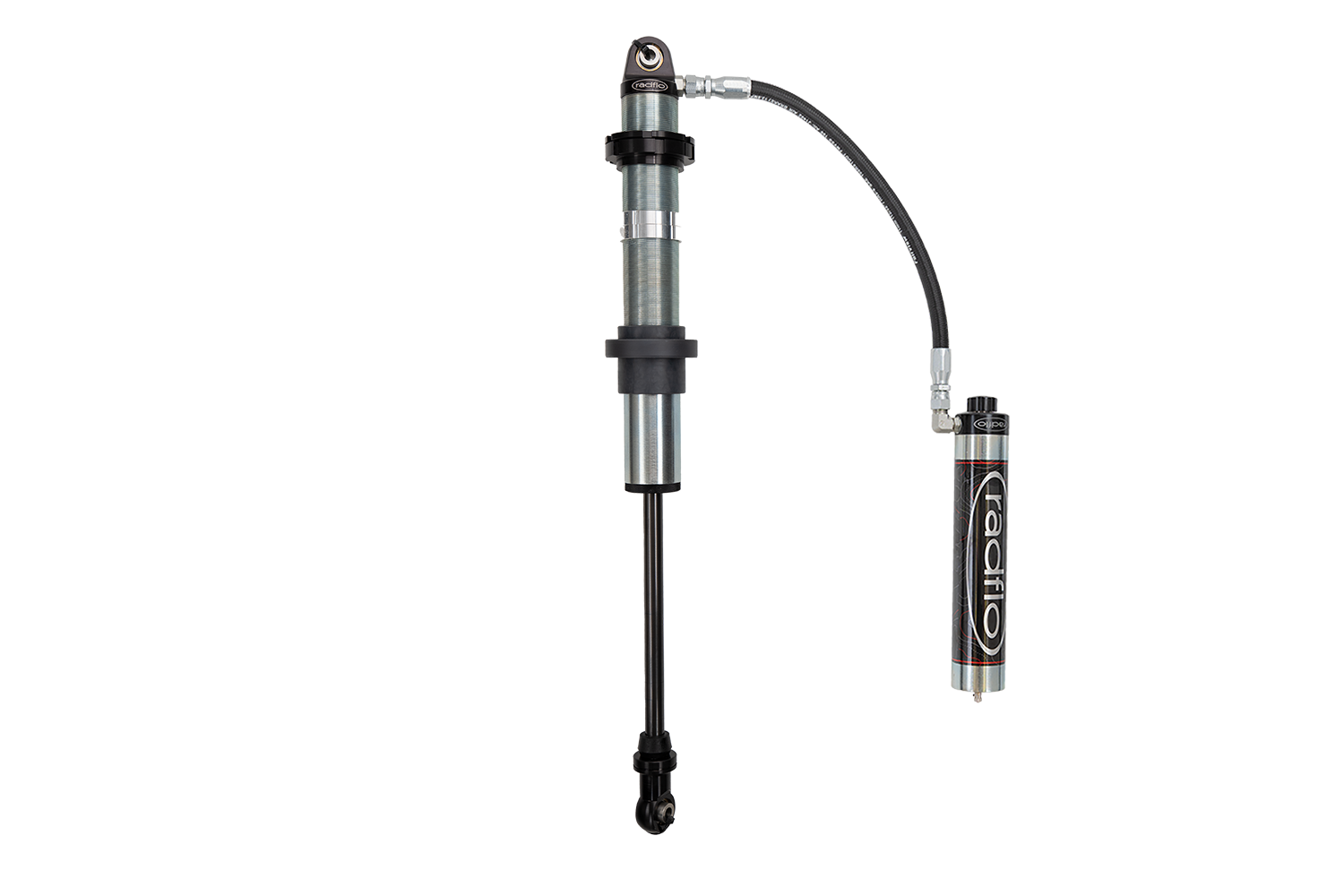

Radflo 2.5 Coilover Shock with Reservoir

6CR-001-00

$700.00
/
Shipping calculated at checkout.
Travel
Version

Radflo 2.5 Coilover Shock with Reservoir is a universal coilover shock, not vehicle specific. Pick your travel length and version above. Each option is its own Radflo part number, listed in the chart below.

For those that require even more tuning capability, Radflo offers a full line of coil-over shocks to suit the most advanced suspension setups. Start by choosing the ideal spring specifications from a wide selection of single or multiple-rate coil combinations. Radflo will then independently set rebound and compression valving to complement your spring selection and vehicle specifications. Once installed, you can adjust ride height, preload and travel to suit your application and performance requirements.

Integrated spring and shock performs better and requires less space. Make fast, easy and extremely precise coil spring adjustments without removing from vehicle.

This shock is picked by dimensions, not by vehicle. Confirm collapsed length, extended length, mount types, mounting widths, bolt sizes, reservoir placement, hose clearance and chassis clearance before ordering. Also confirm spring inside diameter, free length, rate, hardware and available preload range.

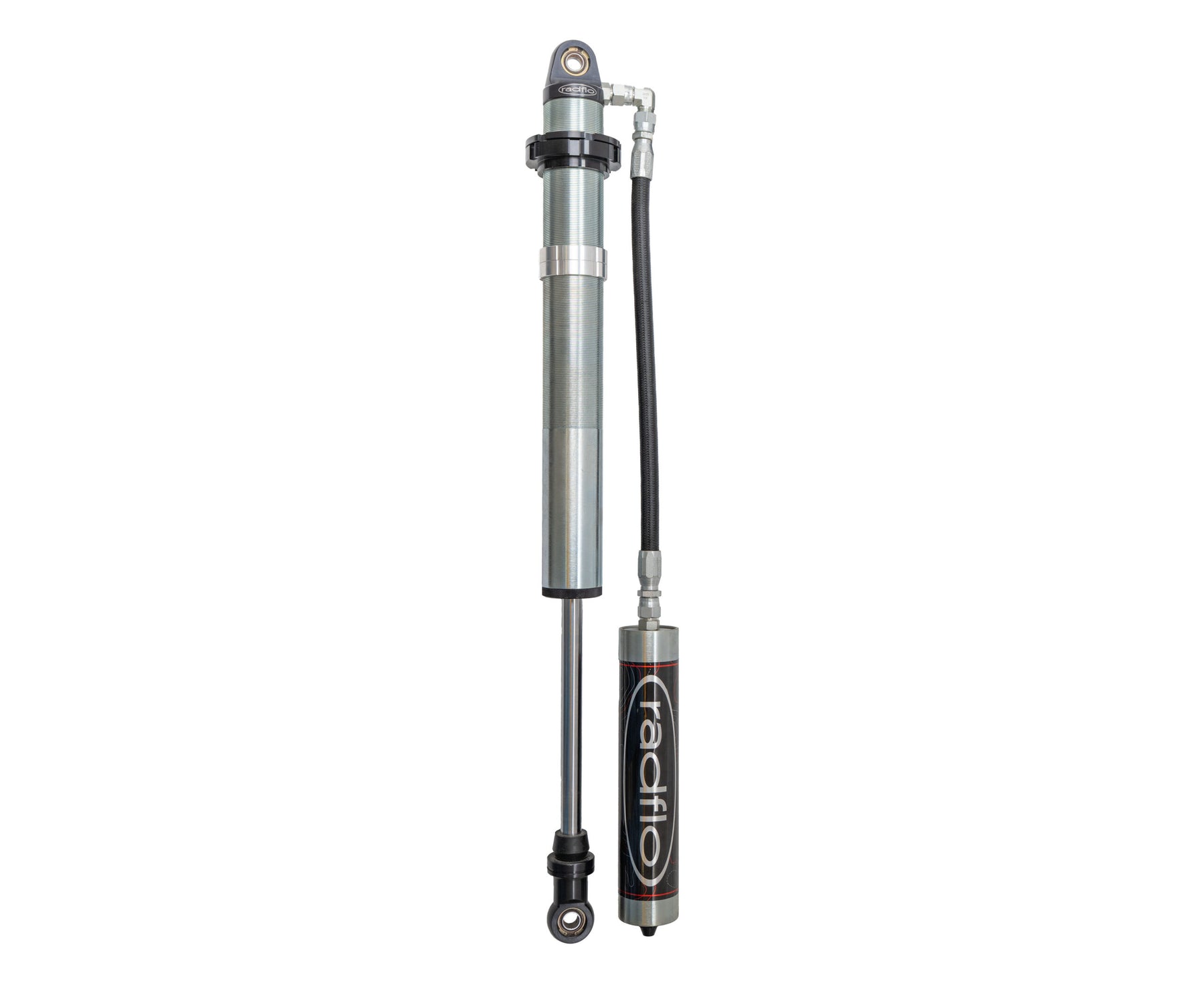

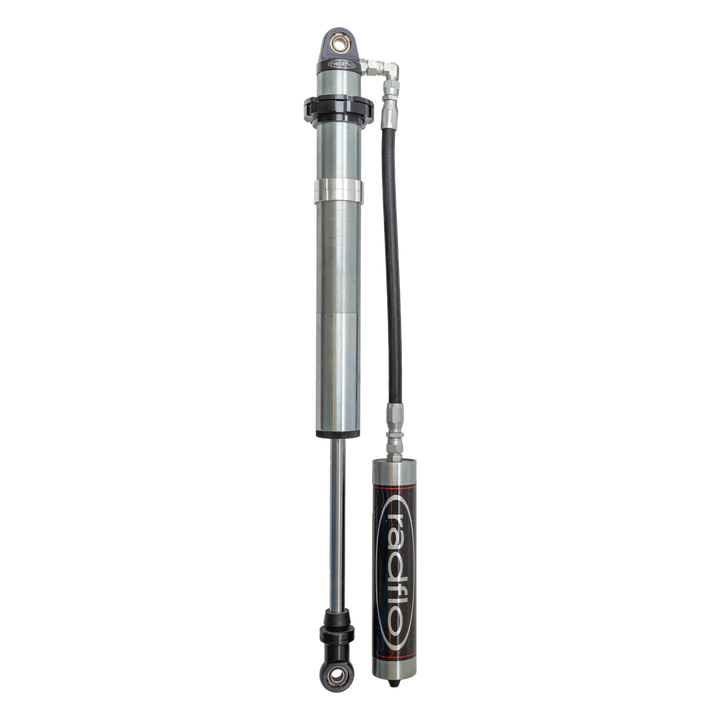

The 90 degree versions use a 90 degree reservoir hose fitting. Compression adjuster versions let you refine damping for terrain, load and driving style without opening the shock. Dual compression adjuster versions add separate high-speed and low-speed compression adjustment.

Details:

  • Diameter: 2.5 Inch
  • Shaft diameter: 7/8 Inch
  • Top: Eye
  • Bottom: Eye
  • Bearing size: 0.625 Inch
  • Mount: Universal Spherical Bearing And Hardware
  • Body style: SSID Alloy Steel Tube
  • Finish: Zinc Plated w/Clear Coat
  • Body caps/eyelets: CNC Machined 6061 Aluminum Black Anodized
  • Rod: Nitro Steel
  • Rod finish: Mirror Polished
  • Rod guide material: Machined Bronze
  • Rod guide finish: PTFE Coating
  • Oil: Radflo High-Temp Foam Resistant Suspension Fluid
  • Pressurization: Nitrogen Gas
  • PSI: 200 psi
  • Reservoir type: Remote Reservoir
  • Seal: Rebuildable Combination Quad Ring And Lip Seal
  • Valving: Velocity-Sensitive Deflective Disc, Self-Adjusting
  • Coil-over springs: Dual Spring Hardware Included. Springs Sold Separately.
  • Service: Consumer or factory serviceable
  • Tuning: Consumer Or Factory Tunable
  • Location: Front/Rear
  • Warranty: 1 Year Limited Warranty
  • Country of origin: USA

Part numbers and sizes:

Part number Version Travel Extended Collapsed
6CR-001-00 Standard 8 in 25.55 in 17.56 in
6CR-001-90 90 Degree Reservoir Fitting 8 in 25.55 in 17.56 in
6CR-001-0A Compression Adjuster 8 in 25.55 in 17.56 in

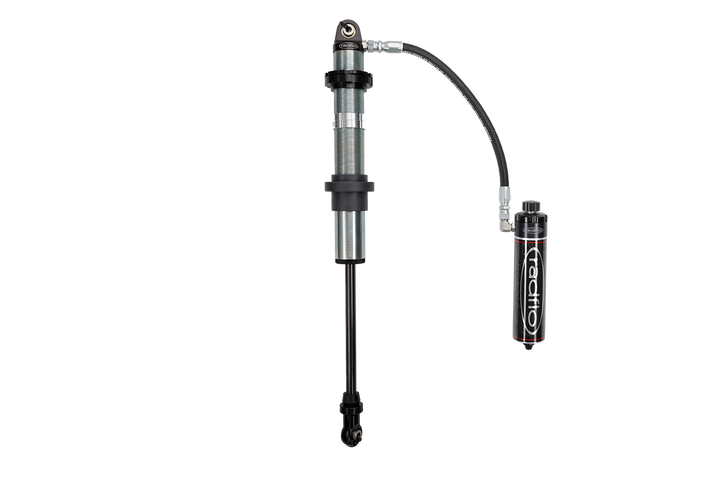

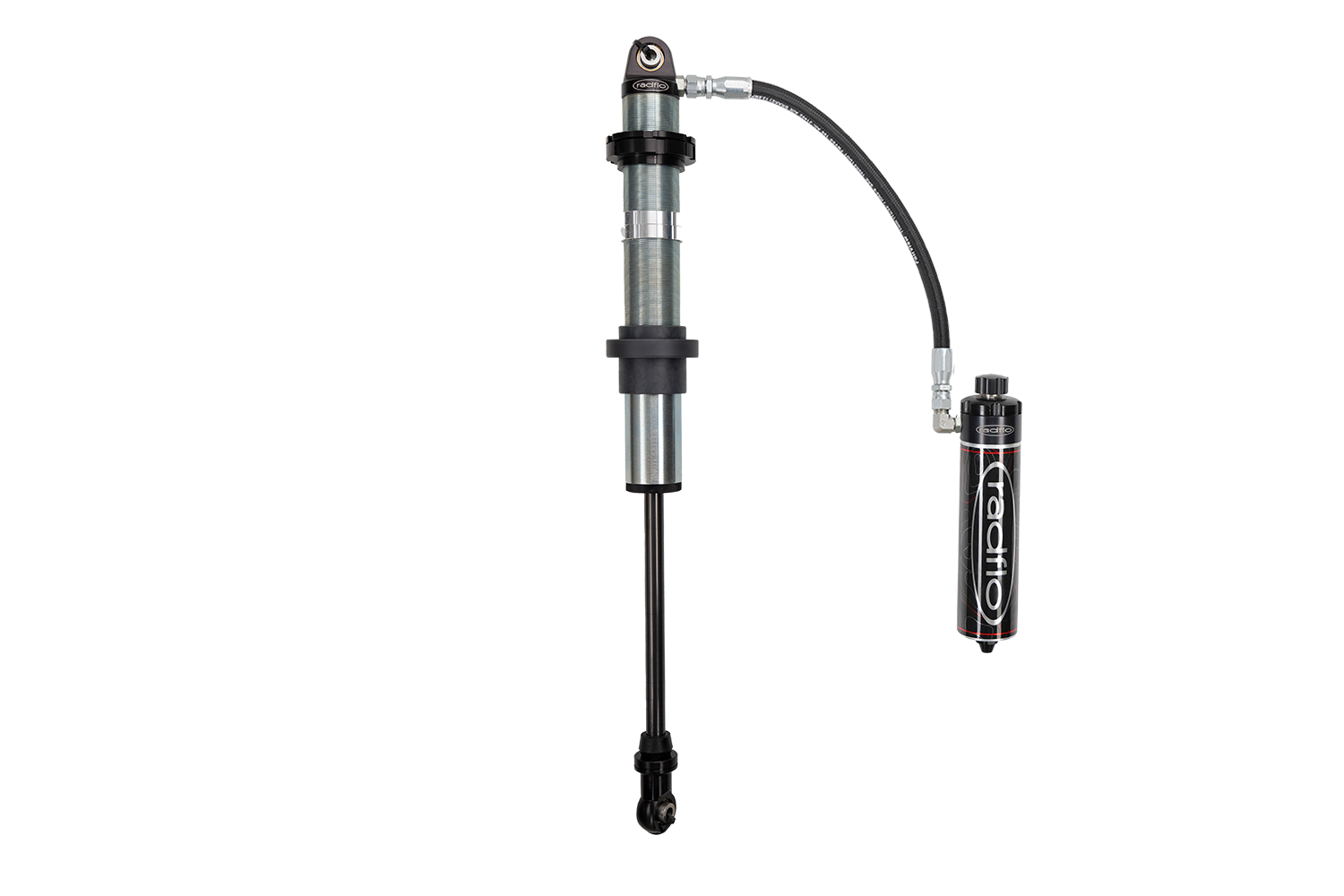

6CR-001-0Z Dual Compression Adjuster 8 in 25.55 in 17.56 in
6CR-002-00 Standard 10 in 29.53 in 19.53 in
6CR-002-90 90 Degree Reservoir Fitting 10 in 29.53 in 19.53 in
6CR-002-0A Compression Adjuster 10 in 29.53 in 19.53 in
6CR-002-0Z Dual Compression Adjuster 10 in 29.53 in 19.53 in
6CR-003-00 Standard 12 in 33.5 in 21.5 in
6CR-003-90 90 Degree Reservoir Fitting 12 in 33.5 in 21.5 in
6CR-003-0A Compression Adjuster 12 in 33.5 in 21.5 in
6CR-003-0Z Dual Compression Adjuster 12 in 33.5 in 21.5 in
6CR-004-00 Standard 14 in 38.5 in 24.49 in
6CR-004-90 90 Degree Reservoir Fitting 14 in 38.5 in 24.49 in
6CR-004-0A Compression Adjuster 14 in 38.5 in 24.49 in
6CR-004-0Z Dual Compression Adjuster 14 in 38.5 in 24.49 in

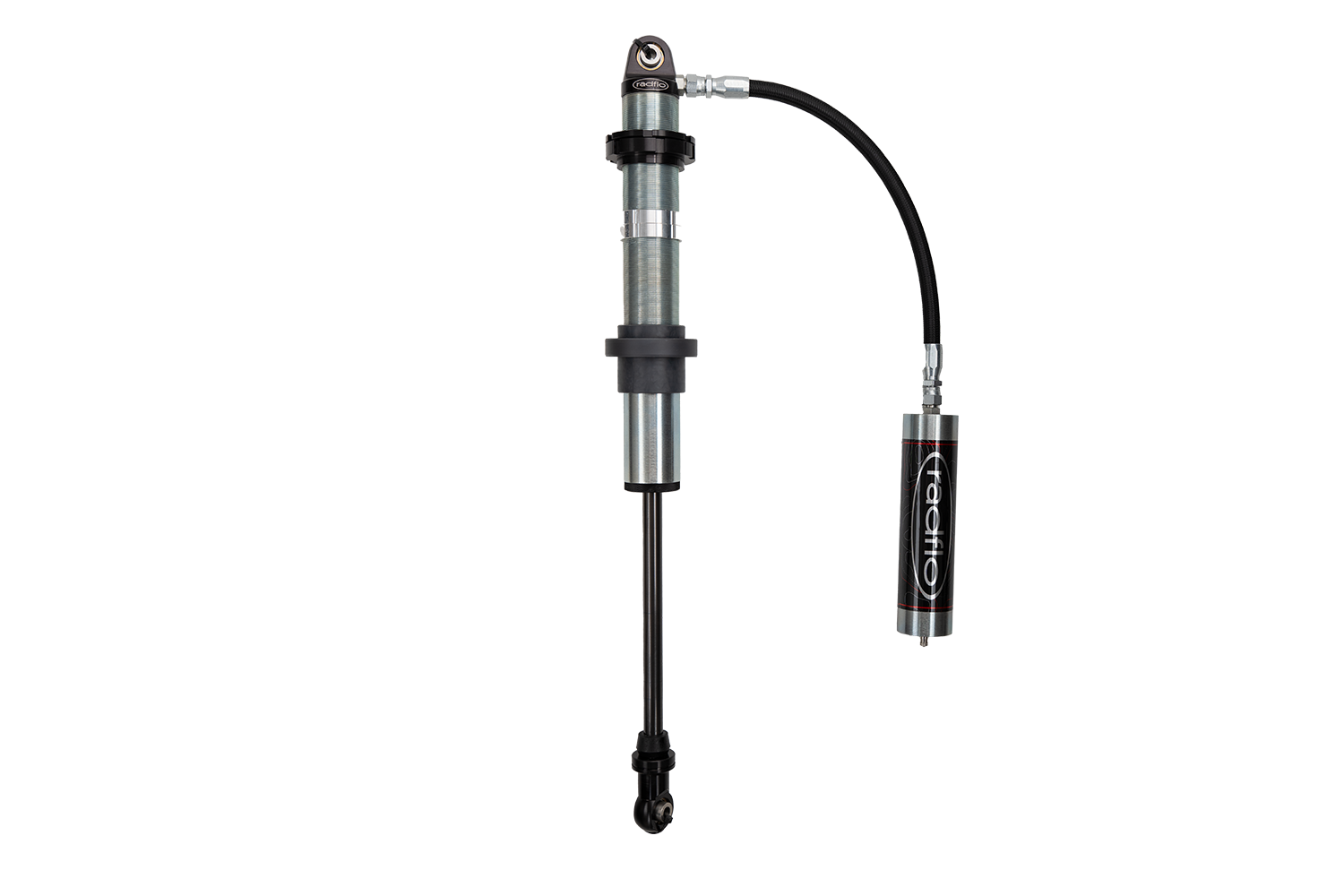

6CR-005-00 Standard 16 in 42.52 in 26.54 in
6CR-005-90 90 Degree Reservoir Fitting 16 in 42.52 in 26.54 in

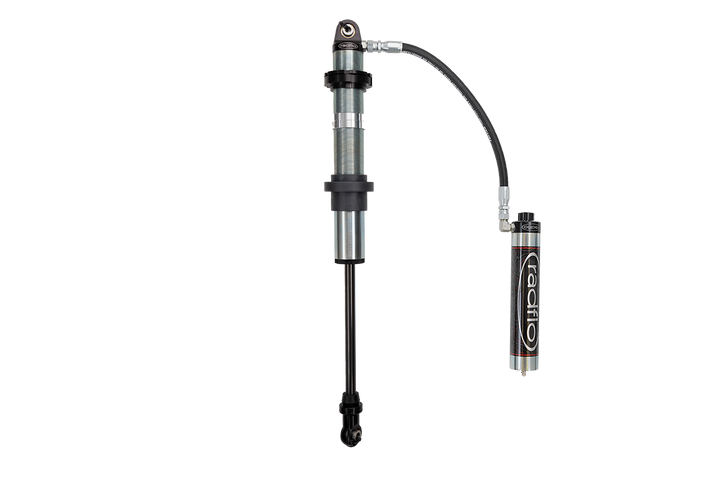

6CR-005-0A Compression Adjuster 16 in 42.52 in 26.54 in

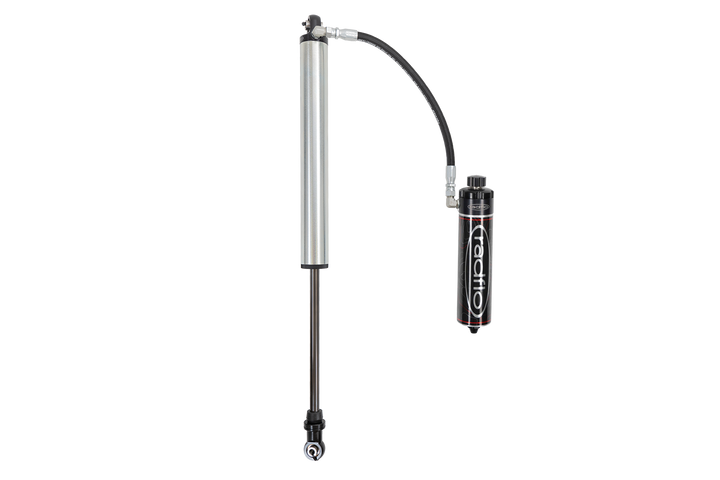

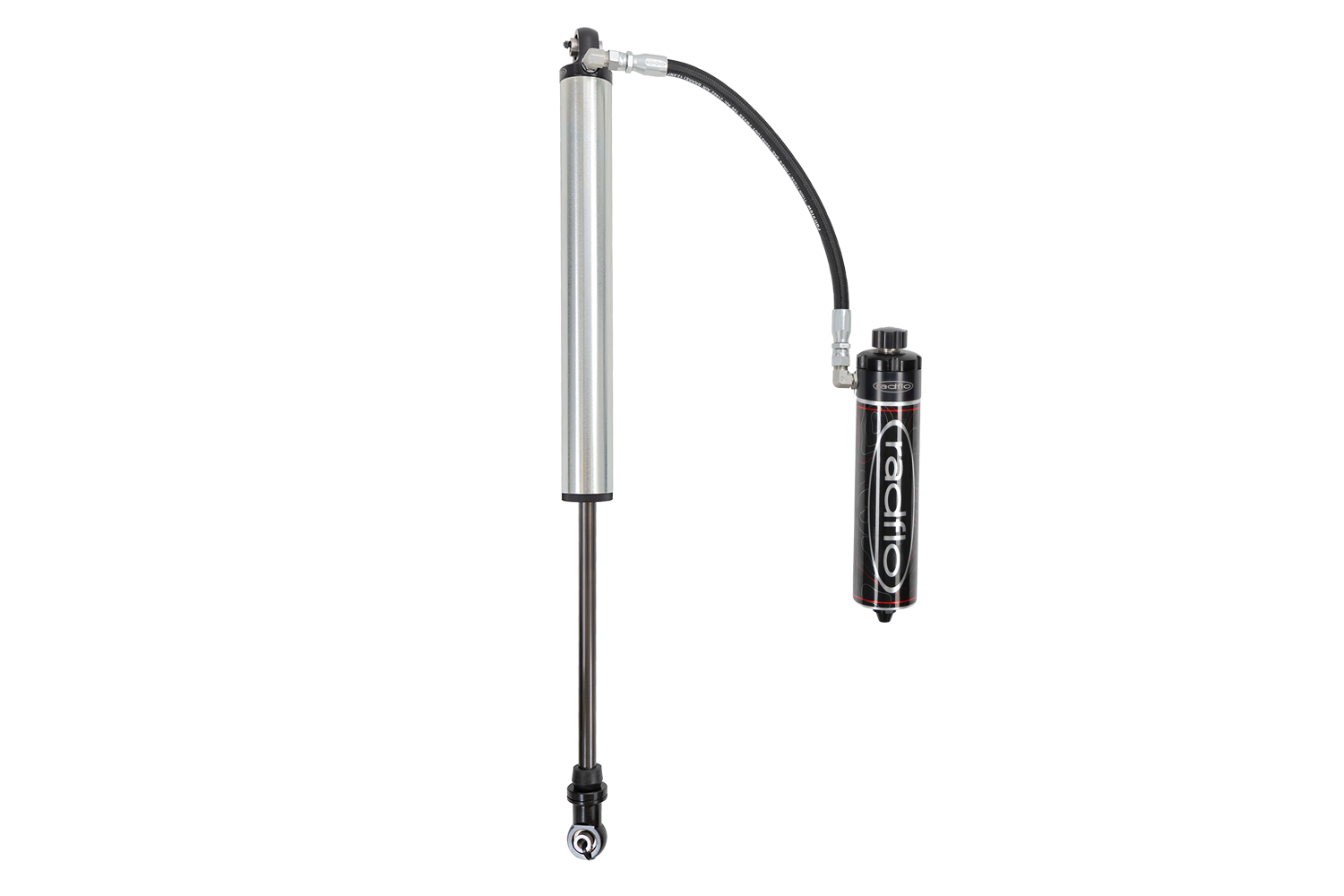

6CR-005-0Z Dual Compression Adjuster 16 in 42.52 in 26.54 in

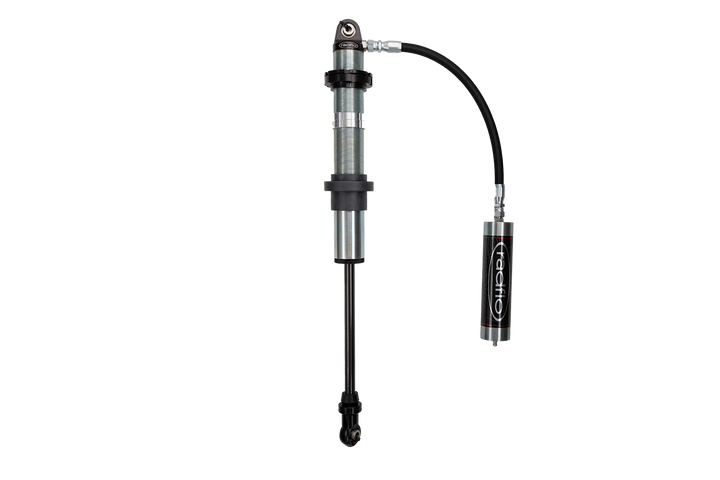

6CR-006-00 Standard 18 in 46.46 in 28.46 in
6CR-006-90 90 Degree Reservoir Fitting 18 in 46.46 in 28.46 in
6CR-006-0A Compression Adjuster 18 in 46.46 in 28.46 in
6CR-006-0Z Dual Compression Adjuster 18 in 46.46 in 28.46 in
