Radflo

Radflo 2.0 Coilover Shock with Reservoir

5CR-012-00

$475.00
/
Shipping calculated at checkout.
Travel
Shaft
Version

Radflo 2.0 Coilover Shock with Reservoir is a universal coilover shock, not vehicle specific. Pick your travel length, shaft and version above. Each option is its own Radflo part number, listed in the chart below.

For those that require even more tuning capability, Radflo offers a full line of coil-over shocks to suit the most advanced suspension setups. Start by choosing the ideal spring specifications from a wide selection of single or multiple-rate coil combinations. Radflo will then independently set rebound and compression valving to complement your spring selection and vehicle specifications. Once installed, you can adjust ride height, preload and travel to suit your application and performance requirements.

Integrated spring and shock performs better and requires less space. Make fast, easy and extremely precise coil spring adjustments without removing from vehicle.

This shock is picked by dimensions, not by vehicle. Confirm collapsed length, extended length, mount types, mounting widths, bolt sizes, reservoir placement, hose clearance and chassis clearance before ordering. Also confirm spring inside diameter, free length, rate, hardware and available preload range.

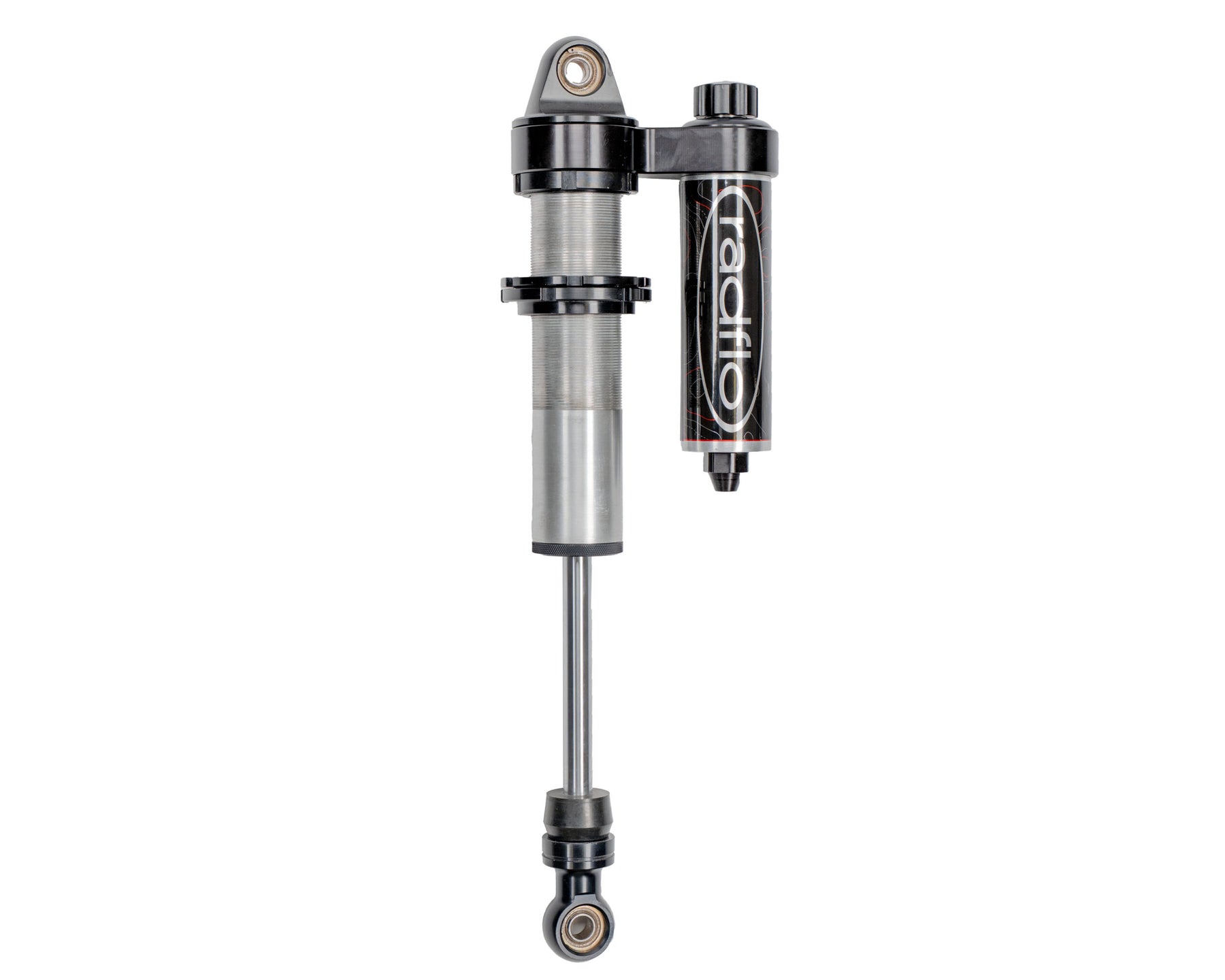

The 90 degree versions use a 90 degree reservoir hose fitting. Compression adjuster versions let you refine damping for terrain, load and driving style without opening the shock. Piggyback versions mount the reservoir on the shock body instead of on a hose. Large Bearing Com10 versions are listed by Radflo as using a larger Com10 bearing. The 9B part numbers are listed by Radflo with a 90 degree fitting; ask us if you need the exact difference from the standard 90 degree version.

Details:

  • Diameter: 2.0 Inch
  • Top: Eye
  • Bottom: Eye
  • Bearing size: 0.5 Inch
  • Mount: Universal Spherical Bearing And Hardware
  • Body style: SSID Alloy Steel Tube
  • Finish: Zinc Plated w/Clear Coat
  • Body caps/eyelets: CNC Machined 6061 Aluminum Black Anodized
  • Rod: Nitro Steel
  • Rod finish: Mirror Polished
  • Rod guide material: Machined Bronze
  • Rod guide finish: PTFE Coating
  • Oil: Radflo High-Temp Foam Resistant Suspension Fluid
  • Pressurization: Nitrogen Gas
  • PSI: 200 psi
  • Reservoir type: Remote Reservoir
  • Seal: Rebuildable Combination Quad Ring And Lip Seal
  • Valving: Velocity-Sensitive Deflective Disc, Self-Adjusting
  • Coil-over springs: Dual Spring Hardware Included. Springs Sold Separately.
  • Service: Consumer or factory serviceable
  • Tuning: Consumer Or Factory Tunable
  • Location: Front/Rear
  • Warranty: 1 Year Limited Warranty
  • Country of origin: USA

Part numbers and sizes:

Part number Shaft Version Travel Extended Collapsed
5CR-012-00 5/8" Standard 6 in 18.62 in 12.64 in
5CR-012-90 5/8" 90 Degree Reservoir Fitting 6 in 18.62 in 12.64 in
5CR-012-0A 5/8" Compression Adjuster 6 in 18.62 in 12.64 in
5CR-011-00 5/8" Standard 6.5 in 19.38 in 12.92 in
5CR-011-90 5/8" 90 Degree Reservoir Fitting 6.5 in 19.38 in 12.92 in
5CR-011-0A 5/8" Compression Adjuster 6.5 in 19.38 in 12.92 in
5CR-001-00 5/8" Standard 8 in 22.83 in 14.8 in
5CR-001-90 5/8" 90 Degree Reservoir Fitting 8 in 22.83 in 14.8 in
5CR-001-0A 5/8" Compression Adjuster 8 in 22.83 in 14.8 in
5CR-005-00 7/8" Standard 8 in 22.83 in 14.8 in
5CR-005-90 7/8" 90 Degree Reservoir Fitting 8 in 22.83 in 14.8 in
5CR-005-0A 7/8" Compression Adjuster 8 in 22.83 in 14.8 in
5CR-013-00 5/8" Standard 8.5 in 23.34 in 15 in
5CR-013-90 5/8" 90 Degree Reservoir Fitting 8.5 in 23.34 in 15 in
5CR-013-0A 5/8" Compression Adjuster 8.5 in 23.34 in 15 in
5CR-002-00 5/8" Standard 10 in 26.57 in 16.57 in
5CR-002-90 5/8" 90 Degree Reservoir Fitting 10 in 26.57 in 16.57 in
5CR-002-0A 5/8" Compression Adjuster 10 in 26.57 in 16.57 in
5CR-006-00 7/8" Standard 10 in 26.57 in 16.57 in
5CR-006-90 7/8" 90 Degree Reservoir Fitting 10 in 26.57 in 16.57 in
5CR-006-9B 7/8" 90 Degree Fitting 9B 10 in 26.57 in 16.57 in
5CR-006-0B 7/8" Large Bearing Com10 10 in 26.57 in 16.57 in
5CR-006-0A 7/8" Compression Adjuster 10 in 26.57 in 16.57 in
5CR-003-00 5/8" Standard 12 in 31.5 in 19.53 in
5CR-003-90 5/8" 90 Degree Reservoir Fitting 12 in 31.5 in 19.53 in
5CR-003-0A 5/8" Compression Adjuster 12 in 31.5 in 19.53 in
5CR-007-00 7/8" Standard 12 in 31.5 in 19.53 in
5CR-007-90 7/8" 90 Degree Reservoir Fitting 12 in 31.5 in 19.53 in
5CR-007-9B 7/8" 90 Degree Fitting 9B 12 in 31.5 in 19.53 in
5CR-007-0P 7/8" Piggyback Reservoir 12 in 31.5 in 19.53 in
5CR-007-0B 7/8" Large Bearing Com10 12 in 31.5 in 19.53 in
5CR-007-0A 7/8" Compression Adjuster 12 in 31.5 in 19.53 in
5CR-008-00 7/8" Standard 14 in 35.43 in 21.50 in
5CR-008-90 7/8" 90 Degree Reservoir Fitting 14 in 35.43 in 21.50 in
5CR-008-9B 7/8" 90 Degree Fitting 9B 14 in 35.43 in 21.50 in
5CR-008-0P 7/8" Piggyback Reservoir 14 in 35.43 in 21.50 in
5CR-008-0B 7/8" Large Bearing Com10 14 in 35.43 in 21.50 in
5CR-008-0A 7/8" Compression Adjuster 14 in 35.43 in 21.50 in
5CR-009-00 7/8" Standard 16 in 39.76 in 23.78 in
5CR-009-90 7/8" 90 Degree Reservoir Fitting 16 in 39.76 in 23.78 in
5CR-009-9B 7/8" 90 Degree Fitting 9B 16 in 39.76 in 23.78 in
5CR-009-0P 7/8" Piggyback Reservoir 16 in 39.76 in 23.78 in
5CR-009-0B 7/8" Large Bearing Com10 16 in 39.76 in 23.78 in
5CR-009-0A 7/8" Compression Adjuster 16 in 39.76 in 23.78 in
5CR-010-00 7/8" Standard 18 in 44.09 in 26.38 in
5CR-010-90 7/8" 90 Degree Reservoir Fitting 18 in 44.09 in 26.38 in
5CR-010-0A 7/8" Compression Adjuster 18 in 44.09 in 26.38 in
