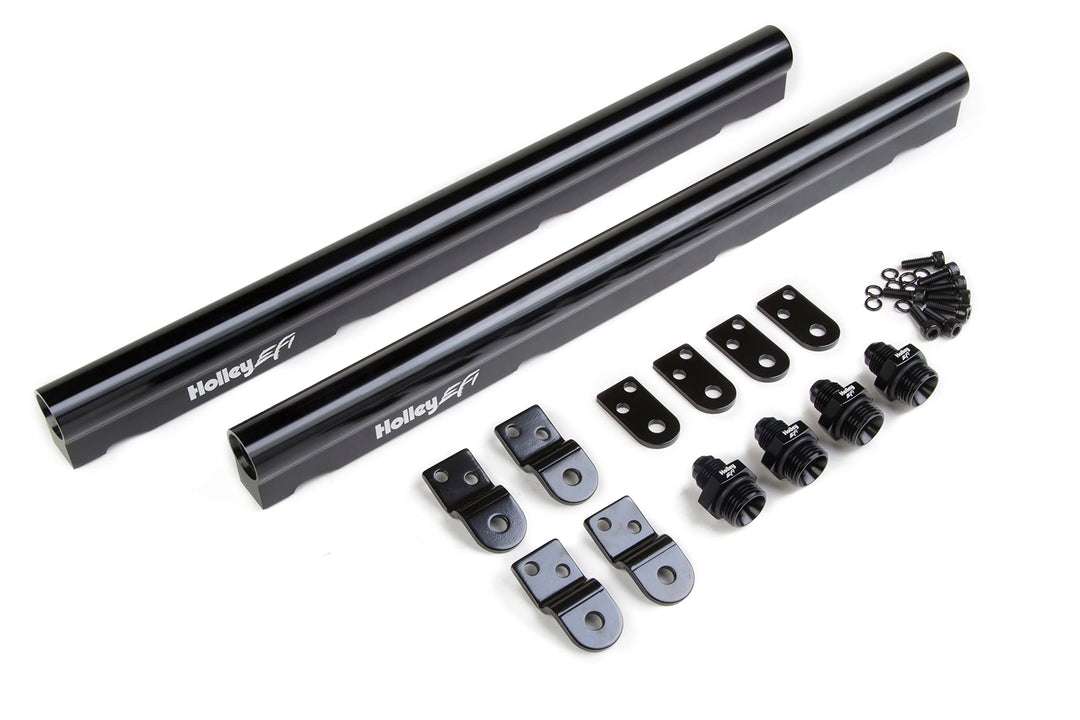

LS Hi-Flow Holley EFI Fuel Rails - Fits LS1, LS2, LS3, LS6 & L99 factory intakes Includes (4) -6 to 3/4"-16 O-ring fittings. Fuel Rail mounting brackets and required mounting hardware.
Features:
- Bright dip, black anodized finish with laser etched EFI logo for long lasting good looks
- 5/8” diameter fuel passage provides the flow capacity for high horsepower applications
- Fuel rails are machined to accept -8 (3/4-16) O-ring fittings
- Includes (4) -6 to 3/4-16 O-ring adapters
Note: If this product is to be used with aftermarket (tall) EV1 performance injectors: • LS2, LS3, and L99 applications will require taller brackets and adapter O-rings to be used with EV1 injectors. Holley part number 534-212 will have these required parts. • LS1 and LS6 application will work with EV1 injectors without any additional parts. Holley part number 534-211 allows easy connection to factory fuel lines.
| Brand | Holley EFI |
|---|---|
| Category | Intake Manifolds |
| Color | Black |
| Emission Code | 5 |
| Engine | GM LS1/LS2/LS6 |
| Fittings Included | No |
| Fuel Injection Type | Port |
| Fuel Injectors Included | No |
| Fuel System Type | EFI |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Material | Aluminum |
| Product Type | Fuel Rail |
| UPC | 090127680582 |
| Part Number | 534-209 |
